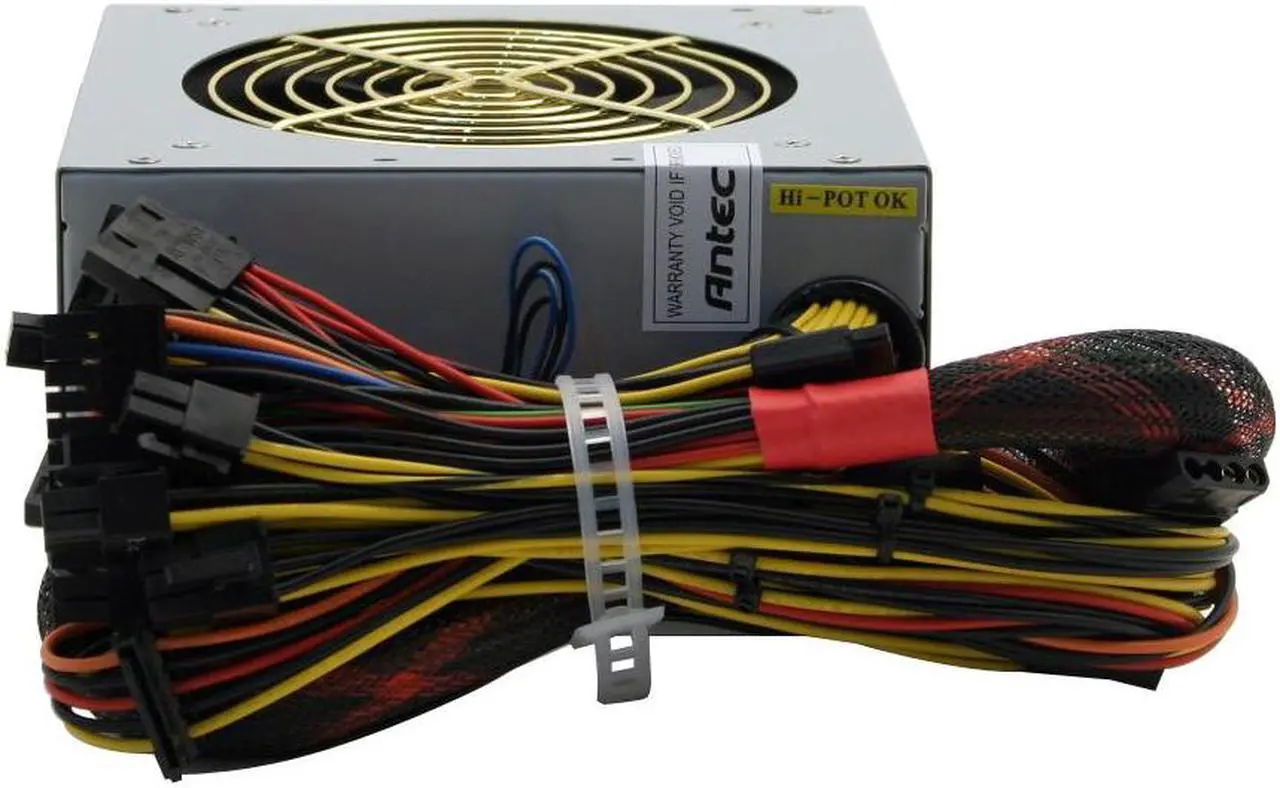

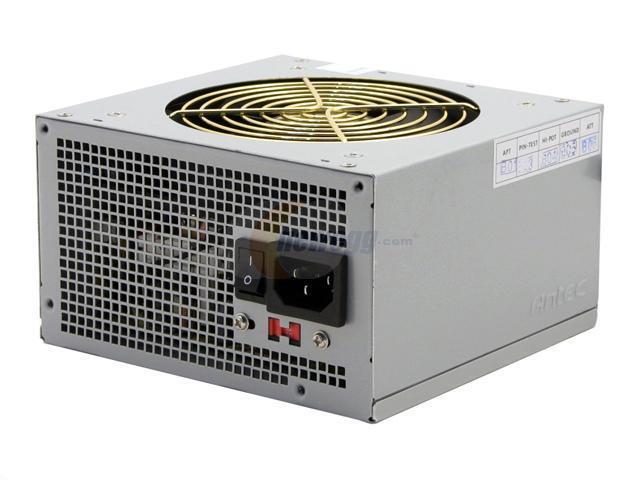

Antec TRUEPOWERII TPII-480 480 W ATX12V 2.01 SLI Ready Power Supply

  • ATX12V 2.01
  • 115/ 230 V
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (22)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Antec TPII-480

General
Brand Antec
Series TRUEPOWERII
Model TPII-480
Details
Type ATX12V 2.01
Maximum Power 480 W

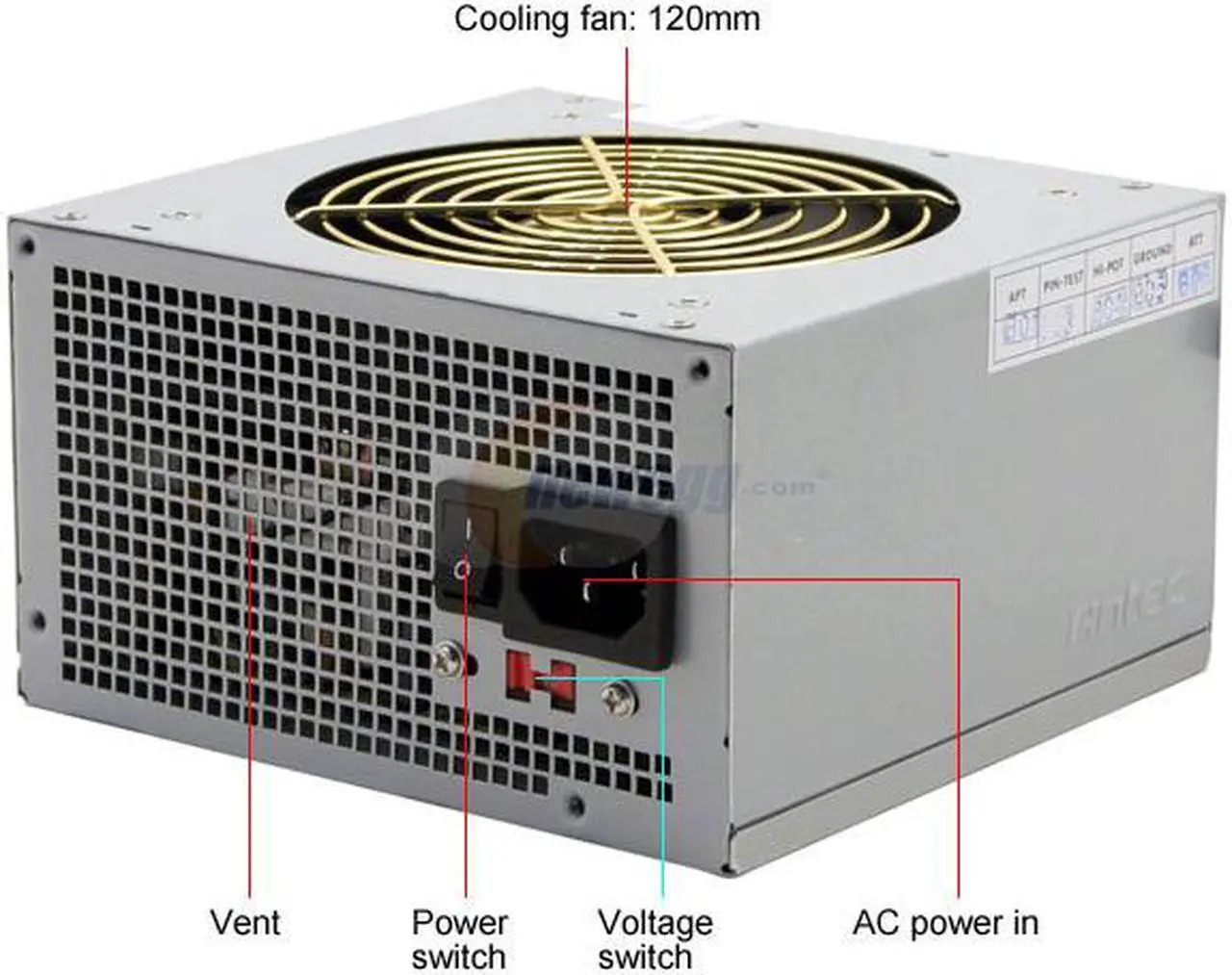

Fans 1
PFC No

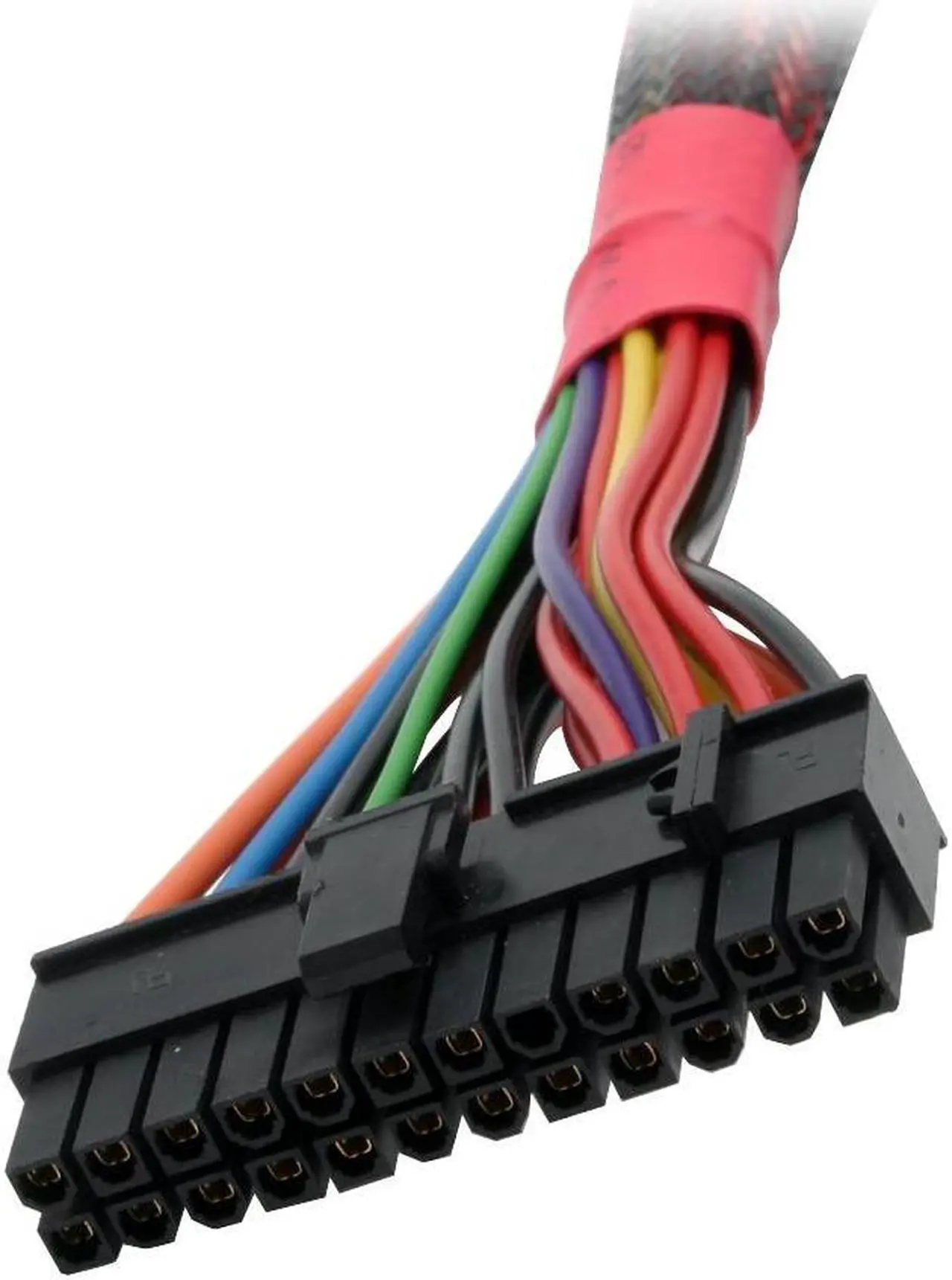

Main Connector 20+4Pin
+12V Rails Yes
PCI-Express Connector 2 x 6-Pin
SLI SLI Ready
Modular No
Power Good Signal 100-500ms
Hold-up Time 17ms min.
Efficiency > 70%
Over Voltage Protection +5V trip point < +6.5V, +3.3V trip point < +4.1V, +12V trip point < +14.4V
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 12A @ 115V, 6A @ 230V

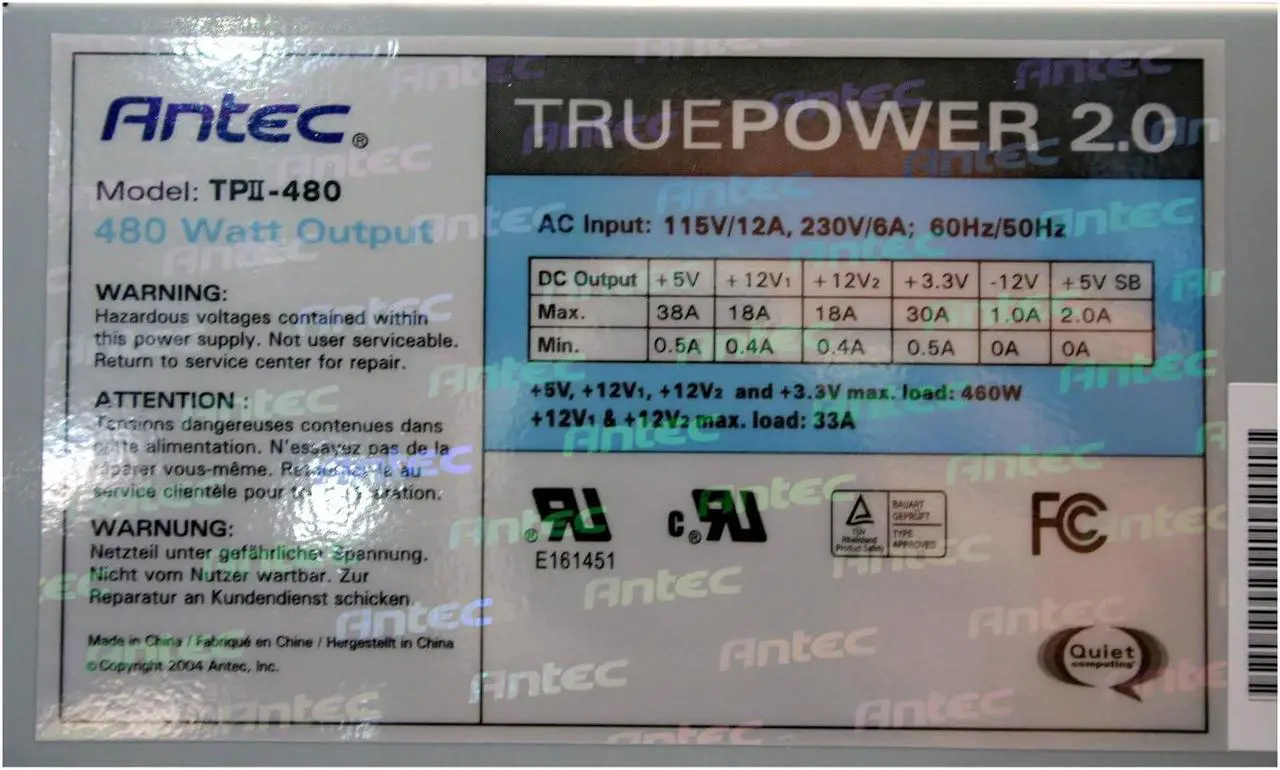

Output +3.3V@30A, +5V@38A, +12V1@18A, +12V2@18A,
-12V@1A, +5VSB@2A
MTBF >80,000 Hours
Approvals UL, TUV, CB, FCC CLASS B, CUL

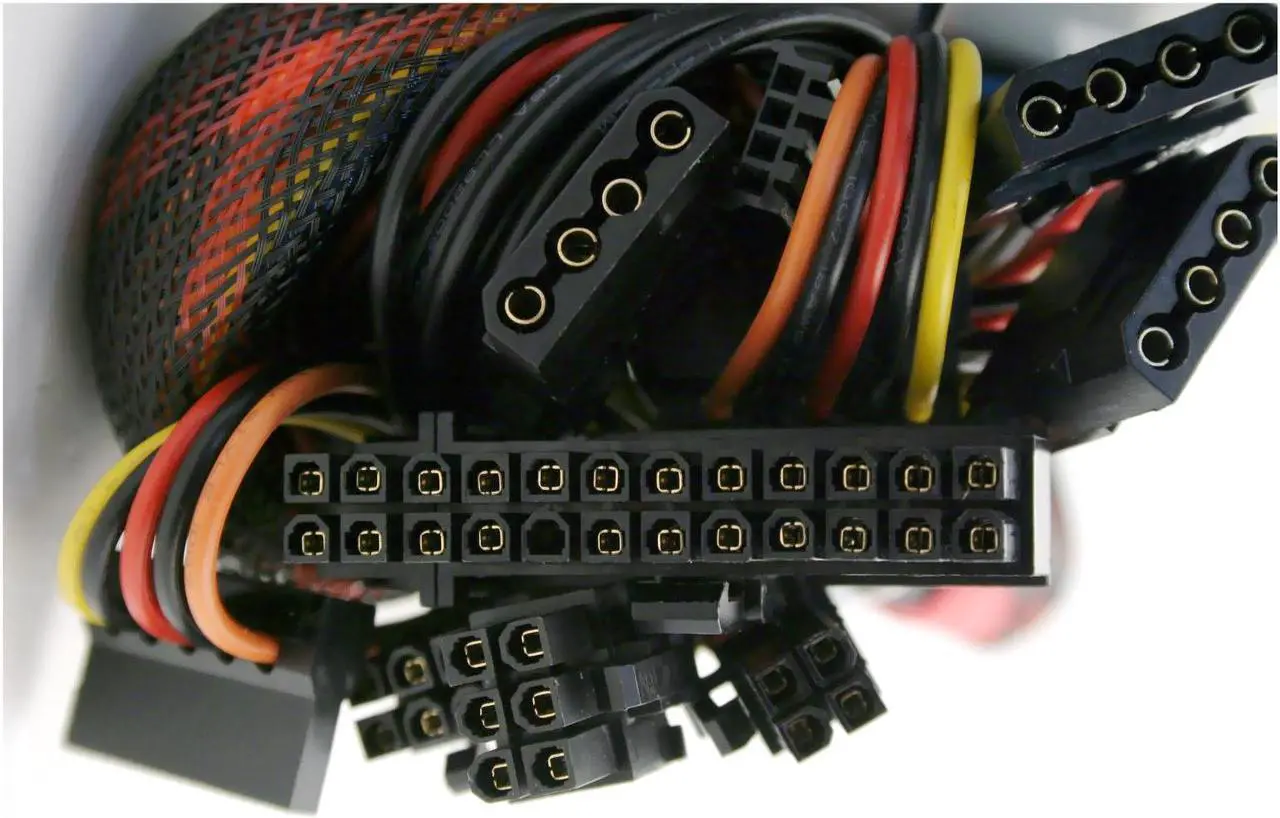

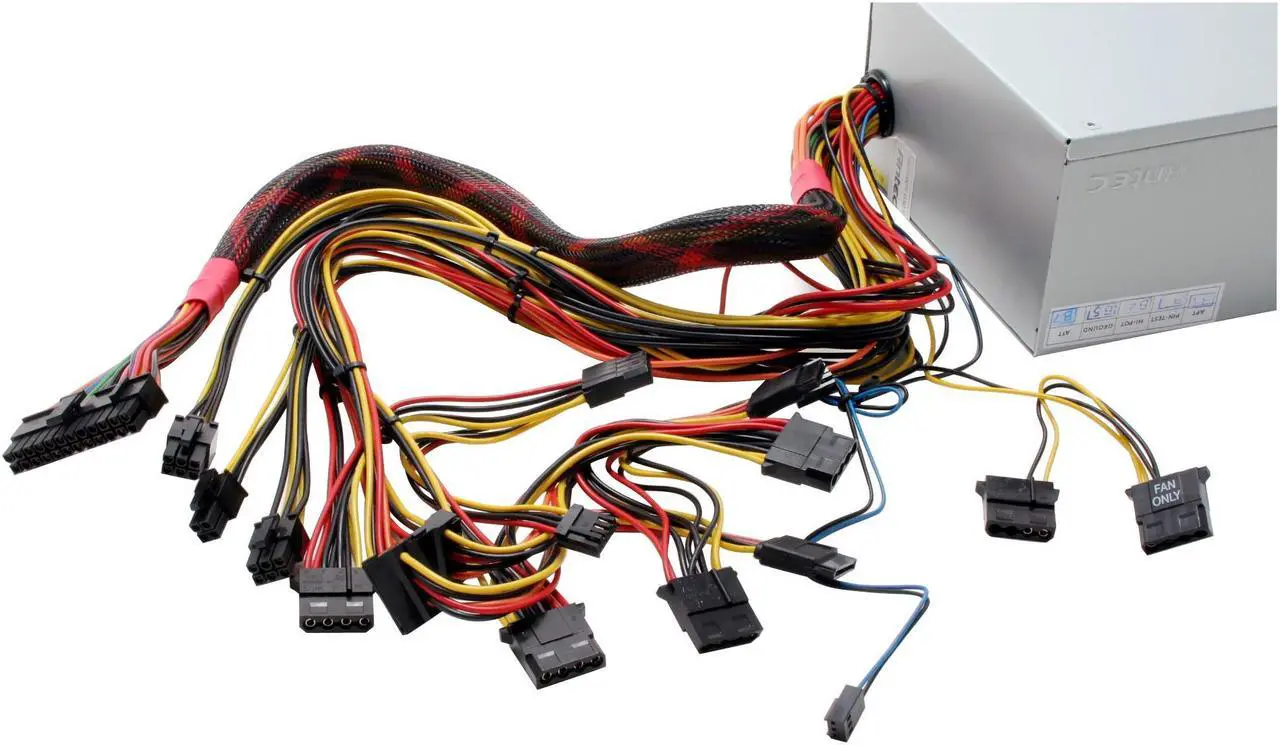

Connectors 1 x Main connector (20+4Pin)
1 x 12V (P4)
7 x peripheral
4 x SATA
2 x Floppy
2 x PCI-E
Additional Information
Date First Available March 30, 2005

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
