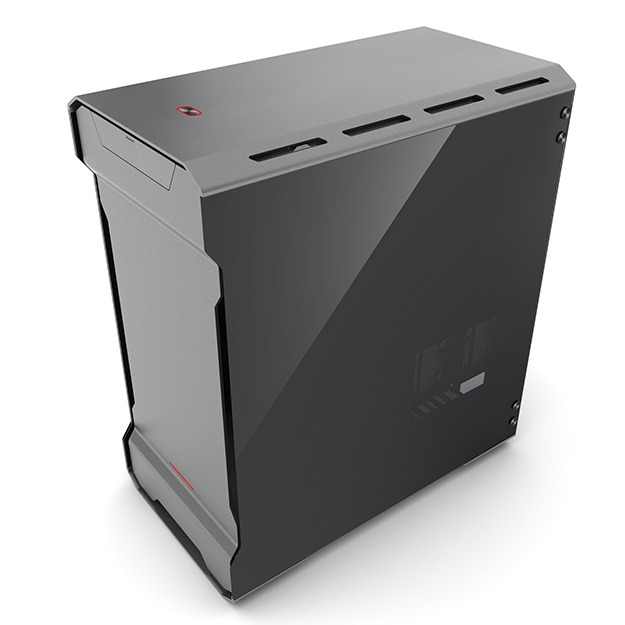

Enthoo Evolv mATX Tempered Glass
The EVOLV MATX is the successor of the very first Evolv case and combines 3mm anodized aluminum with dual tempered glass side panels. System builders and watercooling enthusiasts can now present their build with a premium touch. The EVOLV MATX is equipped with innovative features, amazing (water)cooling potential, and RGB illumination. Now available in: Satin Black, Anthracite Grey and Galaxy Silver.
Features:
Enthoo Evolv includes 1 x 140mm fan in front and 1 x 140mm fan in the rear. Ability to upgrade to additional fans is possible. All fans included are Phanteks new redesigned and better performing premium fans.
APPEARANCE
- Full 3mm aluminum exterior
- Available in: Black / Gray / Silver

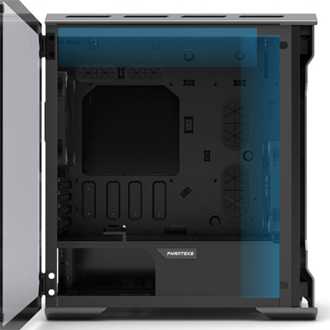

- Clean interior - Midplate hiding PSU cables and HDDs
- RGB LED Illumination
- Dual Tempered Glass panels
FEATURES
INTEGRATED RGB ILLUMINATION

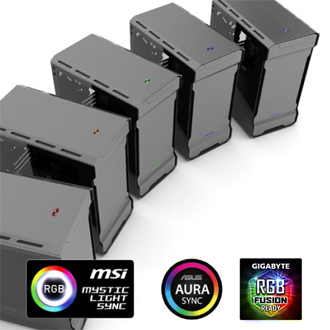

SYNC WITH RGB MOTHERBOARDS / PHANTEKS RGB PRODUCTS

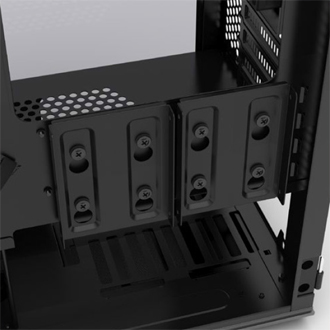

2X SSD BRACKET INCLUDED

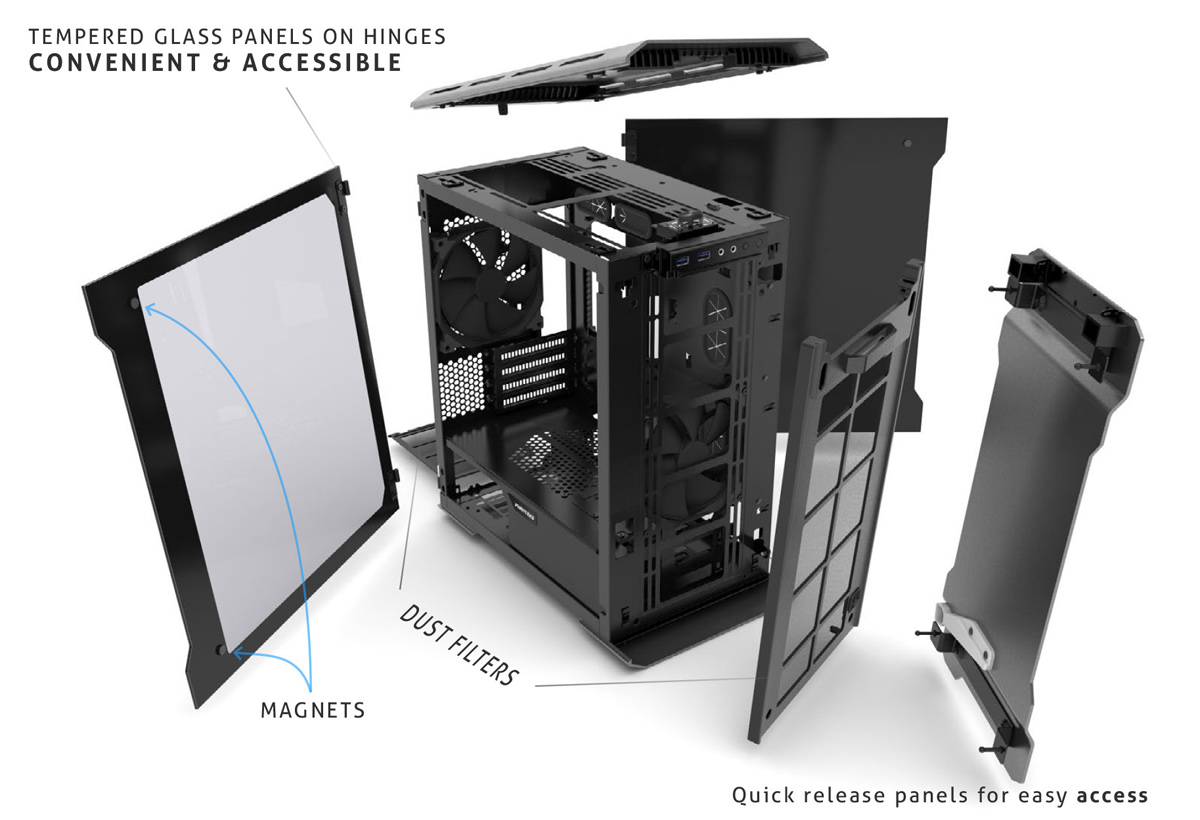

DUAL TEMPERED GLASS SIDE PANELS HIDDEN CABLES
WATERCOOLING READY
RADIATOR SUPPORT
SYNC WITH RGB MOTHERBOARDS / PHANTEKS RGB PRODUCTS

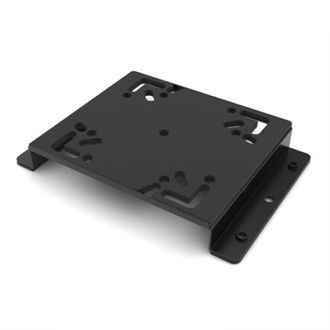

PUMP BRACKET
UNIVERSAL MOUNTS FOR PUMPS / RESERVOIRS
| Case Specifications | |||

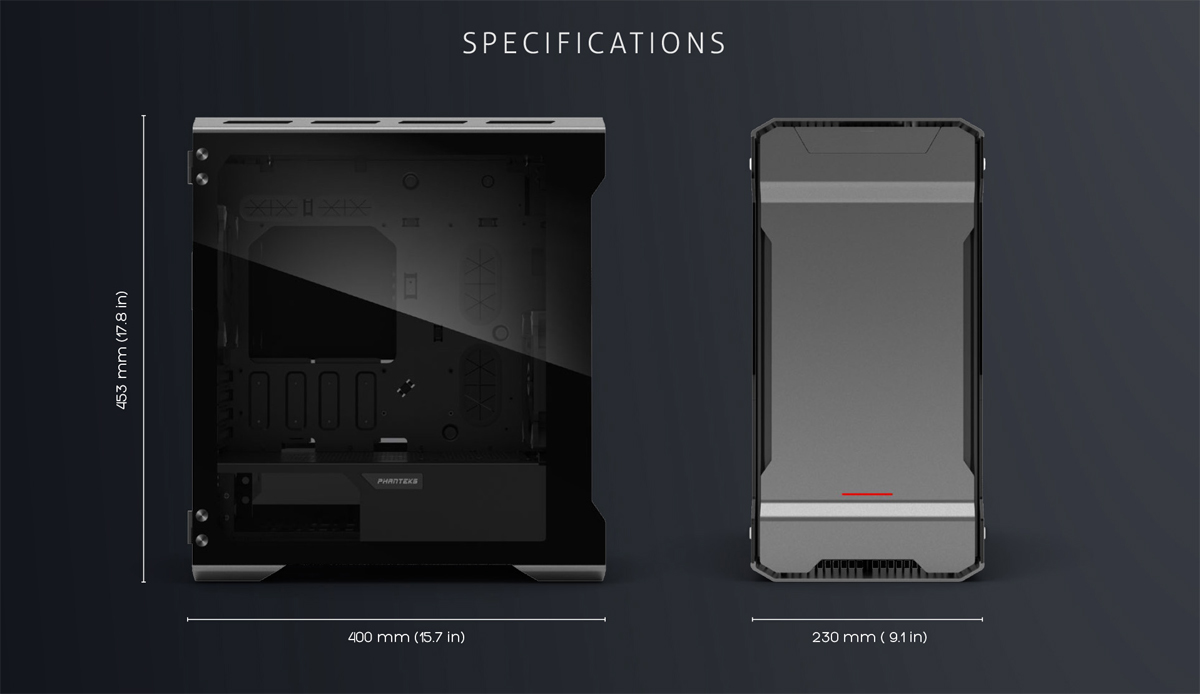

| Dimension | 230 mm x 453 mm x 400 mm (W x H x D) 9.1 in x 17.8 in x 15.7 in |
||
| Form Factor | Micro Tower | ||
| Material(s) | Aluminum (3mm), Tempered glass (3mm), Steel chassis | ||
| Motherboard Support | Micro ATX, Mini ITX | ||
| Front I/O | 2x USB 3.0, Mic, Headphone, Reset, LED control | ||

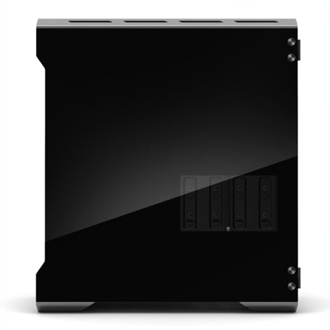

| Side Window | Yes, tempered glass panels (left and right) | ||
| Expansion & Drive Bays | |||
| Expansion slots | 4 | ||
| Internal 3.5" | 2x | ||
| Internal (dedicated) 2.5" | 2x | ||
| COOLING | 120mm fan | 140mm fan | |
| Front | 3x | 2x (1 included) | |
| Top | 2x | 2x | |
| Rear | 1x | 1x (1 included) | |
| LIQUID COOLING | 120mm radiator | 140mm radiator | |
| Front | Up to 360* | Up to 280 | |
| Top | Up to 240 | Up to 280 | |
| Rear | 120 | 140 | |
| * 3.5" HDD brackets needs to be romoved for 360 radiators, (up to 126mm wide) | |||
| CLEARANCE | |||

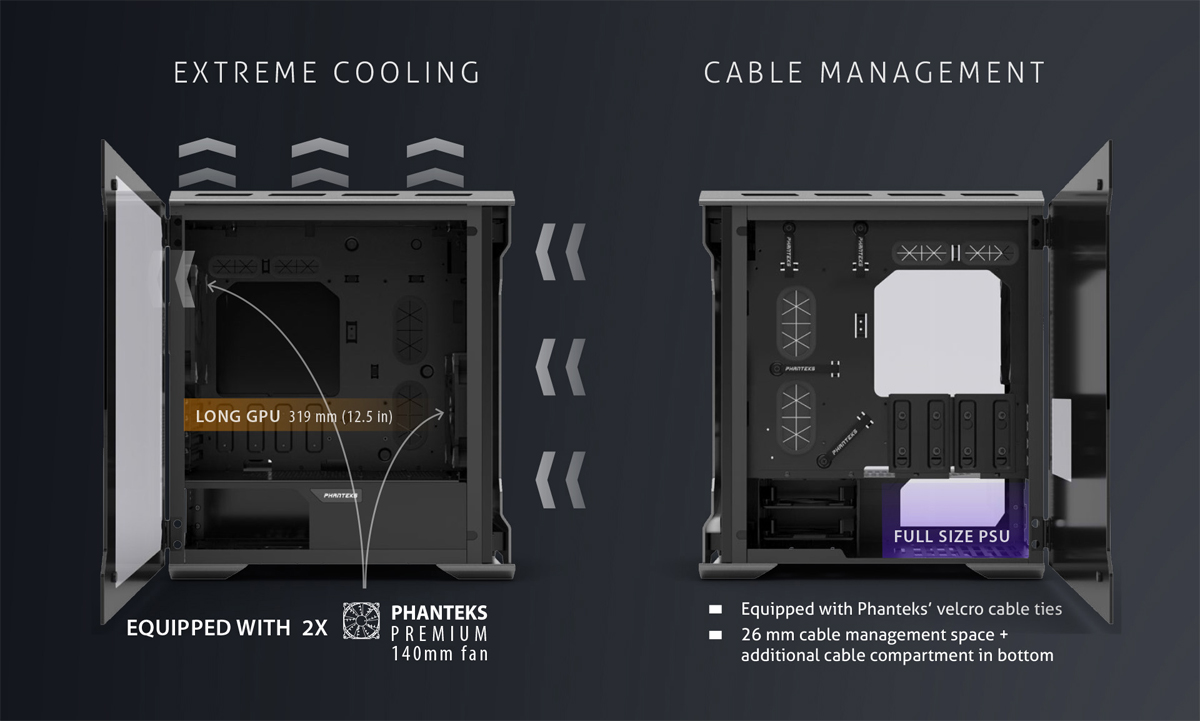

| Graphic card | 319 mm (12.5 in) | ||
| CPU cooler | 192 mm (7.5 in) | ||
| Cable management | 26 mm (1.0 in) | ||
| PSU (including cable) | 216 mm (8.5 in) | ||
| Packaging Information | PH-ES314ETG | ||
| Net Weigth | 9 kg (19.8 bls) | ||
| Gross Weigth | 10 kg (22.0 lbs) | ||
| Package Dimension | 308 mm x 540 mm x 463 mm (W x H x D) | ||
| Warranty | |||
| Length | 5 Years Limited | ||
