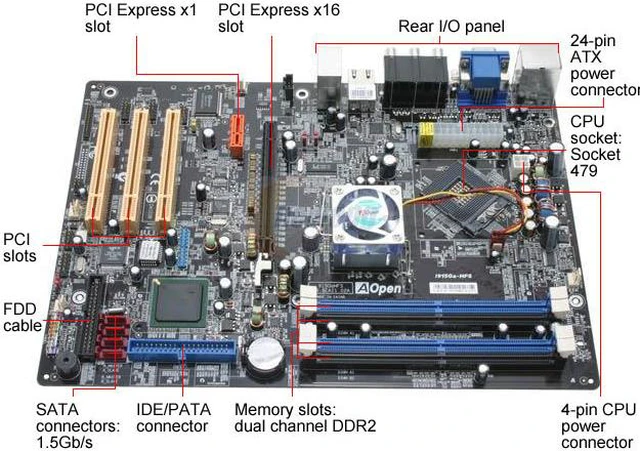

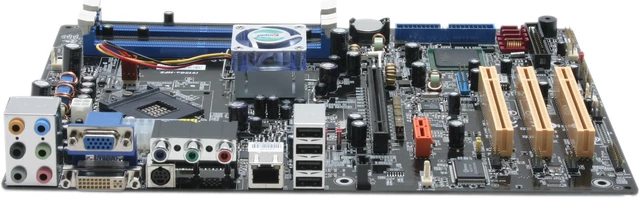

AOpen i915Ga-HFS Socket 479 Intel 915G ATX Intel Motherboard
- Intel 915G
- Pentium M (Dothan / Banias)
- DDR2 533
Specs
Reviews (7)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the AOpen i915Ga-HFS
| Brand | AOpen |
|---|---|
| Model | i915Ga-HFS |
| CPU Socket Type | Socket 479 |
|---|---|
| CPU Type | Pentium M (Dothan / Banias) |
| Chipset | Intel 915G |
|---|---|
| South Bridge | Intel ICH6 |
| Onboard Video Chipset | Intel GMA 900 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| Audio Chipset | Realtek ALC880 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell Gigabit PCI Express LAN Chip |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 2 |
| Video Ports | D-Sub + DVI + TV-Out |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 2 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

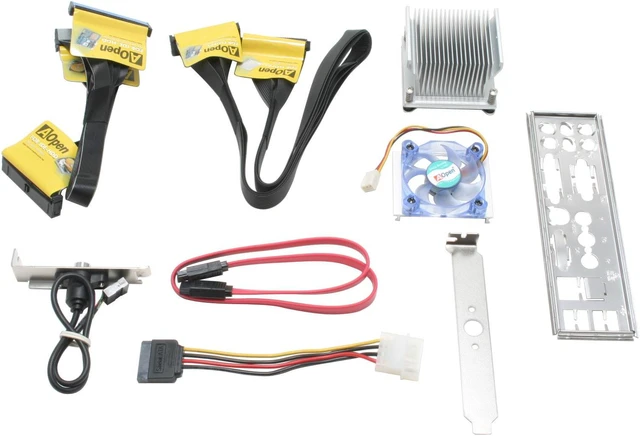

| Package Contents | i915Ga-HFS User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable Power Cable Heatsink Fan Bracket |
|---|
| First Listed on Newegg | August 31, 2005 |
|---|
