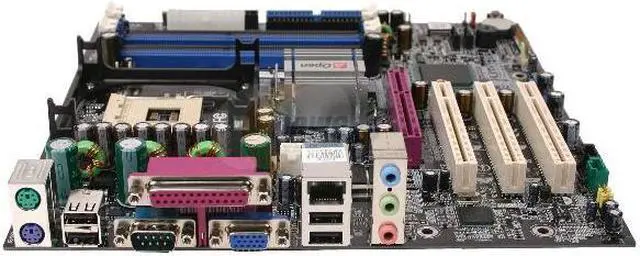

AOpen MX4SGVI-4DN2 Socket 478 Intel 865GV Micro ATX Intel Motherboard

OPEN BOX Product Type
  • Intel 865GV
  • Pentium 4 Prescott / Celeron
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the AOpen MX4SGVI-4DN2

Model
Brand AOpen
Model MX4SGVI-4DN2
Supported CPU
CPU Socket Type Socket 478
CPU Type Pentium 4 Prescott / Celeron
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel 865GV
South Bridge Intel ICH5
Onboard Video
Onboard Video Chipset Intel Extreme2 Graphics
Memory
Number of Memory Slots 4x184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 3 x PCI Slots
Onboard Audio
Audio Chipset Realtek ALC655
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Intel 82562EZ
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Features
Features Award PnP 4Mb Flash ROM BIOS
Additional Information
First Listed on Newegg January 26, 2005
