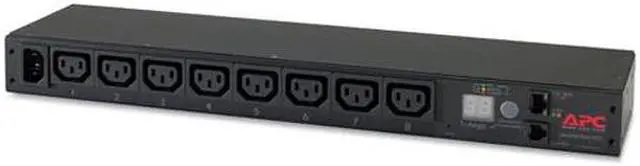

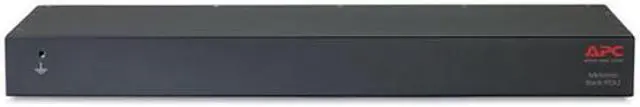

    APC AP7820 Metered 1U 208V,230V 15A Power Distribution Unit

    Be the first to review this product...
    • 208V,230V
    • 15A
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the APC AP7820

    Model
    Brand APC
    Series InfraStruXure
    Model AP7820
    Details
    Type Metered
    Rack Size 1U
    Certifications cUL Listed,C-tick,CE,CSA,FCC Part 15 Class A,GOST,UL 60950,UL Listed,VDE,VCCI
    ROHS Yes
    Input
    Input Voltage 200V,208V,230V
    Input Frequency 50/60 Hz
    Maximum Input Current 15A
    Regulatory Derated Input Current 10A
    Input Connector(s) IEC-320 C14
    Output
    Output Voltage 208V,230V
    Output Connector(s) 8 x IEC 320 C13
    Environmental
    Operating Environment -5 - 45 ºC
    Operating Relative Humidity 5 - 95%
    Operating Elevation 0 - 3000 m
    Storage Temperature -13°F (-25°C) to 149°F (65°C)
    Storage Relative Humidity 5 to 95% Relative Humidity Operating
    5 to 95% Relative Humidity Storage
    Storage Elevation 0 - 15000 m
    Feature
    Features Alarm Thresholds
    Flash Upgradeable
    Horizontal Mounting Capability
    Local Current Monitoring Display
    Network Management
    Rack Mountable
    Remote Current Monitoring
    Remote Management Capabilities
    Dimensions & Weight
    Dimensions 17.48" x 4.02" x 1.73"
    Weight 3.81 lbs
