APEVIA ATX-AS500W-BL 500 W ATX12V Power Supply
- ATX12V
- 115 / 230 V
- 2 x 80mm UV blue LED fan
Specs
Reviews (86)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the APEVIA CORP. ATX-AS500W-BL
| Brand | APEVIA |
|---|---|
| Model | ATX-AS500W-BL |
| Type | ATX12V |
|---|---|
| Maximum Power | 500 W |

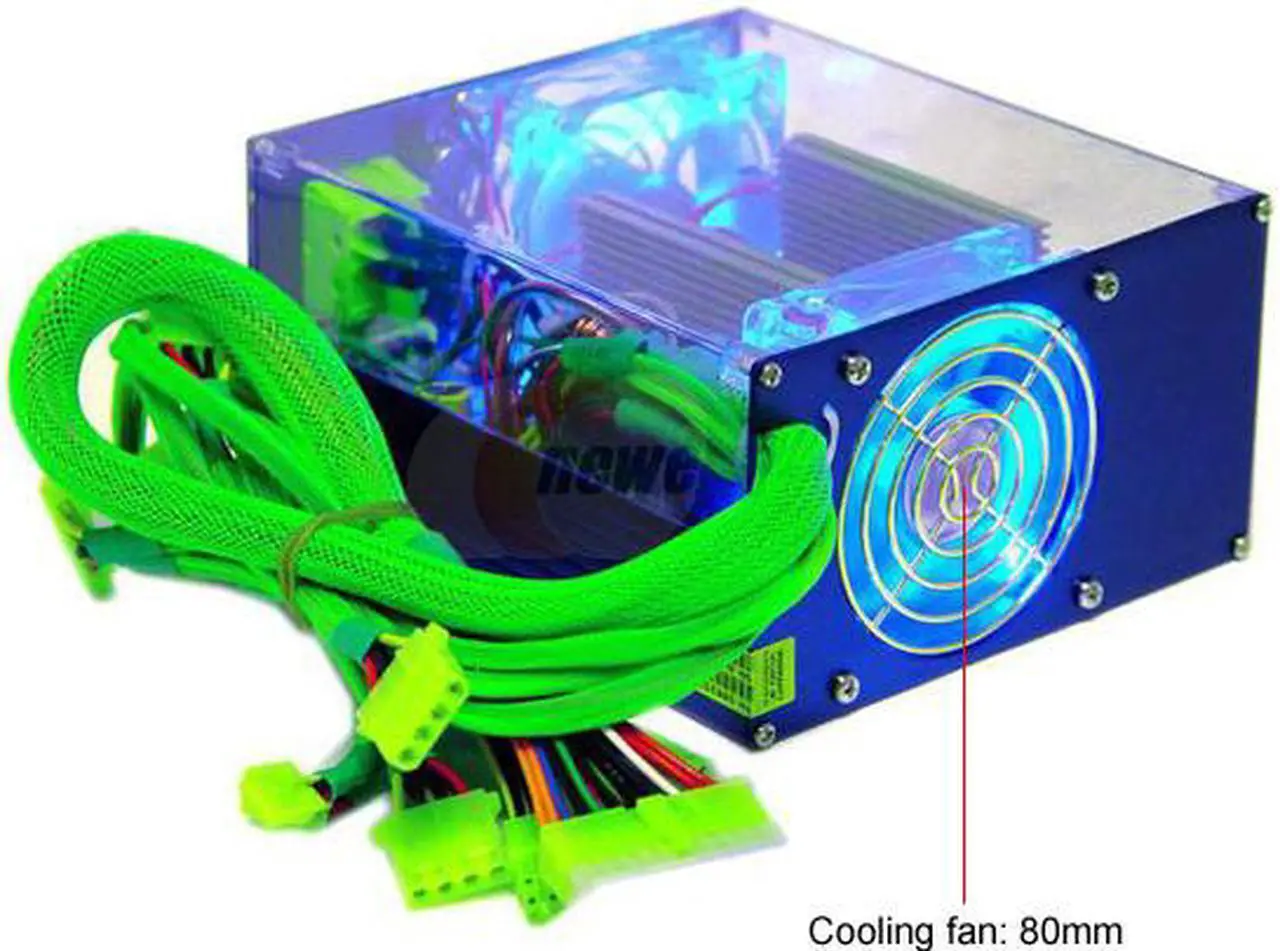

| Fans | 2 x 80mm UV blue LED fan |
| PFC | No |

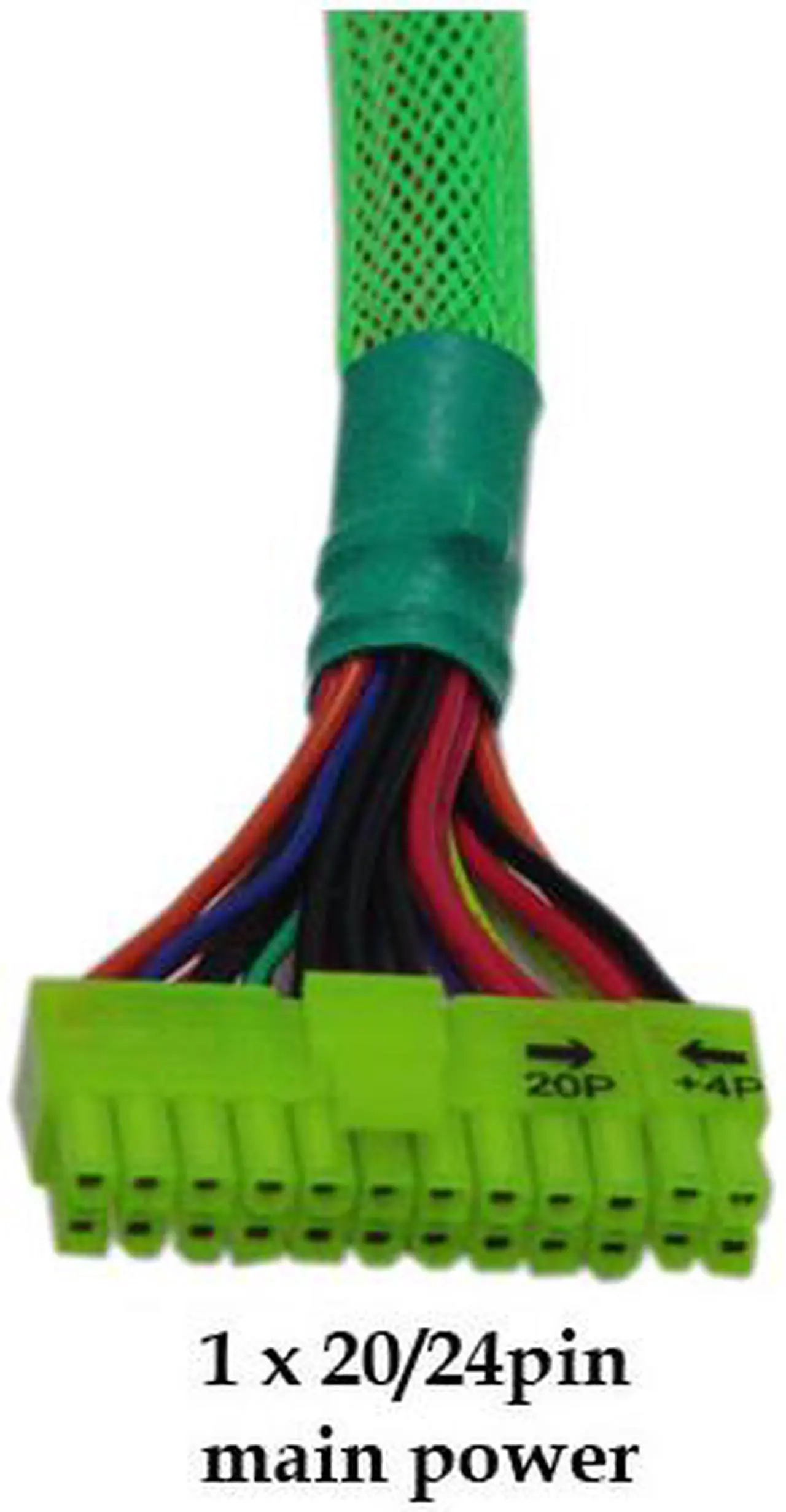

| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | No |
| SATA Power Connector | 2 |
| SLI | No |
| CrossFire | No |
| Modular | No |
| Power Good Signal | 100-500ms |
| Hold-up Time | >10ms at full load |
| Efficiency | >70% under max range load |
| Over Voltage Protection | Yes |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A @ 115V, 5A @ 230V |

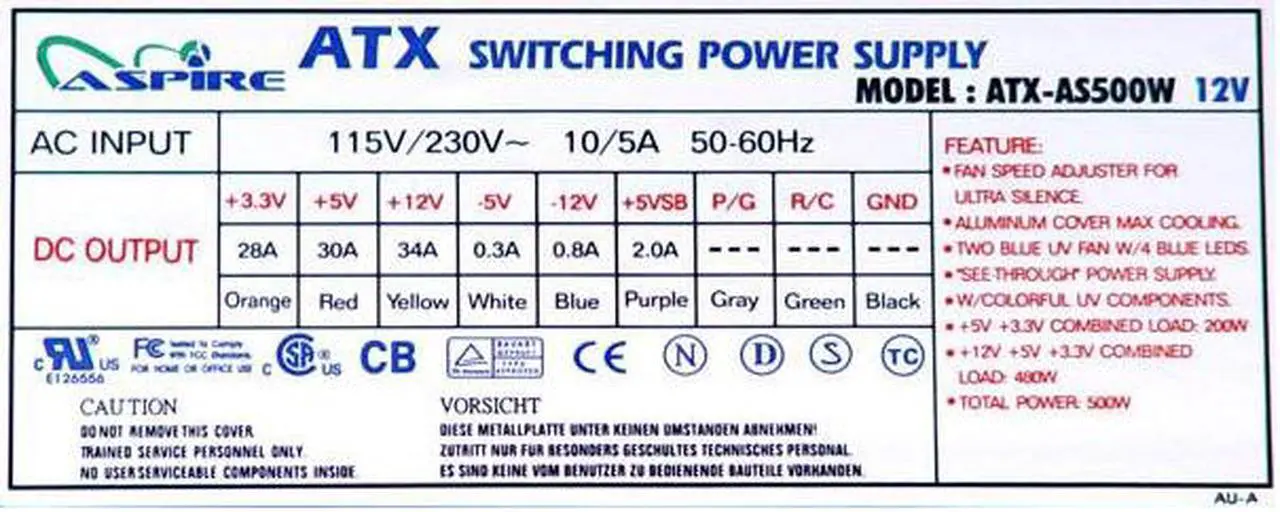

| Output | +3.3V@28A, +5V@30A, +12V1@16A, +12V2@18A, [email protected], [email protected], +5VSB@2A |
| MTBF | 100,000 hours at full load/25°C |
| Approvals | CB IEC 950/ TUV EN 60950/ UL 1950/ CSA 950 |

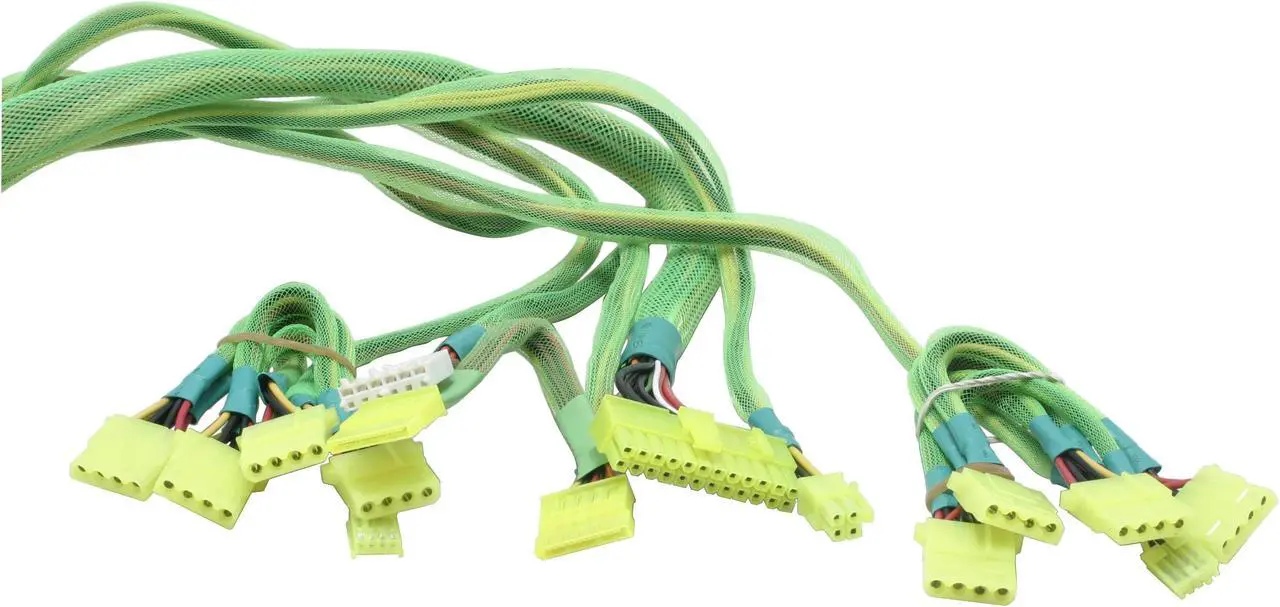

| Connectors | 1 x Main Power (20+4Pin) 1 x 12V (P4) 2 x SATA 8 x Peripheral 2 x Floppy |

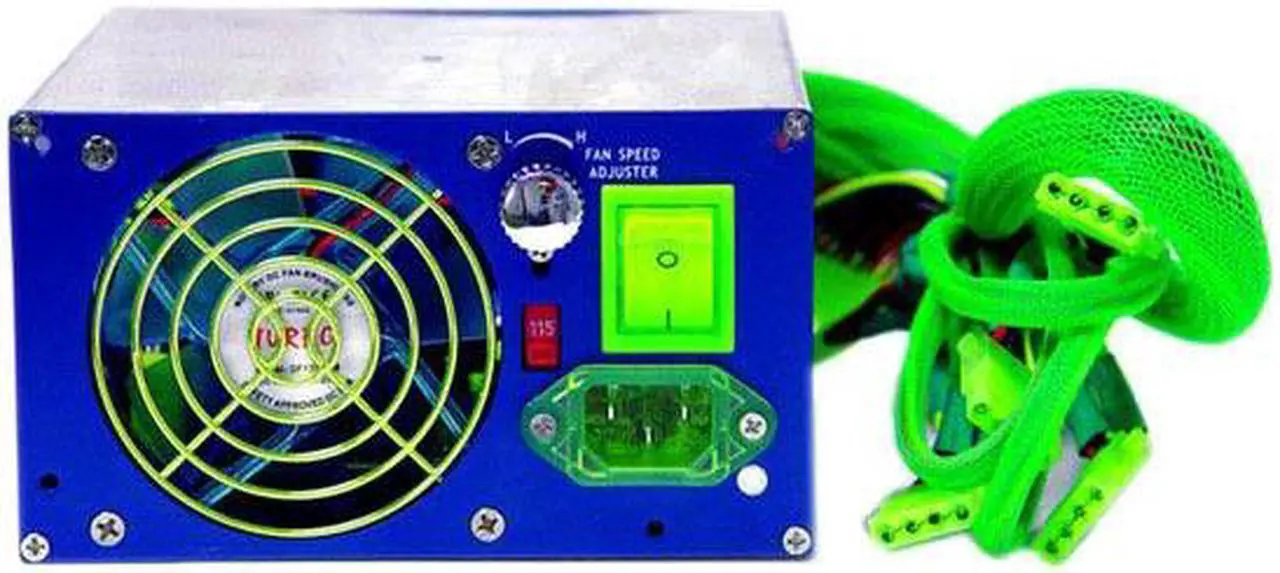

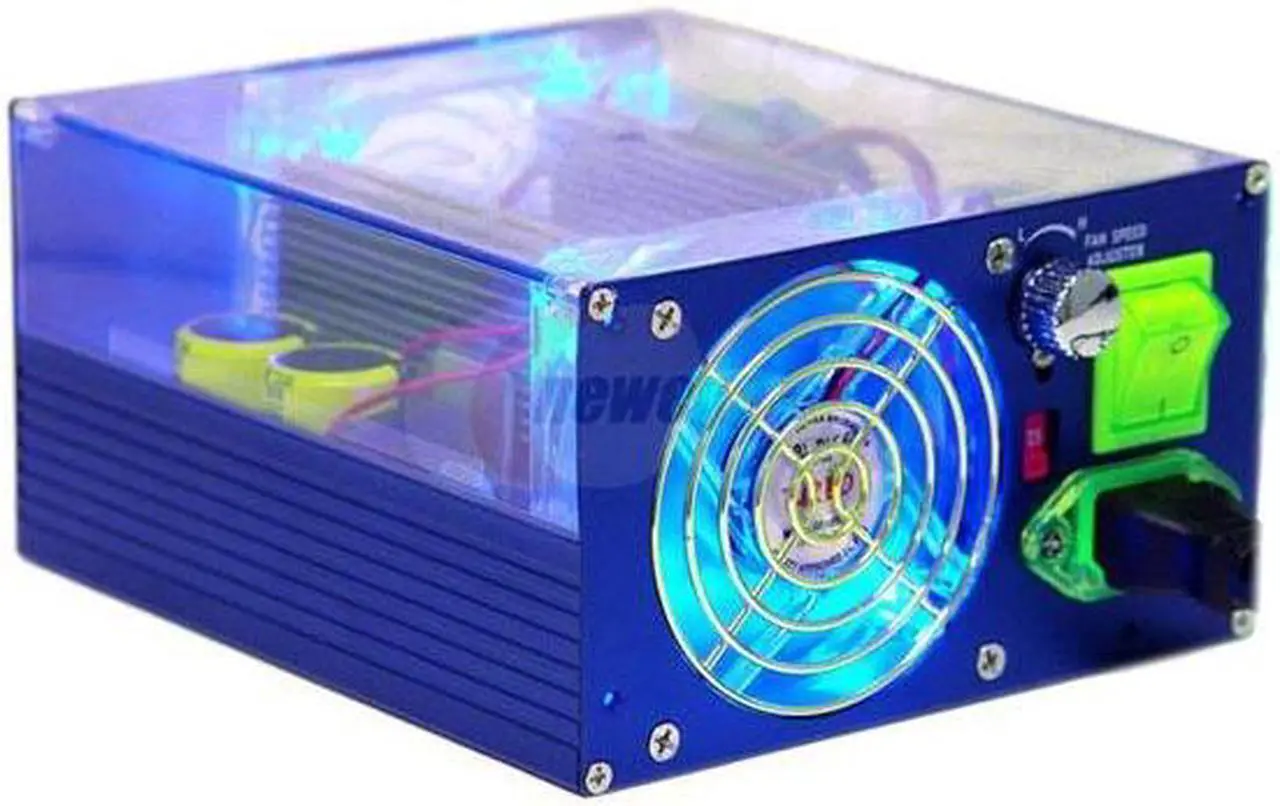

| Features | ATX 500W Aluminum Power Supply ATX Logic on-off, additional power rocker switch 115/230 Volt selector switch Short-circuit/ Over current/ Over voltage/ Over power/ Under voltage/ Electric shock free Protection Forced air ventilation by 2 x 80mm UV blue LED fan, with fan speed controller |
|---|
| Dimensions | 5.9" x 6.7" x 3.4" |
|---|---|
| Weight | 5.0 lbs. |
| First Listed on Newegg | August 15, 2003 |
|---|
