Brand | APEVIA |
---|---|
Model | ATX-AS500W-BL |
Type | ATX12V |
---|---|
Maximum Power | 500 W |
Fans | 2 x 80mm UV blue LED fan |
PFC | No |

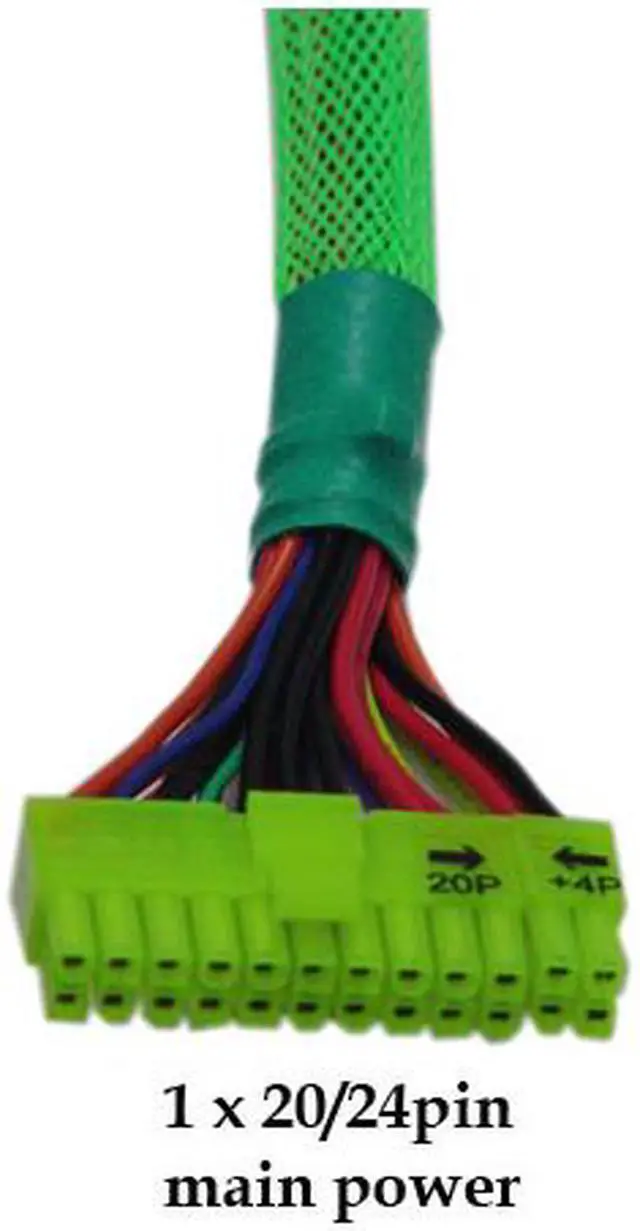

Main Connector | 20+4Pin |
+12V Rails | 2 |
PCI-Express Connector | No |
SATA Power Connector | 2 |
SLI | No |
CrossFire | No |
Modular | No |
Power Good Signal | 100-500ms |
Hold-up Time | >10ms at full load |
Efficiency | >70% under max range load |
Over Voltage Protection | Yes |
Input Voltage | 115 / 230 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10A @ 115V, 5A @ 230V |

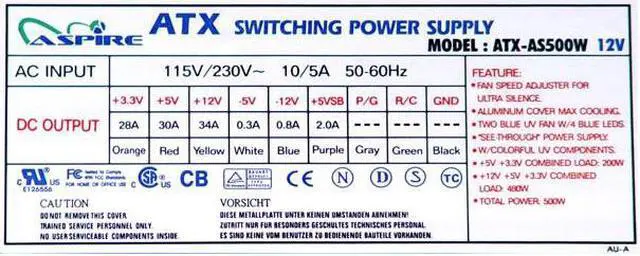

Output | +3.3V@28A, +5V@30A, +12V1@16A, +12V2@18A, -5V@0.3A, -12V@0.8A, +5VSB@2A |
MTBF | 100,000 hours at full load/25°C |
Approvals | CB IEC 950/ TUV EN 60950/ UL 1950/ CSA 950 |
Connectors | 1 x Main Power (20+4Pin) 1 x 12V (P4) 2 x SATA 8 x Peripheral 2 x Floppy |

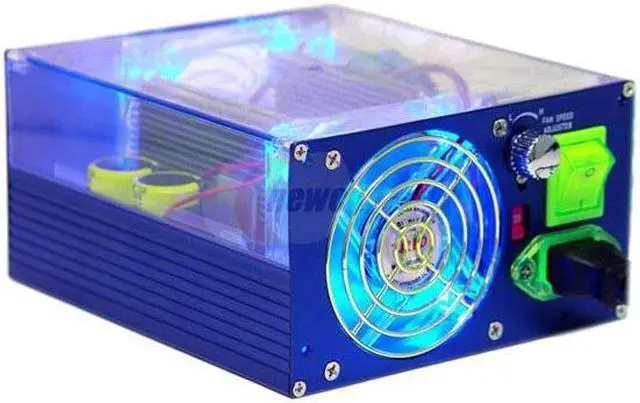

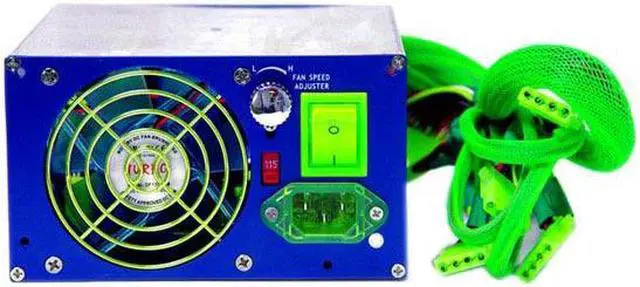

Features | ATX 500W Aluminum Power Supply ATX Logic on-off, additional power rocker switch 115/230 Volt selector switch Short-circuit/ Over current/ Over voltage/ Over power/ Under voltage/ Electric shock free Protection Forced air ventilation by 2 x 80mm UV blue LED fan, with fan speed controller |
---|
Dimensions | 5.9" x 6.7" x 3.4" |
---|---|
Weight | 5.0 lbs. |
Date First Available | August 15, 2003 |
---|
