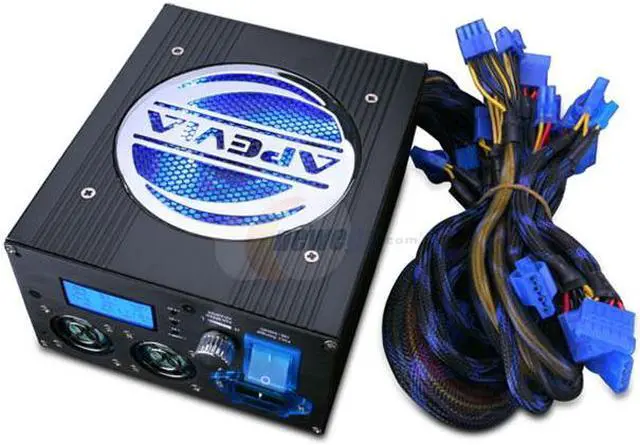

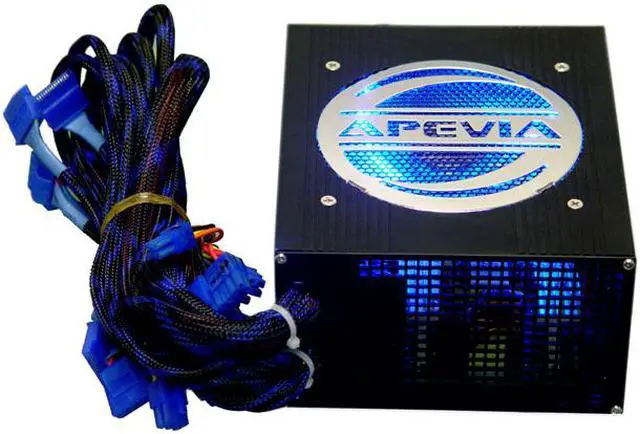

APEVIA ATX-LCD750W 750 W ATX12V / EPS12V SLI Ready CrossFire Ready Power Supply

(40) Write a Review
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (40)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the APEVIA CORP. ATX-LCD750W

General
Brand APEVIA
Model ATX-LCD750W
Details
Type ATX12V / EPS12V
Maximum Power 750 W
Fans (1 x 120 mm UV Blue LED Fan & 2 x 40mm UV Blue Fans)
PFC No
Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 2 x 6-Pin
SATA Power Connector 4
SLI SLI Ready
CrossFire CrossFire Ready
Power Good Signal 100-500ms
Hold-up Time >10ms at full load
Efficiency > 70%
Over Voltage Protection Yes
Overload Protection Yes
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A @ 115V, 5A @ 230V

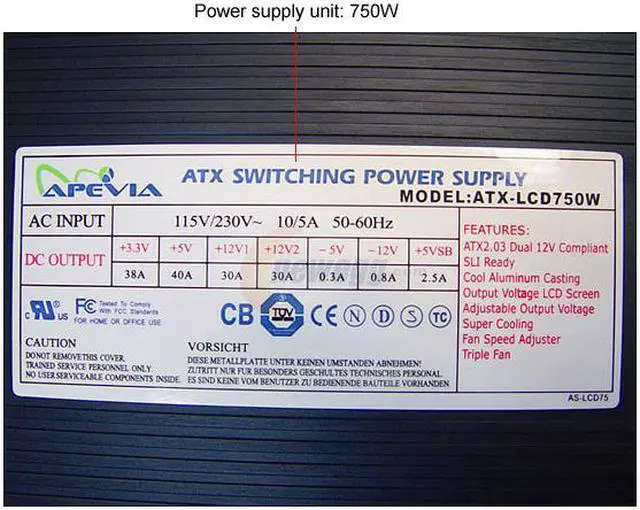

Output +3.3V@38A, +5V@40A, +12V1@30A,+12V2@30A,
[email protected], [email protected], [email protected]
MTBF 100,000 Hours at full load
Approvals CB IEC 950/ TUV EN 60950/ UL 1950

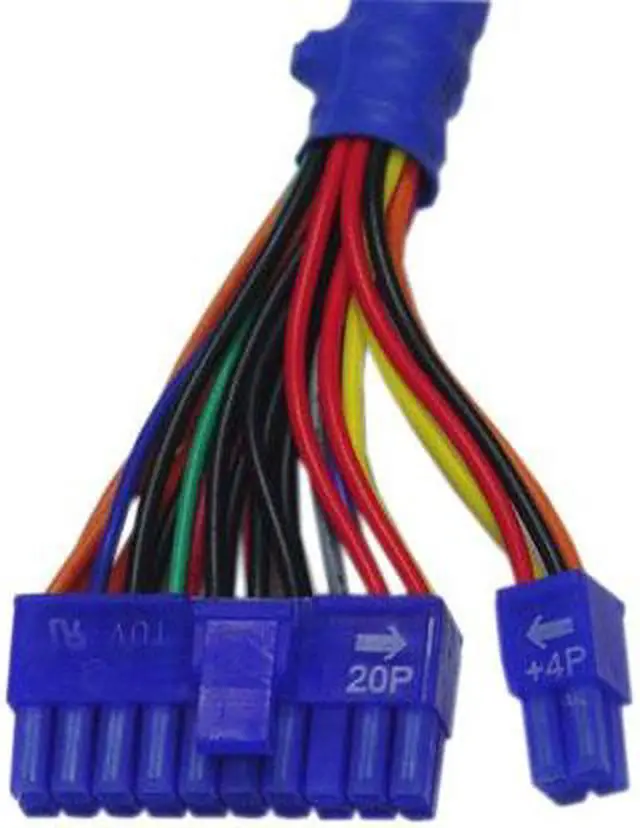

Connectors 1 x Main connector (20+4Pin)

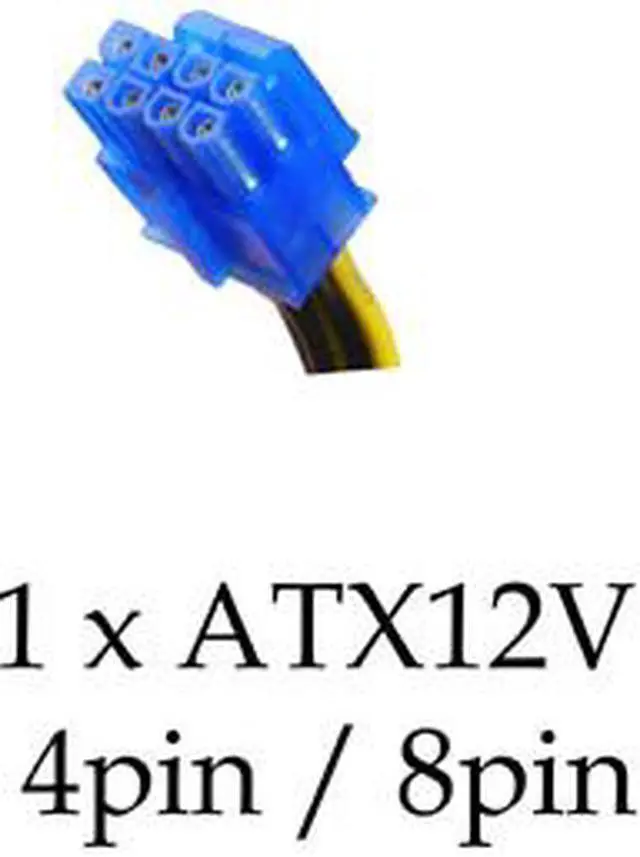

1 x 12V(4/8Pin)

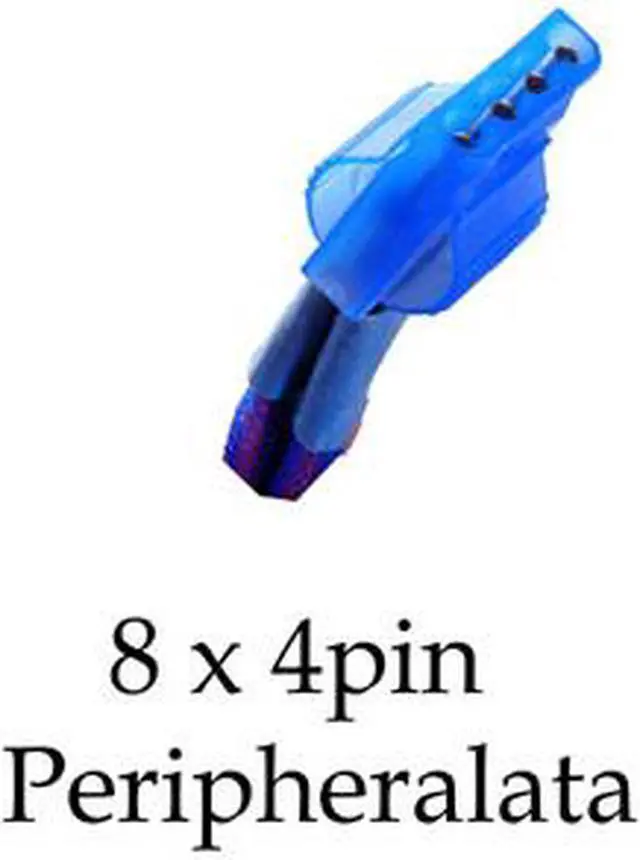

8 x peripheral

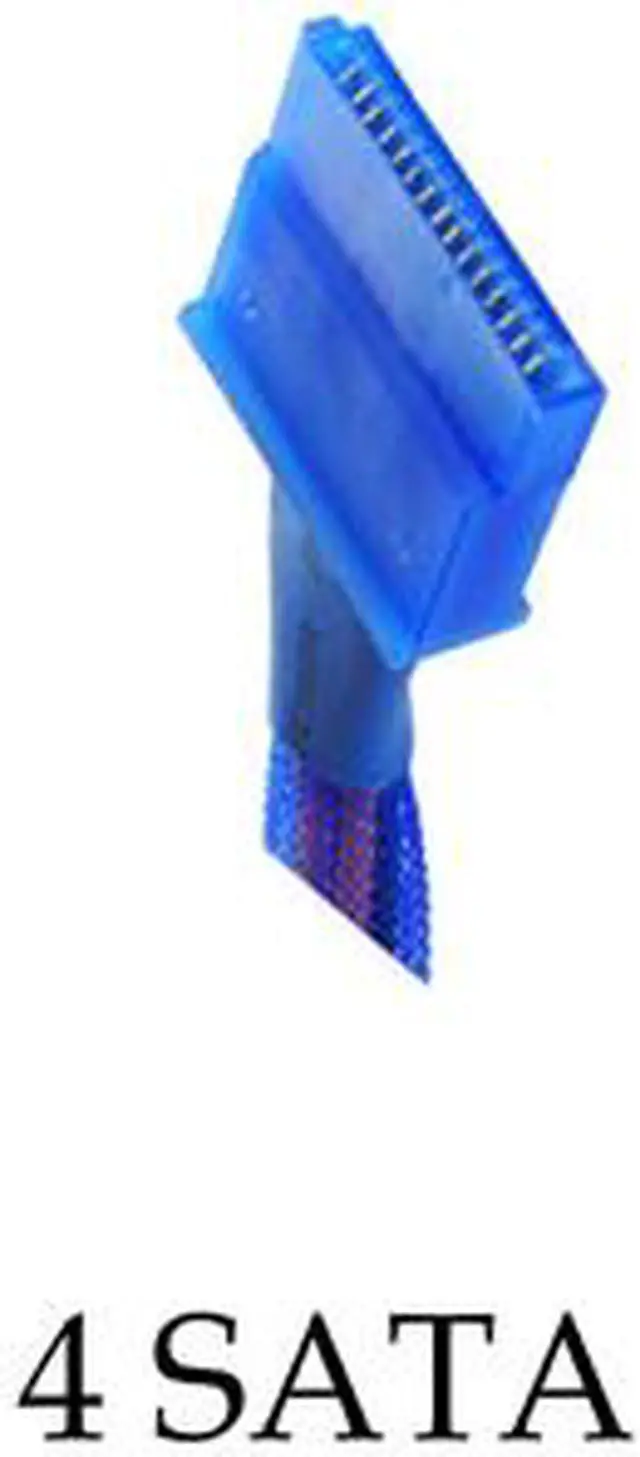

4 x SATA

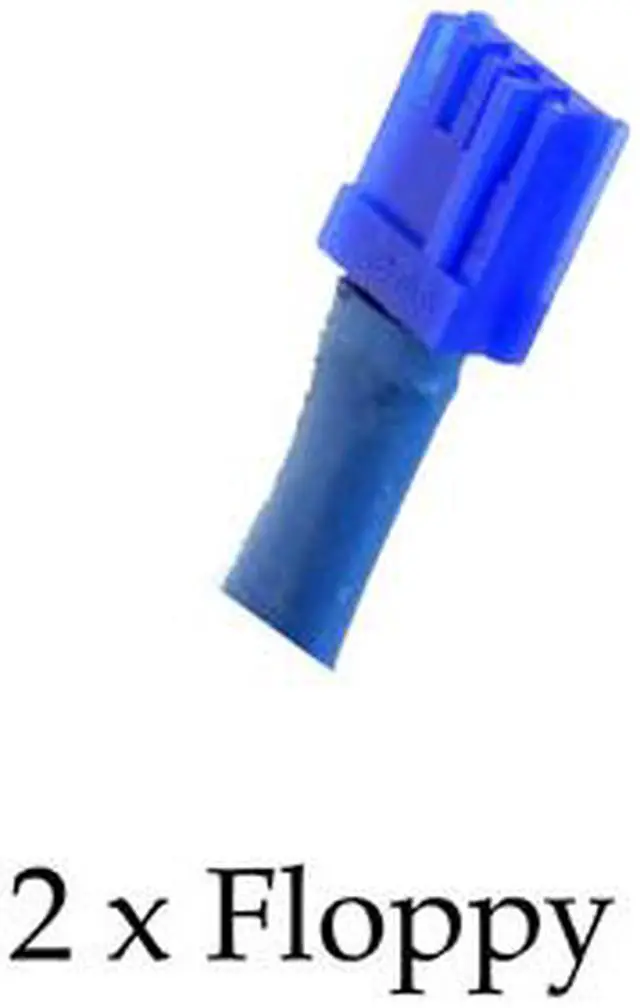

2 x Floppy

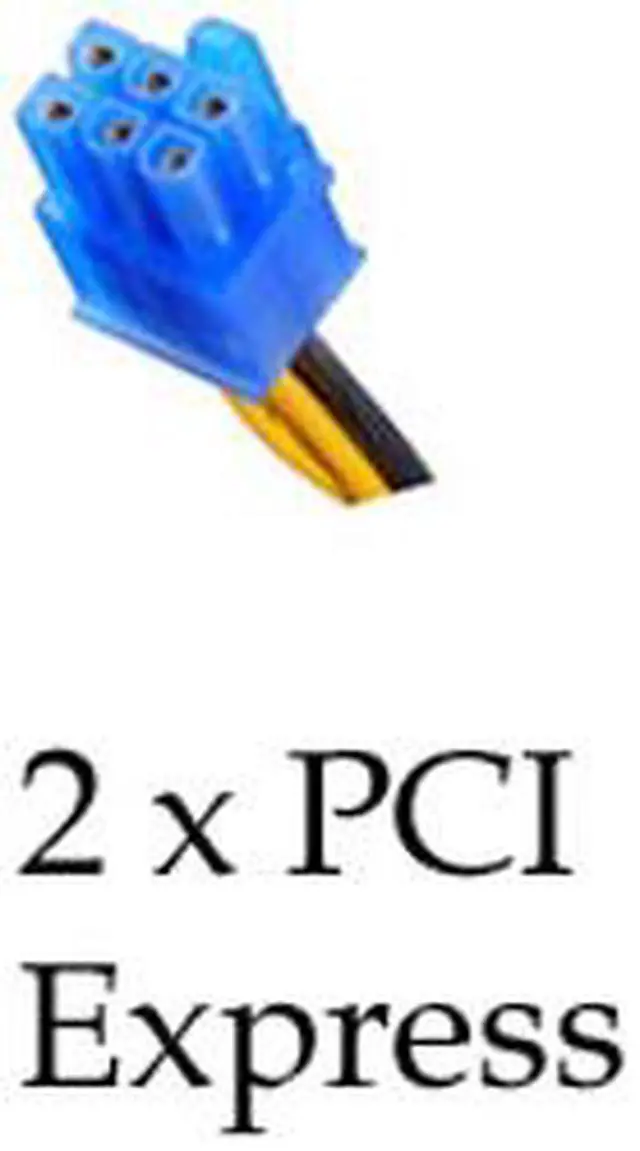

2 x PCI-E
Features
Features ATX2.03 Dual 12V Compliant
Adjustable Output Voltage to fit special applications

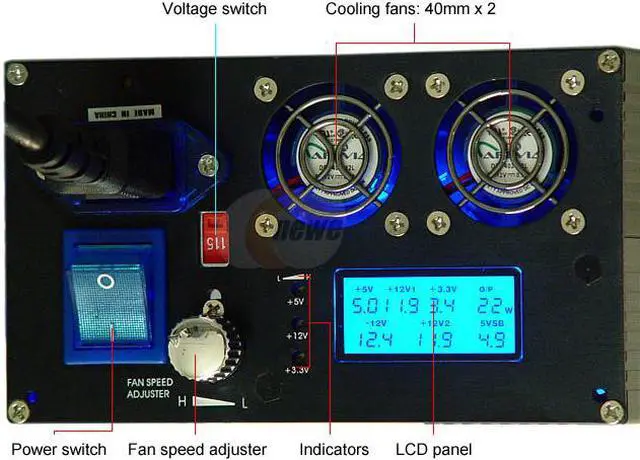

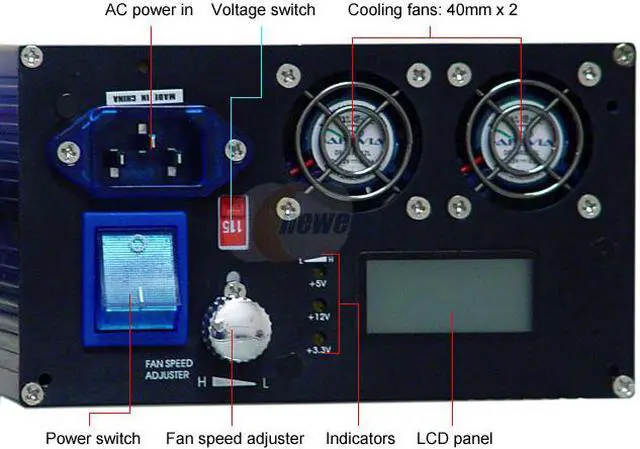

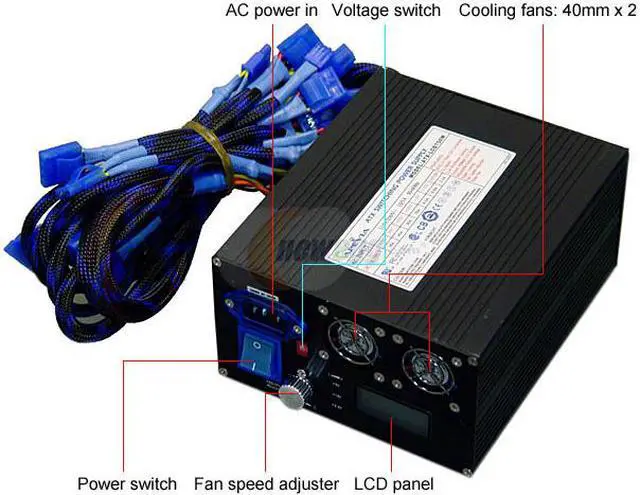

LCD Screen shows current output voltage of +5V, +12V1, +3.3V, -12V, +12V2, 5VSB and O/P.
Better cooling Aluminum 2.0mm Casting with UV Blue Wire Sleeves
User-Adjustable Fan Speed Controller optimizing balance between noise reduction and necessary cooling
UV Sensitive On/Off Power Switch and Power Plug
Short Circuit/Over Voltage/Over Current/Over Power/Under Voltage/Electric Shock Protection
100% Burn-In Test/Hi-Pot Test/VibrationTest/Leak Current Test
Additional Information
First Listed on Newegg November 28, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
