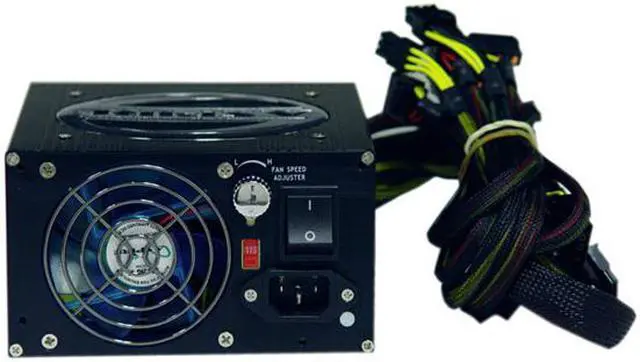

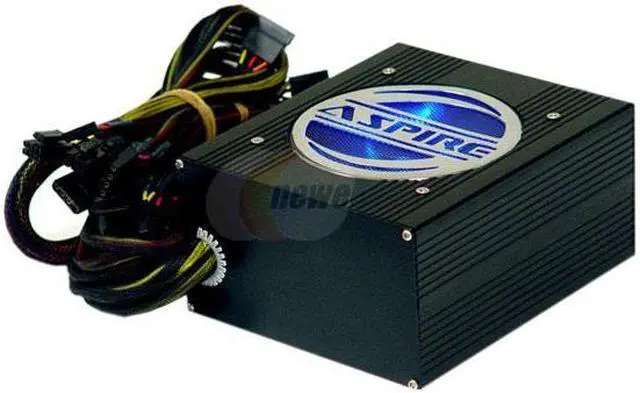

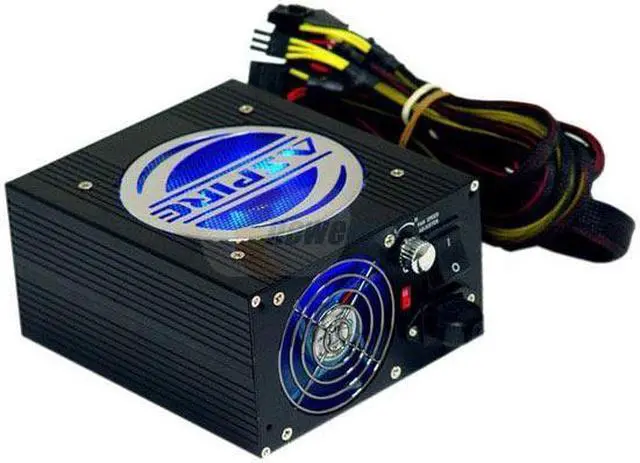

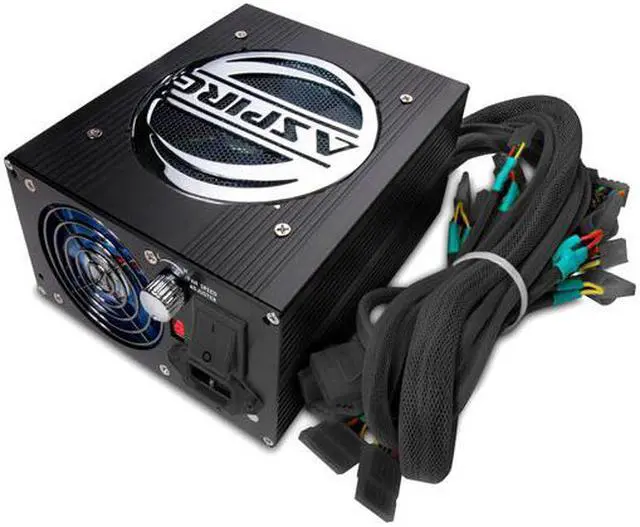

APEVIA ATX-PFC680W-BK 680W ATX12V / EPS12V SLI Certified CrossFire Ready Active PFC Power Supply

OUT OF STOCK.
  • ATX12V / EPS12V
  • 115 / 230 V 50/60 Hz
  • +3.3V@38A, +5V@40A, +12V1@22A, +12V2@24A, -5V@0.3A, -12V@0.8A, +5VSB@2A
Specs
Reviews

Learn more about the APEVIA CORP. ATX-PFC680W-BK

Model
Brand APEVIA
Model ATX-PFC680W-BK
Details
Type ATX12V / EPS12V
Maximum Power 680W
Fans 1 x 120mm fan, 1 x 80mm fan
PFC Active
Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 2 x 6-Pin
SLI SLI Certified
CrossFire CrossFire Ready
Modular No
Power Good Signal 100-500ms
Hold-up Time >10ms at full load
Efficiency > 70%
Over Voltage Protection Yes
Overload Protection Yes
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A @ 115V, 5A @ 230V

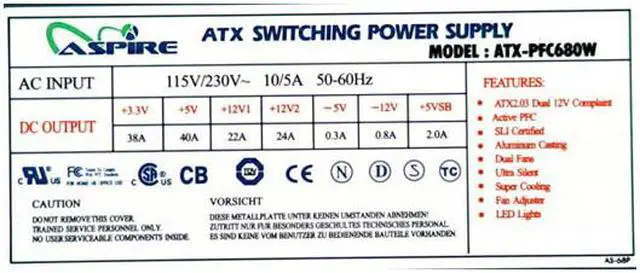

Output +3.3V@38A, +5V@40A, +12V1@22A, +12V2@24A,
-5V@0.3A, -12V@0.8A, +5VSB@2A
MTBF 100,000 Hours at full load
Approvals CB IEC 950/ TUV EN 60950/ UL 1950/ CSA 950
Features

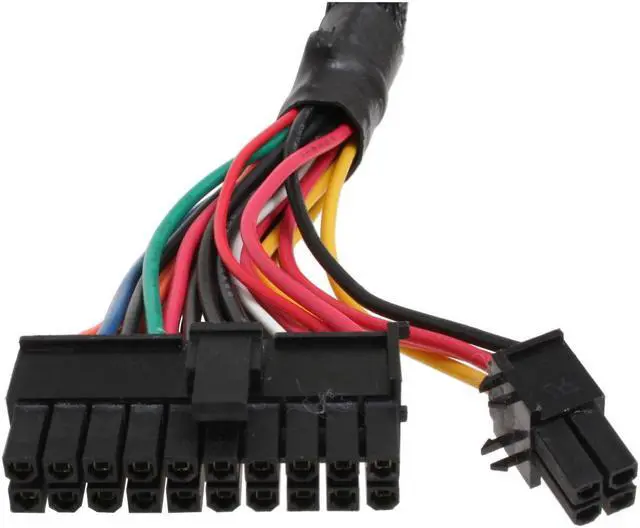

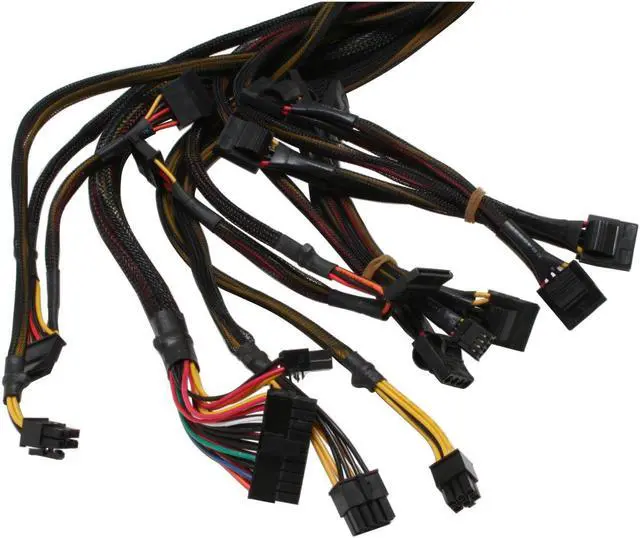

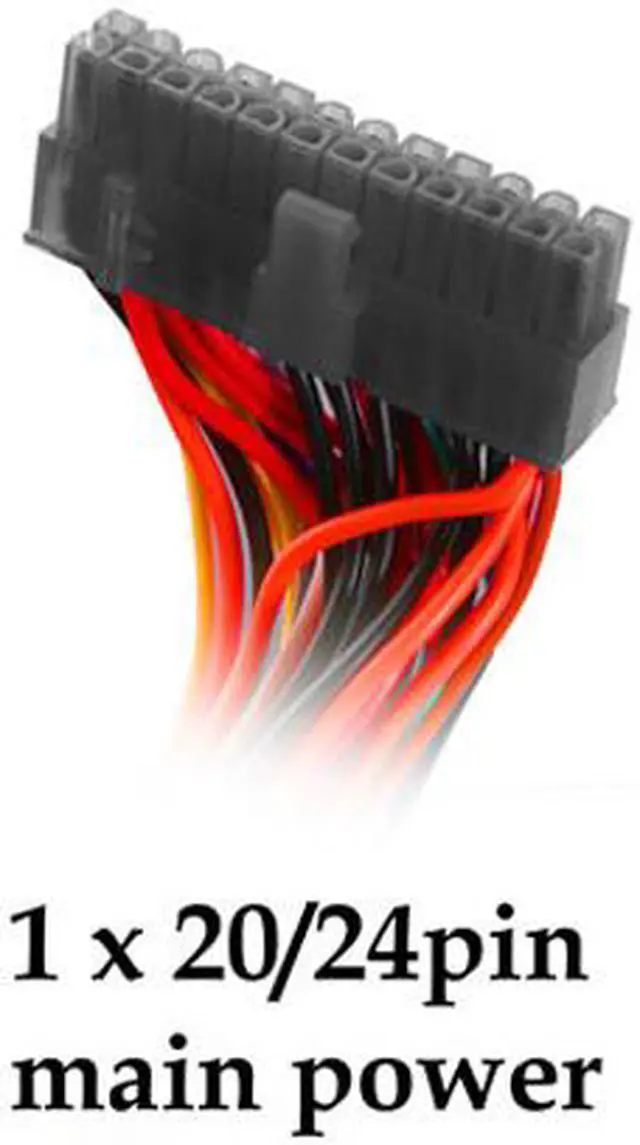

Connectors 1 x Main connector (20+4Pin)

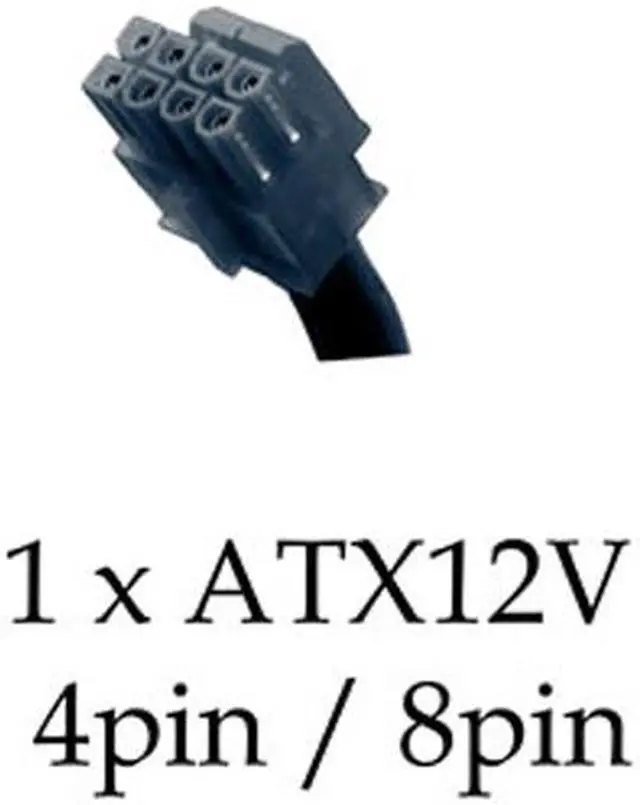

1 x 12V (P4) (4/8 pin)

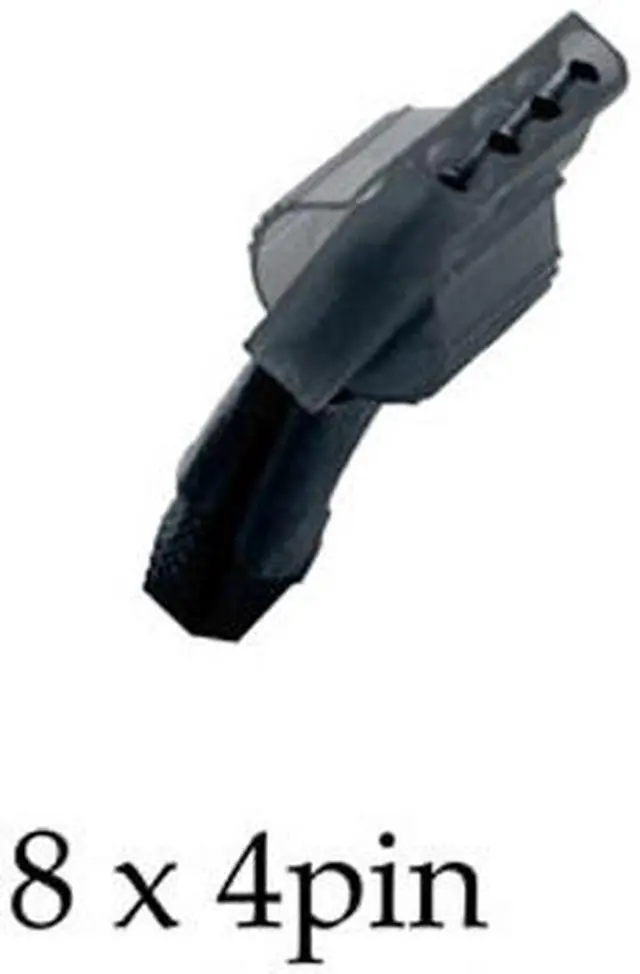

8 x peripheral

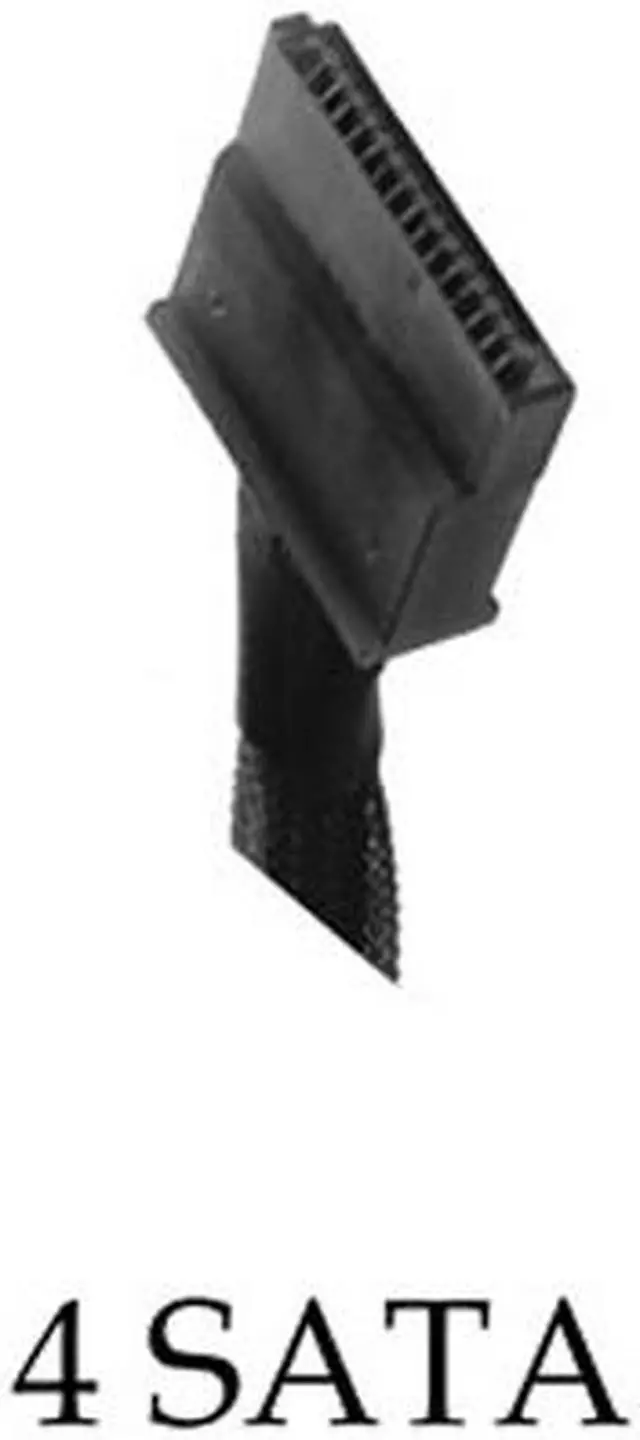

4 x SATA

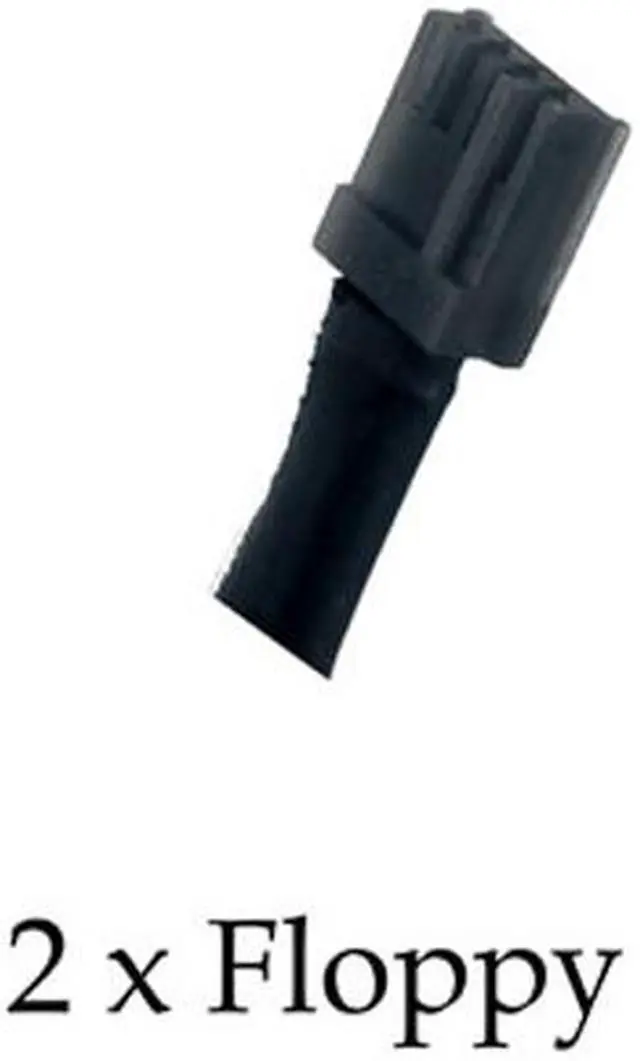

2 x Floppy

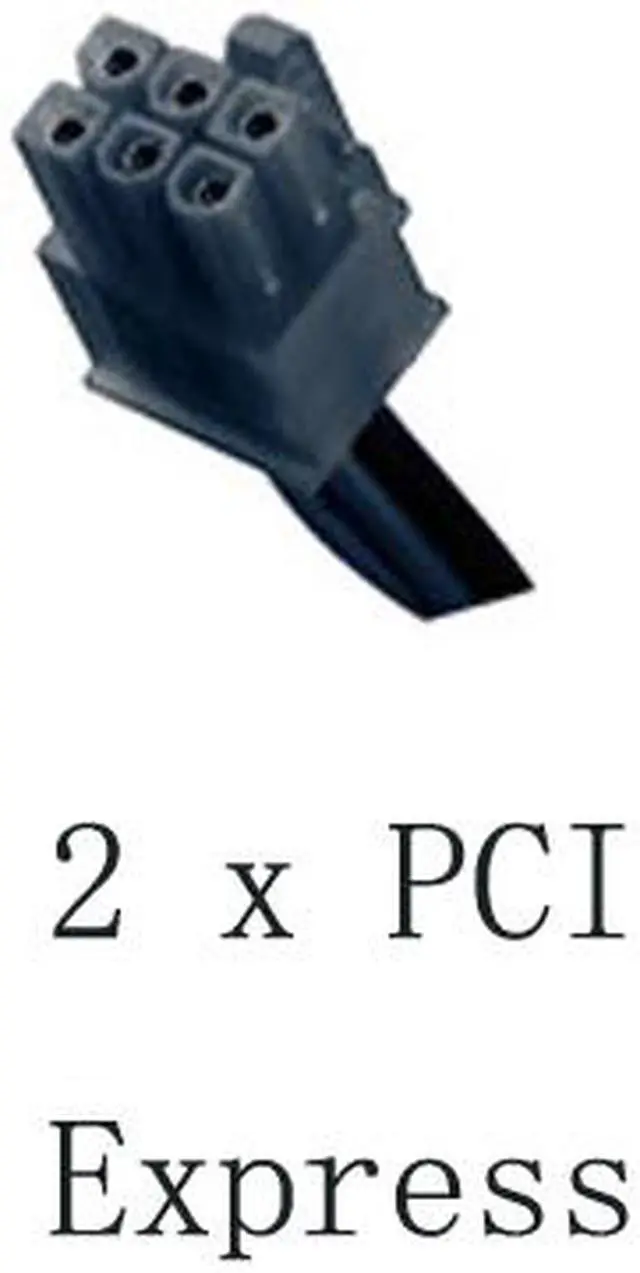

2 x PCI-E
Features Fan speed controller, full cable Sleeves, 2.0mm aluminum casting; 1x 20/24pin Main Power, 1x ATX12V 4pin/8pin, 8x Peripheral, 2x Floppy, 4x SATA, 2x PCI Express
Additional Information
Date First Available August 15, 2005
