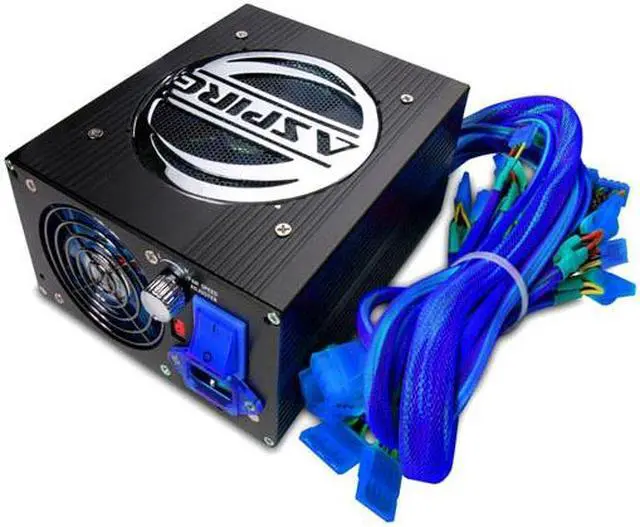

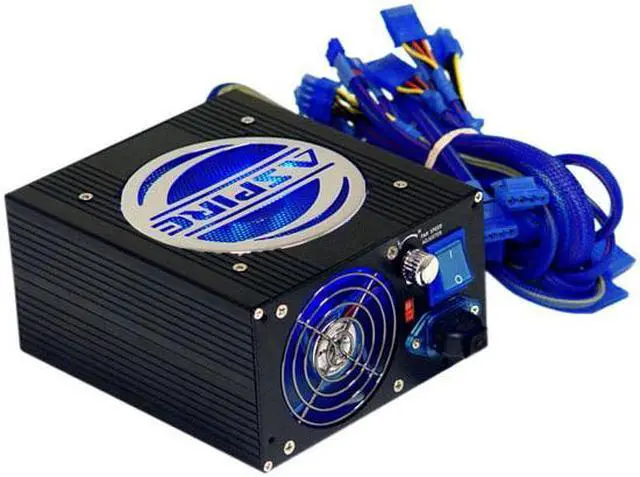

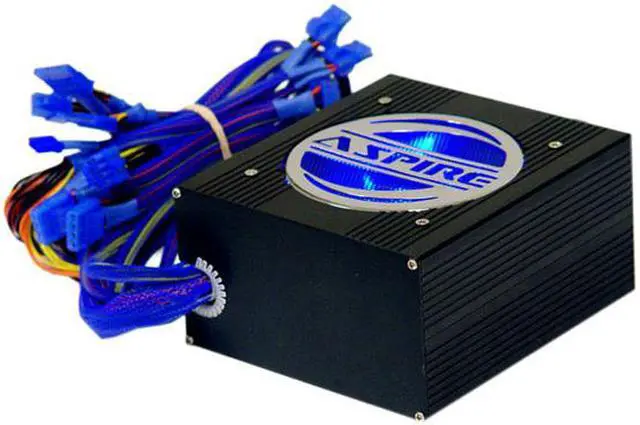

APEVIA ATX-PFC680W-BL 680 W ATX12V / EPS12V SLI Ready Active PFC Power Supply

Name: APEVIA ATX-PFC680W-BL 680 W Power Supply
Brand: APEVIA CORP.
SKU: N82E16817148020
Rating: 3 (30 reviews)

ATX12V / EPS12V
115 / 230 V 50/60 Hz
+3.3V@38A, +5V@40A, +12V1@22A, +12V2@24A, [email protected], [email protected], +5VSB@2A

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (30)

Learn more about the APEVIA CORP. ATX-PFC680W-BL

General
Brand	APEVIA
Model	ATX-PFC680W-BL

Details
Type	ATX12V / EPS12V
Maximum Power	680 W
Fans	2
PFC	Active

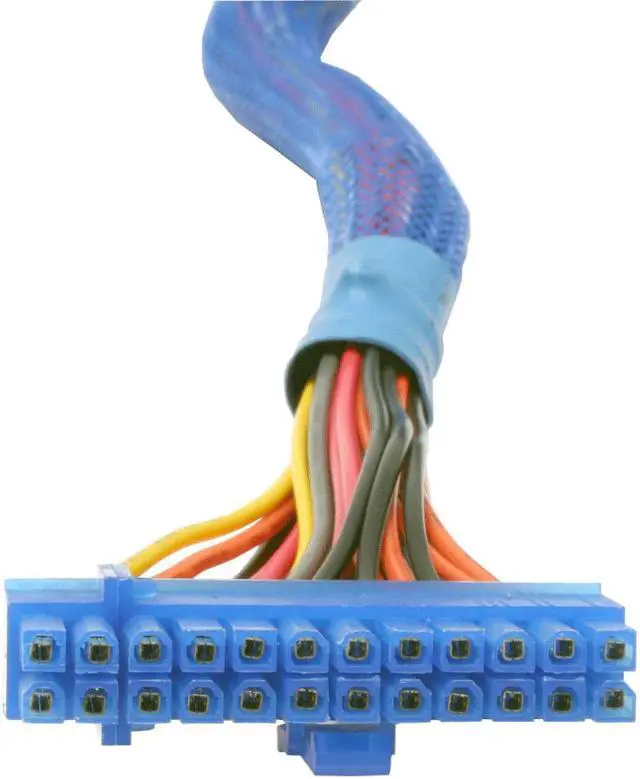

Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	2 x 6-Pin
SLI	SLI Ready
Modular	No
Power Good Signal	100-500ms
Hold-up Time	>10ms at full load
Efficiency	> 70%
Over Voltage Protection	Yes
Overload Protection	Yes
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	10A @ 115V, 5A @ 230V

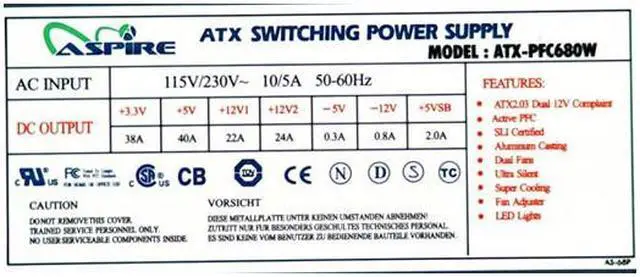

Output	+3.3V@38A, +5V@40A, +12V1@22A, +12V2@24A, [email protected], [email protected], +5VSB@2A
MTBF	>100,000 Hours
Approvals	CB IEC 950/ TUV EN 60950/ UL 1950/ CSA 950

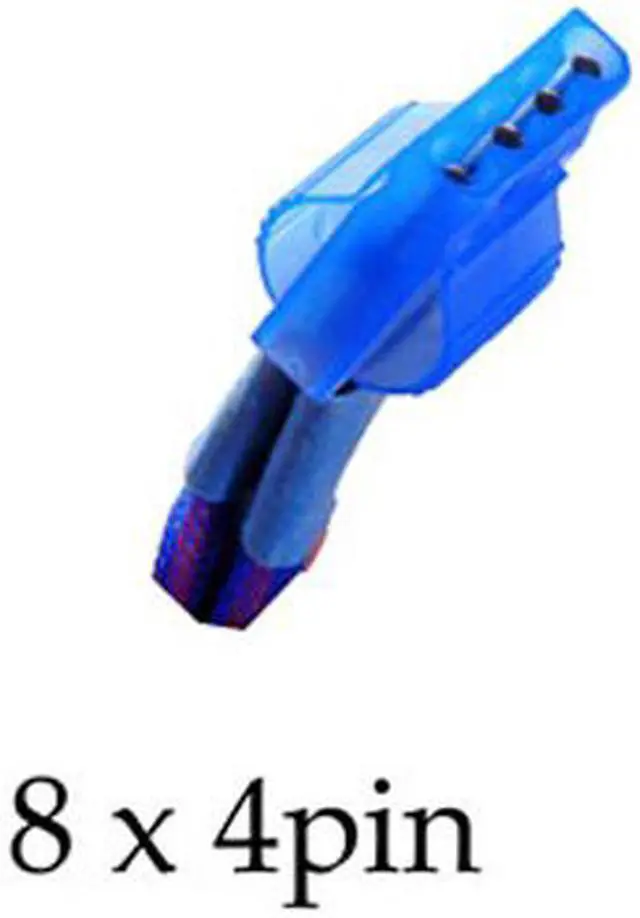

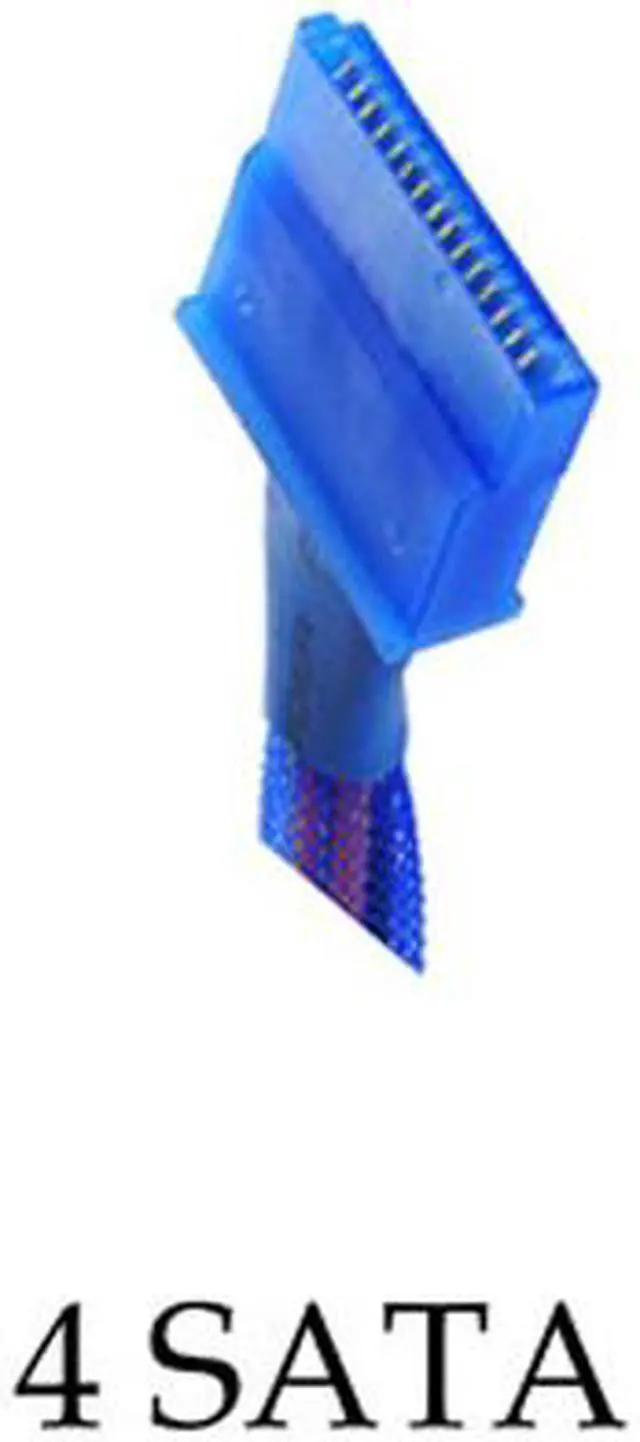

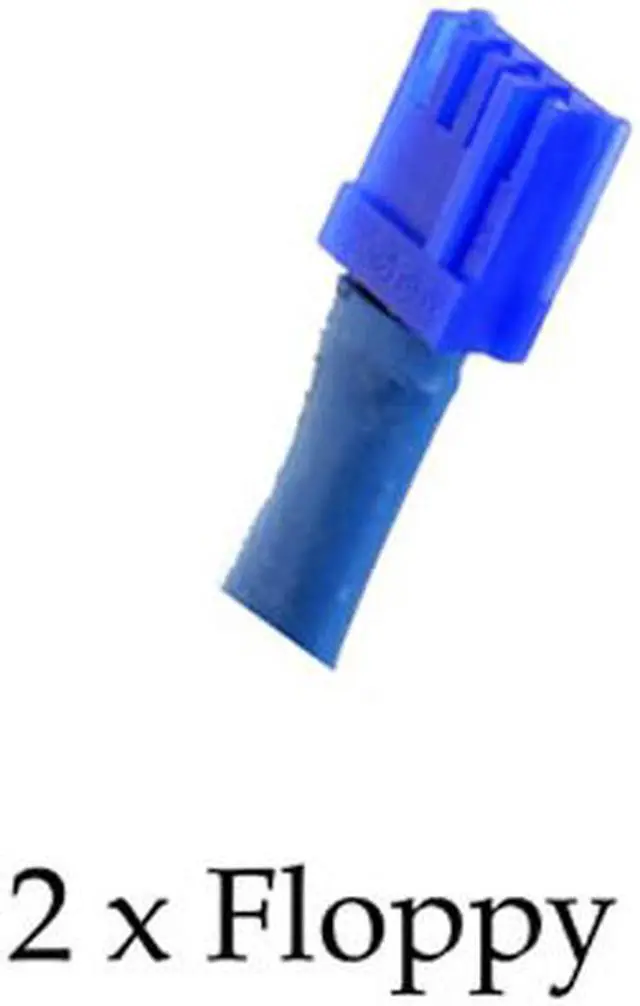

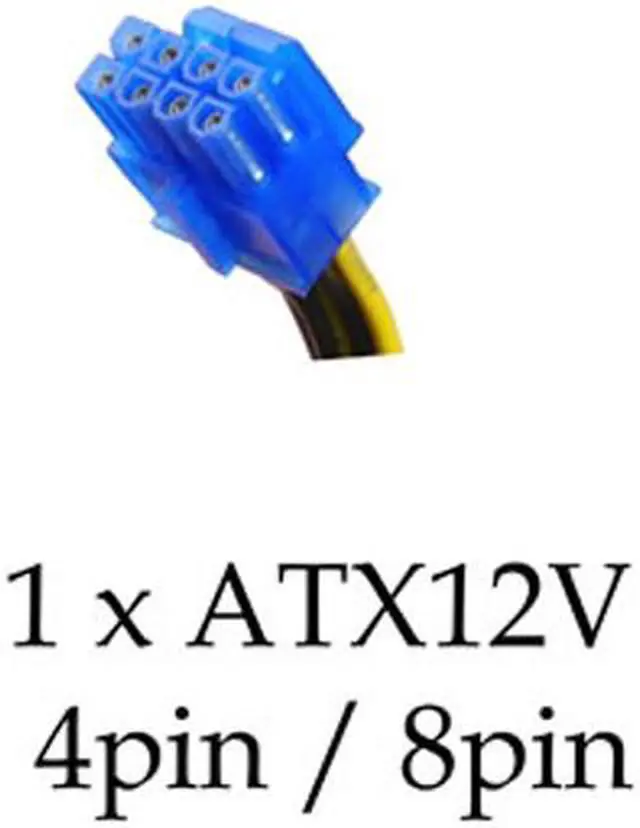

Connectors	1 x Main connector (20+4Pin) 1 x 12V (P4) (4/8Pin) 8 x peripheral 4 x SATA 2 x Floppy 2 x PCI-E

Features

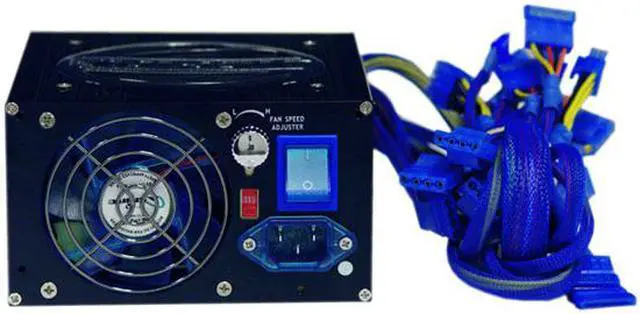

Features	Fan speed controller, full cable Sleeves, 2.0mm aluminum casting

Additional Information
Date First Available	August 31, 2005
