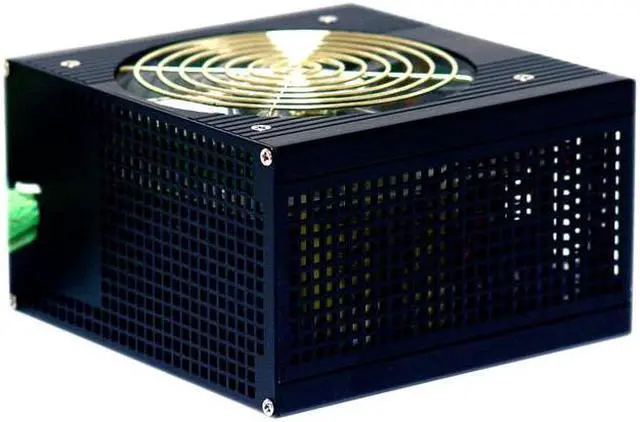

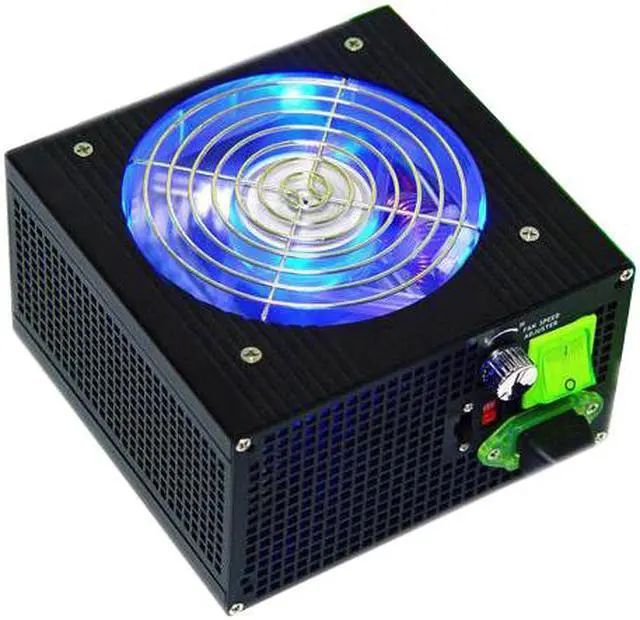

APEVIA Chameleon ATX-AS550W-BK 550 W ATX12V Power Supply

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (88)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the APEVIA CORP. ATX-AS550W-BK

General
Brand APEVIA
Series Chameleon
Model ATX-AS550W-BK
Details
Type ATX12V
Maximum Power 550 W
Fans 1
PFC No
Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 1 x 6-Pin
SATA Power Connector 2
SLI No
Modular No
Power Good Signal 100-500ms
Hold-up Time > 10ms at full load
Efficiency > 70% under max range load
Over Voltage Protection Yes
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A @ 115V, 5A @ 230V
Output +3.3V@32A, +5V@34A, +12V1@17A, +12V2@19A, [email protected], [email protected], +5VSB@2A
MTBF >100,000 Hours
Approvals UL, FCC, CB, TUV, CE, NEMCO, SEMCO, DEMCO, TC

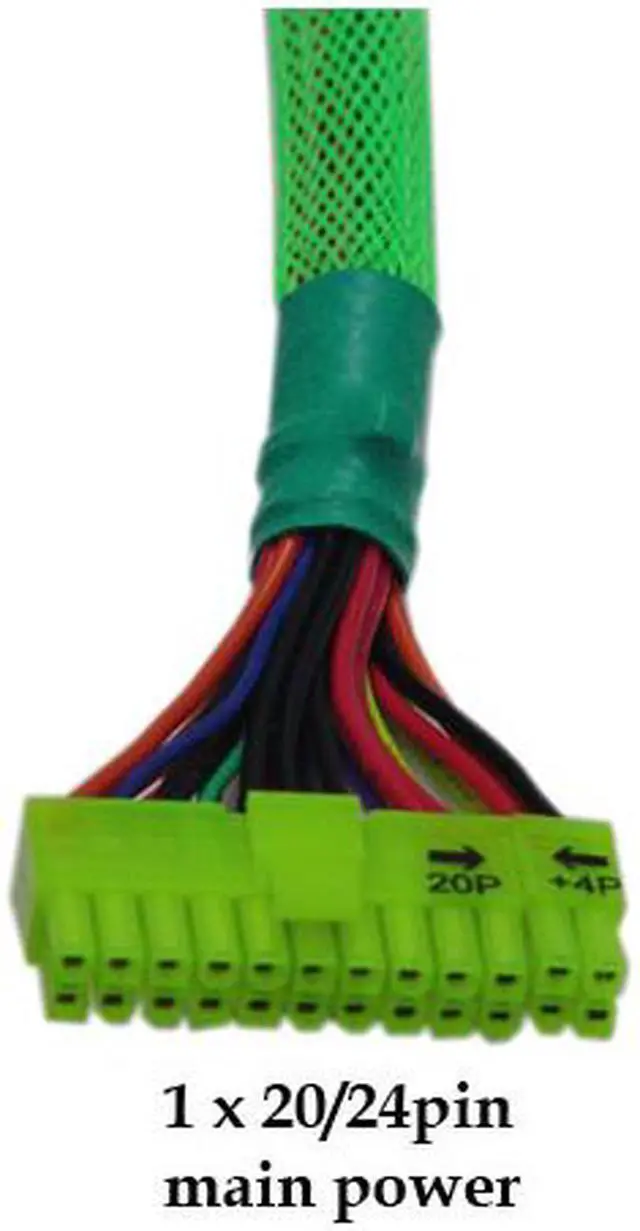

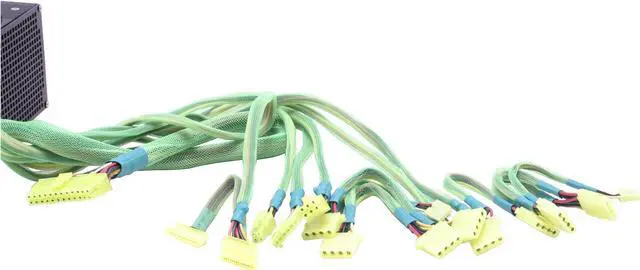

Connectors 1 x Main Power (20+4Pin)
1 x 12V (P4)
2 x SATA
1 x PCI-E
8 x Peripheral
2 x Floppy
1 x AUX
Features
Features Aluminum casting for best cooling

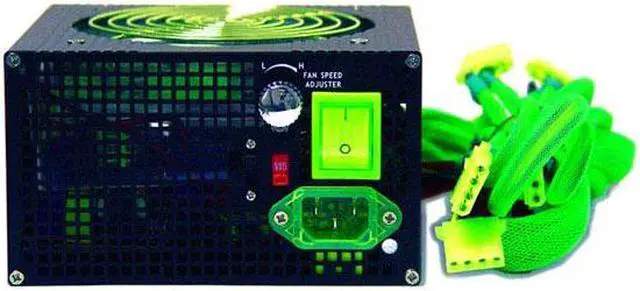

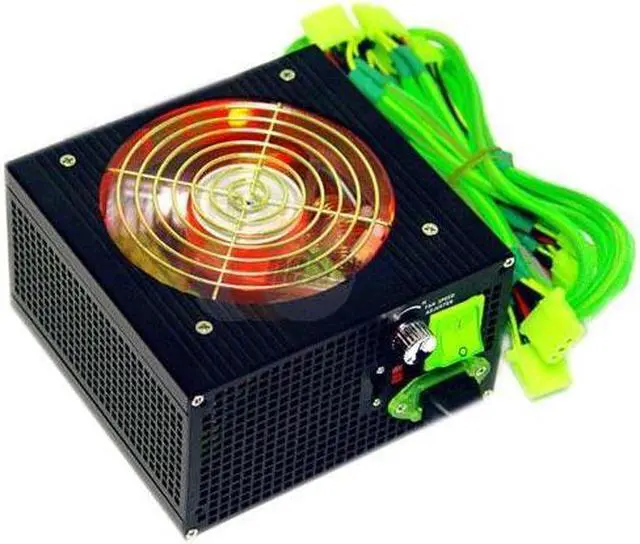

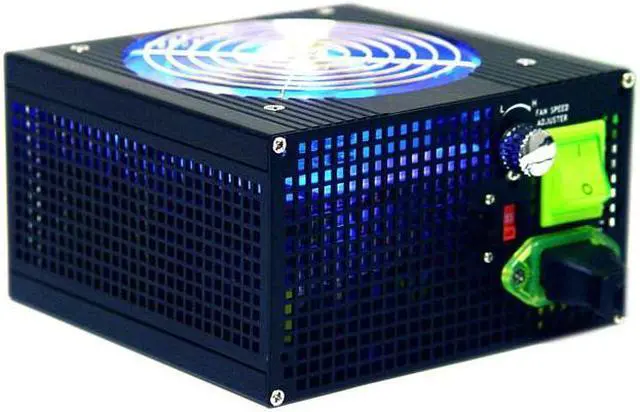

LED color switch changes the fan colors
High quality colorful components and materials ensure superior performance and appearance

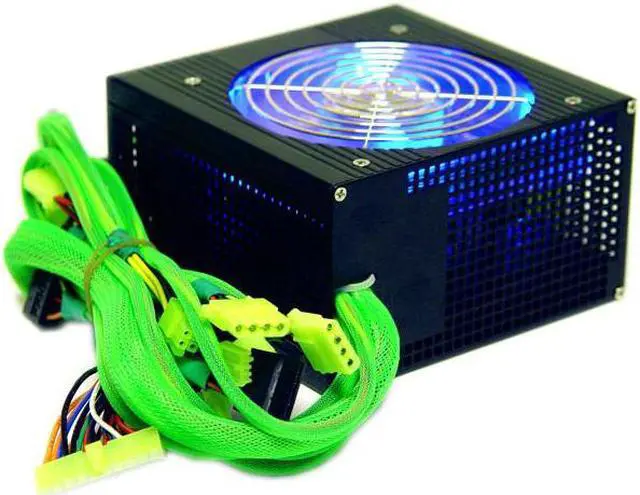

All connectors, switch and wire sleeves are UV green reactive
High efficiency and reliability
Low noise and ripple
Additional Information
Date First Available November 15, 2004
