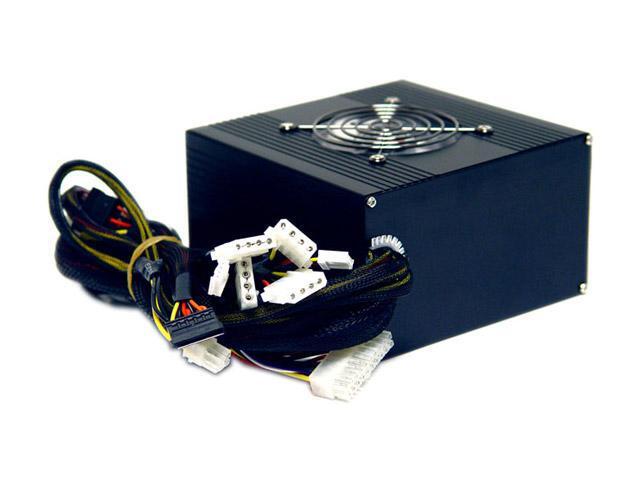

Brand | APEVIA |
---|---|
Series | Concord |
Model | ATX-MR500W |
Type | ATX12V |
---|---|
Maximum Power | 500 W |

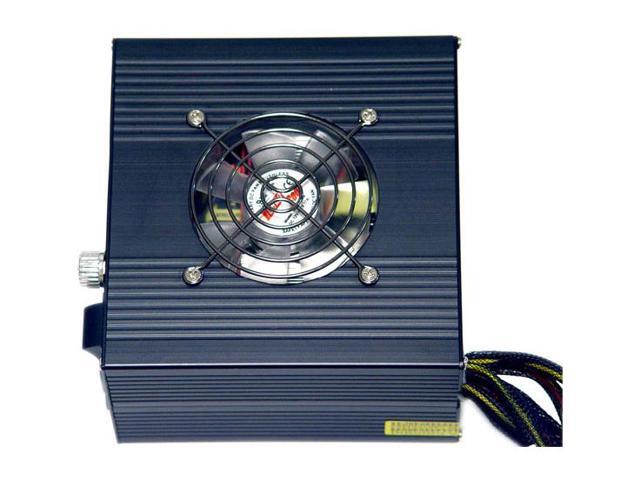

Fans | 2 x 80mm crystal fans |
PFC | No |

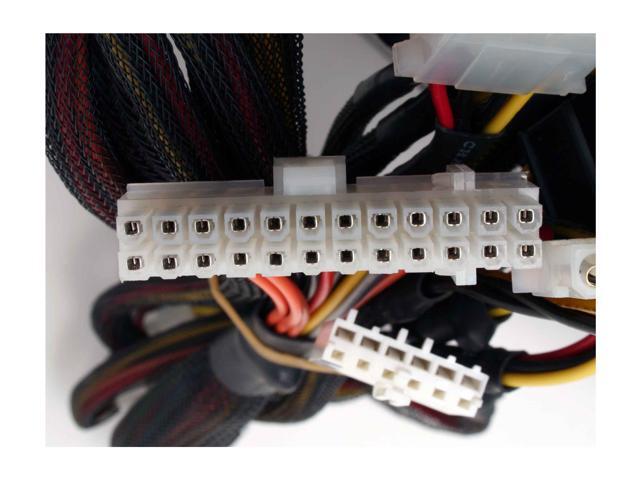

Main Connector | 20+4Pin |
+12V Rails | Single |
PCI-Express Connector | No |
SATA Power Connector | 2 |
SLI | No |
Modular | No |
Power Good Signal | 100-500ms |
Hold-up Time | >10ms at full load |
Efficiency | > 70% |
Over Voltage Protection | Yes |
Input Voltage | 115 / 230 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10A @ 115V, 5A @ 230V |
Output | +3.3V@28A, +5V@30A, +12V@34A, -5V@0.3A, -12V@0.8A, +5VSB@2A |
MTBF | >100,000 Hours |
Approvals | UL, FCC, CE, CB, TUV |
Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 8 x peripheral 2 x SATA 2 x Floppy |

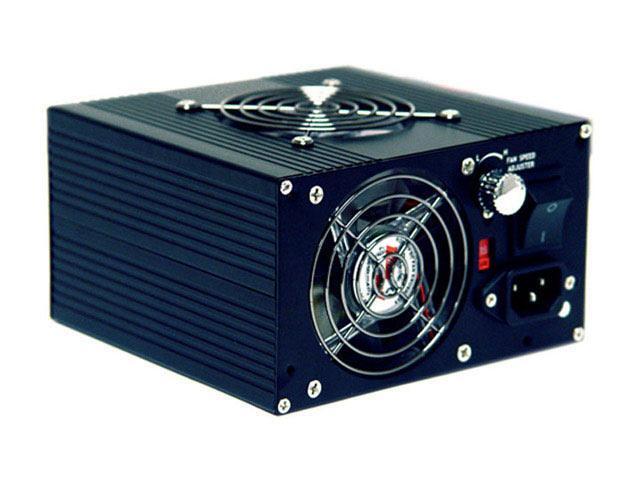

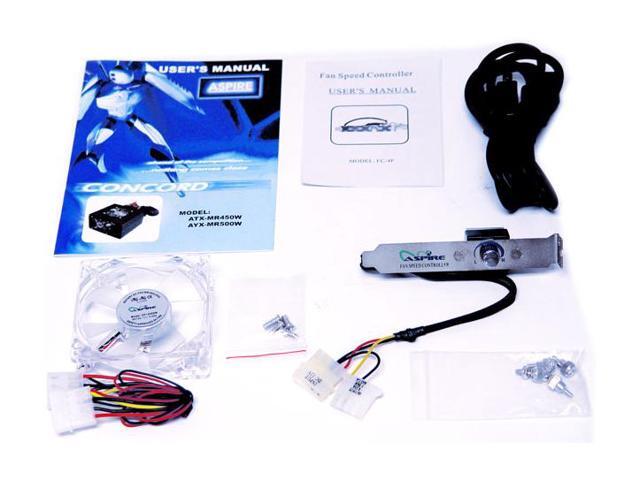

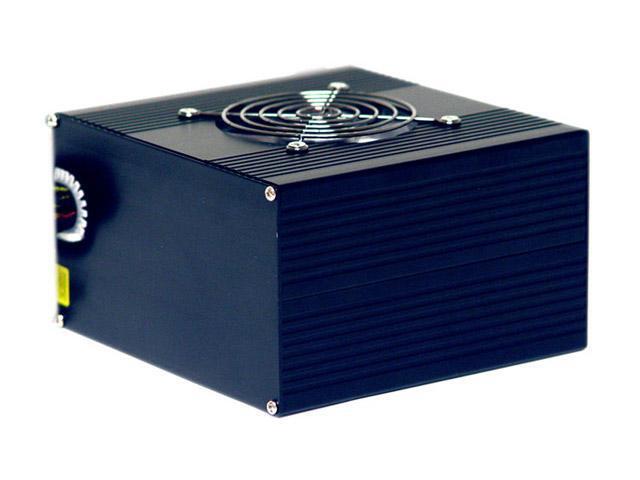

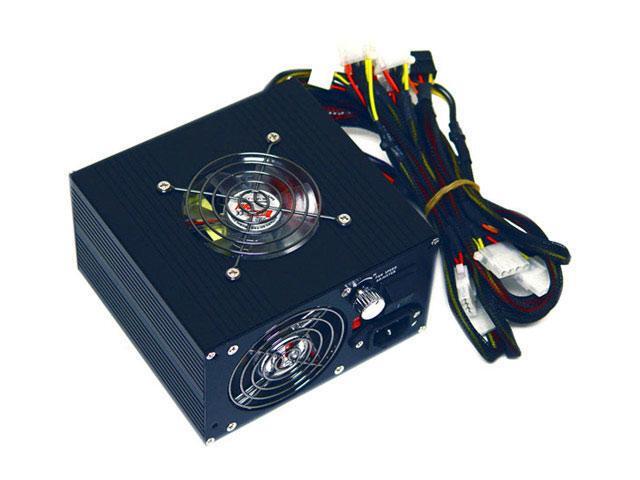

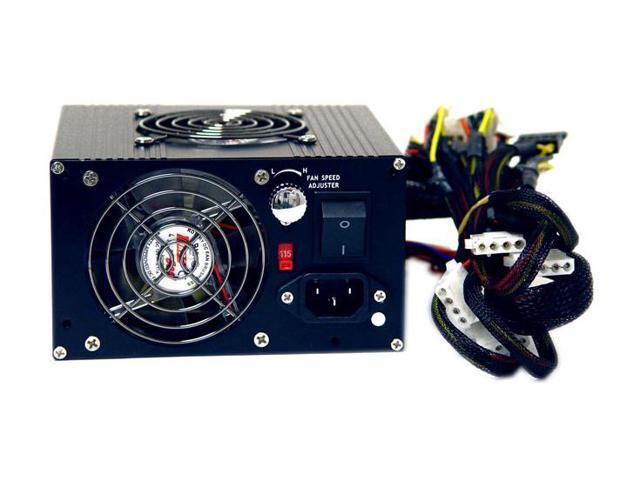

Features | Aluminum casting for best cooling High quality components and materials ensure superior performance and appearance Super silent:1 x fan speed controller optimizing cooling while reducing noise Wire management: fully sleeved cables to avoid clutter and improve 100% Burn-in test/ Hi-pot test/ Leak Current test |
---|
Date First Available | August 06, 2007 |
---|
