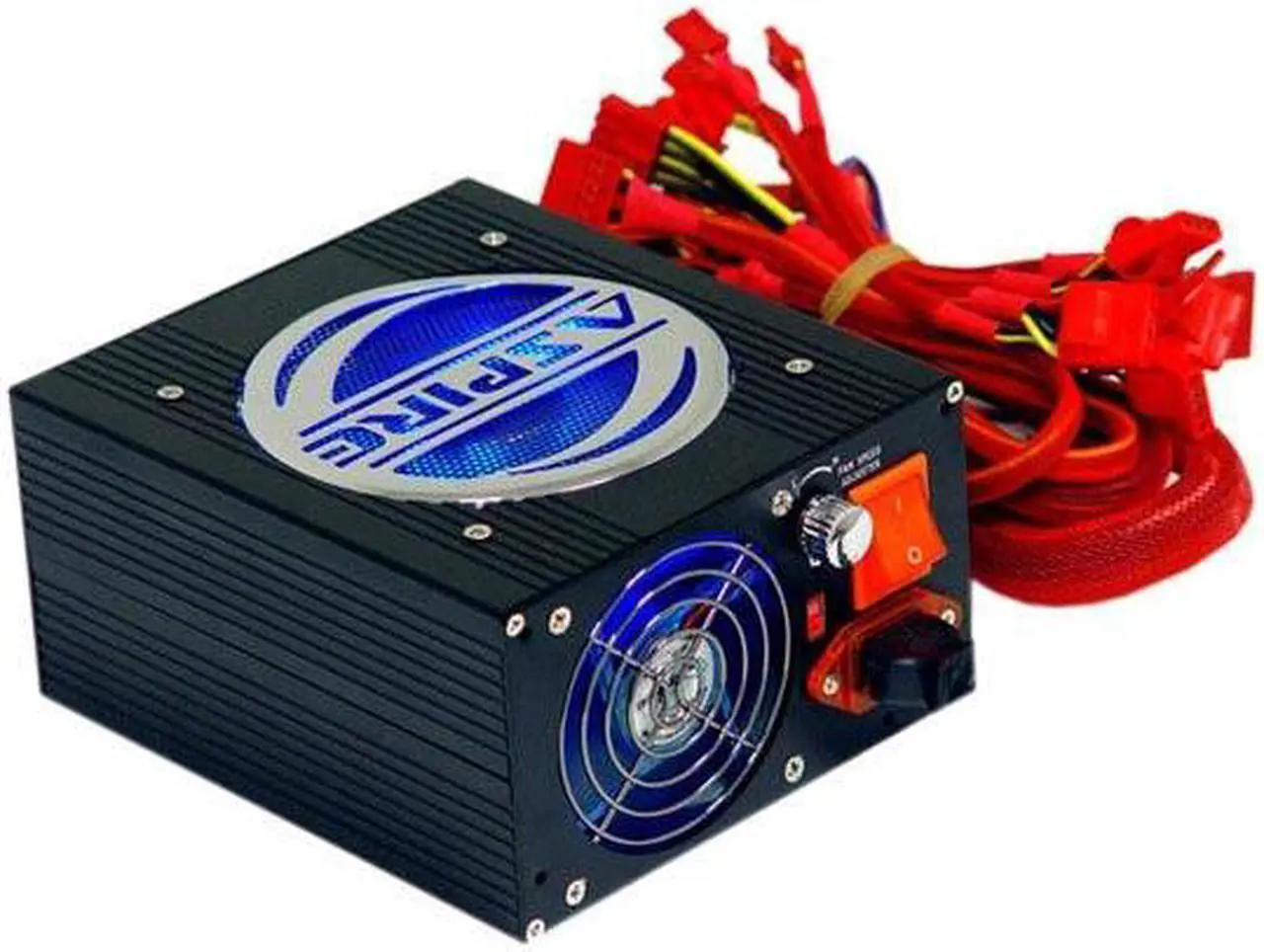

Brand | APEVIA |
---|---|
Series | Dark Side |
Model | ATX-AS600W-RD |
Type | ATX12V / EPS12V |
---|---|
Maximum Power | 600 W |

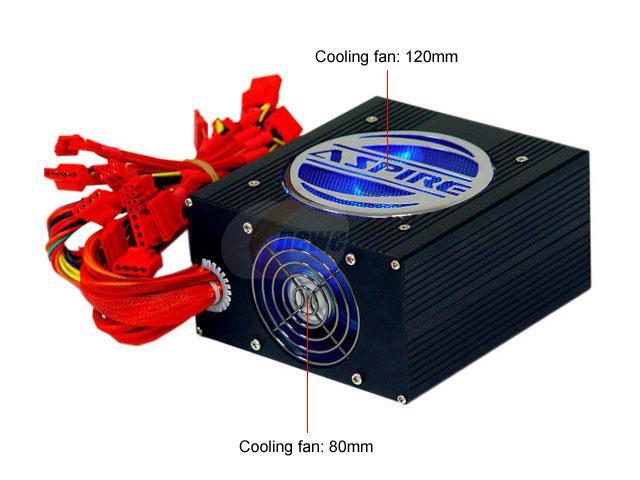

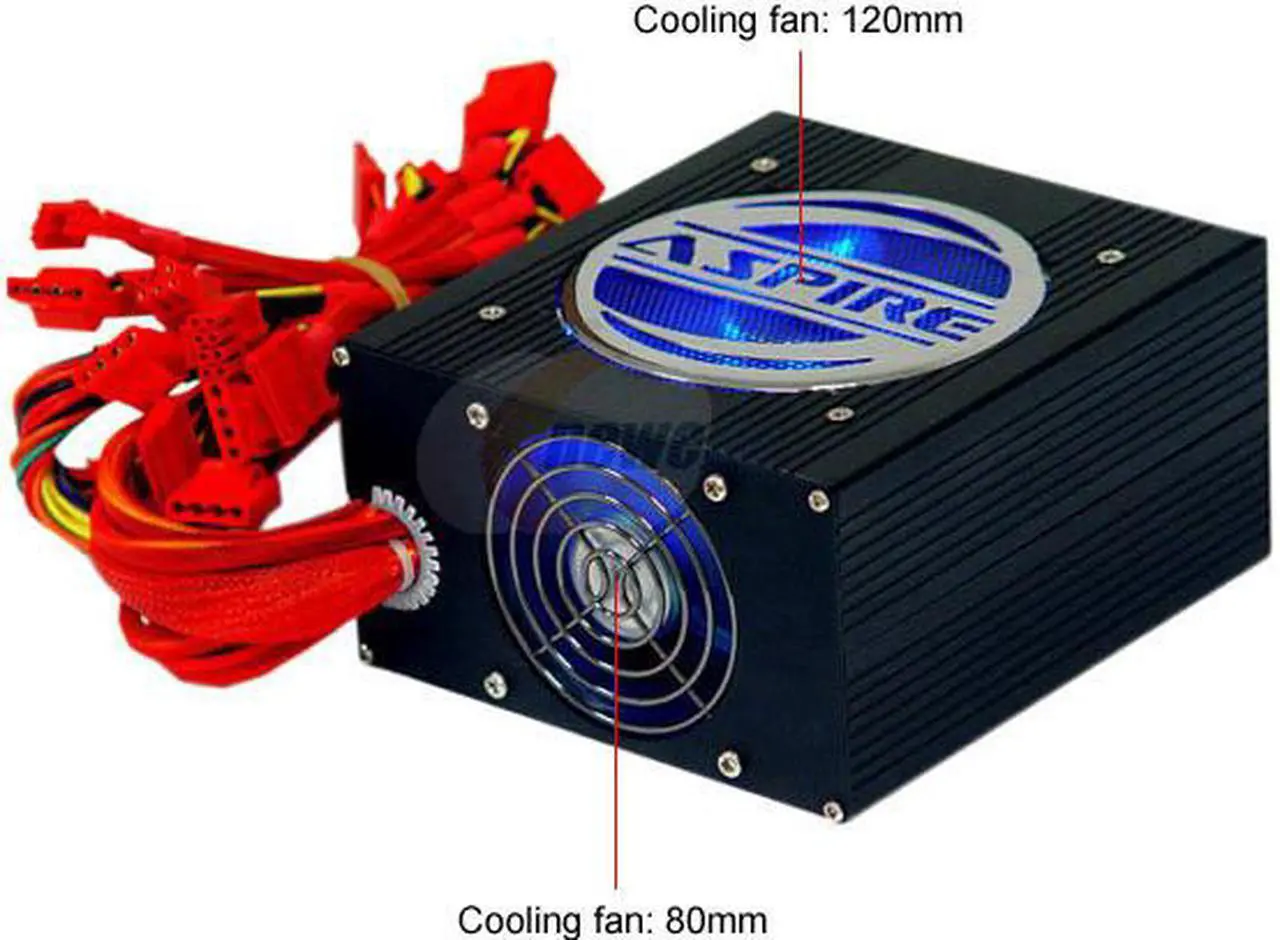

Fans | 3 |
PFC | No |

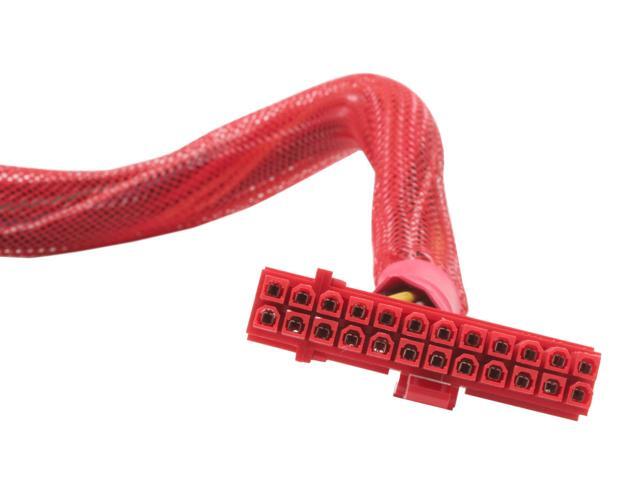

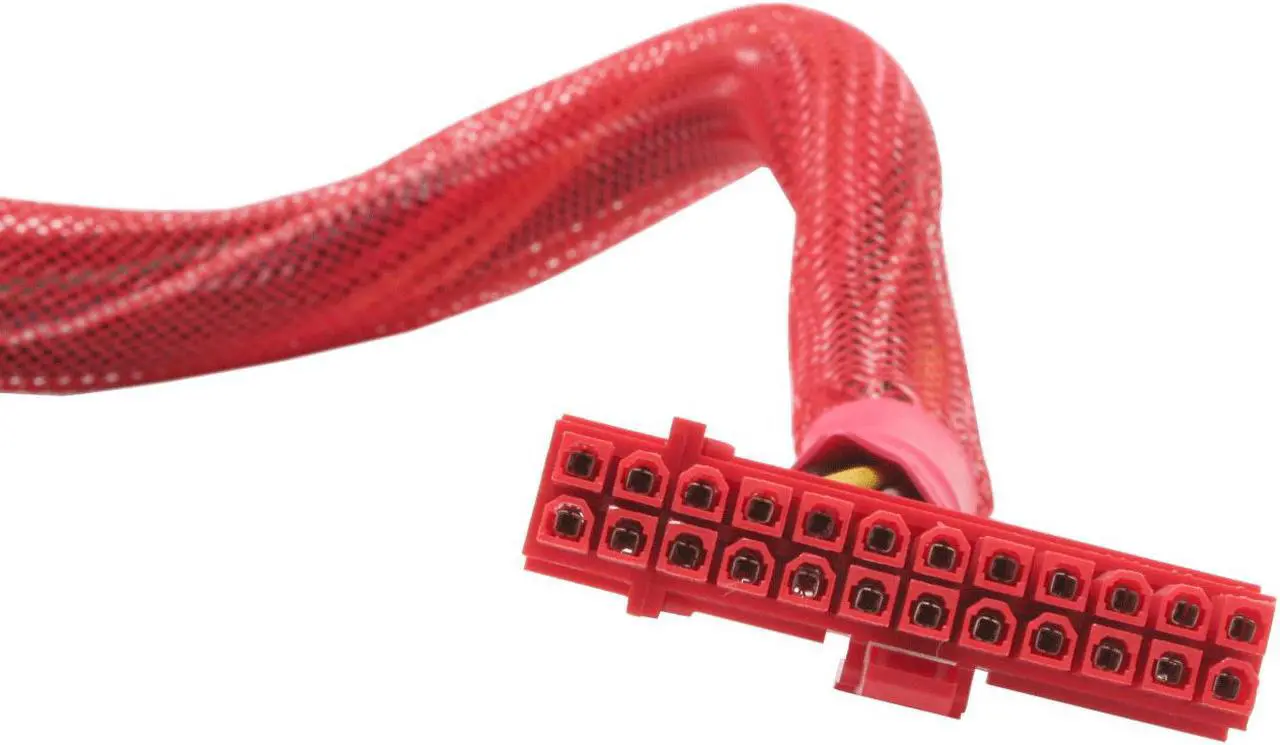

Main Connector | 20+4Pin |
+12V Rails | 2 |

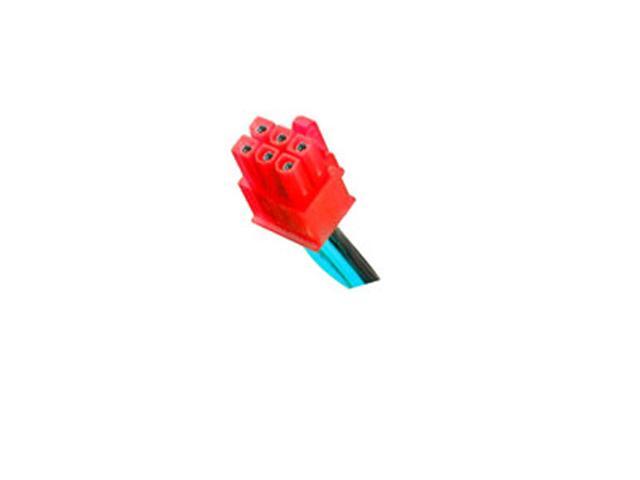

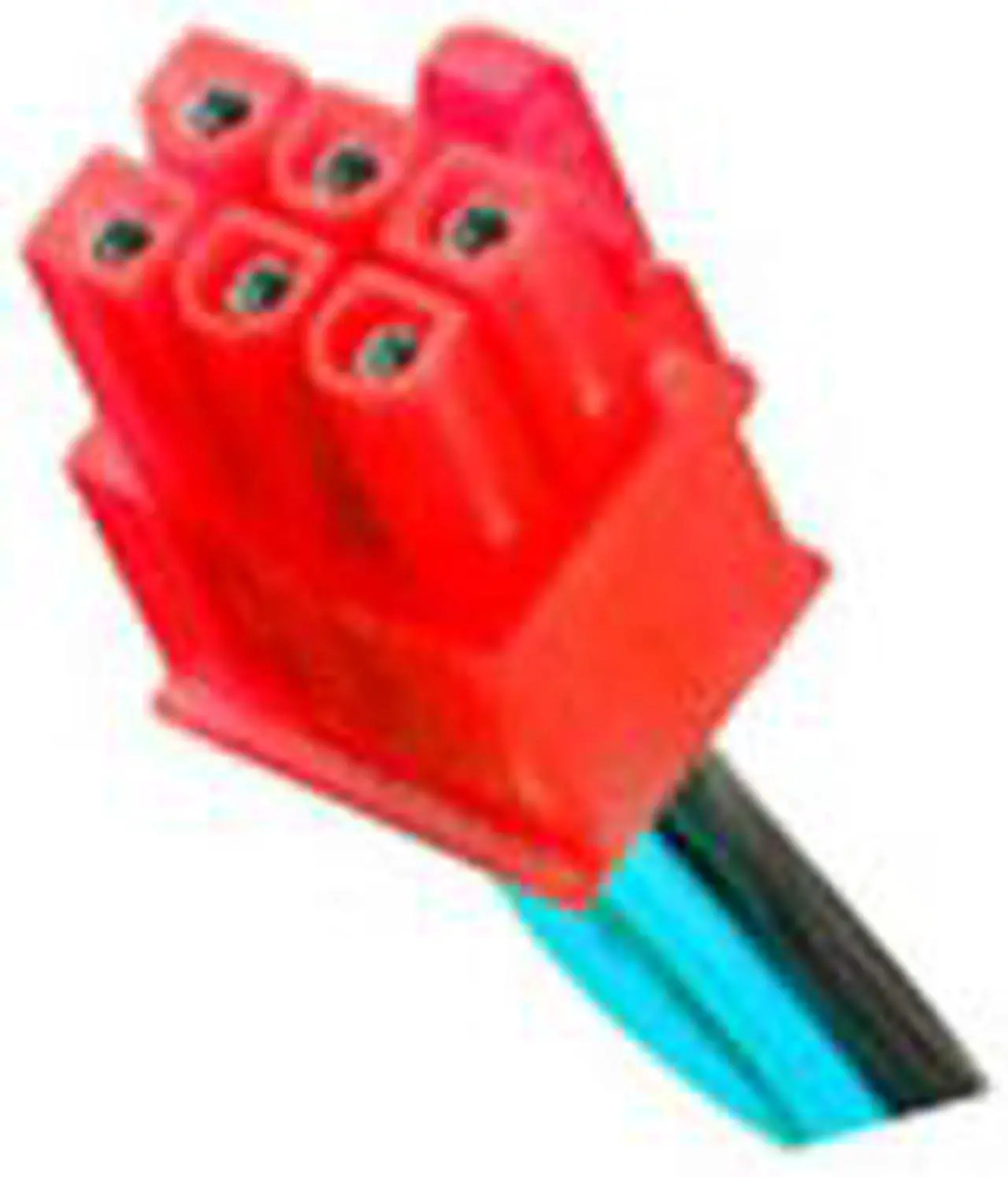

PCI-Express Connector | 2 x 6-Pin |
SLI | SLI Certified |
CrossFire | CrossFire Ready |
Modular | No |
Power Good Signal | 100-500ms |
Hold-up Time | >10ms at full load |
Efficiency | > 70% |
Over Voltage Protection | Yes |
Overload Protection | Yes |
Input Voltage | 115 / 230 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10A @ 115V, 5A @ 230V |

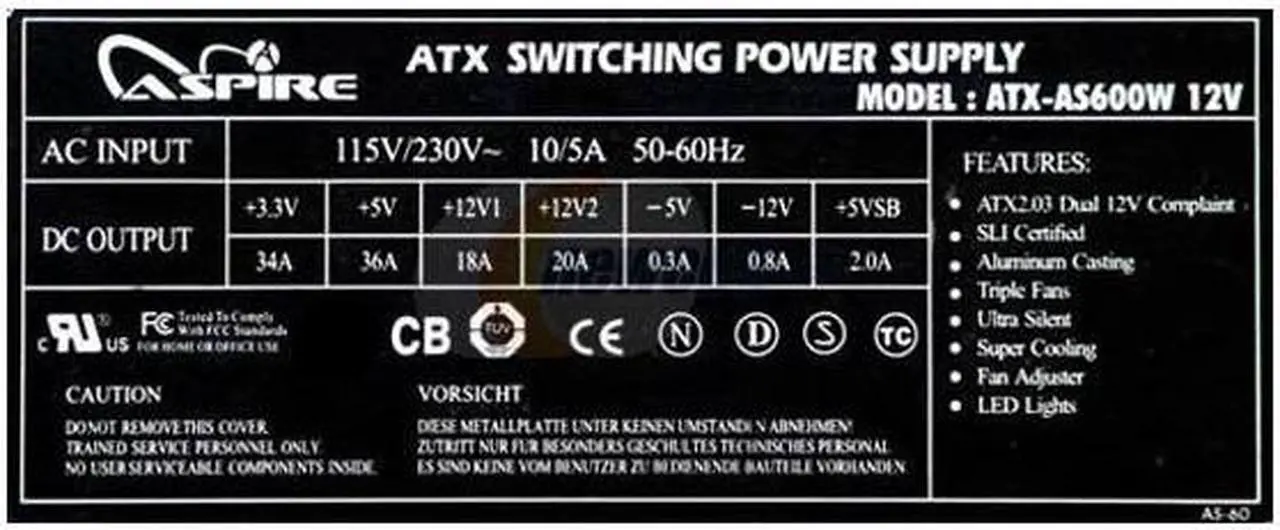

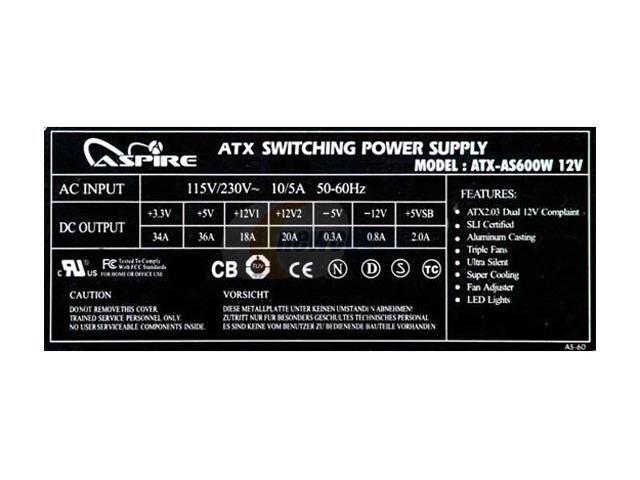

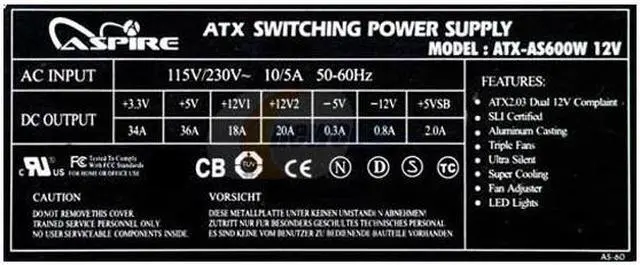

Output | +3.3V@34A, +5V@36A, +12V1@18A, +12V2@20A, [email protected], [email protected], +5VSB@2A |
MTBF | 100,000 Hours at full load |
Approvals | CB IEC 950/ TUV EN 60950/ UL 1950 |

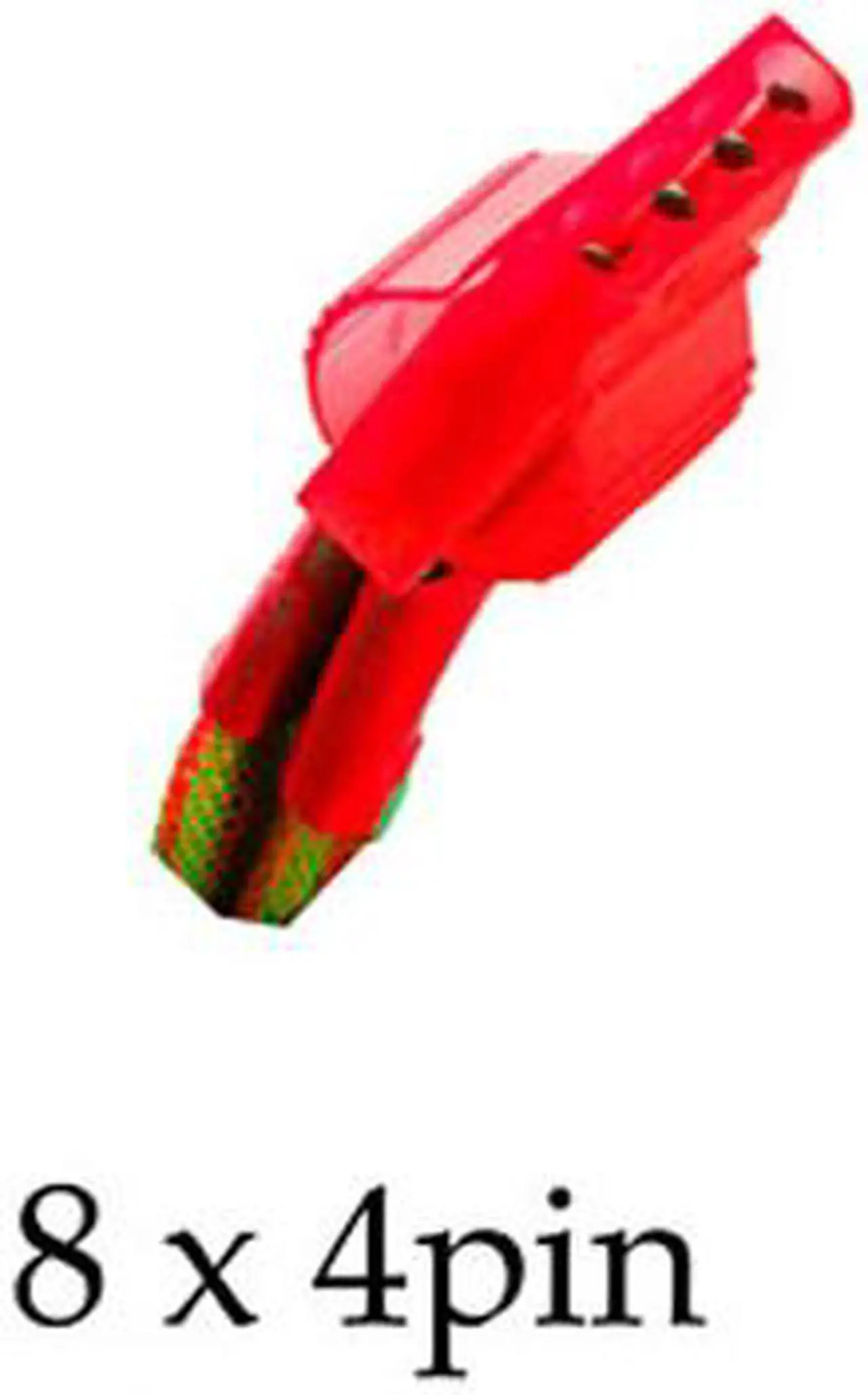

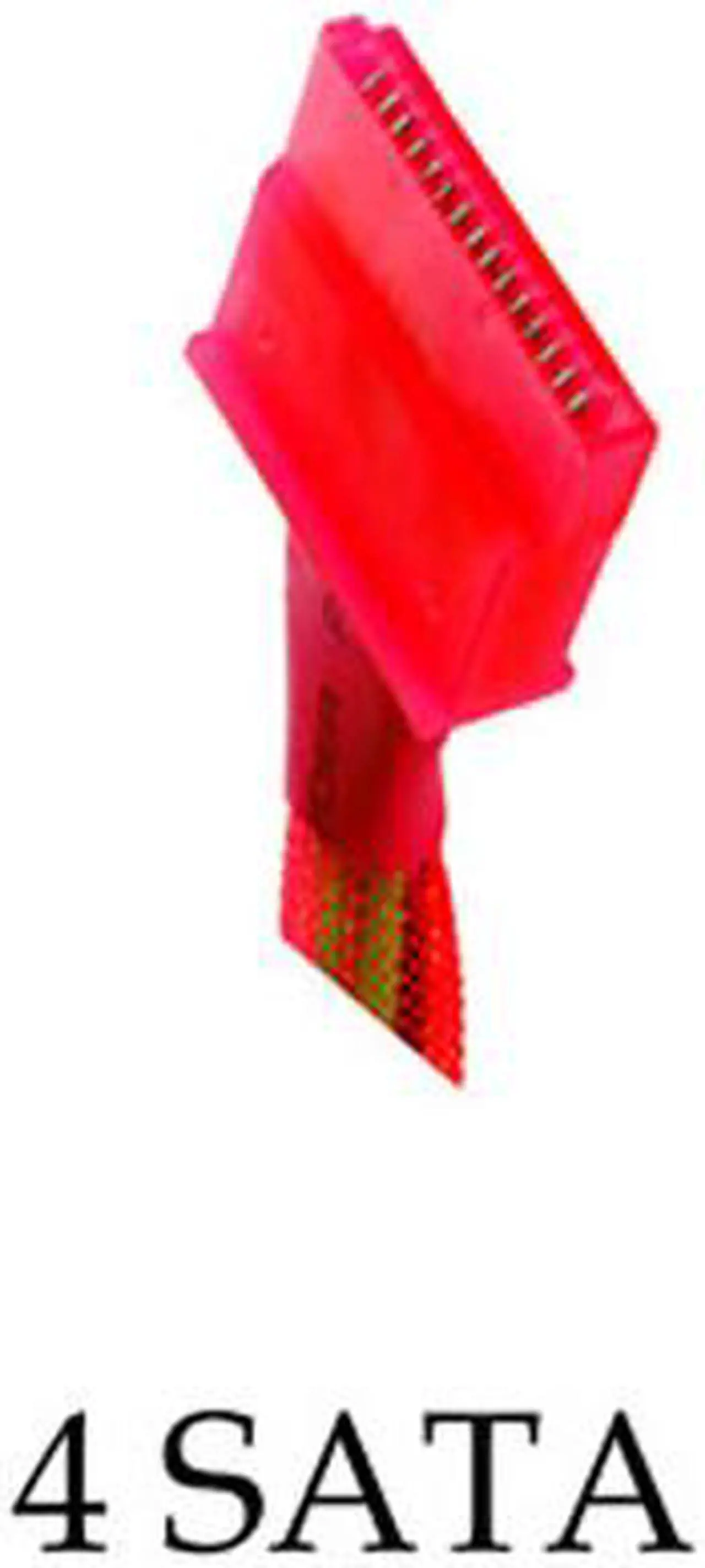

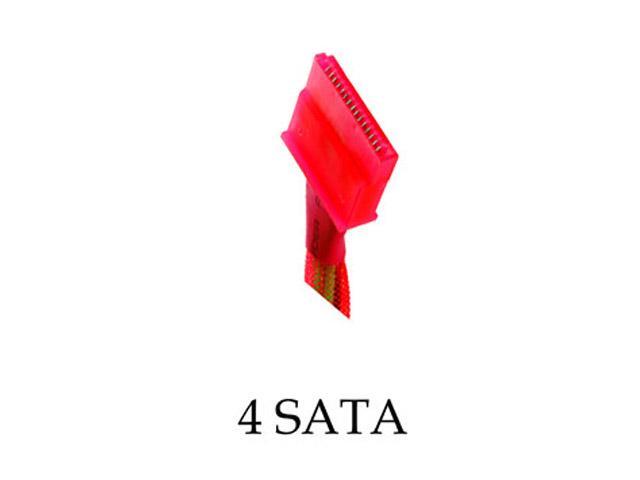

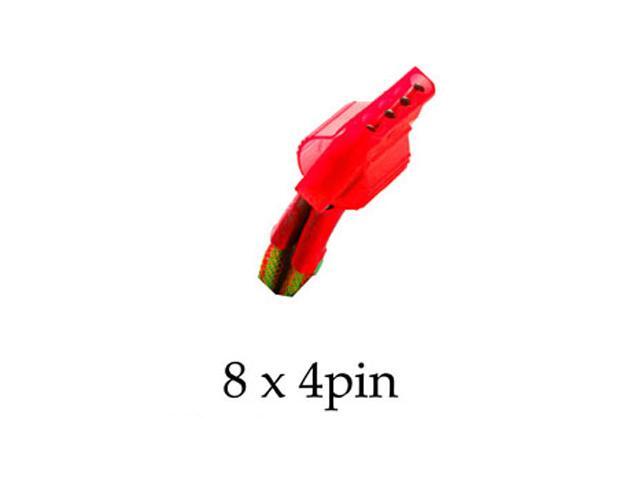

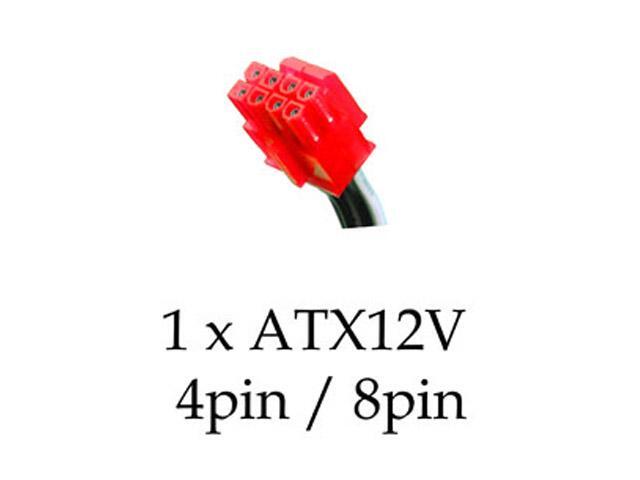

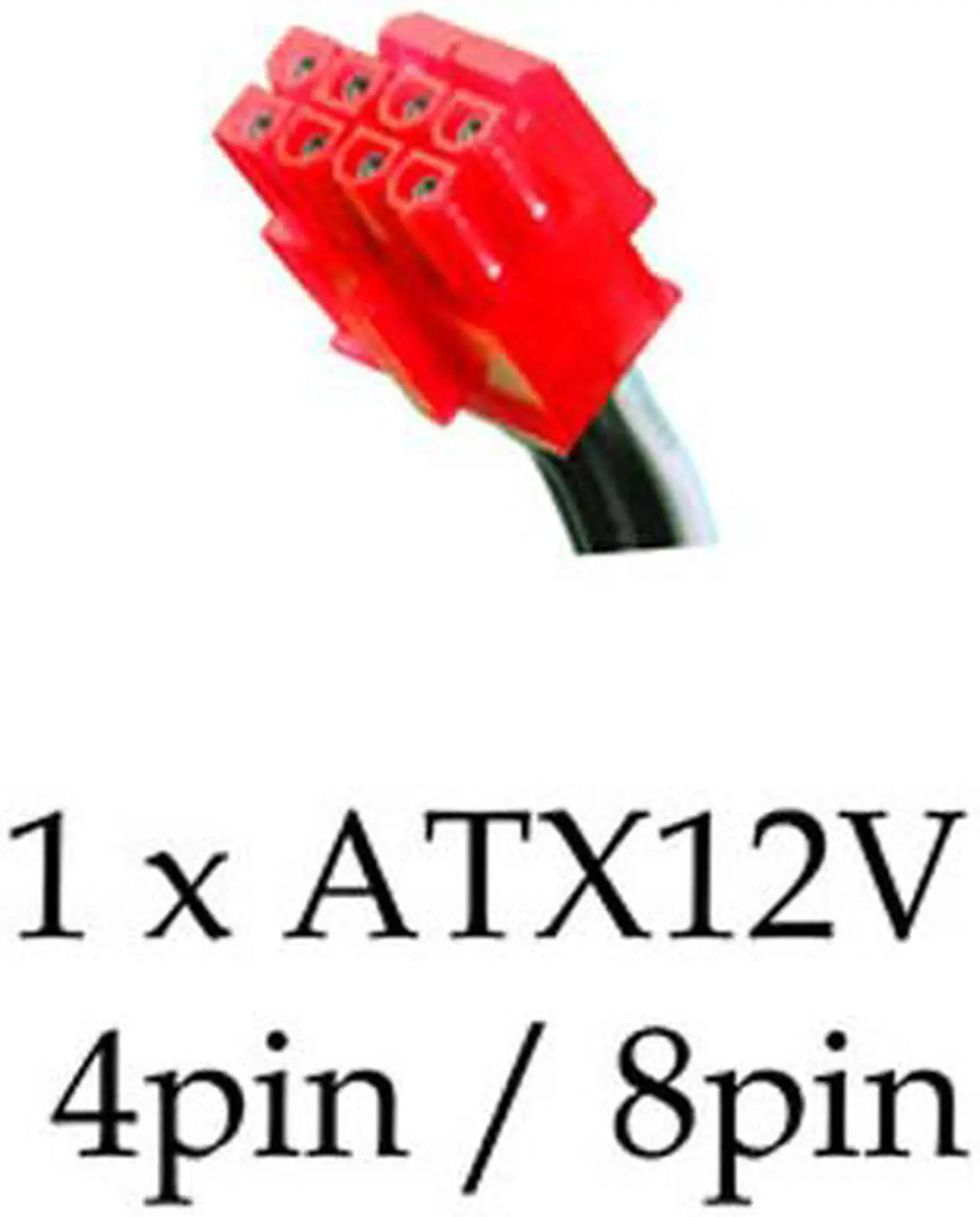

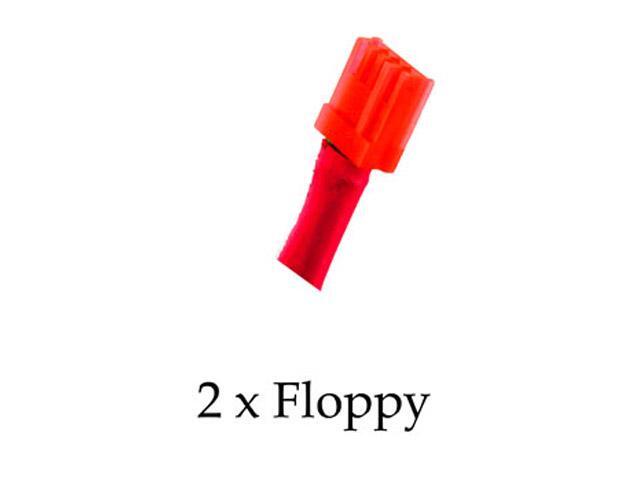

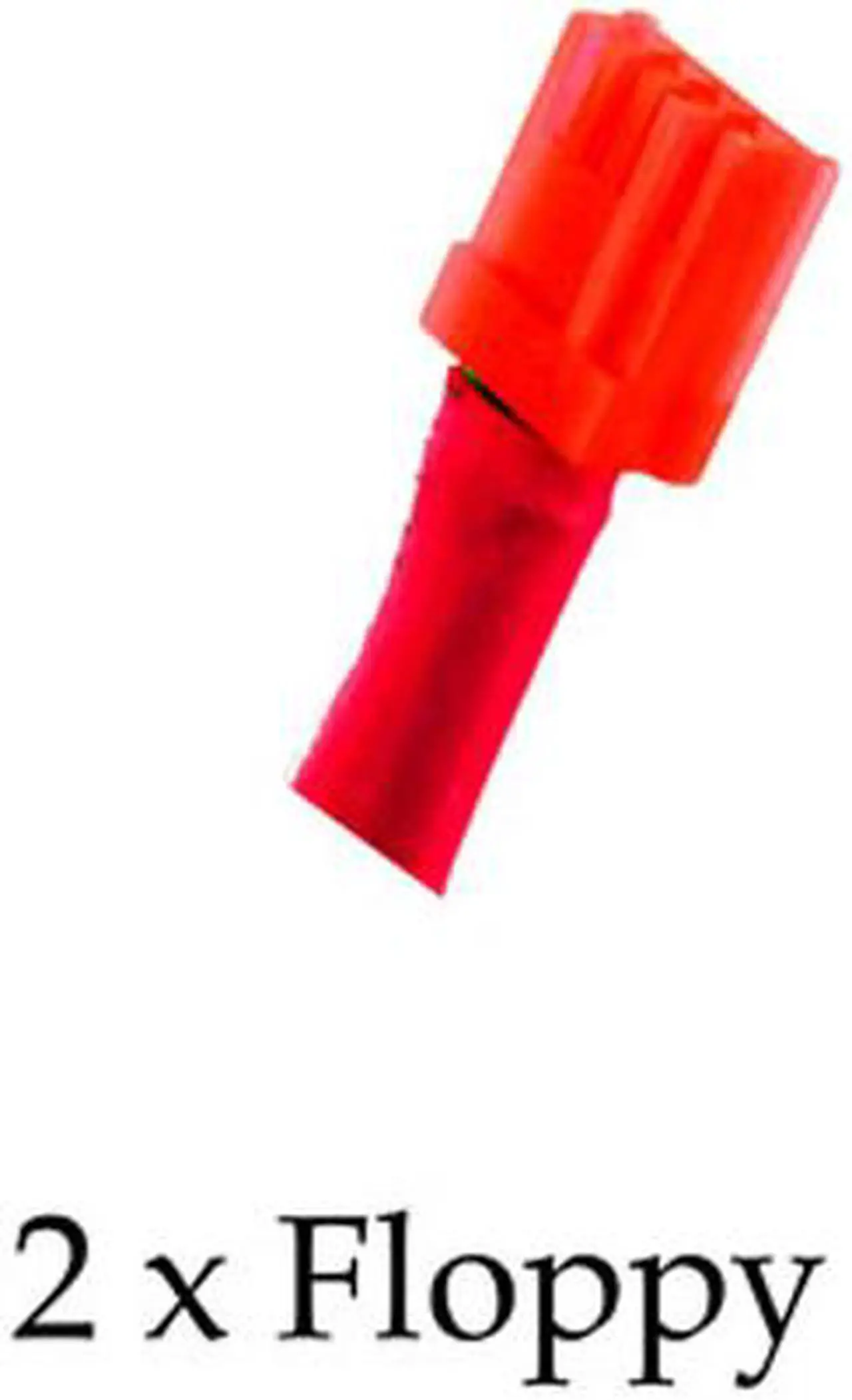

Connectors | 1 x Main connector (20+4Pin) 1 x 12V (4/8Pin) 8 x peripheral 4 x SATA 2 x Floppy 2 x PCI-E |

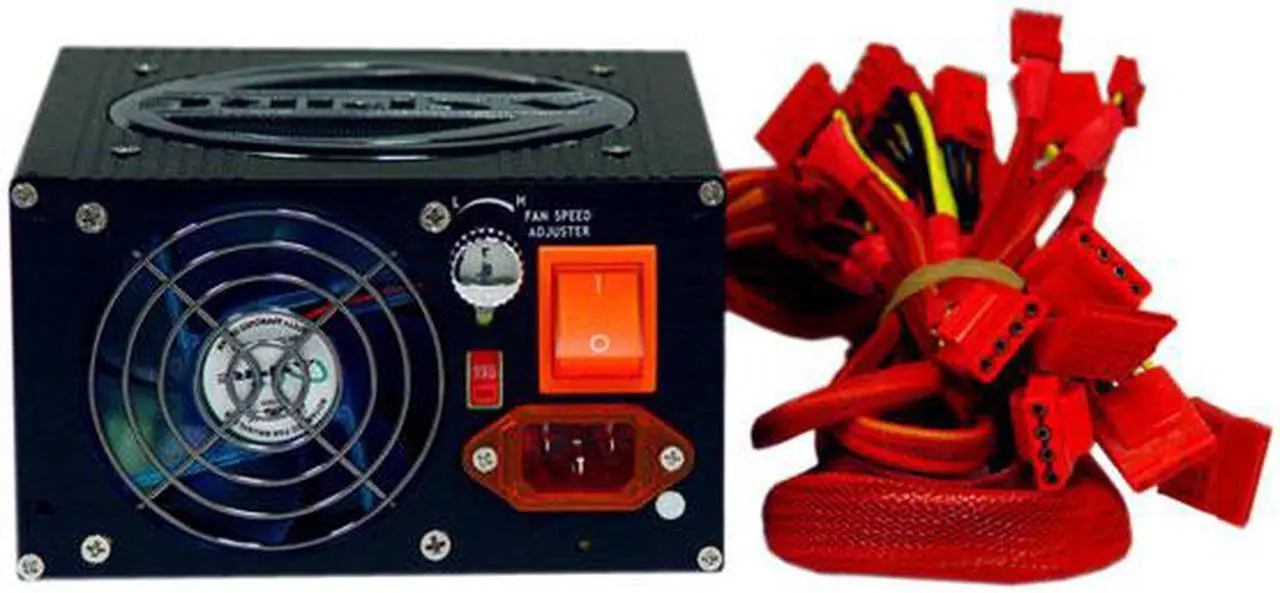

Features | Aluminum casting for best cooling High quality components and materials ensure superior performance and appearance Super silent:1 x fan speed controller optimizing cooling while reducing noise Wire management: fully sleeved cables to avoid clutter and improve 100% Burn-in test/ Hi-pot test/ Leak Current test |
---|
Date First Available | August 15, 2005 |
---|
