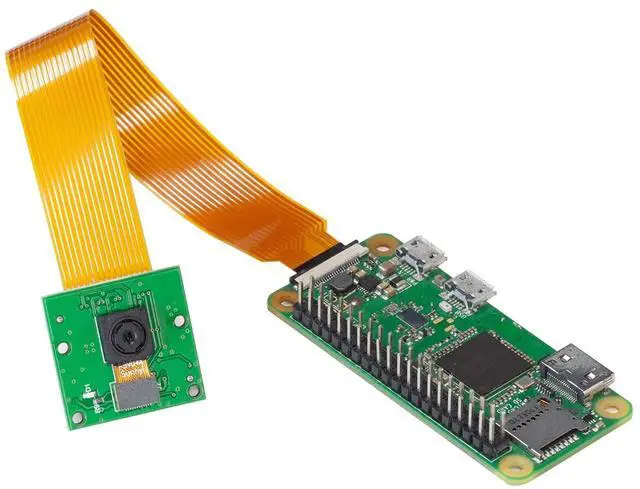

Main image of KEHIPI for Raspberry Pi Zero Camera Module, 5MP OV5647 1080P Webcam on Raspbian (Cables in 2 Kinds)

Alt view image 2 of 7 - KEHIPI for Raspberry Pi Zero Camera Module, 5MP OV5647 1080P Webcam on Raspbian (Cables in 2 Kinds)

Alt view image 3 of 7 - KEHIPI for Raspberry Pi Zero Camera Module, 5MP OV5647 1080P Webcam on Raspbian (Cables in 2 Kinds)

Alt view image 4 of 7 - KEHIPI for Raspberry Pi Zero Camera Module, 5MP OV5647 1080P Webcam on Raspbian (Cables in 2 Kinds)

Alt view image 5 of 7 - KEHIPI for Raspberry Pi Zero Camera Module, 5MP OV5647 1080P Webcam on Raspbian (Cables in 2 Kinds)

Alt view image 6 of 7 - KEHIPI for Raspberry Pi Zero Camera Module, 5MP OV5647 1080P Webcam on Raspbian (Cables in 2 Kinds)

Alt view image 7 of 7 - KEHIPI for Raspberry Pi Zero Camera Module, 5MP OV5647 1080P Webcam on Raspbian (Cables in 2 Kinds)

Shop All KEHIPI Products | Visit Wispa Technologies Store

KEHIPI for Raspberry Pi Zero Camera Module, 5MP OV5647 1080P Webcam on Raspbian (Cables in 2 Kinds)

Pi compatible - Work natively with all Raspberry Pi models for your new project or drop-in replacement
Both cables - 2 cables included so you can switch between the camera connectors for the Pi Zero and Model A&B series
Specs - 5MP 1080P OV5647, crisp photos, and sharp videos with a decent frame rate
Easy to use Easy setup with paper instructions to help you activate the camera feature on Raspbian.
Application: Small form factor for a tiny home video security system, monitoring 3D printer or other camera projects. Feel free to contact if you need any help with the product

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

This Arducam Camera Module for Raspberry Pi is fully compatible with the official ones and support all Raspberry Pi Models. It’s our 6-year experience in cameras for RPi that makes Arducam outstand.

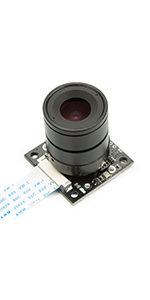

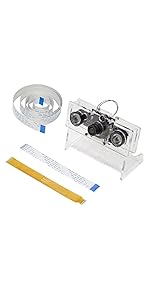

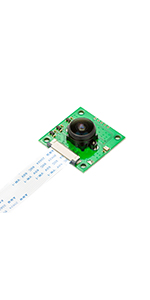

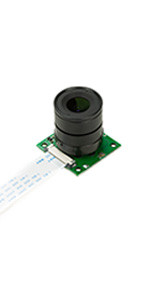

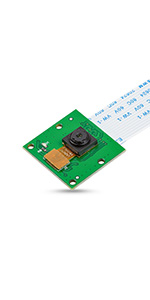

	RPi Noir Camera	RPi Camera with CS-Mount Lens	RPi Noir Camera with CS-Mount Lens	RPI Day & Night Vision Camera	RPi Fisheye Camera	RPi Noir Camera with Fixed Focus Lens

Customer Reviews	—	—	—	—	—	—
Price	— no data	—	— no data	— no data	— no data	— no data
Sensor	OV5647	OV5647	OV5647	OV5647	OV5647	OV5647
Lens	Fixed Focus Lens	CS-Mount Lens	CS-Mount Lens	M12 Lens	M12 Lens	Fixed Focus Lens
FoV	54°(H)×41°(V)	101°(H)	101°(H)	130° (D) × 100° (H)	194°(H)	2×1.33m at 2 m
Frame Rate	30fps@1080P, 60fps@720P	30fps@1080p	30fps	30 fps@1080p , 60fps@720p , 90fps@480p	30fps@1080p	30fps
Resolution	5MP	5MP	5MP	5MP	5MP	5MP
Main Features	NoIR	Visible Light/interchangeable lens	NoIR	Built-in Motorized IR Cut filter	Fisheye/Integral IR filter	Mini-sized with Flex Cable

5MP OV5647 RPi Camera V1
8MP IMX219 RPi Camera V2
ToF Camera for Depth Sensing
8MP IMX219 Jetson Nano Camera
12MP IMX477 RPi Cameras Series
12MP IMX477 Jetson Nano Camera
16MP IMX519 RPi Camera Series
64MP AF RPi Camera Series
Raspberry Pi Pico Camera
SPI Camera for Arduino&Pi Pico
Autofocus USB Camera
Low Light USB Cameras
Wide Angle USB Cameras
Night Vision/Global Shutter
Varifocal USB Cameras

	RPi Noir Camera	RPi Camera with CS-Mount Lens	RPi Noir Camera with CS-Mount Lens	RPI Day & Night Vision Camera	RPi Fisheye Camera	RPi Noir Camera with Fixed Focus Lens

Customer Reviews	—	—	—	—	—	—
Price	— no data	—	— no data	— no data	— no data	— no data
Sensor	OV5647	OV5647	OV5647	OV5647	OV5647	OV5647
Lens	Fixed Focus Lens	CS-Mount Lens	CS-Mount Lens	M12 Lens	M12 Lens	Fixed Focus Lens
FoV	54°(H)×41°(V)	101°(H)	101°(H)	130° (D) × 100° (H)	194°(H)	2×1.33m at 2 m
Frame Rate	30fps@1080P, 60fps@720P	30fps@1080p	30fps	30 fps@1080p , 60fps@720p , 90fps@480p	30fps@1080p	30fps
Resolution	5MP	5MP	5MP	5MP	5MP	5MP
Main Features	NoIR	Visible Light/interchangeable lens	NoIR	Built-in Motorized IR Cut filter	Fisheye/Integral IR filter	Mini-sized with Flex Cable

5MP OV5647 RPi Camera V1
8MP IMX219 RPi Camera V2
ToF Camera for Depth Sensing
8MP IMX219 Jetson Nano Camera
12MP IMX477 RPi Cameras Series
12MP IMX477 Jetson Nano Camera
16MP IMX519 RPi Camera Series
64MP AF RPi Camera Series
Raspberry Pi Pico Camera
SPI Camera for Arduino&Pi Pico
Autofocus USB Camera
Low Light USB Cameras
Wide Angle USB Cameras
Night Vision/Global Shutter
Varifocal USB Cameras

In order to meet the increasing need of Raspberry Pi compatible camera modules.

The team now released another add-on mini camera module for Raspberry Pi series boards which is fully compatible with official one.

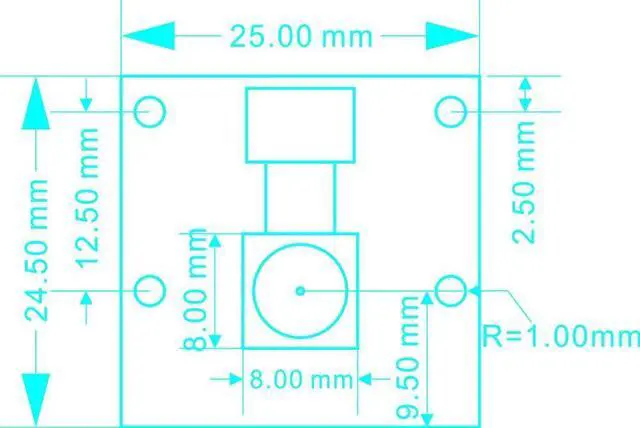

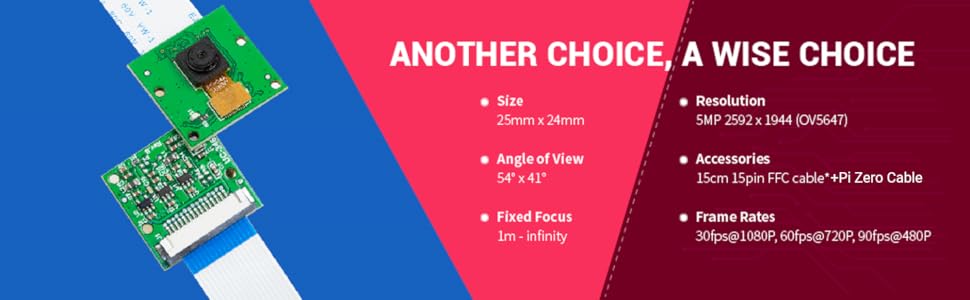

The board itself is tiny, at around 25mm x 24mm, which makes it perfect for mobile or other applications where size and image quality are important.

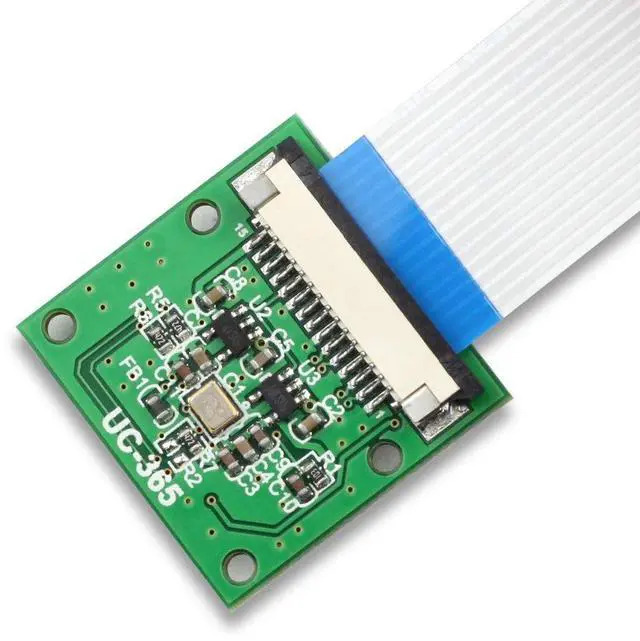

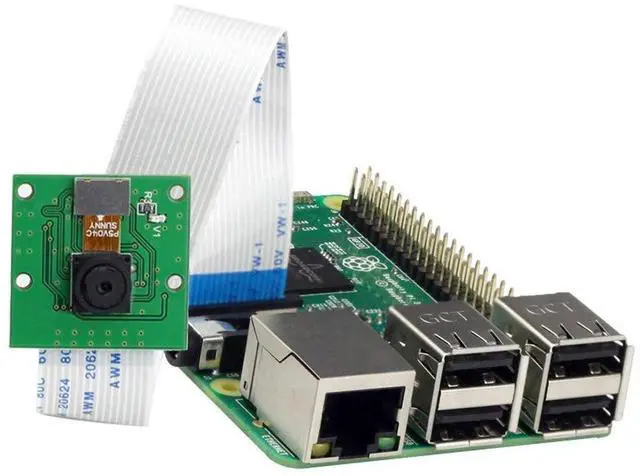

It connects to Raspberry Pi by way of a short ribbon cable.

The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.

This bus travels along the ribbon cable that attaches the camera board to the Pi.

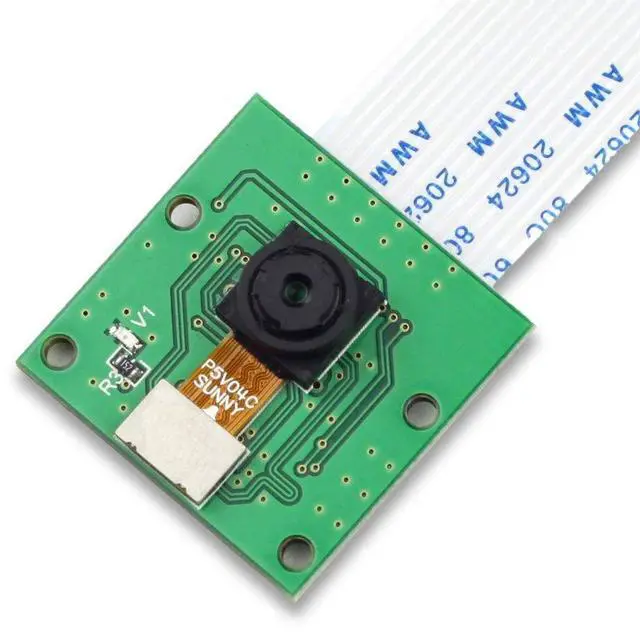

The sensor itself has a native resolution of 5 megapixels, and has a fixed focus lens onboard.

In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.

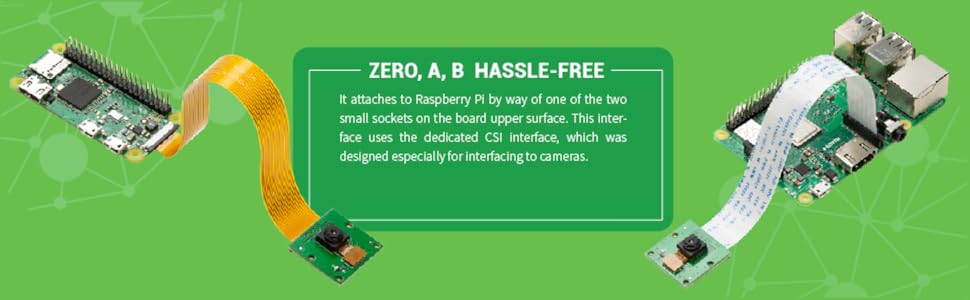

It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface.

This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras.

Features:

Angle of View: 54 x 41 degrees

Field of View: 2.0 x 1.33 m at 2 m

Full-frame SLR lens equivalent: 35 mm

Fixed Focus: 1 m to infinity

Max frame rate: 30fps

15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector

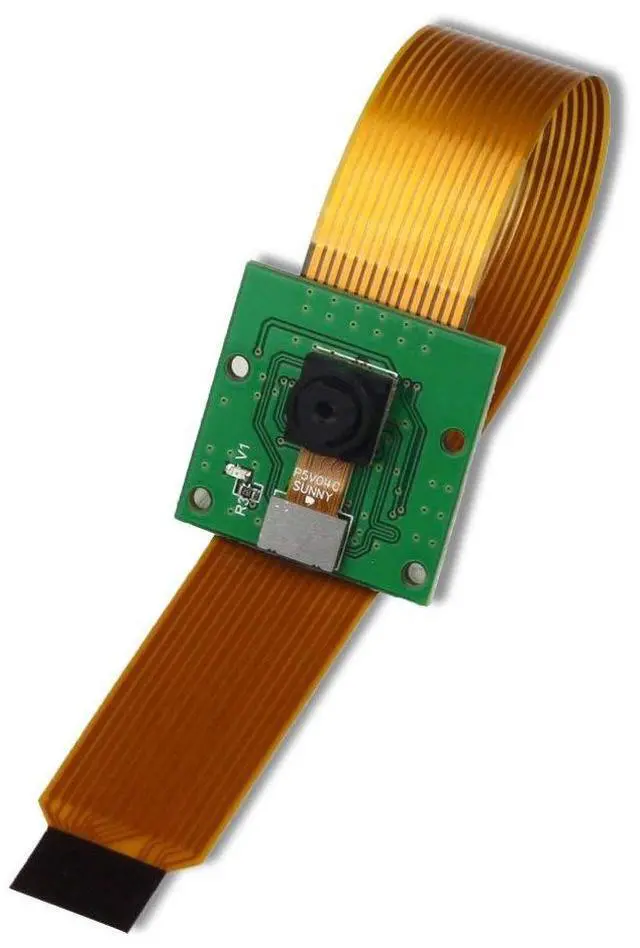

15 cm flat ribbon cable to 22-pin (0.5mm pitch) MIPI Camera Serial Interface (CSI) connector

Application:

Cellular phones, PDAs, Toys

Other battery-powered products

Can be used in all Raspberry Pi platforms

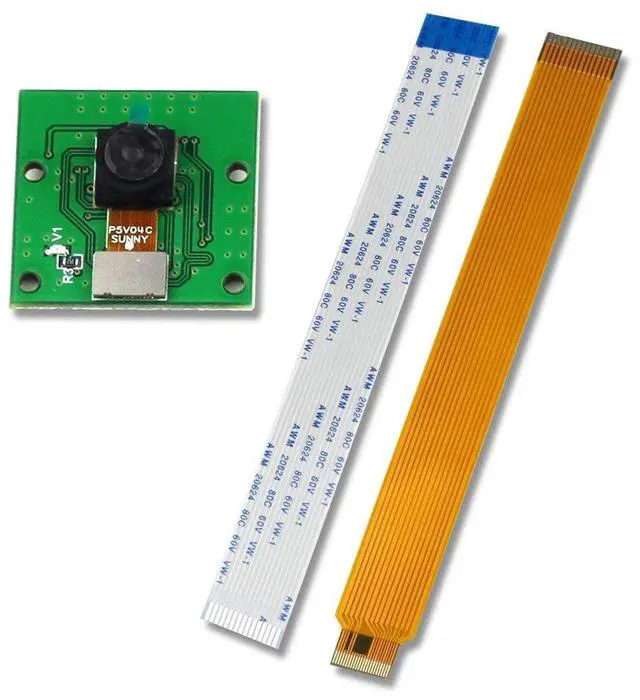

Package including:

1pcs 5MP Mini Camera OV5647 Sensor 1080p 720p video for Raspberry Pi Official Board

1pcs 15cm 15pin FPC cable

1pcs 15cm 15pin to 22pin 0.5mm pitch FPC cable

NOTE: Raspberry Pi Development Board is not included!

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Wispa Technologies Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Color	Extra Pi Zero cable included
Interface	MIPI CSI
Power Source	MIPI CSI
Operating Systems Supported	Raspbian (a version of Linux)
Dimension	2.36 in x 0.98 in x 0.94 in
Weight	0.04 lb
