KEHIPI Day and Night Vision IMX477 HQ Camera for Jetson Orin NX, 12MP Automatic IR-Cut Switching for All-Day Image

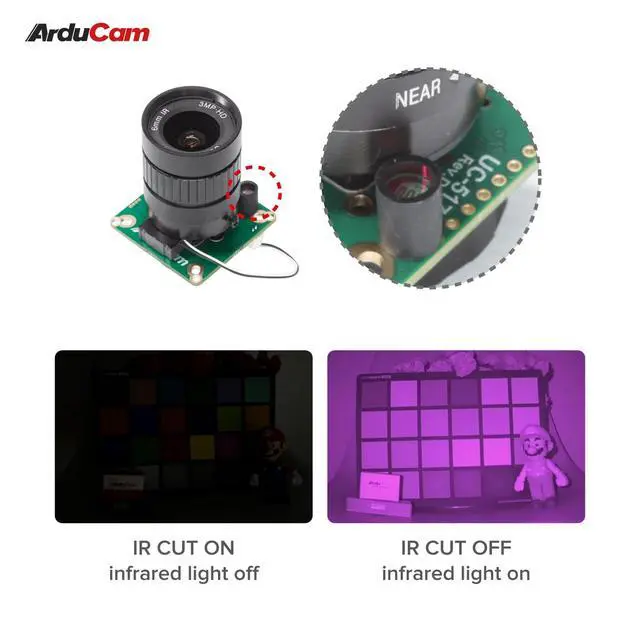

- An All-day Vision IMX477: Built-in a motorized IR-CUT Filter, switched in and out automatically based on light condition (only visible light during the daylight and infrared sensitivity during the night).
- High Quality Imaging: Keep the high image quality of 1/2.3 12.3 Megapixel IMX477 sensor, max. still resolution 4056(H) x 3040(V). Field of View: 65° (H)

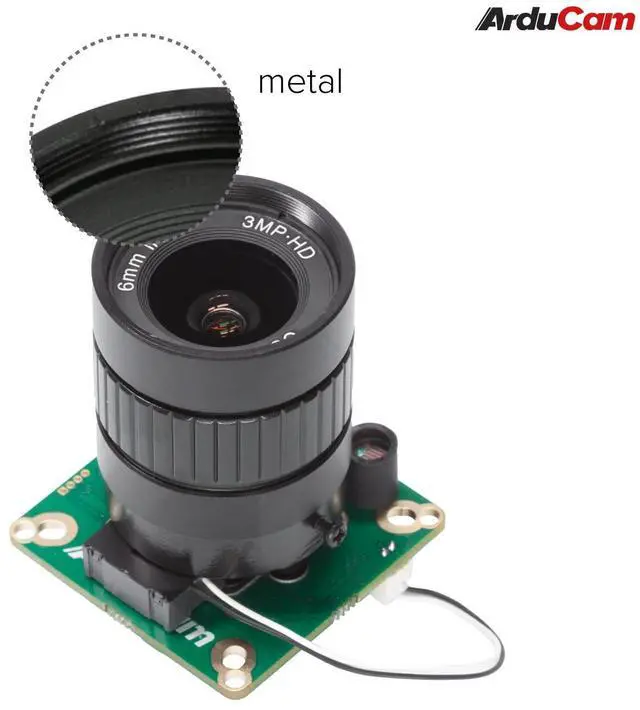

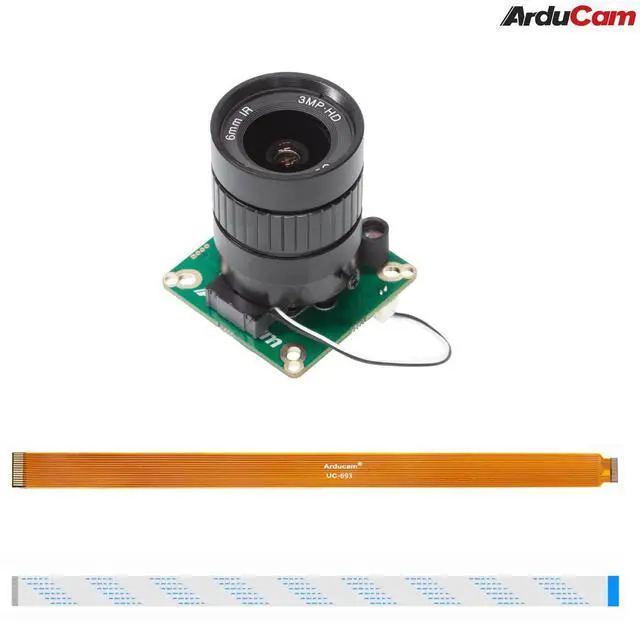

- Less Hassle: No more wasting time looking for the CS lens and camera case. A 1/2.3 6mm focal length CS lens is included; Hole Pitch: Compatible with 29mm, 30mm, 34mm, compatible with standard industrial camera enclosure.
- Applications: Automatic Switching IR-CUT filter and high resolution make it perform better in monitoring Octoprint 3D Printer, Day & night vision security camera system, motion detection, wildlife photography and other machine vision projects.

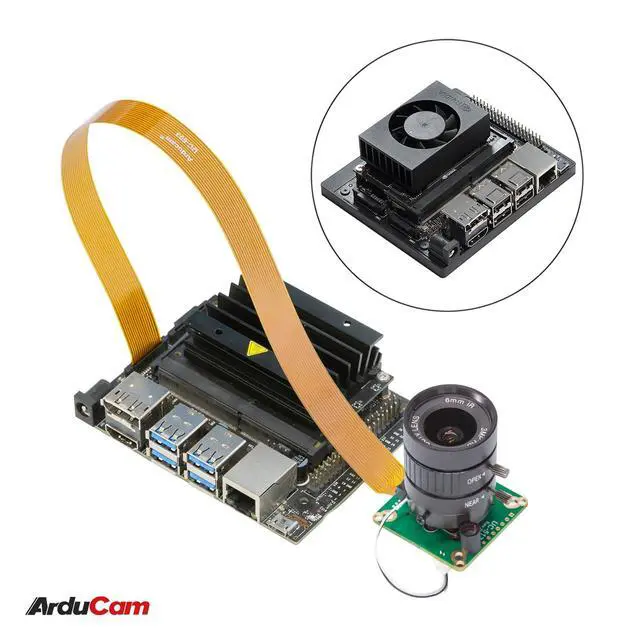

- NOTE: 1. It compatible with Raspberry Pi Compute Module (like CM3, CM3+), but is not compatible with standard Raspberry Pi models (like Pi 3/3B+/4) 2. This camera is compatible with Jetson Developer Kit, and it does not guarantee to support other third-party boards.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

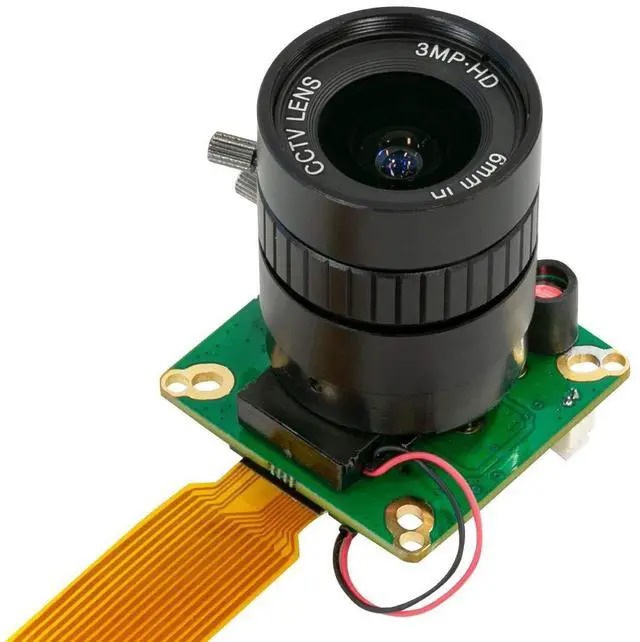

This Arducam module uses the same 12MP IMX477 image sensor as the RPi High Quality Camera, but offers a mechanical IR cut-off filter switched automatically based on light condition. The official RPi HQ camera is not sensitive to infrared, and there wont be a NoIR version. On the contrary, this Arducam camera module not only offers sensitivity to infrared but also keeps the natural feeling during daylight. Its fully compatible with Jetson Board with a camera connector.
SPECIFICATION
Camera
- Sensor: IMX477
- Optical Format: 1/2.3 (diagonal 7.857mm)
- Resolution: 4056(H) x 3040(V) 12.3MP
- Pixel Size: 1.55um x 1.55um
- IR Sensitivity: Switchable IR-CUT filter
- Interface: 4-lane MIPI CSI-2
- Lens Mount: CS-Mount
- Frame Rate: (depends on the target platform, maximum fps limit might apply)
Full resolution@60fps(normal), 4K2K@60fps, 1080p@240fps
Full resolution@40fps (12bit normal)
Full resolution@30fps (DOL-HDR, 2 frames)
Lens
- Format: 1/2.3 inch
- Focal Length: 6mm
- Aperture (F): Max. F1.2
- Field of View (FOV): 65° (H)
- Mount: CS-Mount
- Back Focal Length: 7.53mm
- MOD: 0.2m
- Dimension: 30×31mm
- Weight: 53g
Camera board
- Board Size: 38mm×38mm
- Hole Pitch: Compatible with 29mm, 30mm, 34mm
KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work one kernel version, one camera driver.
- Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
- Up or downgrading your OS leads to a kernel bump, and youll need to re-install a matching driver.
- Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process and if you dont see it released in time, kindly remind US.
