KEHIPI Day-Night Vision for Raspberry Pi Camera, Automatic IR-Cut Switching All-Day Image All-Model Support, IR LED for Low Light and Night Vision, M12 Lens Interchangeable, OV5647 5MP 1080P

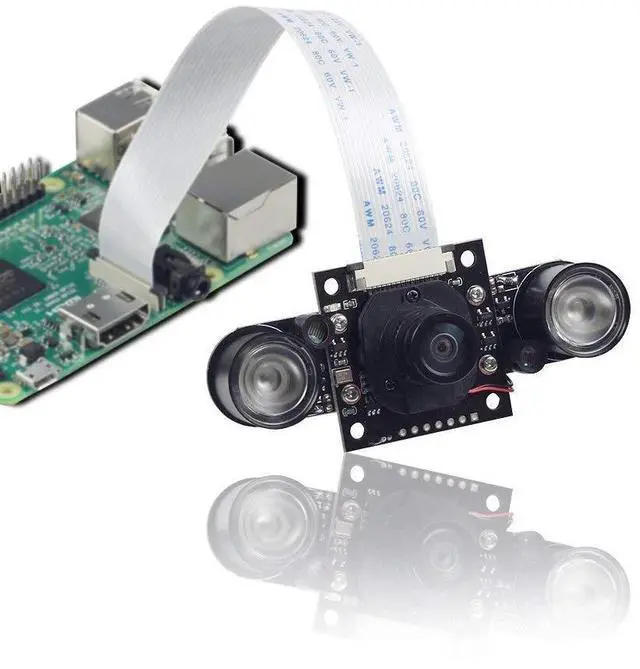

This Arducam Automatic Day/Night Camera Module for Raspberry Pi is designed for all-day photography and surveillance.

Highlights

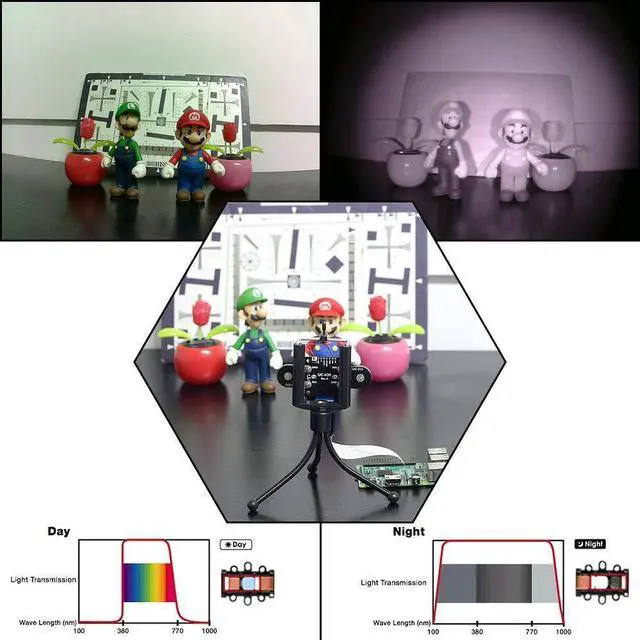

• Switch IR Cut Filter Automatically

On for daylight color accuracy, off for IR night vision.

• IR Corrected Lens

Low dispersion glass that greatly reduces Focus Shift and Chromatic Aberration, and focus light of different wavelengths on to an image plane at the same location unlike the other lenses

• IR LED Illuminator

Triggered by the light sensor that decides whether the light condition is poor and needs to be improved

Specs

• Sensor

Sensor size: 1/4” (OV5647)

Resolution: 5MP 2592×1944

Video: 1080p 30 fps, 720p 60fps, 480p 90fps

• Lens

Focal Length: 2.25 mm (You can screw the lens for focusing*)

Field of View (FOV): 130° (D) × 100° (H)

Thread Size: M12×P0.5

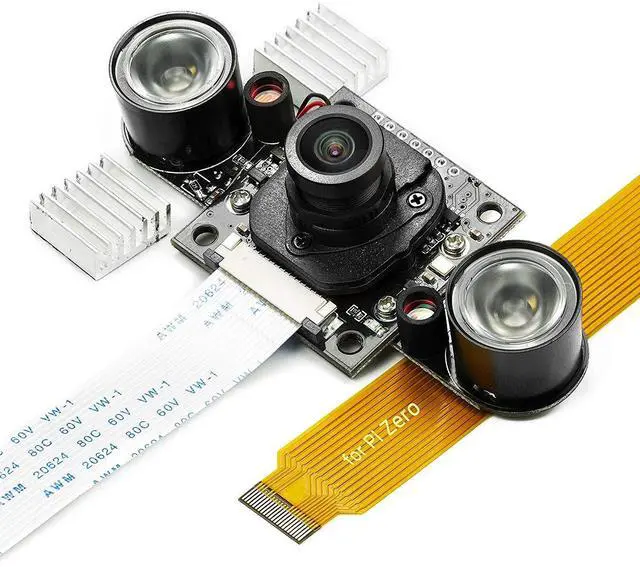

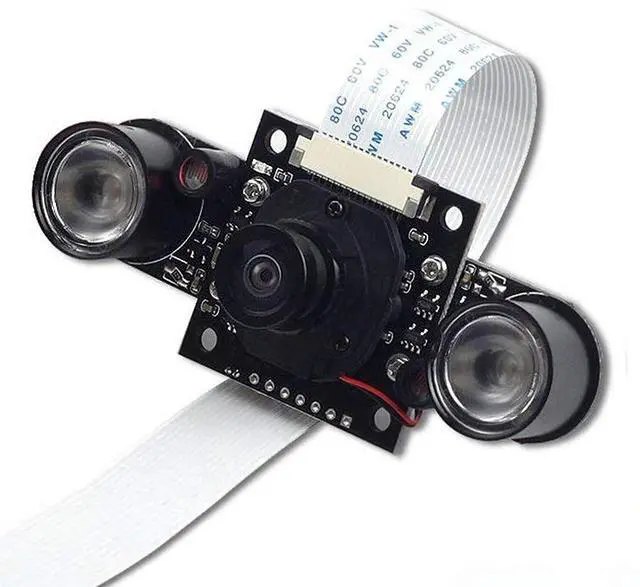

• Camera Board

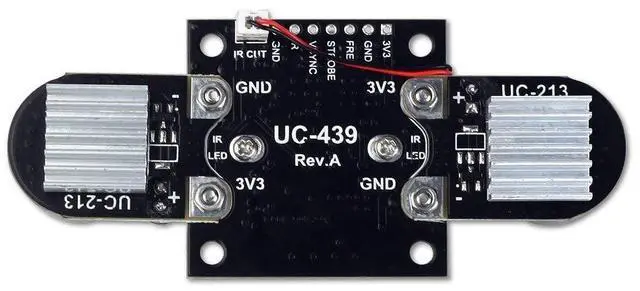

3.3V power output for IR LED

Built-in Motorized IR Cut filter

Dimension: 36×36 mm, 4 mounting holes

Application

Home surveillance, wildlife photography, NDVI in agriculture , etc.

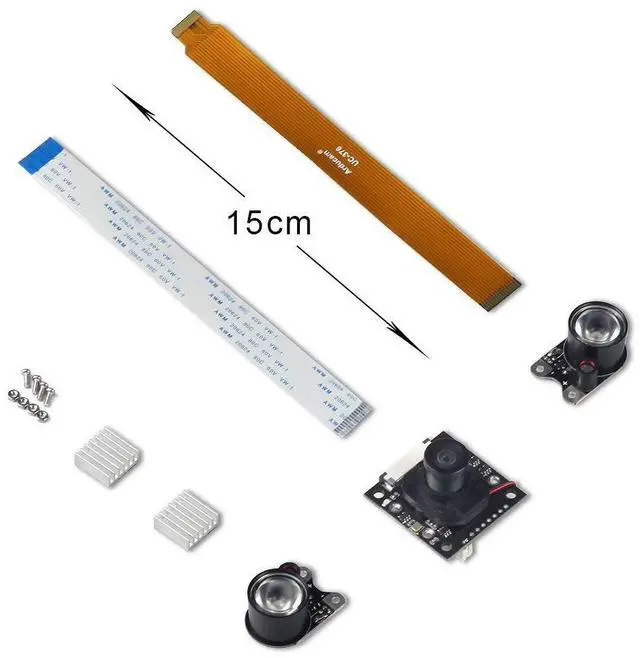

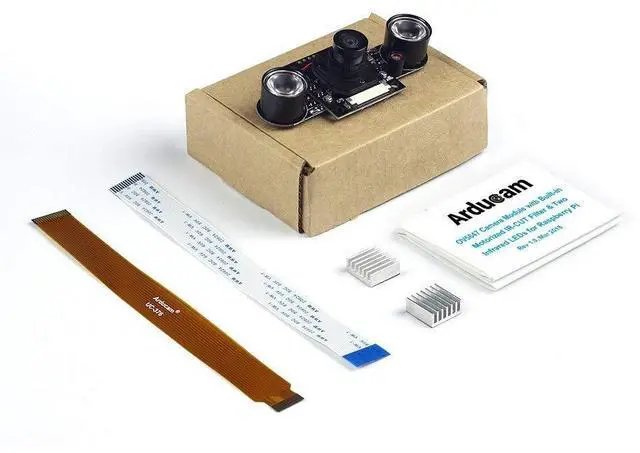

Package including

1× camera board with 5MP OV5467 sensor and IR corrected lens**

2× IR LED illuminator

2× heat sinks

1×150 mm/5.9” FFC cable for Model A and B

1×150 mm/5.9” FPC cable for Pi Zero models

NOTE

*Often, focusing a lens is performed while monitoring the image quality on a video screen.

**The Raspberry Pi motherboard is not included in the package
