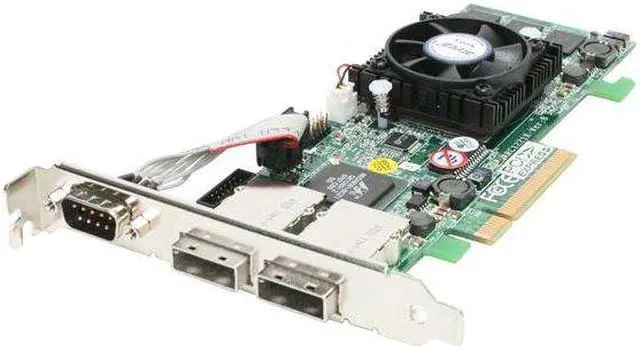

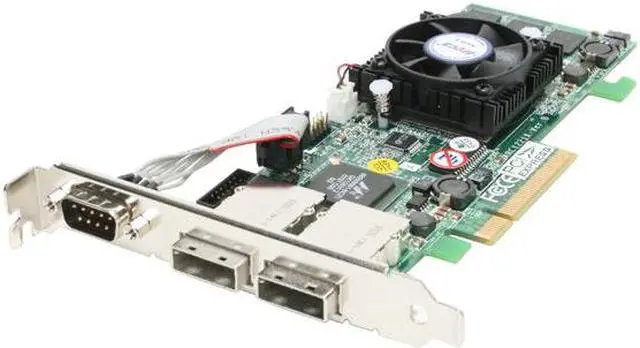

areca ARC-1221x PCI-Express x8 SATA II (3.0Gb/s) Controller Card No Cables

Be the first to review this product...
  • RAID level 0, 1, 1E, 3, 5, 6 (if RAID 6 engine supported) and JBOD
  • External SFF-8088 connector External Connectors
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Areca ARC-1221x

Model
Brand areca
Model ARC-1221x
Form Factor Plug-in Card
Details
Type SATA II (3.0Gb/s)
External Connectors External SFF-8088 connector

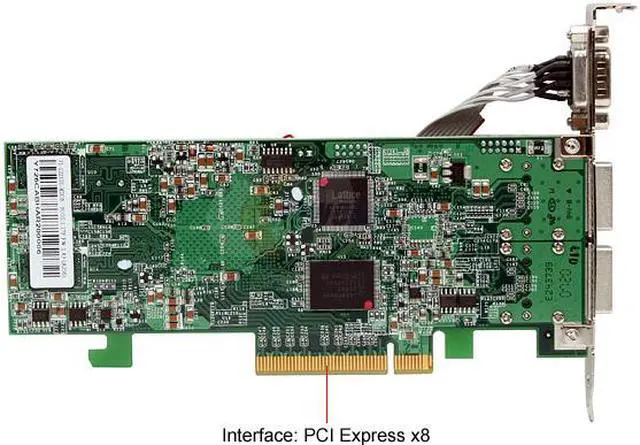

Interface PCI-Express x8
Cache Memory 256MB on-board DDR333 SDRAM with ECC protection
RAID RAID level 0, 1, 1E, 3, 5, 6 (if RAID 6 engine supported) and JBOD
Operating Systems Supported Windows 2000/XP (Scsiport Driver)
Windows Server 2003 (Scsiport Driver and Storport Driver)
Redhat Linux and SuSE Linux
FreeBSD
Solaris 10x86
UnixWare 7.1.x
Netware 6.5
Mac OS X (10.4.X)
Features
Features Intel IOP341 I/O processor
Write-through or write-back cache support
Support up to 4 SATA II drives
Multi-adapter support for large storage requirements
BIOS boot support for greater fault tolerance
BIOS PnP (plug and play) and BBS (BIOS boot specification) support
RoHS Compliant

RAID Features:
Multiple RAID selection
Array roaming
Online RAID level/stripe size migration
Online RAID capacity expansion and RAID level migration simultaneously
Instant availability and background initialization
Automatic drive insertion/removal detection and rebuild
Greater than 2TB per volume set
Support S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives
Support spin down drivers when not in use to extend service life (MAID)

Monitors/Indicators:
System status indication through HDD activity/fault connector, LCD Connector and alarm buzzer
SMTP support email notification
SNMP support for remote notification
I2C Enclosure management ready
Package Contents
Package Contents ARC-1221x
L-P Bracket
Driver Disk
User Manual
Additional Information
First Listed on Newegg August 15, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
