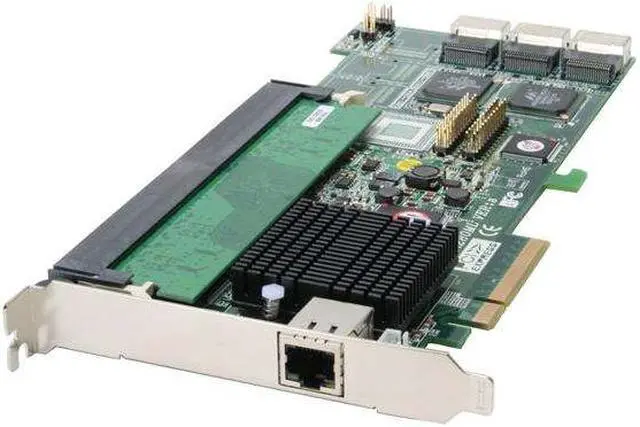

areca ARC-1231ML-KIT PCI-Express x8 SATA II (3.0Gb/s) Controller Card w/Cables
- RAID level 0, 1, 1E, 3, 5, 6 (if RAID 6 engine supported) and JBOD
- 3 x Min SAS 4i (SFF-8087) Internal Connectors
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Areca ARC-1231ML-KIT
| Brand | areca |
|---|---|
| Model | ARC-1231ML-KIT |
| Type | SATA II (3.0Gb/s) |
|---|---|

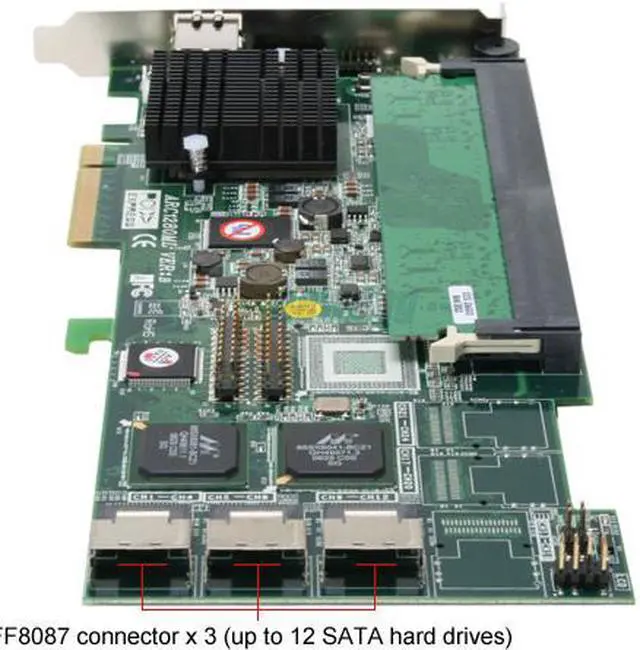

| Internal Connectors | 3 x Min SAS 4i (SFF-8087) |
| Interface | PCI-Express x8 |
| Cache Memory | One DDR2 DIMM (Default 256MB/ Upgrade to 2GB) |
| RAID | RAID level 0, 1, 1E, 3, 5, 6 (if RAID 6 engine supported) and JBOD |
| Operating Systems Supported | Windows 2000/XP (Scsiport Driver) Windows Server 2003 (Scsiport Driver and Storport Driver) Linux (RedHat, SuSE, Debian, Mandrake, TurboLinux, CentOS, etc.) FreeBSD Novell Netware 6.5 Solaris 10 x86/x86_64 SCO UnixWare 7.x.x Mac OS X (no_bootable) |
| Features | Intel 800MHz 81341 I/O processor One DIMM socket with default 256MB of DDR2-533 SDRAM with ECC protection, Upgrade to 2GB. An ECC or non-ECC SDRAM module using X8 or X16 chip organization Write-through or write-back cache support Support up to 12 SATA II drives Multi-adapter support for large storage requirements BIOS boot support for greater fault tolerance BIOS PnP (plug and play) and BBS (BIOS boot specification) support Intel RAID 6 Engine to support extreme performance RAID 6 NVRAM for RAID event & transaction log Redundant flash image for adapter availability RAID Features: RAID level 0, 1, 1E, 3, 5, 6 (if RAID 6 engine supported) and JBOD Multiple RAID selection Array roaming Online RAID level/stripe size migration Online RAID capacity expansion and RAID level migration simultaneously Online Volume set growth Instant availability and background initialization Automatic drive insertion/removal detection and rebuild Greater than 2TB per volume set Support S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives Support spin down drives when not in use to extend service life (MAID) Support NTP protocol to synchronize RAID controller clock over on-board Ethernet port Monitors/Indicators: System status indication through HDD activity/fault connector, LCD Connector and alarm buzzer SMTP support email notification SNMP support for remote notification I2C Enclosure management ready Server chassis features the 36-ckt Mini-SAS connector (SFF-8087) on its SAS backplanes RAID Management: Field-upgradeable firmware in flash ROM In-Band Manager Hot key boot-up McBIOS RAID manager via BIOS API library for customer to write its monitor utility Support Command Line Interface (CLI) Browser-based management utility via ArcHttp Proxy Server Single Admin Portal (SAP) monitor utility Out-of-Band Manager |
|---|
| Package Contents | ARC-1231ML-KIT User Manual Driver Disk 3 x Cable |
|---|
| First Listed on Newegg | June 20, 2007 |
|---|
