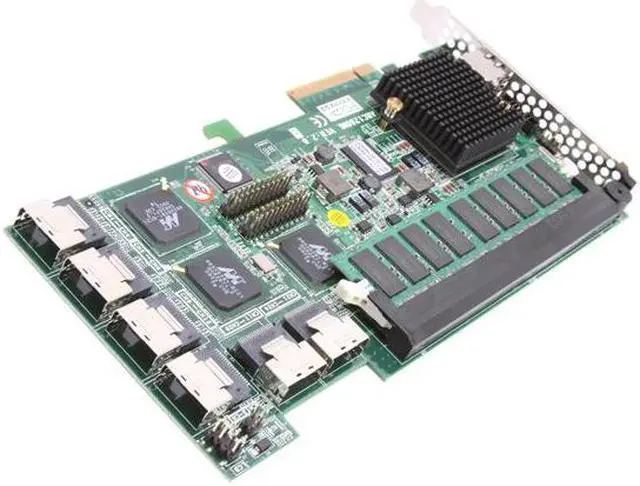

areca ARC-1280ML-4G PCI-Express x8 SATA II (3.0Gb/s) Controller Card

Be the first to review this product...

RAID 0/1/3/5/6/10/ JBOD
6 x SFF-8087 mini-SAS Internal Connectors

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The ML version comes with Min SAS 4i internal connector. This Min SAS 4i (SFF-8087) connector has eight signal pins to support four SATA drives and six pins for the SGPIO (Serial General Purpose Input/Output) side-band signals. The SGPIO bus is for efficient LED management and for sensing drive locate status, without any discrete fault and activity cable needed.

Areca high-performance PCI-Express bus to SATA RAID host adapters support 12, 16 and 24 SATA ll peripheral devices on a single host adapter. SATA RAID controller has the same RAID kernel of its field-proven external RAID controllers. Applications that benefit most features from these controllers including NAS, server RAID solutions, web server, supercomputing, near-line backup, security systems and streaming applications server.

The ML version comes with Min SAS 4i internal connector. This Min SAS 4i (SFF-8087) connector has eight signal pins to support four SATA drives and six pins for the SGPIO (Serial General Purpose Input/Output) side-band signals. The SGPIO bus is for efficient LED management and for sensing drive locate status, without any discrete fault and activity cable needed.

Serial ATA SupportWith six internal Min SAS 4i ports, the Areca ARC-1280ML-4G supports up to 24 SATA II devices for enhanced flexibility and speed.
RAID SupportThe Areca ARC-1280ML-4G supports multi-level RAID configuration including RAID level RAID 0/1/1E/3/5/6 JBOD for better performance, enhanced data security and flexible capacity upgrades.
4GB MemoryThe Areca ARC-1280ML-4G features default 4GB memory for high data transfer speed and maximum data integrity.
On-board I/O ProcessorThe Areca ARC-1280ML-4G features an Intel 800MHz IOP341 I/O processor for fast processing.
