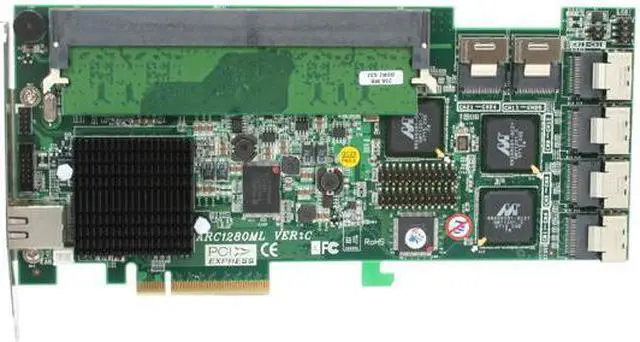

areca ARC-1280ML PCI-Express x8 SATA II (3.0Gb/s) Controller Card

In stock.
Ships from United States.
Most customers receive within 5-7 days.
  • RAID level 0, 1, 1E, 3, 5, 6 (if RAID 6 engine supported) and JBOD
  • 24 x SATA II Internal Connectors
  • Serial ATA/300 External Connectors
Areca high-performance PCI-Express bus to SATA RAID host adapters support 12, 16 and 24 SATA ll peripheral devices on a single host adapter. SATA RAID controller has the same RAID kernel of its field-proven external RAID controllers. Applications that benefit most features from these controllers including NAS, server RAID solutions, web server, supercomputing, near-line backup, security systems and streaming applications server.
The ML version comes with Min SAS 4i internal connector. This Min SAS 4i (SFF-8087) connector has eight signal pins to support four SATA drives and six pins for the SGPIO (Serial General Purpose Input/Output) side-band signals. The SGPIO bus is for efficient LED management and for sensing drive locate status, without any discrete fault & activity cable needed.
  • neweggSerial ATA SupportWith six internal Min SAS 4i ports, the Areca ARC-1280ML supports up to 24 SATA II devices for enhanced flexibility and speed.
  • neweggRAID SupportThe Areca ARC-1280ML supports multi-level RAID configuration including RAID level 0, 1, 1E, 3, 5, 6 (if RAID 6 engine supported) and JBOD for better performance, enhanced data security and flexible capacity upgrades.
  • newegg256MB MemoryThe Areca ARC-1280ML features one DIMM slot with default 256MB DDR2-533 RAM with ECC protection that can be upgraded to 2GB for high data transfer speed and maximum data integrity.
  • neweggOn-board I/O ProcessorThe Areca ARC-1280ML features an Intel 800MHz IOP341 I/O processor for fast processing.

Warranty & Returns

Warranty, Returns, And Additional Information


  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
