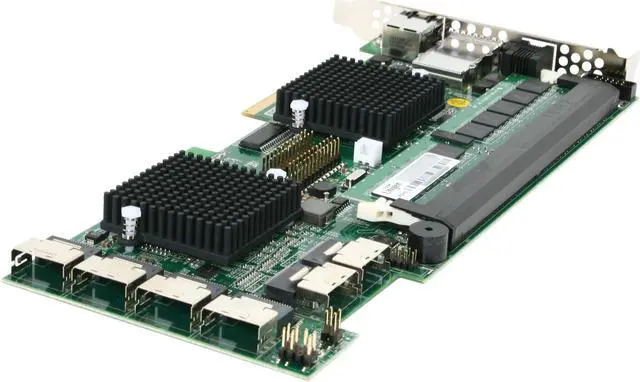

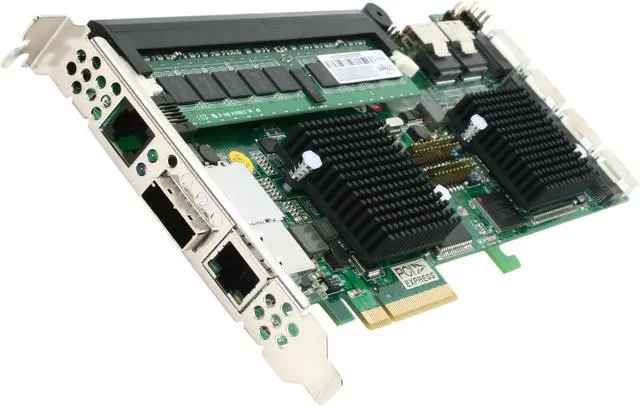

areca ARC-1880ix-24-4G PCI-Express 2.0 x8 SATA / SAS Controller Card with 4GB ECC Cache

(1) Write a Review
  • 0, 1,1E, 3, 5, 6, 10, 30, 50, 60 or JBOD
  • 6 x SFF-8087 mini-SAS Internal Connectors

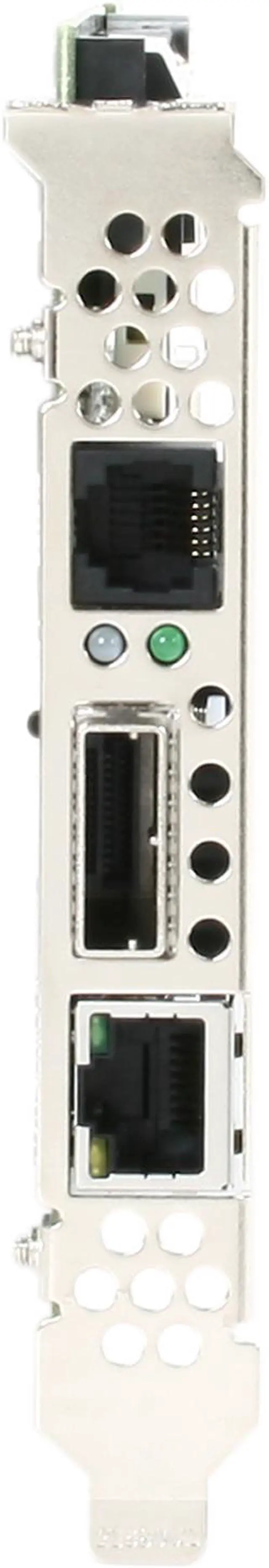

  • 1 x SFF-8088 mini-SAS External Connectors
  • Up to 6Gb/s
Overview
Specs
Reviews (1)
Areca high-performance ARC-1880 series PCIe 2.0 to 6Gb/s SAS RAID adapter can provide up to (128) 6Gb/s and 3Gb/s SAS/SATA/SSD peripheral devices using 6Gb/s SAS expanders. The adapters are based on the same RAID kernel of field-proven external RAID adapter and same device drivers with widely used SAS/SATA RAID adapters. Applications that benefit most features from these adapters include NAS, server RAID solutions, supercomputing, near-line backup, security systems, streaming and cloud computing applications.
Areca high-performance ARC-1880 series PCIe 2.0 to 6Gb/s SAS RAID adapter can provide up to (128) 6Gb/s and 3Gb/s SAS/SATA/SSD peripheral devices using 6Gb/s SAS expanders. The adapters are based on the same RAID kernel of field-proven external RAID adapter and same device drivers with widely used SAS/SATA RAID adapters. Applications that benefit most features from these adapters include NAS, server RAID solutions, supercomputing, near-line backup, security systems, streaming and cloud computing applications.
  • neweggSerial Attached SCSI PortsWith one external mini-SAS port and six internal mini-SAS ports, the Areca ARC-1880ix-24-4G supports up to 128 SAS or SATA devices (with expander) for enhanced flexibility and speed. The support for next generation SATA/SAS port enables lightning data transfer speed of up to 6Gbps.
  • neweggRAID SupportThe Areca ARC-1880ix-24-4G supports multi-level RAID configuration including RAID level 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD for better performance, enhanced data security and flexible capacity upgrades.
  • newegg4GB On-Board MemoryThe Areca ARC-1880ix-24-4G features 4GB ECC RAM for uncompromising performance and maximum data integrity.
  • neweggOn-Board I/O ProcessorThe Areca ARC-1880ix-24-4G features an integrated 800 MHz RoC for RAID core and SAS microcode.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
