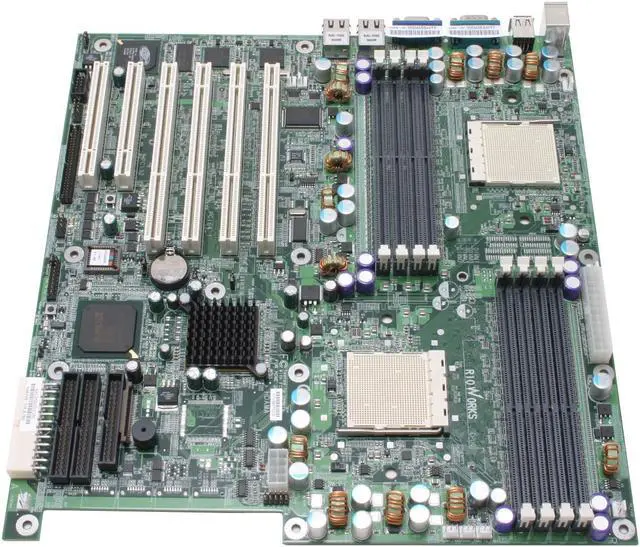

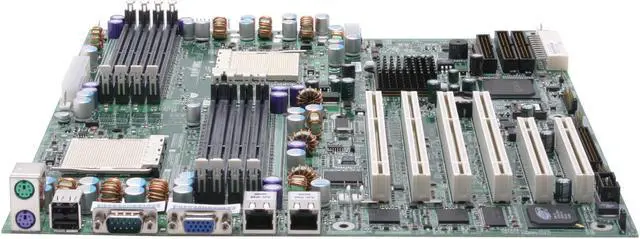

ARIMA HDAMA SSI Server Motherboard Dual 940 AMD 8131

  • Dual 940
  • AMD 8131
  • 8 x 184Pin
Specs
Reviews

Learn more about the ARIMA HDAMA

Model
Brand ARIMA
Model HDAMA
Supported CPU
CPU Socket Type Dual 940
CPU Type Dual AMD Opteron
System Bus 1600 MT/s, 6.4GB/s
Supported CPU Technologies HyperTransport
Chipsets
North Bridge AMD 8131
South Bridge AMD 8111
Memory
Number of DDR Slots 8 x 184Pin
DDR Standard DDR 400 (PC 3200)
Maximum Memory Supported 16GB
Expansion Slots
PCI-X Slots (64-bit 133MHz) 2
PCI-X Slots (64-bit 66MHz) 2
PCI Slots 2 x PCI Slots
Storage Devices
PATA ATA 133 up to 4 devices
SATA SiliconImage Sil3114
4 SATA ports
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset ATI RAGE XL
Onboard LAN
LAN Chipset Dual Broadcom 5702 Gigabit Ethernet controllers onboard
Supports Fault-Tolerance and Fail-Over
LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
COM 1
Video Ports 1
USB 1.1/2.0 2 x USB 1.1
Onboard Ports
Onboard USB 4 x USB 1.1
Dimensions
Form Factor SSI
Dimensions (W x L) 12" X 13"
Additional Information
First Listed on Newegg July 01, 2005
