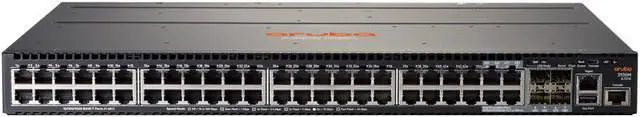

HPE Aruba 2930M 48G 1-Slot -JL321A switch - 48 ports - managed - rack-mountable

HPE Aruba 2930M 48G 1-Slot -JL321A switch - 48 ports - managed - rack-mountable
Product

Specifications

General
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Front to back airflow rack-mountable 1U
Subtype Gigabit Ethernet
Ports 44 x 10/100/1000 + 4 x combo Gigabit SFP
Performance Throughput: 112 Mpps | Latency (10
Mbps): 98.5 µs | Latency (100
Mbps): 11.8 µs | Latency (1
Gbps): 3.1 µs | Latency (10
Gbps): 3.4 µs |
Stacking bandwidth: 100 Gbps | Switching capacity: 176 Gbps
Capacity IPv4 routing table entries: 2000 |
IPv6 routing table entries: 1000 |
RIP routes: 10000 |
Static routes: 256 | OSPF routes: 200
MAC Address Table Size 32768 entries
Jumbo Frame Support 9220 bytes
Routing Protocol OSPF, RIP, RIP-1, RIP-2, IGM
Pv2, IGMP, OSP
Fv2, static IP routing, IGM
Pv3, OSP
Fv3, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, CIDR
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
Encryption Algorithm MD5, SSL
Authentication Method RADIUS, PAP, CHAP, TACACS, TACACS+
Features Flow control, DHCP support, BOOTP support, VLAN support, IGMP snooping, DiffServ support, IPv6 support, SNTP support, sFlow, Quality of Service (QoS), DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), Management Information Base (MIB), dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Class of Service (CoS), Type of Service (ToS), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1 p, IEEE 802.3 x, IEEE 802.1 w, IEEE 802.1 x, IEEE 802.1 s, IEEE 802.1 ad, IEEE 802.1 v, IEEE 802.1 ab (LLDP), IEEE 802.3 az, IEEE 802.1AX
Processor 1 x ARM Cortex-A 9: 1. 016 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 44 x 1000Base-T RJ-45 | 4 x Gigabit LAN | 1 x serial (console) RJ-45 | 1 x USB Type B | 1 x management RJ-45
Expansion Slots 1 (total) / 1 (free) x Stacking Module slot | 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply
Installed Qty 0 (installed) / 2 (max)
Voltage Required AC 120/230 V (50/60 Hz)
80 PLUS Certification 80 PLUS Silver
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C 22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825- 1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950- 1:2005 + A 1:2009 + A 2:2013, EN 60825- 1:2007, FCC CFR47 Part 15 A, EN 60950- 1:2006 +A 11:2009 +A 1:2010 +A 12:2011 +A 2:2013
Dimensions & Weight
Width 17.4 in
Depth 12.8 in
Height 1.7 in
Weight 10.14 lbs
