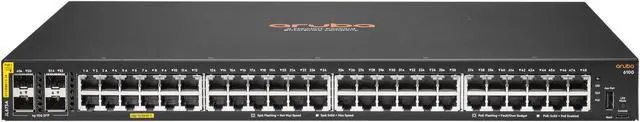

HPE Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch - JL675A switch - 48 ports - managed - rack-mountable

Product Specifications
General
Device Type Switch - 52 ports - L3 - managed
Enclosure Type Side to side airflow rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Switching capacity: 176 Gbps | Throughput: 98.6 µs | Latency (1 Gbps): 1.9 µs | Latency (10 Gbps): 1.8 µs
Capacity Switched virtual interfaces (SVIs): 16 | ARP entries: 1024 | IPv4 routes (Unicast): 512 | IPv6 routes (Unicast): 512 | IGMP groups: 512 | MLD groups: 512 | IPv4 ACL entries (ingress): 256 | IPv6 ACL entries (ingress): 128 | MAC ACL entries (ingress): 256
MAC Address Table Size 8192 entries
Routing Protocol IGMPv2, IGMPv3
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Processor 1 x ARM A9: 1.016 GHz
RAM 4 GB DDR3 SDRAM
Flash Memory 16 GB
Expansion / Connectivity
Interfaces 48 x 10/100/1000 Base-T RJ-45 PoE+ | 4 x 1/10Gbit LAN SFP+ | 1 x USB-C console | 1 x USB Type A
Power
Power Device Internal power supply
Power Provided 500 Watt 2.4 A
Voltage Required AC 230 V (50/60 Hz)
Power Consumption Operational 30.6 Watt
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792
Localization English / United States
Dimensions & Weight
Width 17.4 in
Depth 12 in
Height 1.7 in
Weight 11.07 lbs
