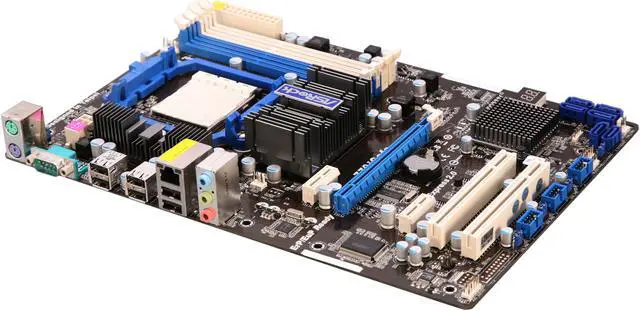

ASRock 770iCafe AM3+ AMD 770 + SB710 ATX AMD Motherboard

OPEN BOX Product Type
  • AMD 770
  • FX / Phenom II / Athlon II / Sempron 100 Series
  • DDR3 1600/1333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the ASRock 770iCafe

Model
Brand ASRock
Model 770iCafe
Supported CPU
CPU Socket Type AM3+
CPU Type FX / Phenom II / Athlon II / Sempron 100 Series
FSB 2600 MHz
Chipsets
Chipset AMD 770 + SB710
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1600/1333/1066/800
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
SATA RAID 0/1/10/JBOD
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 2 x PS/2 / 3 x Audio Jacks / 6 x USB 2.0/1.1
PS/2 2
COM 1
USB 1.1/2.0 6 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Other Connectors 1 x IR header
1 x Power LED header
CPU/Chassis/Power FAN connector
24 pin ATX power connector
8 pin 12V power connector
Front panel audio connector
1 x Dr. Debug (7-Segment Debug LED)
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8.2"
Power Pin 24 Pin
Features
Features For AM3+ processors support, please visit the official website to get the exact supporting list.
http://www.asrock.com/mb/cpu.asp?Model=770iCafe

Phenom II X6 6-Core CPU Ready

ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors

Supports ASRock Turbo UCC

Supports ASRock UCC - Unlock CPU Core

Supports Dual Channel DDR3 1600

1 x PCI Express 2.0 x16 slot, PCIE Gigabit LAN

Supports ASRock Instant Boot, Instant Flash, OC Tuner, IES, OC DNA

ErP/EuP Ready

Free Software : CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial
Additional Information
First Listed on Newegg May 11, 2012
