ASRock 775i65G LGA 775 Intel 865G Micro ATX Intel Motherboard
- Intel 865G
- Core 2 Duo / Pentium D / Celeron D
- DDR 400
Specs
Reviews (15)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock 775i65G
| Brand | ASRock |
|---|---|
| Model | 775i65G |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Pentium D / Celeron D |
| FSB | FSB 1066 MHz for external graphics (by overclocking) FSB 800/533 MHz for internal graphics |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 865G |
|---|---|
| South Bridge | Intel ICH5 |
| Onboard Video Chipset | Intel Extreme2 Graphics |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 3 x PCI Slots |
| Other Slots | 1 x AMR |
| PATA | 2 x ATA100 4 Dev. Max |
|---|
| Audio Chipset | C-Media CMI9761A |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8101L |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 2.0 connector supports 2 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.0" |
| Power Pin | 20 Pin |
| Features | Only supported with PCB version R2.00 or higher FSB1066-CPU is supported only when you install AGP VGA card into AGP slot. Besides, if you use a FSB1066-CPU on this motherboard, please adopt a DDR400 CL2.5 memory module Supports FSB 1066 MHz for external graphics and FSB 800/533 MHz for Internal graphics |
|---|

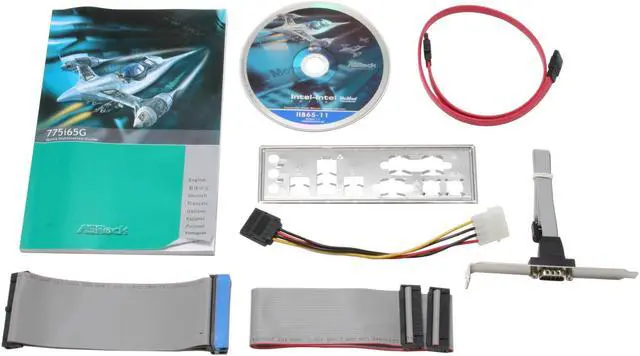

| Package Contents | 775i65G User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable Serial/COM Bracket |
|---|
| First Listed on Newegg | June 19, 2006 |
|---|
