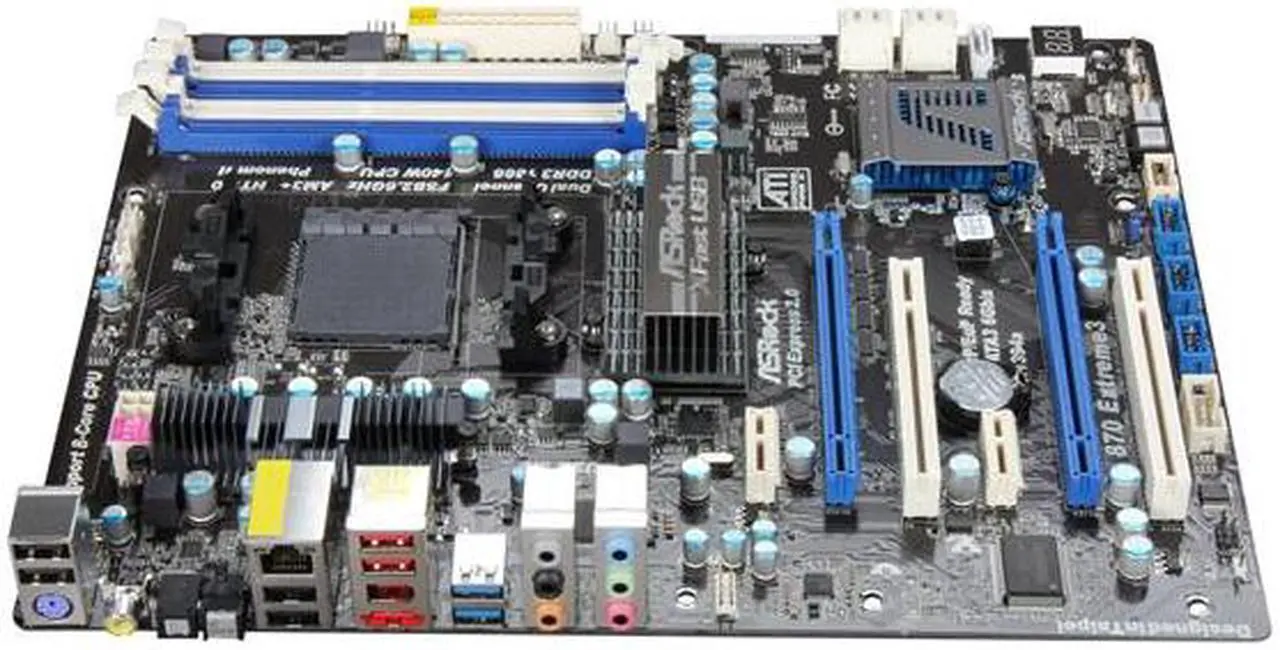

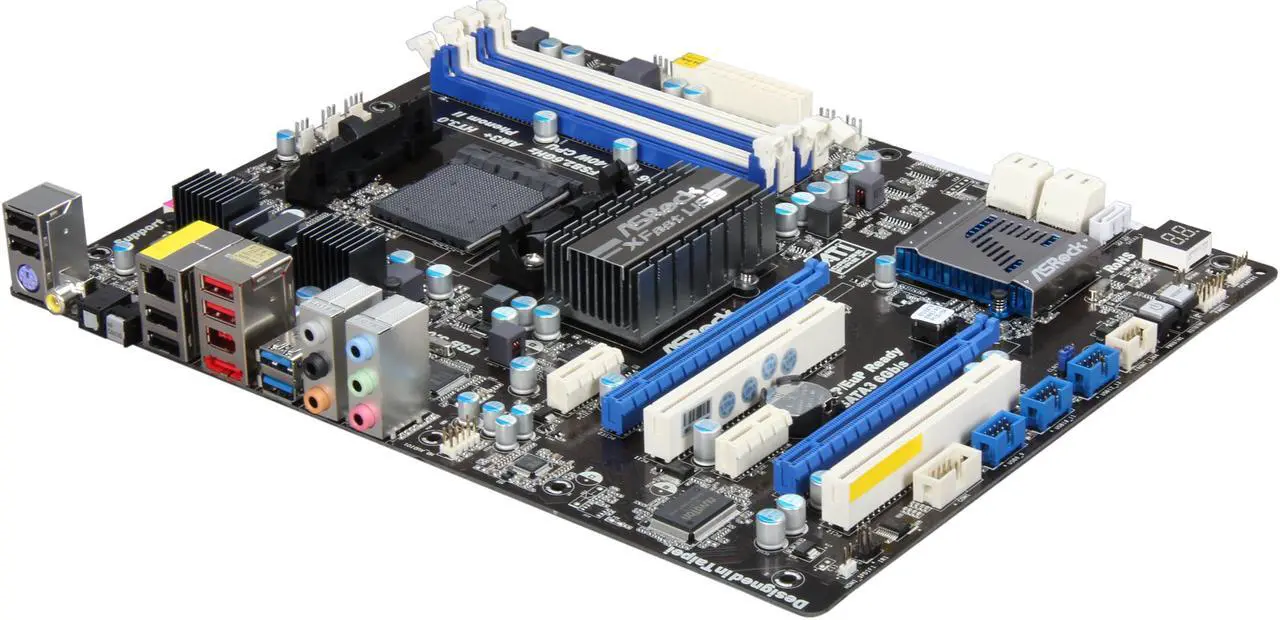

ASRock 870 Extreme3 R2.0 AM3+ AMD 870 SATA 6Gb/s USB 3.0 ATX AMD Motherboard
OUT OF STOCK.
- AMD 870
- AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- DDR3 2000(OC)/1866(OC)/1800(OC)/1600(OC)/1333/1066/800
Specs
Reviews
Learn more about the ASRock 870 Extreme3 R2.0
| Brand | ASRock |
|---|---|
| Model | 870 Extreme3 R2.0 |
| CPU Socket Type | AM3+ |
|---|---|
| CPU Type | AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors |
| Chipset | AMD 870 |
|---|---|
| South Bridge | AMD SB850 |
| Number of Memory Slots | 4×240pin |
|---|---|
| Memory Standard | DDR3 2000(OC)/1866(OC)/1800(OC)/1600(OC)/1333/1066/800 |
| Maximum Memory Supported | 32GB |
| PCI Express 2.0 x16 | 2 (Single at x16 or dual at x8/x8 mode) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA 6Gb/s | 5 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Atheros AR8151 |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 1 |
|---|---|
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394 |
| eSATA | 1 x eSATA 6Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB 2.0 headers (support 6 USB 2.0 ports) |
|---|---|
| Onboard 1394 | 1 x 1394 |
| Other Connectors | 1 x IR header 1 x COM port header 1 x HDMI_SPDIF header 1 x Power LED header CPU/Chassis/Power FAN connector 8 pin 12V power connector Front panel audio connector 1 x Dr. Debug (7-Segment Debug LED) |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Supports AM3+ Processor, 8-Core CPU Ready 100% All Solid Capacitor design Supports Dual Channel DDR3 2000(OC) Supports ATI Quad CrossFireX and CrossFireX 2 x USB 3.0, 5 x SATA3, 2 x IEEE 1394, C.C.R. (Combo Cooler Retention Module) Supports XFast USB, AXTU, Graphical UEFI, Instant Boot, Instant Flash, APP Charger, SmartView 7.1 CH HD Audio with Content Protection (Realtek ALC892 AUdio Codec) |
|---|
| Date First Available | August 26, 2011 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-909-590-8308
- Support Email: support@asrockamerica.com
- Support Website
- View other products from ASRock
LOADING...
LOADING...
Pros: 8x8 PCIE
Cons: Shipped with an outdated bios that did not support the AM3+ Quad core cpu as advertised on the website. Faulty board Check out other sources for a reviews- tons of defects.
Overall Review: This required me to spend several days tracking down a friend with a Phenom X2 so that I could flash the bios. Dr Debug, the most unhelpful LED motherboard error assistance ever .After flashing, I installed everything and was enjoying my first hour with my new computer- crash. When I try rebooting I get Dr. Debug codes that make no sense.
