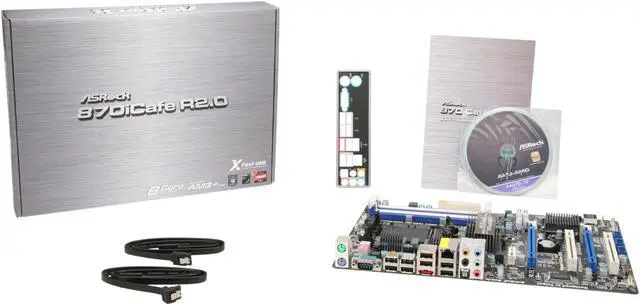

Images from RETAIL item, box contents may vary.

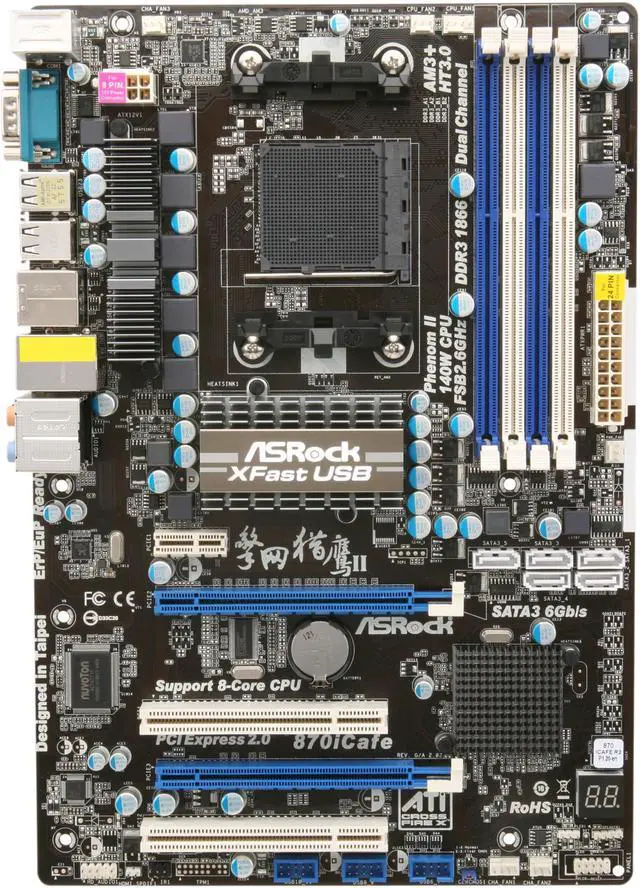

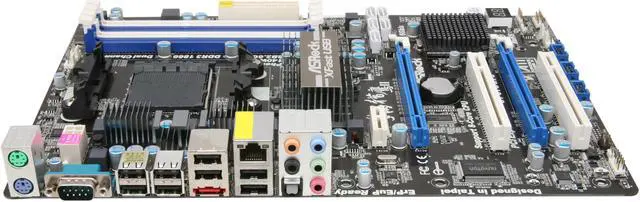

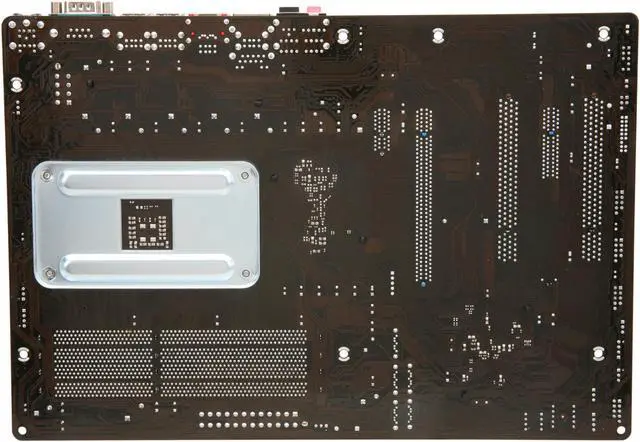

ASRock 870iCafe R2.0 AM3+ AMD 870 ATX AMD Motherboard
OPEN BOX Product Type
- AMD 870
- FX / Phenom II / Athlon II / Sempron 100 Series
- DDR3 2000(OC) / 1866(OC) / 1800(OC) / 1600(OC) / 1333 / 1066 / 800
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock 870iCafe R2.0
| Brand | ASRock |
|---|---|
| Model | 870iCafe R2.0 |
| CPU Socket Type | AM3+ |
|---|---|
| CPU Type | FX / Phenom II / Athlon II / Sempron 100 Series |
| FSB | 2600 MHz |
| Chipset | AMD 870 |
|---|---|
| South Bridge | AMD SB850 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 2000(OC) / 1866(OC) / 1800(OC) / 1600(OC) / 1333 / 1066 / 800 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 (x16, x4) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 5 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| USB 1.1/2.0 | 8 x USB 2.0 |
| eSATA | 1 x eSATA 6Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Other Connectors | 1 x IR header 1 x HDMI_SPDIF header 1 x Power LED header CPU/Chassis/Power FAN connector 24 pin ATX power connector 8 pin 12V power connector Front panel audio connector 1 x Dr. Debug (7-Segment Debug LED) |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.2" |
| Power Pin | 24 Pin |
| Features | Supports AM3+ Processor, 8-Core CPU Ready 100% All Solid Capacitor design Supports Dual Channel DDR3 2000(OC) Supports ATI Quad CrossFireX , CrossFireX 5 x SATA3, 1 x eSATA3 Dr. Debug, C.C.R. (Combo Cooler Retention Module) Supports AXTU, Graphical UEFI, XFast USB, Instant Boot, Instant Flash, APP Charger, SmartView 7.1 CH HD Audio (Realtek ALC887 Audio Codec) |
|---|
| First Listed on Newegg | January 04, 2012 |
|---|
