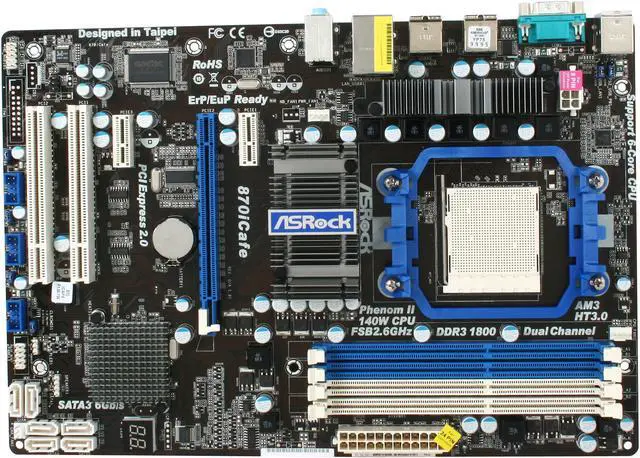

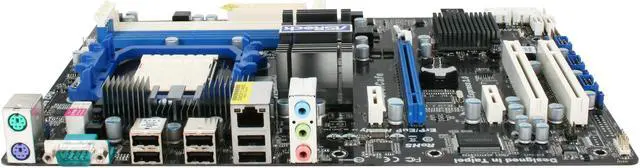

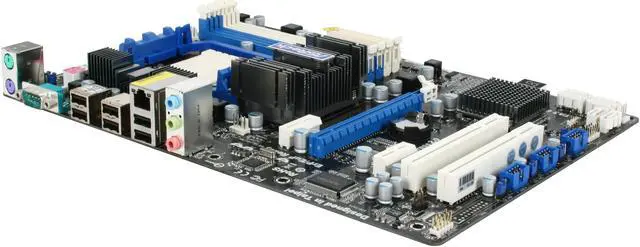

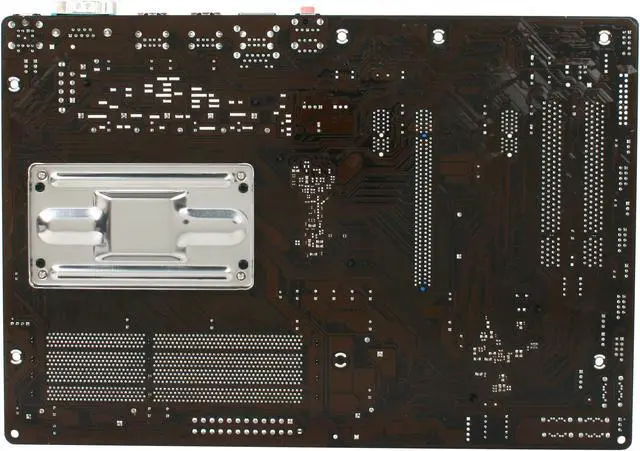

ASRock 870iCafe AM3 AMD 870 ATX AMD Motherboard
- AMD 870
- Phenom II / Athlon II / Sempron
- DDR3 1800(OC)/1600(OC)/1333/1066/800
Specs
Reviews (13)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock 870iCafe
| Brand | ASRock |
|---|---|
| Model | 870iCafe |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 870 |
|---|---|
| South Bridge | AMD SB850 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1800(OC)/1600(OC)/1333/1066/800 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10/JBOD |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111C |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x COM (Serial Port) / 2 x PS/2 / 3 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.2" |
| Power Pin | 24 Pin |
| Features | Phenom II X6 6-Core CPU Ready ASRock DuraCap (2.5 longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors Supports ASRock Turbo UCC Supports ASRock UCC - Unlock CPU Core Supports CPU up to 140W Supports Dual Channel DDR3 1800(OC) Supports ASRock Instant Boot, Instant Flash, OC Tuner, IES, OC DNA, Multi-Speed Fan Control, AIWI, APP Charger ErP/EuP Ready |
|---|
| First Listed on Newegg | September 16, 2010 |
|---|
