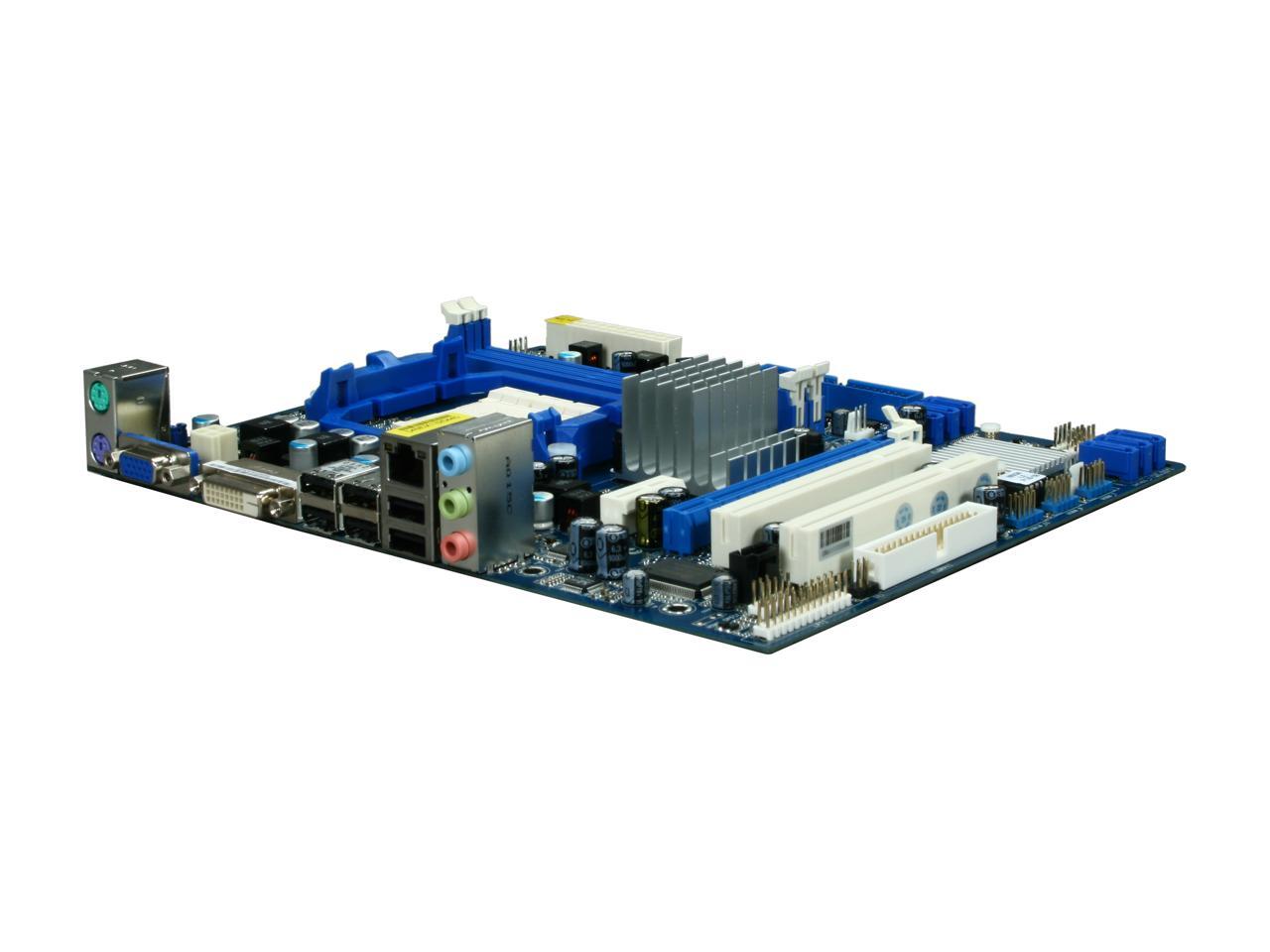

ASRock 880GM-LE AM3 AMD 880G Micro ATX AMD Motherboard

OUT OF STOCK.
  • AMD 880G
  • Phenom II / Athlon II / Sempron
  • DDR3 1800(OC)/1600(OC)/1333/1066/800
Specs
Reviews

Learn more about the ASRock 880GM-LE

Model
Brand ASRock
Model 880GM-LE
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II / Athlon II / Sempron
FSB 2600 MHz
Chipsets
Chipset AMD 880G
South Bridge AMD SB710
Memory
Number of Memory Slots 2×240pin
Memory Standard DDR3 1800(OC)/1600(OC)/1333/1066/800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/10/JBOD
Onboard Video
Onboard Video Chipset ATI Radeon HD 4250
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
Video Ports D-Sub + DVI
USB 1.1/2.0 6 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.8"
Power Pin 24 Pin
Features
Features Phenom II X6 6-Core CPU Ready

Supports AMD OverDrive with ACC feature (Advanced Clock Calibration)

Supports Dual Channel DDR3 1800(OC)

Integrated AMD Radeon HD 4250 graphics, DX10.1 class iGPU, Shader Model 4.1, Max. shared memory 512MB

Dual VGA Output options: DVI-D and D-Sub ports by independent display controllers

Supports ASRock Instant Boot, Instant Flash, OC Tuner, IES, OC DNA

ErP/EuP Ready
Additional Information
Date First Available May 18, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy
