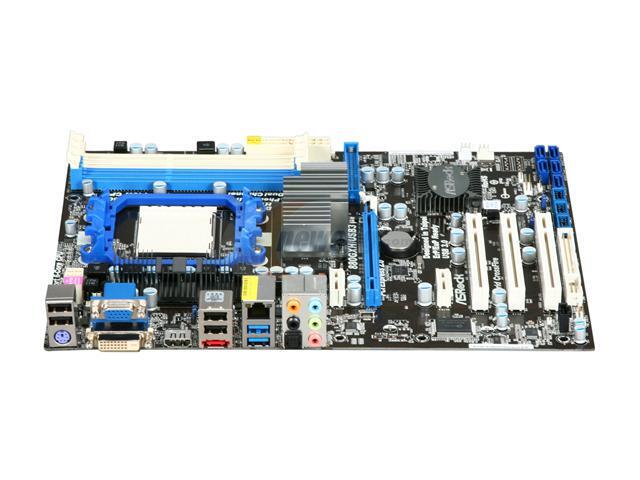

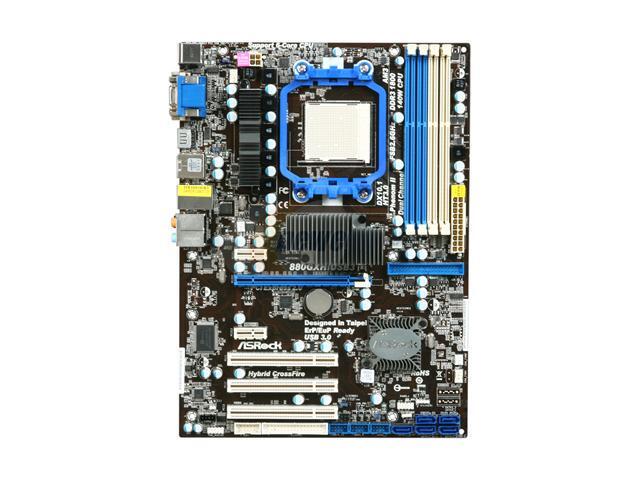

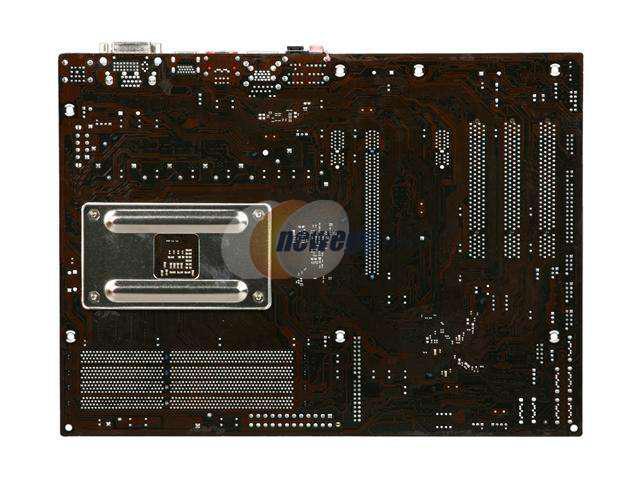

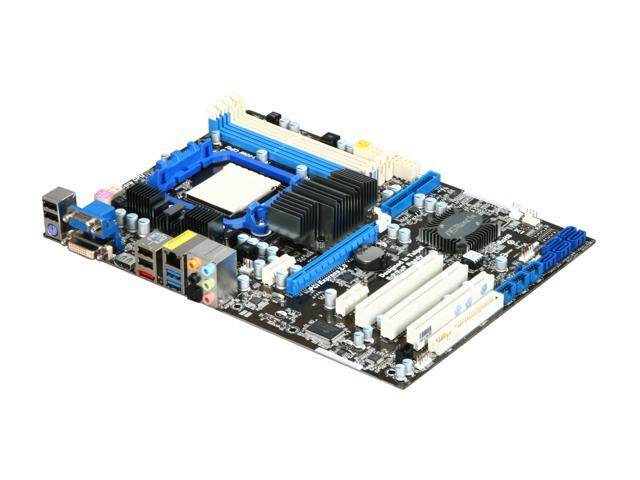

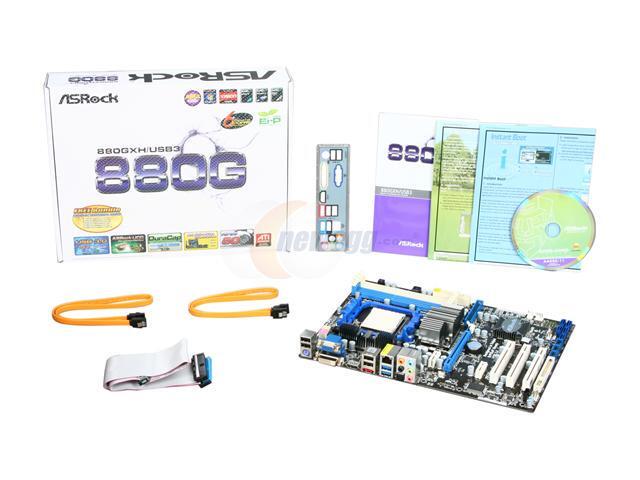

ASRock 880GXH/USB3 AM3 AMD 880G USB 3.0 HDMI ATX AMD Motherboard
- AMD 880G
- Phenom II / Athlon II / Sempron
- DDR3 1800(OC)/1600(OC)/1333/1066/800
Specs
Reviews (38)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock 880GXH/USB3
| Brand | ASRock |
|---|---|
| Model | 880GXH/USB3 |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 880G |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1800(OC)/1600(OC)/1333/1066/800 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10/JBOD |
| Onboard Video Chipset | ATI Radeon HD 4250 |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 1 x USB 3.1 Gen 1 / 5 x Audio Jacks / 5 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 1 x USB 3.0 |
| USB 1.1/2.0 | 5 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 3 x USB 2.0 headers (support 6 USB 2.0 ports) |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.8" |
| Power Pin | 24 Pin |
| Features | Phenom II X6 6-Core CPU Ready ASRock DuraCap, 100% Japan-made high-quality Conductive Polymer Capacitors Supports AMD OverDrive with ACC feature (Advanced Clock Calibration) Turbo 50 Technology Integrated AMD Radeon HD 4250 graphics, DX10.1 class iGPU, Shader Model 4.1, Max. shared memory 512MB 1 x USB 3.0 port Supports ASRock OC Tuner, IES, Instant Boot, Instant Flash, OC DNA, Multi-Speed Fan Control 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Premium Blu-ray audio support ErP/EuP Ready (ErP/EuP ready power supply is required) |
|---|
| First Listed on Newegg | May 18, 2010 |
|---|
