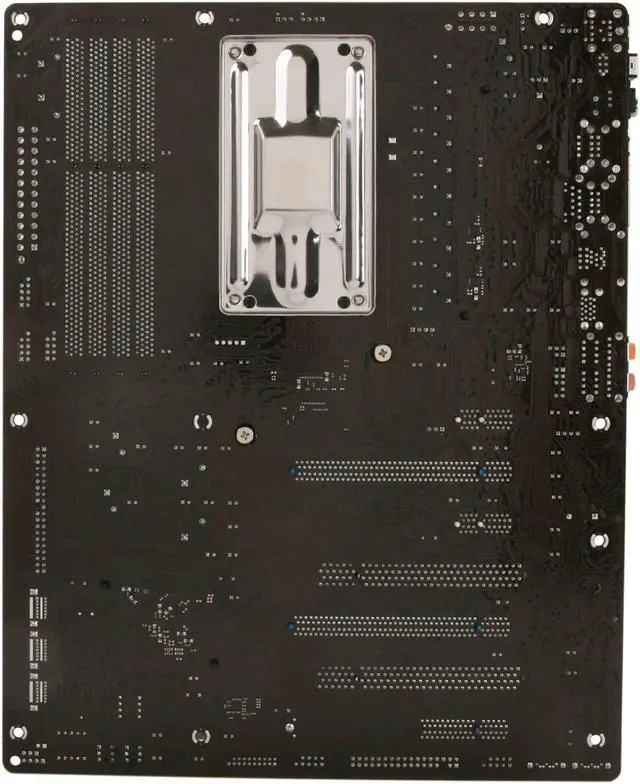

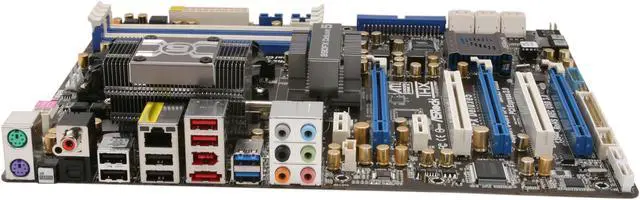

ASRock 890FX DELUXE5 AM3+ AMD 890FX USB 3.0 ATX AMD Motherboard

(46) Write a Review
  • AMD 890FX
  • FX / Phenom II / Athlon II / Sempron 100 Series
  • DDR3 2000(OC) / 1866(OC) / 1800(OC) / 1600(OC) / 1333 / 1066 / 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (46)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock 890FX DELUXE5

Model
Brand ASRock
Model 890FX DELUXE5
Supported CPU
CPU Socket Type AM3+
CPU Type FX / Phenom II / Athlon II / Sempron 100 Series
FSB 2600 MHz
Chipsets
Chipset AMD 890FX
South Bridge AMD SB850
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2000(OC) / 1866(OC) / 1800(OC) / 1600(OC) / 1333 / 1066 / 800
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 3 (x16, x16, x4)
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
Serial ATA (SATA) 6 x SATA3 6.0 Gb/s connectors by AMD SB850
2 x SATA3 6.0 Gb/s connectors by Marvell SE9120
SATA RAID 6 x SATA3 6.0 Gb/s connectors by AMD SB850, support RAID (RAID 0, RAID 1, RAID 0+1 and RAID 5)
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 2 x USB 3.1 Gen 1 / 6 x Audio Jacks / 6 x USB 2.0/1.1
PS/2 2
USB 3.0 2 x USB 3.0
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394
eSATA 1 x eSATA 6Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 4 x USB 2.0
Onboard 1394 1 x 1394
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Supports AM3+ Processor, 8-Core CPU Ready

ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors

Supports ATI Quad CrossFireX , 3-Way CrossFire and CrossFireX

2 x Front USB 3.0, 2 x Rear USB 3.0, 8 x SATA3, 2 x IEEE 1394

Dr. Debug, Power/Reset/Clear CMOS Switch with LED, C.C.R. (Combo Cooler Retention Module)

Supports XFast USB, AXTU, Graphical UEFI, Instant Boot, Instant Flash, APP Charger, SmartView, Turbo UCC

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), THX TruStudio PRO and Premium Blu-ray audio support
Additional Information
First Listed on Newegg April 15, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
