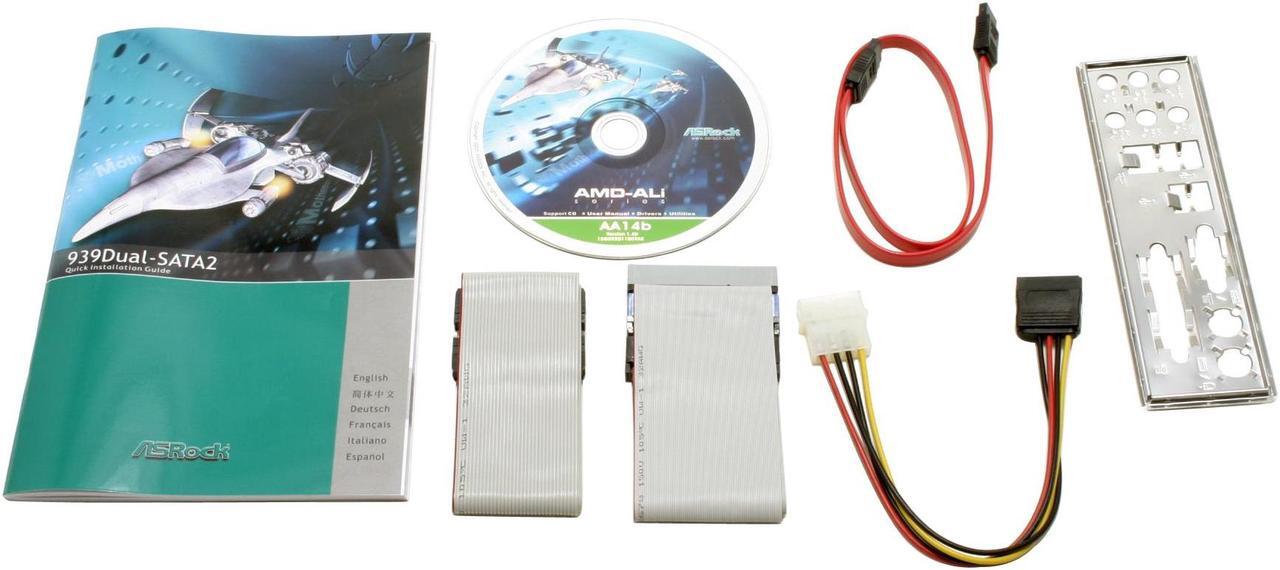

Images from RETAIL item, box contents may vary.

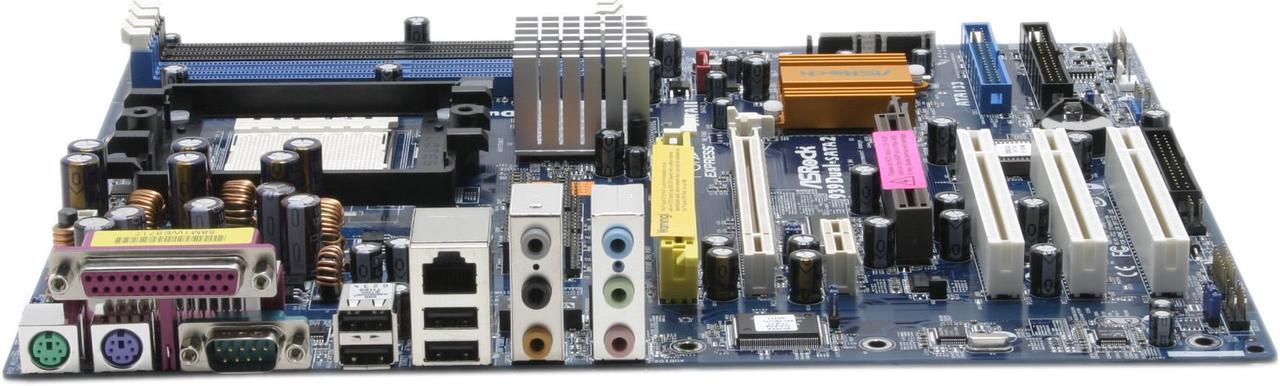

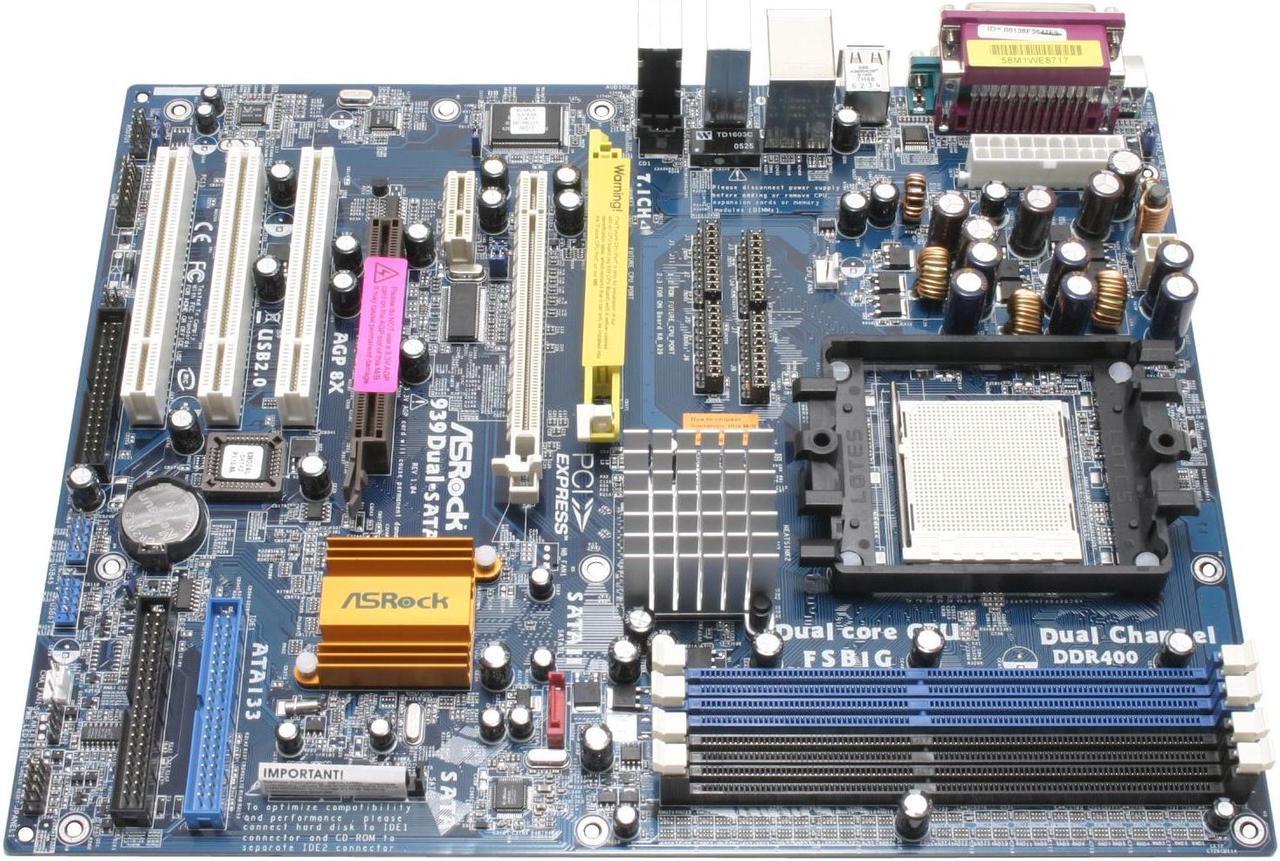

ASRock 939Dual-SATA2 939 ULi M1695 ATX AMD Motherboard
OPEN BOX Product Type
- ULi M1695
- Athlon 64 / Athlon 64 FX / Athlon 64 X2
- DDR 400
Specs
Learn more about the ASRock 939Dual-SATA2
| Brand | ASRock |
|---|---|
| Model | 939Dual-SATA2 |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | Athlon 64 / Athlon 64 FX / Athlon 64 X2 |
| FSB | 1000 MHz |
| Chipset | ULi M1695 |
|---|---|
| South Bridge | ULi M1567 |
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| Other Slots | 1 x Future CPU Port (Supports CPU upgrade from AMD K8 939-Pin CPU to AM2 940-Pin CPU through AM2 CPU Board) |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA 1.5Gb/s | 2 x SATA 1.5 Gb/s |
| SATA 3Gb/s | 1 x SATA 3Gb/s |
| SATA RAID | RAID 0/1/JBOD For SATA 1.5Gb/s |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC850 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8201CL PHY |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 headers support 4 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 20 Pin |
| Features | Microsoft Windows 2000/XP/XP 64-bit compliant ROHS Support 4 GB: Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows XP and Windows Vista. For Windows XP 64-bit and Windows Vista 64-bit with 64-bit CPU, there is no such limitation |
|---|
| Date First Available | October 26, 2005 |
|---|
