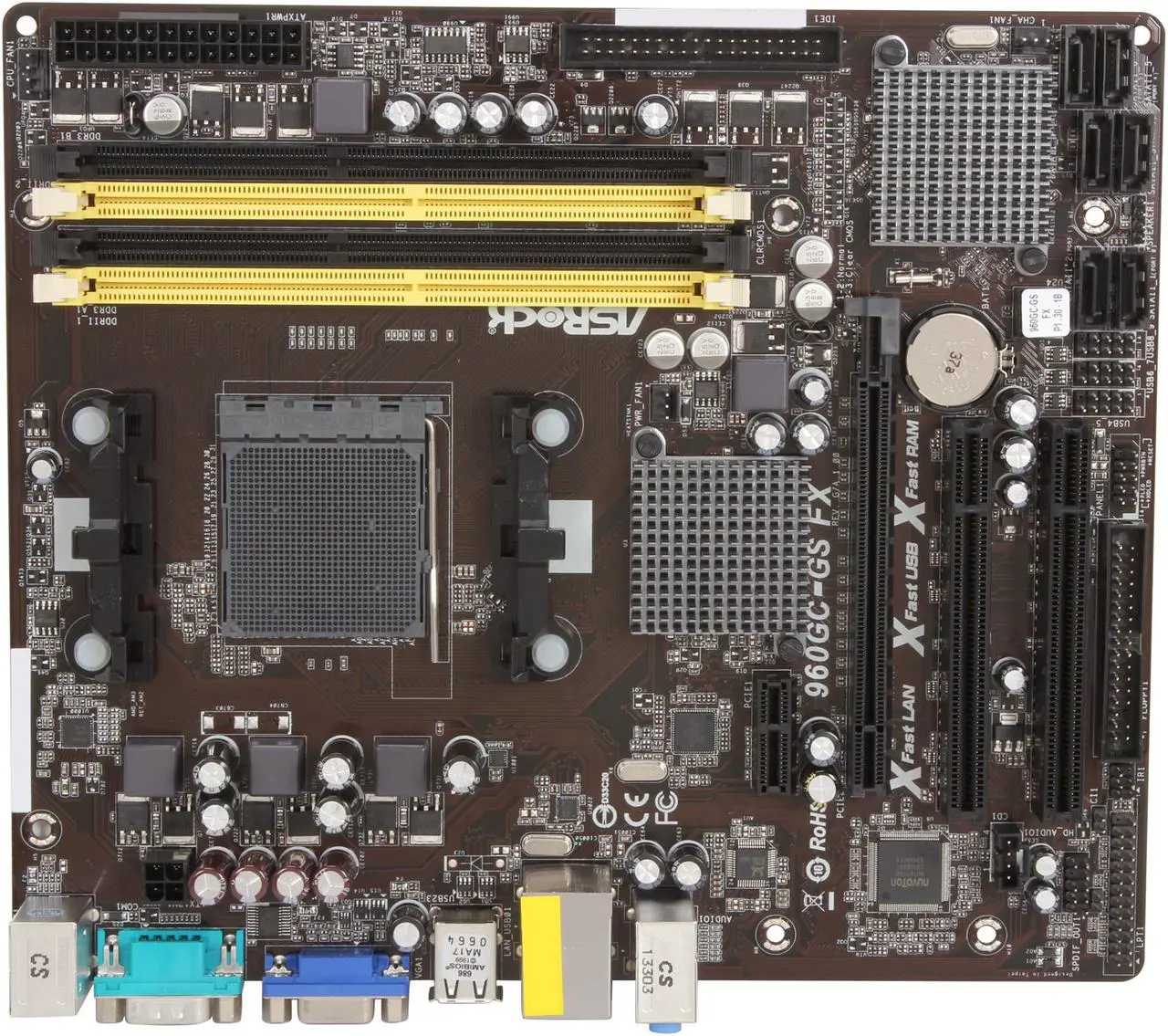

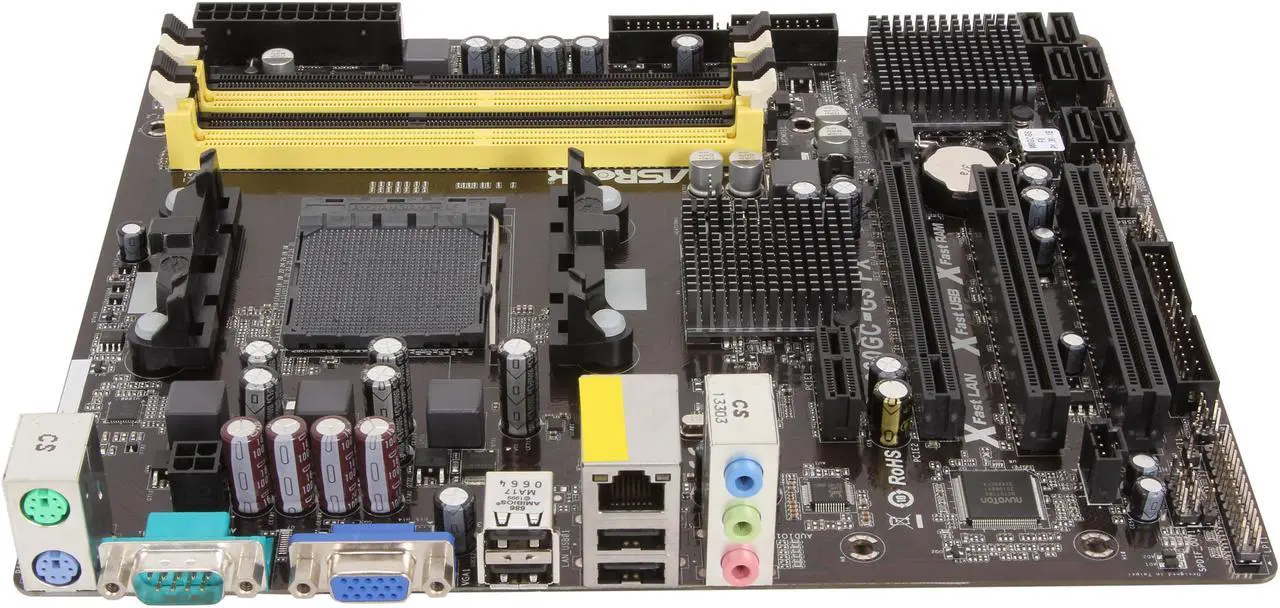

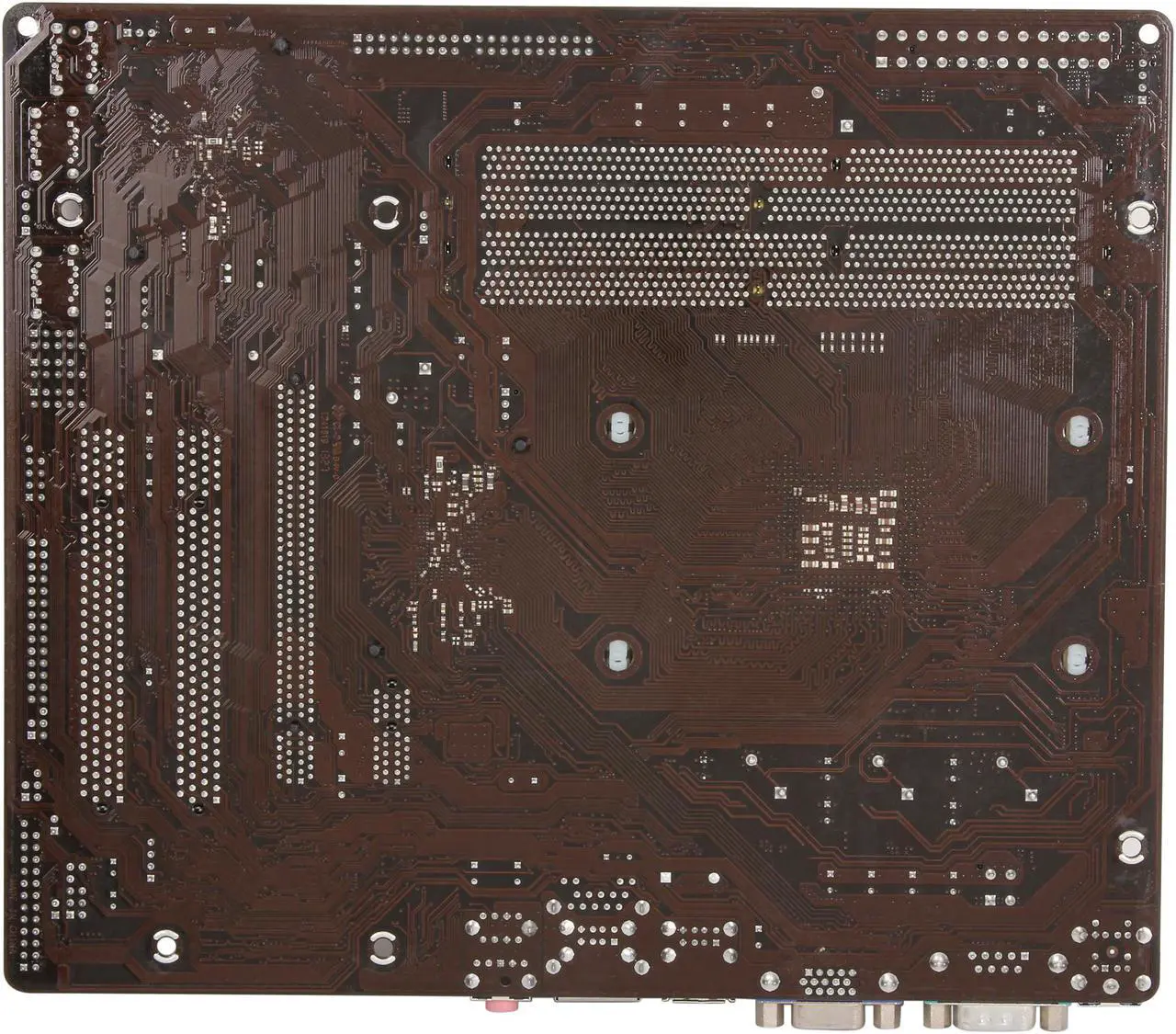

ASRock 960GC-GS FX AM3+/AM3/AM2+ AMD 760G Micro ATX AMD Motherboard

OUT OF STOCK.
  • AMD 760G+SB710
  • Opteron/ FX / Phenom II / Athlon II / Sempron
Specs
Reviews

Learn more about the ASRock 960GC-GS FX

Model
Brand ASRock
Model 960GC-GS FX
Supported CPU
CPU Socket Type AM3+/AM3/AM2+
CPU Type Opteron/ FX / Phenom II / Athlon II / Sempron
Chipsets
Chipset AMD 760G
South Bridge AMD SB710
Memory
Number of Memory Slots 4x240pin
Memory Standard 2 x DDR3 DIMM Slots
DDR3 1866(OC)/1600(OC)/1333/1066

2 x DDR2 DIMM Slots
DDR2 1066/800/667/533
Maximum Memory Supported 8GB(DDR2) / 16GB(DDR3)
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/10/JBOD
Onboard Video
Onboard Video Chipset ATI Radeon HD 3000
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 5.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111G
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
COM 1
Video Ports 1 x D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Other Connectors 1 x ATA133 IDE Connector (Supports 2 x IDE devices)
1 x Floppy Connector
1 x IR Header
1 x Print Port Header
1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (3-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x CD In Header
1 x Front Panel Audio Connector
1 x SPDIF Out Connector
Physical Spec
Form Factor Micro ATX
Power Pin 24 Pin
Features
Features Supports AM3+ Processor, 8-Core CPU

Supports Dual Channel DDR3 1866(OC) / DDR2 1066

Built-in AMD Radeon 3000 graphics, DX10, PS 4.0

Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar

Unique Feature
-ASRock OC Tuner
-ASRock Intelligent Energy Saver
-ASRock Instant Boot
-ASRock Instant Flash
-ASRock OC DNA
-ASRock APP Charger
-ASRock XFast USB
-ASRock XFast LAN
-ASRock XFast RAM
-ASRock X-Boost
-Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
-ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Packaging

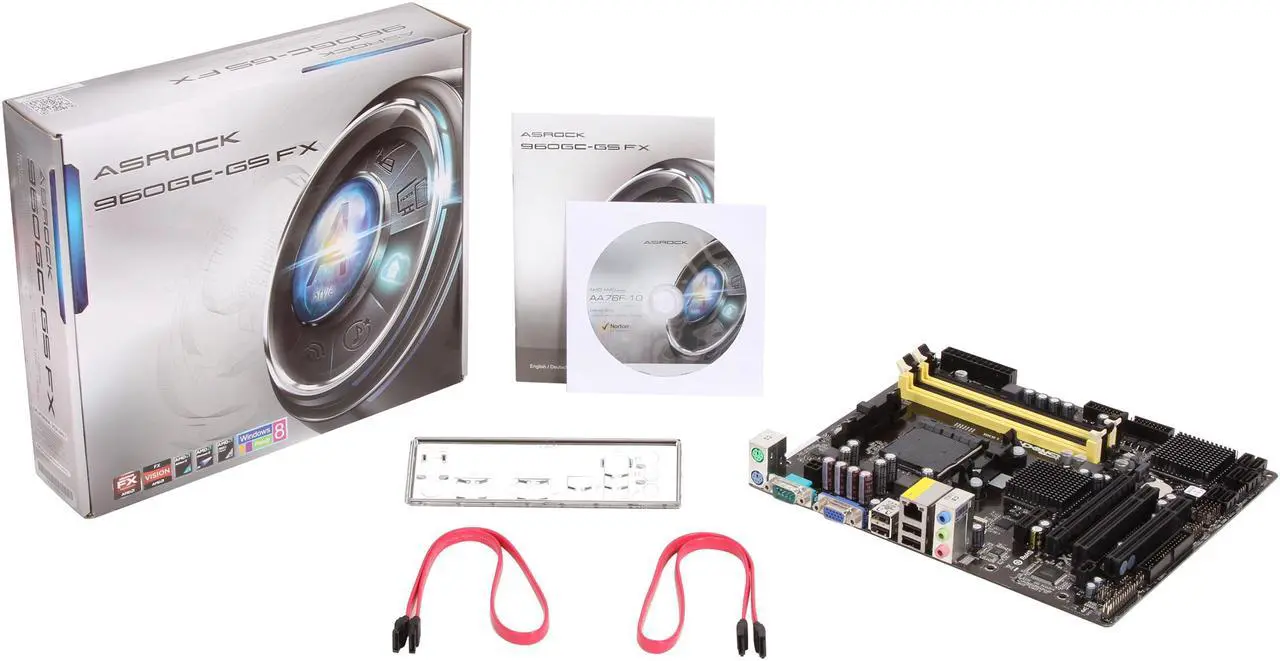

Package Contents ASROCK 960GC-GS FX Motherboard
Quick Installation Guide
Support CD
I/O Shield
2 x SATA Data Cables
Additional Information
Date First Available November 18, 2013
