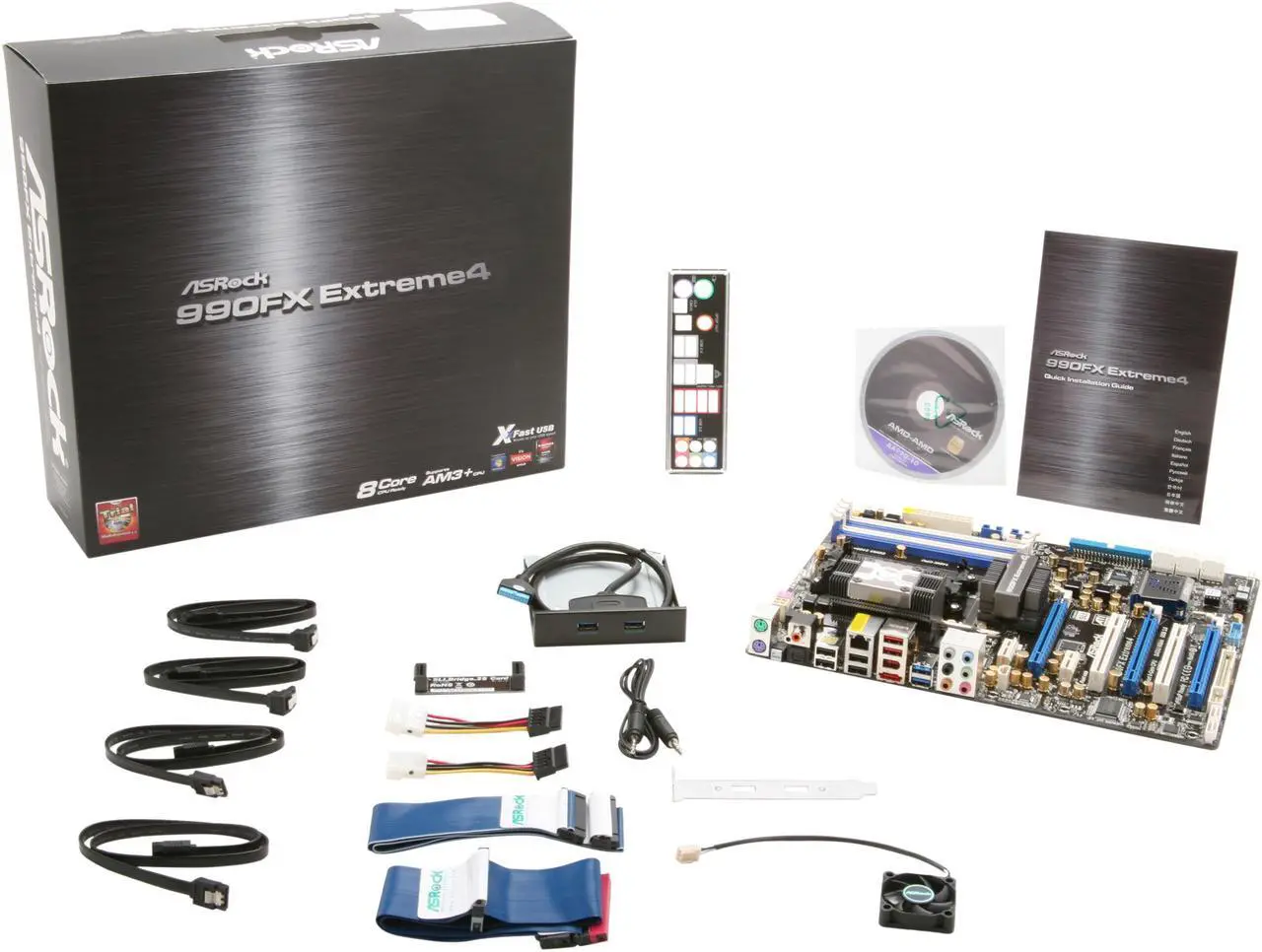

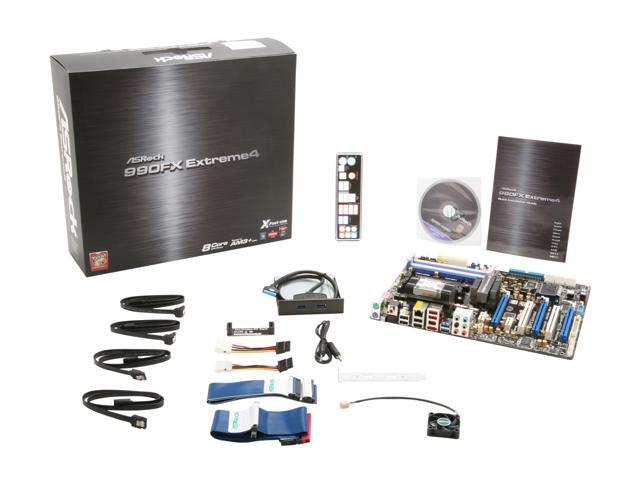

Images from RETAIL item, box contents may vary.
ASRock 990FX Extreme4 AM3+ AMD 990FX + SB950 USB 3.0 ATX AMD Motherboard
OPEN BOX Product Type
- AMD 990FX
- FX / Phenom II / Athlon II / Sempron 100 Series
- DDR3 2100(OC) /1866
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock 990FX Extreme4
| Brand | ASRock |
|---|---|
| Model | 990FX Extreme4 |
| CPU Socket Type | AM3+ |
|---|---|
| CPU Type | Athlon Series / FX Series / Phenom II / Sempron |
| Chipset | AMD 990FX + SB950 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 2100(OC) / 1866 / 1600 / 1333 / 1066 / 800 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 3 (x16, x16, x4) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| Serial ATA (SATA) | 8 x SATA 6Gb/s (SATA3_8 connector is shared with eSATA3 port) |
| SATA RAID | 6 x SATA3 6.0 Gb/s support RAID 0/1/0+1/5/JBOD by SB950 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Broadcom BCM57781 |
|---|---|
| Max LAN Speed | 1Gbps |

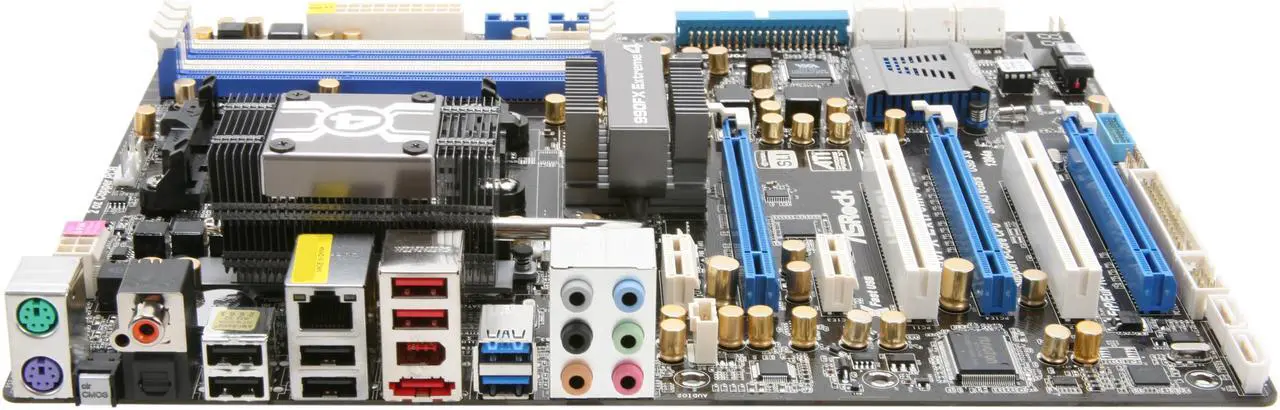

| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 2 x USB 3.1 Gen 1 / 6 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 6Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Other Connectors | 1 x Floppy connector 1 x IR header 1 x COM port header 1 x HDMI_SPDIF header 1 x Power LED header CPU/Chassis/Power FAN connector 24 pin ATX power connector 8 pin 12V power connector CD in header Front panel audio connector 1 x Dr. Debug (7-Segment Debug LED) |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Premium Gold Caps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors Supports AM3+ Processor, 8-Core CPU Supports Dual Channel DDR3 2100(OC) Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX Supports NVIDIA Quad SLI and SLI 2 x Front USB 3.0, 2 x Rear USB 3.0, 8 x SATA3, 2 x IEEE 1394 Dr. Debug, Power/Reset/Clear CMOS Switch with LED Supports XFast USB Technology, Graphical UEFI Supports On/Off Play Technology, Instant Boot, Instant Flash, APP Charger, SmartView, Turbo UCC 7.1 CH HD Audio with Content Protection, supports THX TruStudio Free Bundle : CyberLink MediaEspresso 6.5 Trial, 1 x 3.5mm Audio Cable |
|---|
| Date First Available | November 22, 2011 |
|---|
