I only see 2 SATA plugins and they're by the "ASRock" heat-sink. Where are the other 2?

At the bottom right of the board, you see the two satas, then right above the right most one you see a black box thing. Its two stacked on top of each other facing what would be your hard drive area.

will this motherboard work with a Amd FX CPU?

No, the FX series of processors uses the AM3+ socket. This ASRock motherboard uses the AM4 socket which is for the Ryzen series of processors.

will I be able to use a ryzen 3 1200 cpu with a rx550 in this board?

From the ASRock website for the board, your CPU and graphics card should be compatible with the board. Buying compatible memory (also given on the website) may be very important.

can i overclock with this board?

No. This board uses the A320 Promontory Chipset and DOES NOT support Overclocking. Basic OC is supported on B350 boards. Full overclocking is supported on X370 boards.

Will this AsRock Mother board work with Windows 7?

Yes, see answers on MB description page: BEST ANSWER: Windows 7 does not have the drivers built in to it for this platform. You have to create a Windows 7 ISO with the Ryzen drivers in it. The tool is available from most motherboard manufacturers. Afterwards, I was able to get this board and another MSI AM4 board to run Windows 7 just fine.

What is the tiny screw that comes with the motherboard in the little bag with a serial number and where does it go?

This is for the OnBoard M2 SSD hard drive, to hold it in place, Do not loose it, They are very expensive to replace, $10-$25.00

Does this mobo have a wifi card?

sorry the motherboard has no wifi on-board

Will it support AMD A10-9700 processor ?

Yes. The ASRock MB site lists the A10-9700 CPU on the CPU Support List. Also, the A10-9700 CPU is listed as a AM4 socket CPU. Hope this helps.

Can I put two sticks of 8gb ram in here?

I currently have 1 8GB stick of RAM in mine, and 16 GB is well within the limit of the motherboard, so there should be no problem with 2 8GB sticks of RAM.

I can not get it to boot with a ryzen 3 1200, there was no bios sticker on the box.. any ideas?

If it is booting (power) but you do not see anything.. the likely cause is that the Ryzen 3 1200 does not have on board graphics and requires an add on graphics card.

$58^.50

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by DoDo DIY

Hot Seller

4 (755 seller ratings)

Shipped by DoDo DIY

Meet Your Seller

DoDo DIY

See Seller Store

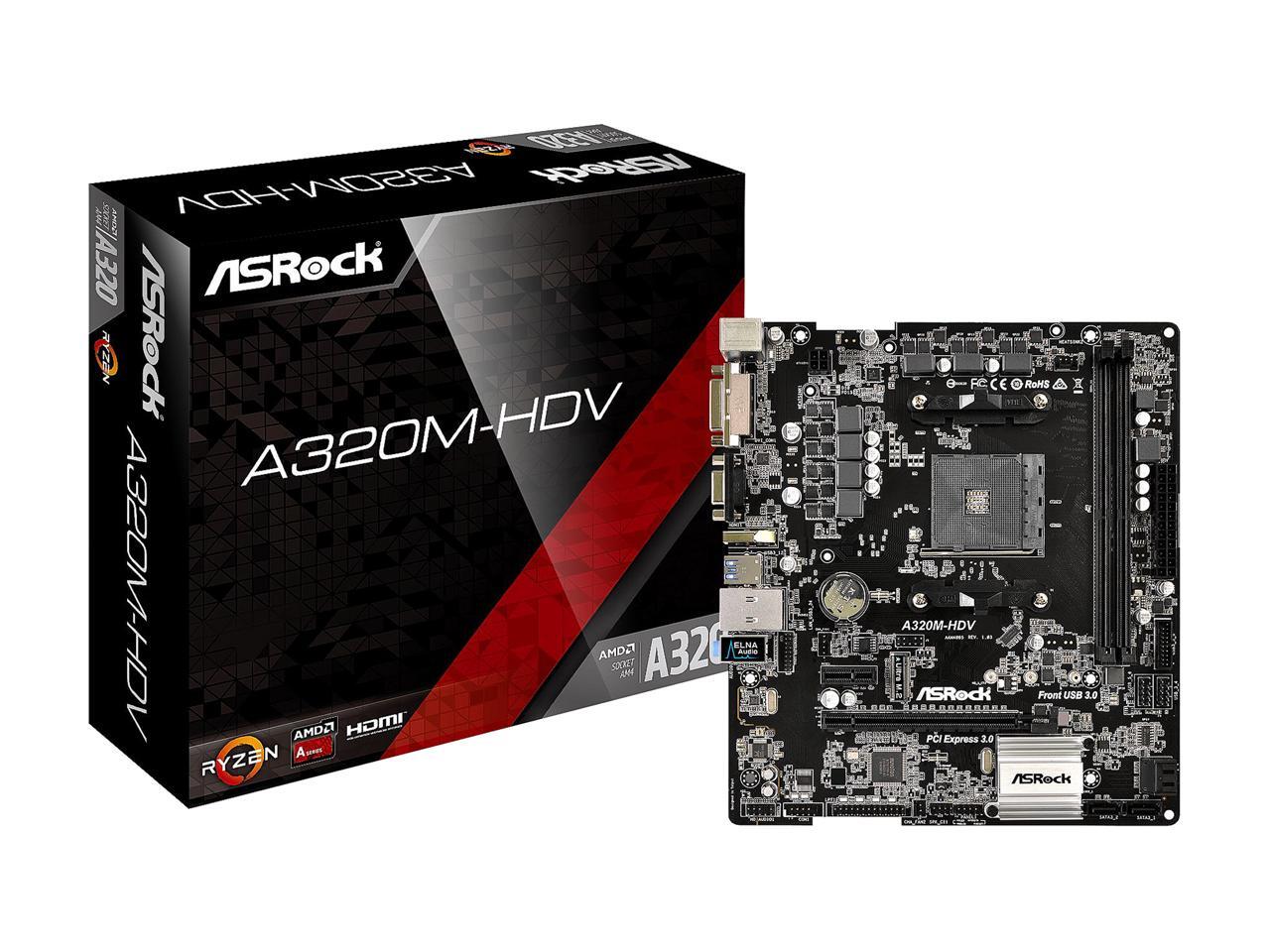

Main image of ASRock A320M-HDV AM4 AMD Promontory A320 USB 3.1 HDMI Micro ATX AMD Motherboard

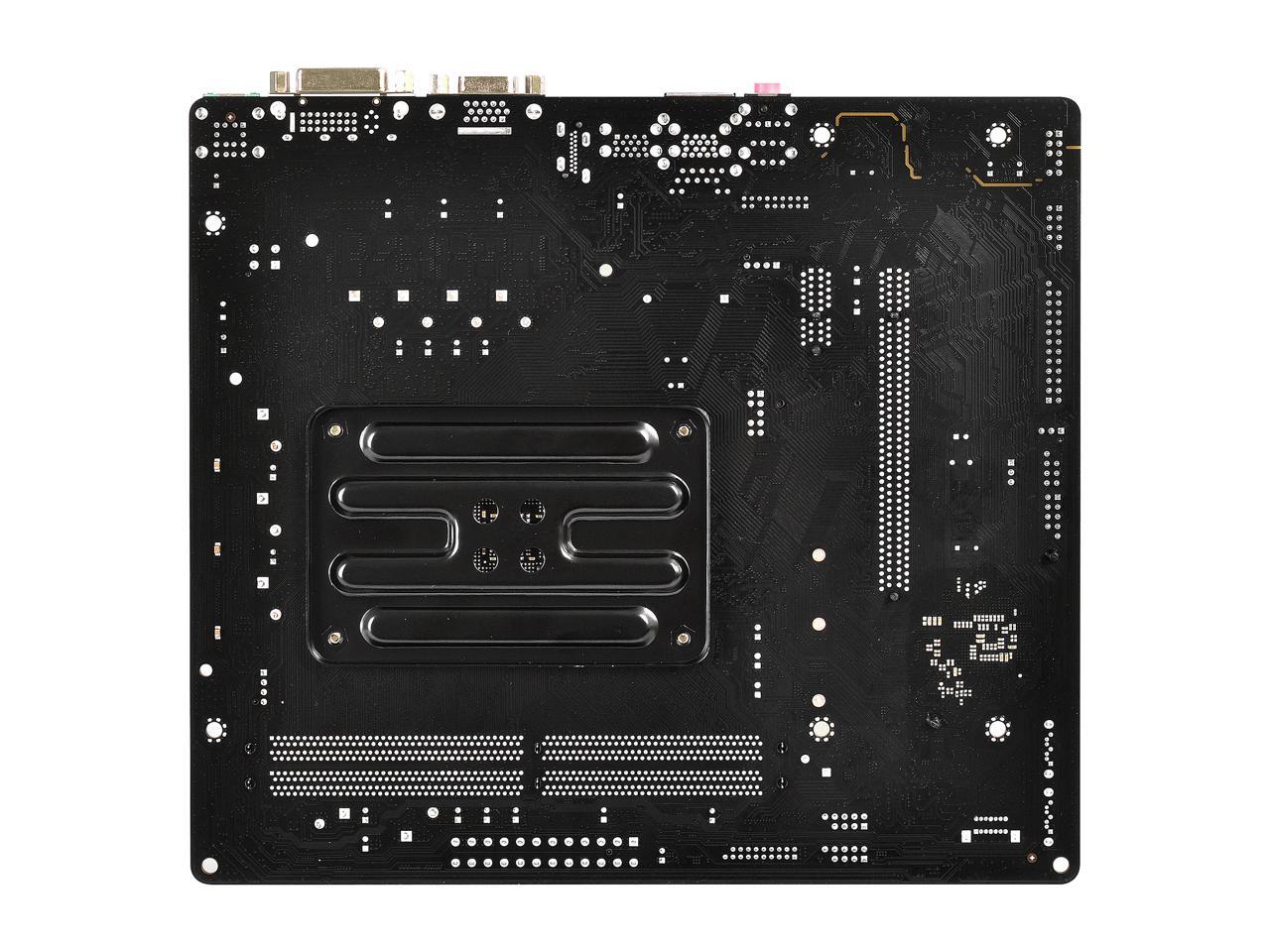

Alt view image 2 of 7 - ASRock A320M-HDV AM4 AMD Promontory A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 3 of 7 - ASRock A320M-HDV AM4 AMD Promontory A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 4 of 7 - ASRock A320M-HDV AM4 AMD Promontory A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 5 of 7 - ASRock A320M-HDV AM4 AMD Promontory A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 6 of 7 - ASRock A320M-HDV AM4 AMD Promontory A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 7 of 7 - ASRock A320M-HDV AM4 AMD Promontory A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Shop All ASRock Products | Visit DoDo DIY Store

ASRock A320M-HDV AM4 AMD Promontory A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Used - Very Good

AMD Promontory A320
Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
Digi Power design
7 Power Phase design
Supports CPU up to 65W
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
AMD 7th Gen A-Series APUs support DDR4 2400/ 2133 non-ECC, un-buffered memory

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock VR Ready motherboards are definitely the one you're looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

Model
Brand	ASRock
Model	A320M-HDV

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) Digi Power design 7 Power Phase design Supports CPU up to 65W

Chipsets
Chipset	AMD Promontory A320

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* AMD 7th Gen A-Series APUs support DDR4 2400/ 2133 non-ECC, un-buffered memory* * For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.
Maximum Memory Supported	32GB * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD 7th A-Series APUs / Raven Ridge CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) (If you use Athlon 2xxGE series APU, PCIE2 slot will run at x4 mode.)* * Supports NVMe SSD as boot disks
PCI Express x1	1 x PCI Express 2.0 x1 Slot

Storage Devices
Serial ATA (SATA)	4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2	1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16Gb/s) (with A-Series APU, and Athlon 2xxGE series APU)* * Supports ASRock U.2 Kit * Supports NVMe SSD as boot disks
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* Integrated AMD Radeon R-Series Graphics in A-series APU* DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB.** Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports * Actual support may vary by CPU ** The Max shared memory 16GB requires 32GB system memory installed

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Onboard LAN
LAN Chipset	Realtek RTL8111GR
Max LAN Speed	1Gbps

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub Port 1 x DVI-D Port
HDMI	1 x HDMI
RJ45	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1	4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
USB 1.1/2.0	2 x USB 2.0 Ports (Supports ESD Protection)
Audio Ports	HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors	1 x Print Port Header 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.1" x 8.1"
Power Pin	1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector

Features
Features	Unique Feature: ASRock Super Alloy - High Density Glass Fabric PCB - Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128MB AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment Software and UEFI: Software - ASRock APP Charger - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: - CPU, Chassis temperature sensing - CPU, Chassis Fan Tachometer - CPU, Chassis Quiet Fan - CPU, Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, Vcore OS: - Microsoft Windows 10 64-bit Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Packaging
Package Contents	Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket
