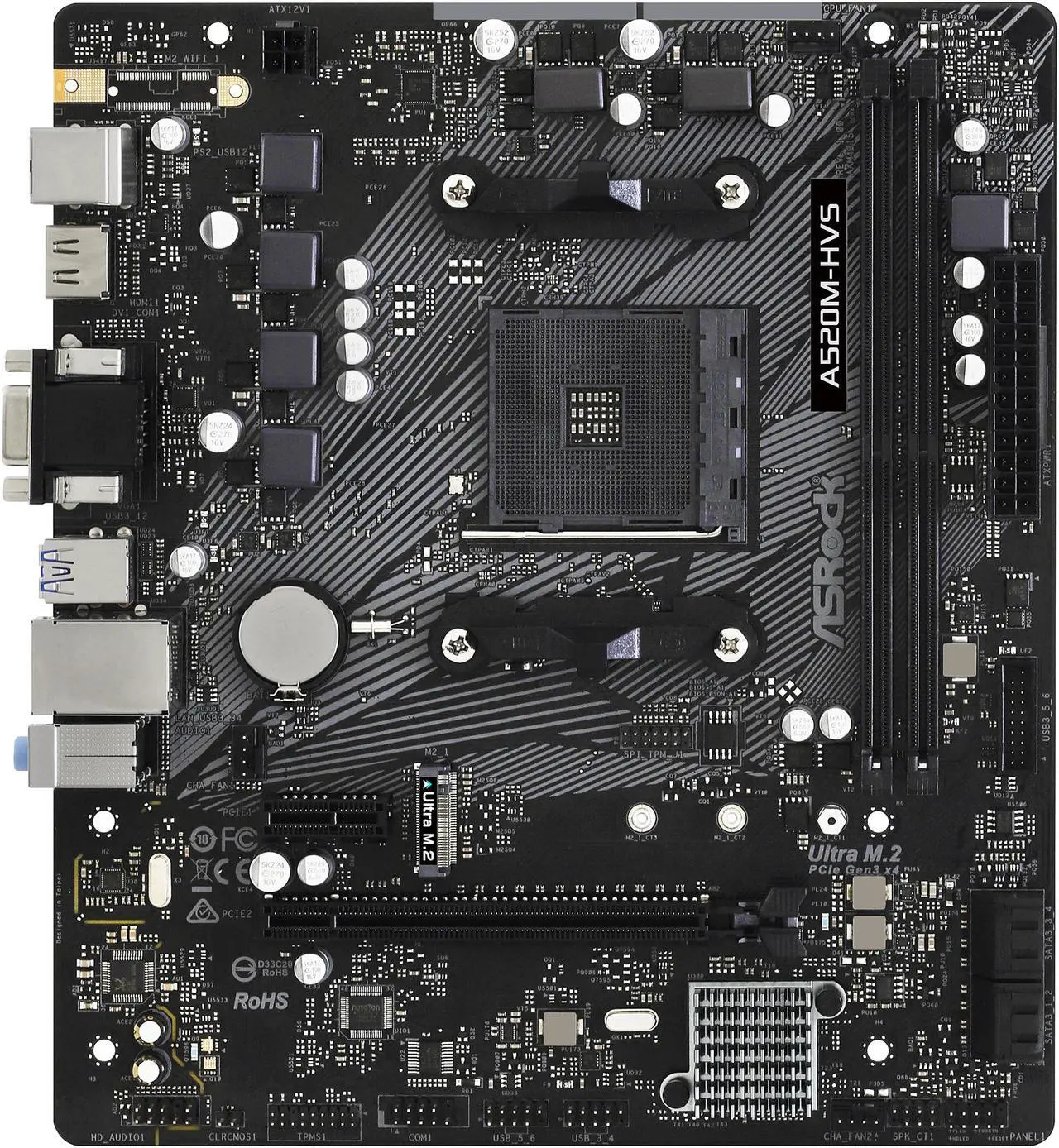

    ASRock A520M-HVS AM4 AMD A520 SATA 6Gb/s Micro ATX AMD Motherboard

    (70) Write a Review
    • A520M PRO4
    • A520M-HDV
    • A520M-HVS
    • A520M-ITX/AC
    • AMD A520
    • Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)
    • AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
    • AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (70)

    Learn more about the Detailed Specifications

    Model
    Brand ASRock
    Series A520M-HVS
    Supported CPU
    CPU Socket Type AM4
    CPU Type Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)*
    * Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
    Chipsets
    Chipset AMD A520
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
    AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
    * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
    * Supports NVMe SSD as boot disks
    PCI Express x1 1 x PCI Express 3.0 x1 Slot
    Storage Devices
    Serial ATA (SATA) 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
    M.2 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
    * Supports NVMe SSD as boot disks
    * Supports ASRock U.2 Kit
    SATA RAID 0/1/10
    Onboard Video
    Onboard Video Chipset Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
    * Actual support may vary by CPU
    DirectX 12, Pixel Shader 5.0
    Shared memory default 2GB. Max Shared memory supports up to 16GB.
    * The Max shared memory 16GB requires 32GB system memory installed.
    Dual graphics output: support D-Sub and HDMI ports by independent display controllers
    Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    Supports HDR (High Dynamic Range) with HDMI 2.1
    Supports HDCP 2.3 with HDMI 2.1 Port
    Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
    Supports Microsoft PlayReady
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek RTL8111H
    Max LAN Speed 1Gbps

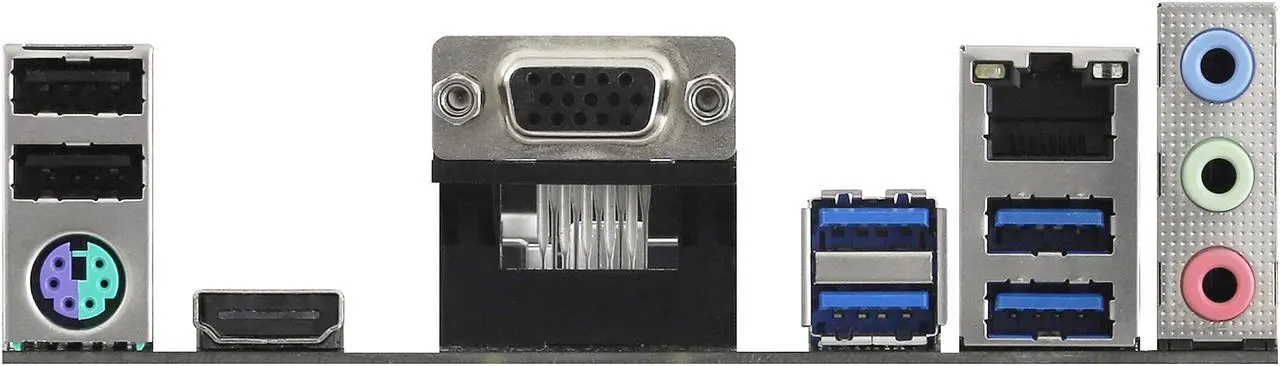

    Rear Panel Ports
    Back I/O Ports 1 x PS/2 Mouse/Keyboard Port
    1 x D-Sub Port
    1 x HDMI Port
    2 x USB 2.0 Ports (Supports ESD Protection)
    4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    Other Connectors 1 x SPI TPM Header
    1 x COM Port Header
    1 x Chassis Intrusion and Speaker Header
    1 x CPU Fan Connector (4-pin)
    * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
    2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    * The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
    * CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
    1 x Front Panel Audio Connector
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.0" x 7.9"
    Power Pin 1 x 24-pin ATX Power Connector
    1 x 4-pin 12V Power Connector
    Features
    Features Unique Feature:
    ASRock Super Alloy
    - Premium 50A Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop

    BIOS Feature:
    - 128MB AMI UEFI Legal BIOS with GUI support
    - Supports "Plug and Play"
    - ACPI 5.1 compliance wake up events
    - Supports jumperfree
    - SMBIOS 2.3 support
    - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

    Support CD:
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

    Software and UEFI:
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock XFast LAN
    * These utilities can be downloaded from ASRock Live Update & APP Shop.
    UEFI
    - ASRock Full HD UEFI
    - ASRock Instant Flash

    Hardware Monitor:
    - Temperature Sensing: CPU, Chassis Fans
    - Fan Tachometer: CPU, Chassis Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
    - Fan Multi-Speed Control: CPU, Chassis Fans
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

    OS:
    - Microsoft Windows 10 64-bit

    Certifications:
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
    Packaging
    Package Contents Accessories:
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 1 x Screw for M.2 Socket
    Additional Information
    Date First Available July 22, 2024
