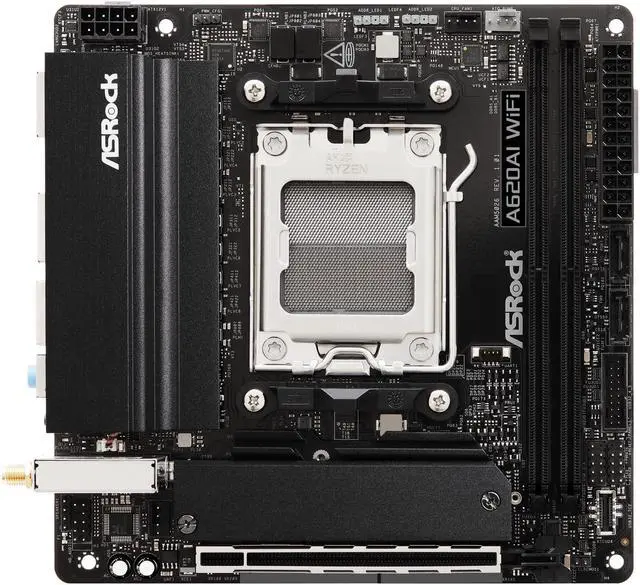

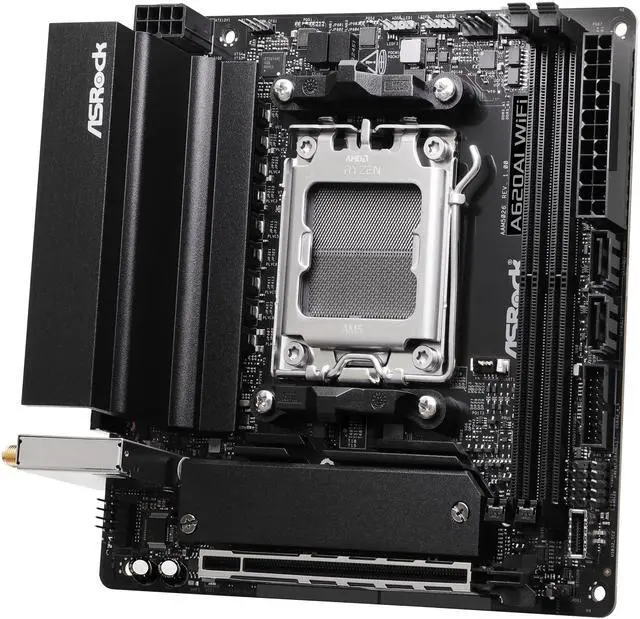

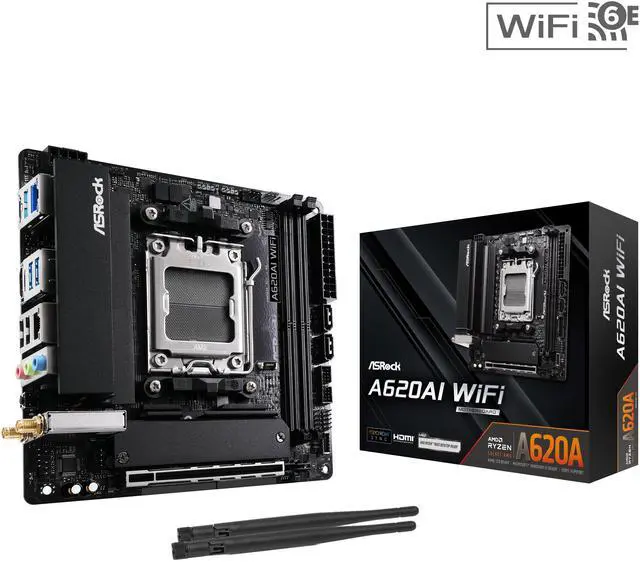

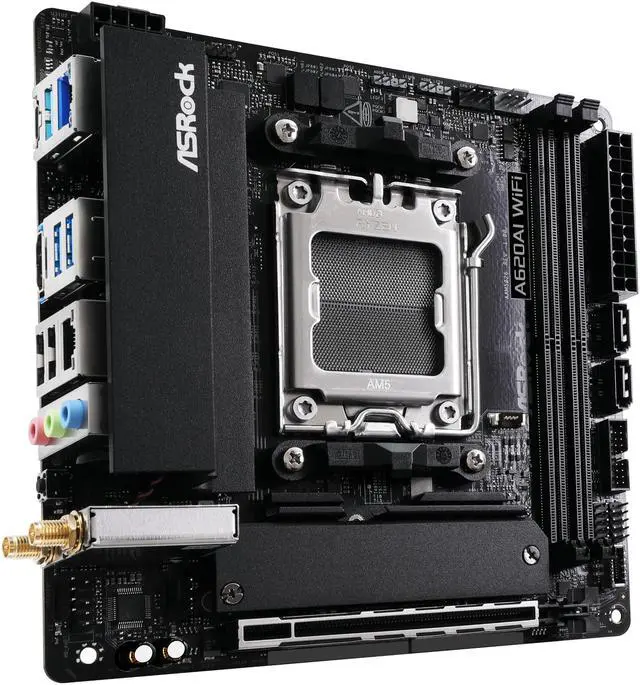

    ASRock A620AI WiFi AM5 AMD A620A Mini ITX Motherboard

    Be the first to review this product...
    • Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
    • 8+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
    • 2 x DDR5 DIMMs
    • Supports Dual Channel, up to 8200+ (OC)
    • 1 PCIe 4.0 x16
    • Graphics Output Options: 1 HDMI
    • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
    • 1 Hyper M.2 (PCIe Gen4x4)
    • 1 Ultra M.2 (PCIe Gen3x4)
    • 2 SATA3
    • 1 USB 3.2 Gen2 Type-C (Rear)
    • 2 USB 3.2 Gen2 (Rear)
    • 1 USB 3.2 Gen1 Type-C (Front)
    • 3 USB 3.2 Gen1 (1 Rear, 2 Front)
    • 4 USB 2.0 (2 Rear, 2 Front)
    • Realtek 2.5G LAN, Gigabit LAN
    • 802.11axe WiFi 6E + Bluetooth
    • Supports BIOS Flashback
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASRock A620AI WiFi

    Model
    Brand ASRock
    Model A620AI WiFi
    Supported CPU
    CPU Socket Type AM5
    CPU Type Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
    Chipsets
    Chipset AMD A620A
    Memory
    Number of Memory Slots 2x288pin (DDR5)
    Memory Standard Up to 8200+(OC)
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    ECC Supported Yes
    Buffer Supported Un-buffered
    Expansion Slots
    PCI Express 4.0 x16 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode

    * PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
    Storage Devices
    M.2 CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

    * M2_1 is the first priority for M.2 installation.
    Supports NVMe SSD as boot disks
    SATA RAID Supports RAID 0 and RAID 1 for SATA storage devices
    Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

    * Requires additional M.2 NVMe expansion cards to support RAID 10
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Dragon RTL8125BG
    Max LAN Speed 2.5Gbps
    Wireless LAN 802.11axe Wi-Fi 6E
    Bluetooth Bluetooth 5.2
    Rear Panel Ports

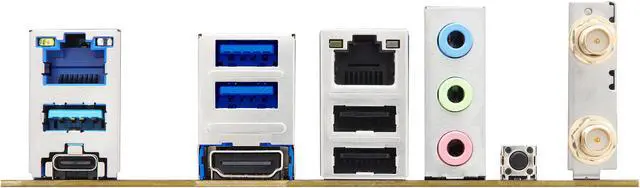

    Back I/O Ports 2 x Antenna Ports
    1 x HDMI Port
    2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
    1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    1 x USB 3.2 Gen1 Port
    2 x USB 2.0 Ports
    2 x RJ-45 LAN Ports
    1 x BIOS Flashback Button
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    1 x Front Panel Type C USB 3.2 Gen1 Header
    Other Connectors 2 x Addressable LED Headers*
    1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**
    1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
    1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

    * Support in total up to 5V/3A, 15W LED Strip
    ** CPU_FAN1, CHA_FAN1 and AIO_PUMP support the fan power up to 3A (36W).
    CPU_FAN1, CHA_FAN1 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
    Physical Spec
    Form Factor Mini ITX
    Dimensions (W x L) 6.7" x 6.7"
    Power Pin 1 x 24 pin ATX Power Connector
    1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    Software Feature
    BIOS Feature 256Mb AMI UEFI Legal BIOS with GUI support
    Software Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    Windows 11 Windows 10 64-bit / 11 64-bit
    Packaging

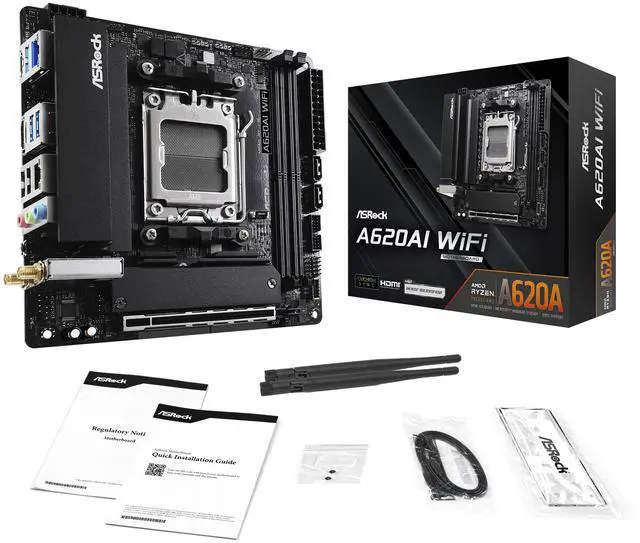

    Package Contents 1 x I/O Shield
    2 x SATA Data Cables
    2 x ASRock WiFi 2.4/5/6 GHz Antennas
    2 x Screws for M.2 Sockets
    Additional Information
    Date First Available July 28, 2025

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 3 years
    • Limited Warranty period (labor): 3 years
