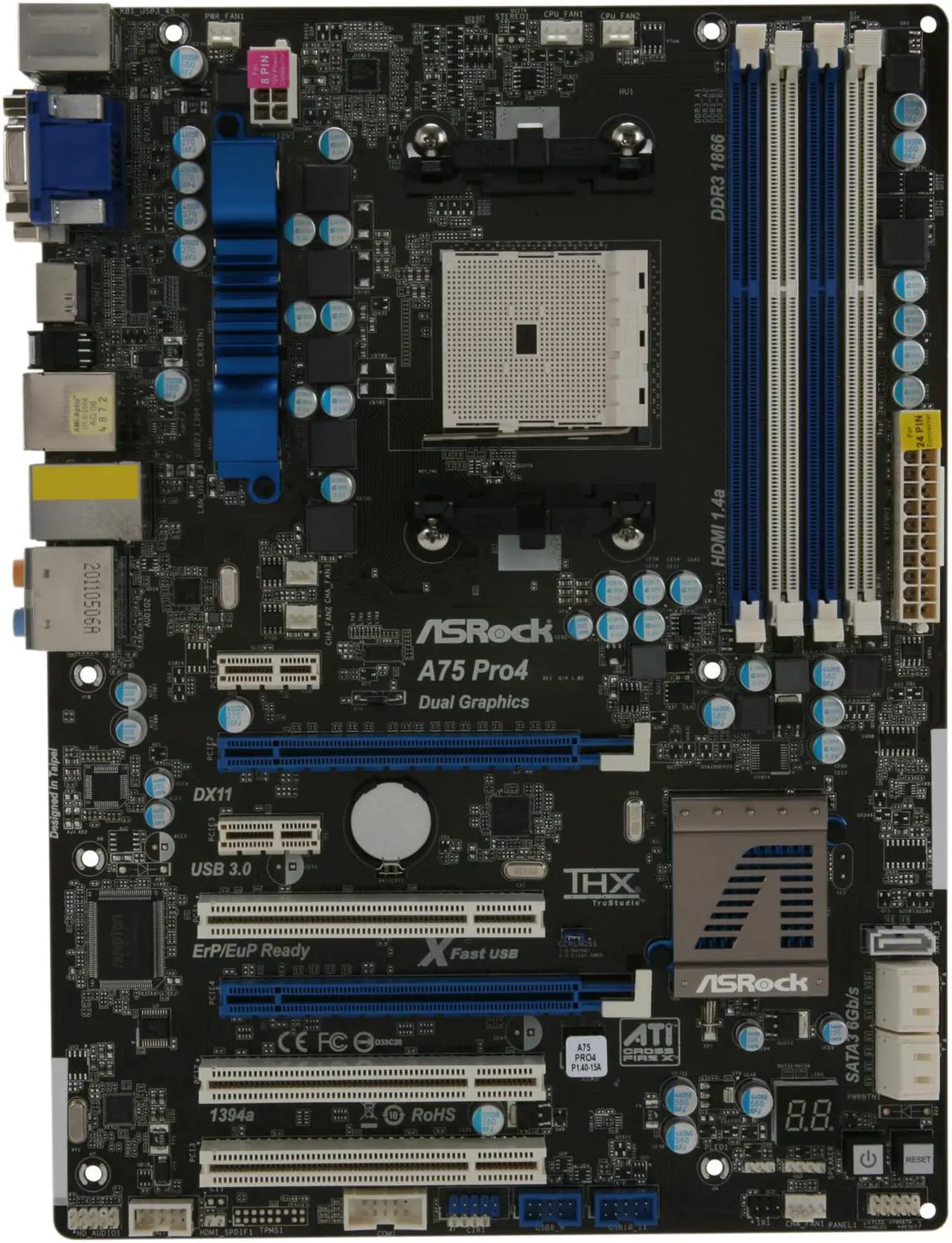

ASRock A75 PRO4 FM1 AMD A75 (Hudson D3) SATA 6Gb/s USB 3.0 HDMI ATX AMD Motherboard with UEFI BIOS
OUT OF STOCK.
- AMD A75 (Hudson D3)
- A4 / A6 / A8 / E2 APU
- DDR3 2400+(OC) / 1866(OC) / 1600(OC) / 1333 / 1066 / 800
Specs
Reviews
Learn more about the ASRock A75 PRO4
| Brand | ASRock |
|---|---|
| Model | A75 PRO4 |
| CPU Socket Type | FM1 |
|---|---|
| CPU Type | A4 / A6 / A8 / E2 APU |
| Chipset | AMD A75 (Hudson D3) |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 2400+(OC) / 1866(OC) / 1600(OC) / 1333 / 1066 / 800 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 (x16, x4) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| SATA 6Gb/s | 5 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394 |
| eSATA | 1 x eSATA 6Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394 |
| Other Connectors | 1 x IR header 1 x CIR header 1 x COM port header 1 x HDMI_SPDIF header 1 x Power LED header CPU/Chassis/Power FAN connector 24 pin ATX power connector 8 pin 12V power connector Front panel audio connector 1 x Dr. Debug with LED |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.8" |
| Power Pin | 24 Pin |
| Features | Support for Socket FM1 100W processors AMD A75 Hudson D3 Chipset Supports Native 6 x SATA3, 4 x USB 3.0 Ports Supports Dual Channel DDR3 2400+(OC) Supports AMD Quad CrossFireX, CrossFireX and Dual Graphics Multi VGA Output : D-Sub, DVI-D and HDMI Supports AMD Steady Video: New video post processing capability for automatic jutter reduction on home/online video 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio Supports XFast USB Technology, Graphical UEFI BIOS Supports On/Off Play Technology, Instant Boot, Instant Flash, APP Charger, SmartView Free Bundle : CyberLink MediaEspresso 6.5 Trial, 1 x 3.5mm Audio Cable |
|---|
| Date First Available | July 06, 2011 |
|---|
