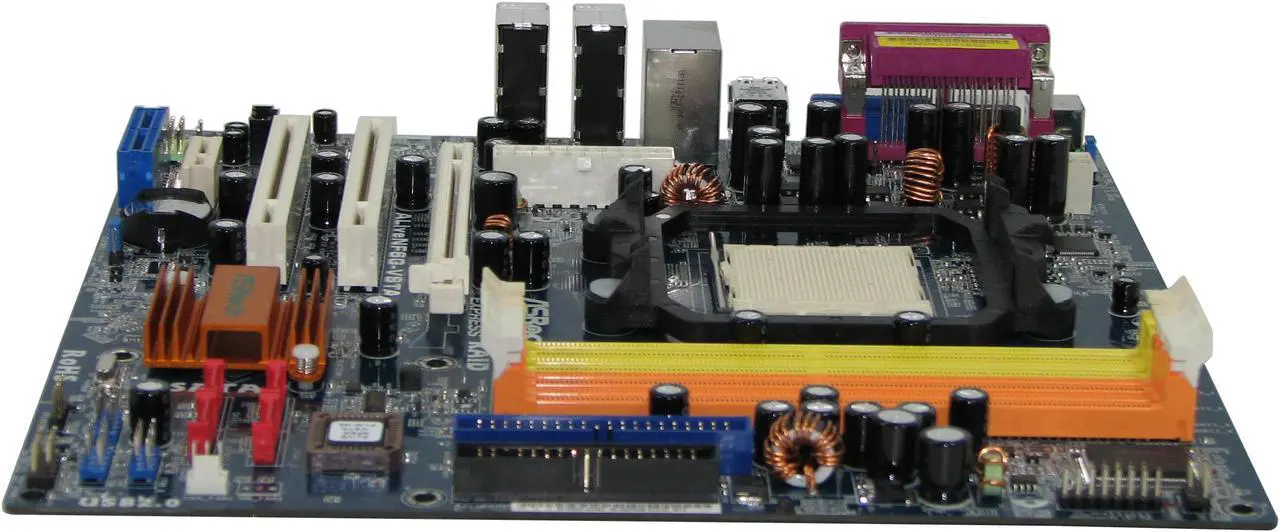

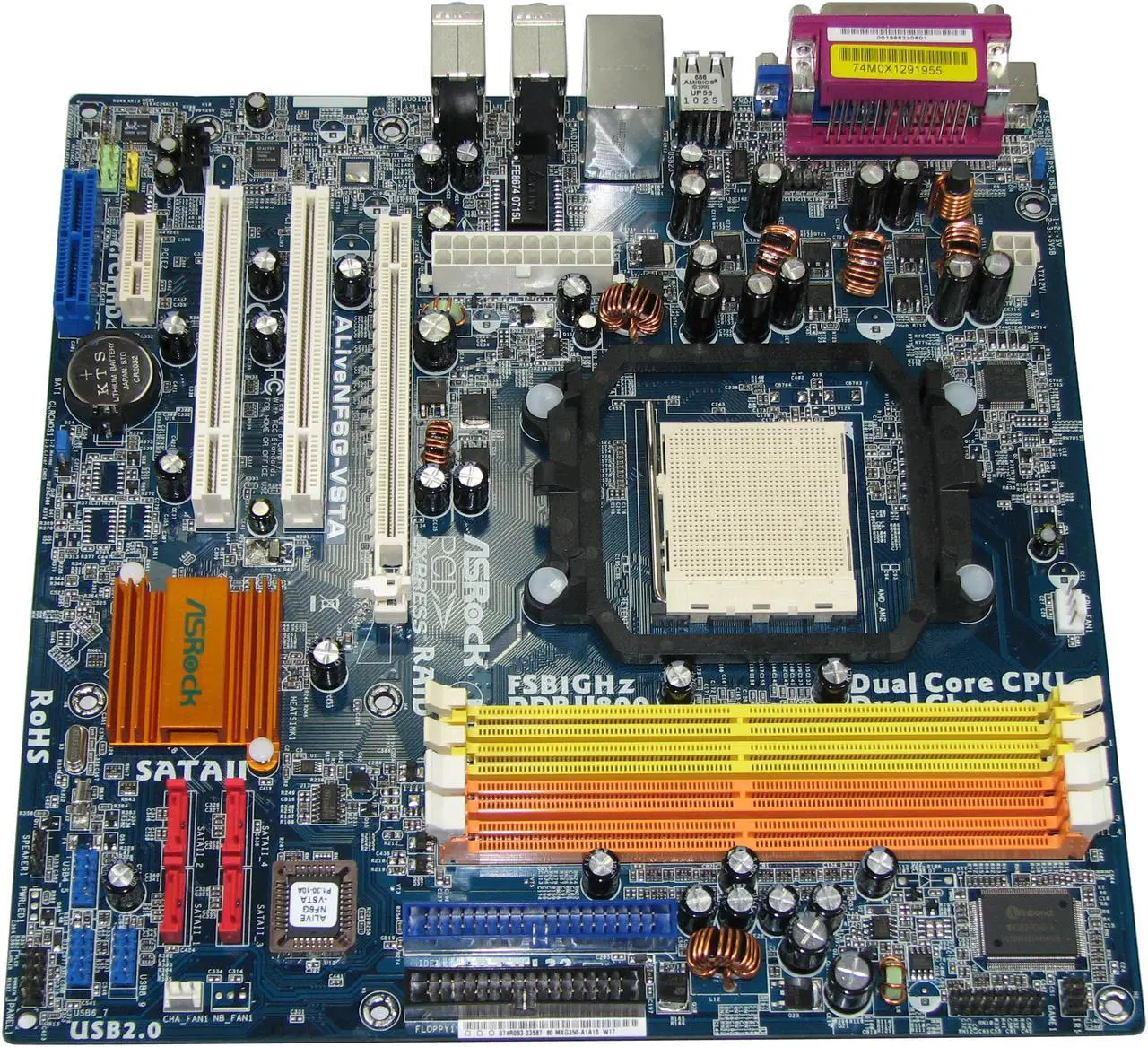

ASRock ALIVENF6G-VSTA AM2 NVIDIA GeForce 6100 or 6150SE / nForce 430 (Depend on the version) Micro ATX AMD Motherboard
- NVIDIA GeForce 6100 or 6150SE / nForce 430 (Depend on the version)
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR2 800
Specs
Reviews (97)
Learn more about the ASRock ALIVENF6G-VSTA
| Brand | ASRock |
|---|---|
| Model | ALIVENF6G-VSTA |
| CPU Socket Type | AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000 MHz |
| Chipset | NVIDIA GeForce 6100 or 6150SE / nForce 430 (Depend on the version) |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Other Slots | 1 x HDMR slot |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5/JBOD |
| Onboard Video Chipset | Integrated NVIDIA GeForce6-class graphics |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8201CL PHY |
|---|---|
| Max LAN Speed | 100Mbps |

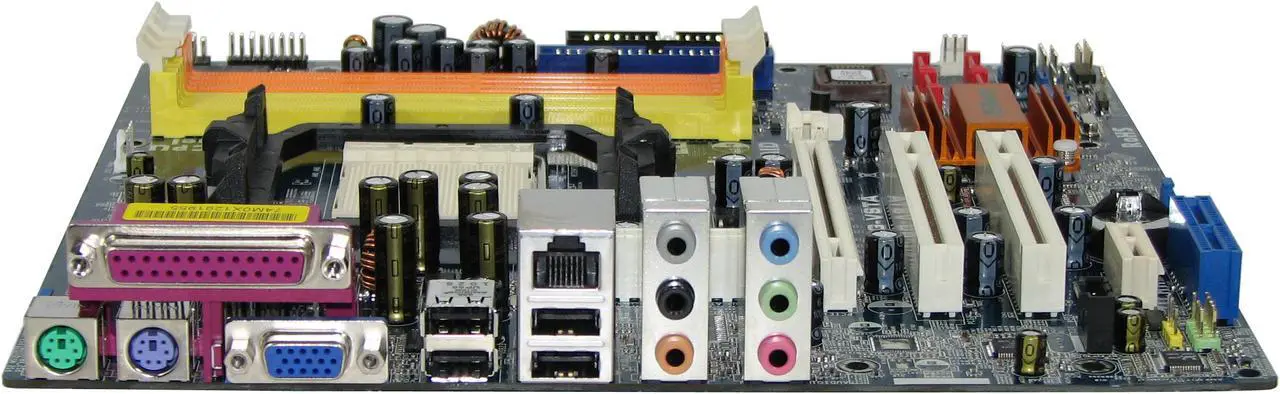

| Back I/O Ports | 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 20 Pin |
| Features | Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows XP and Windows Vista. For Windows XP 64-bit and Windows Vista 64-bit with 64-bit CPU, there is no such limitation |
|---|

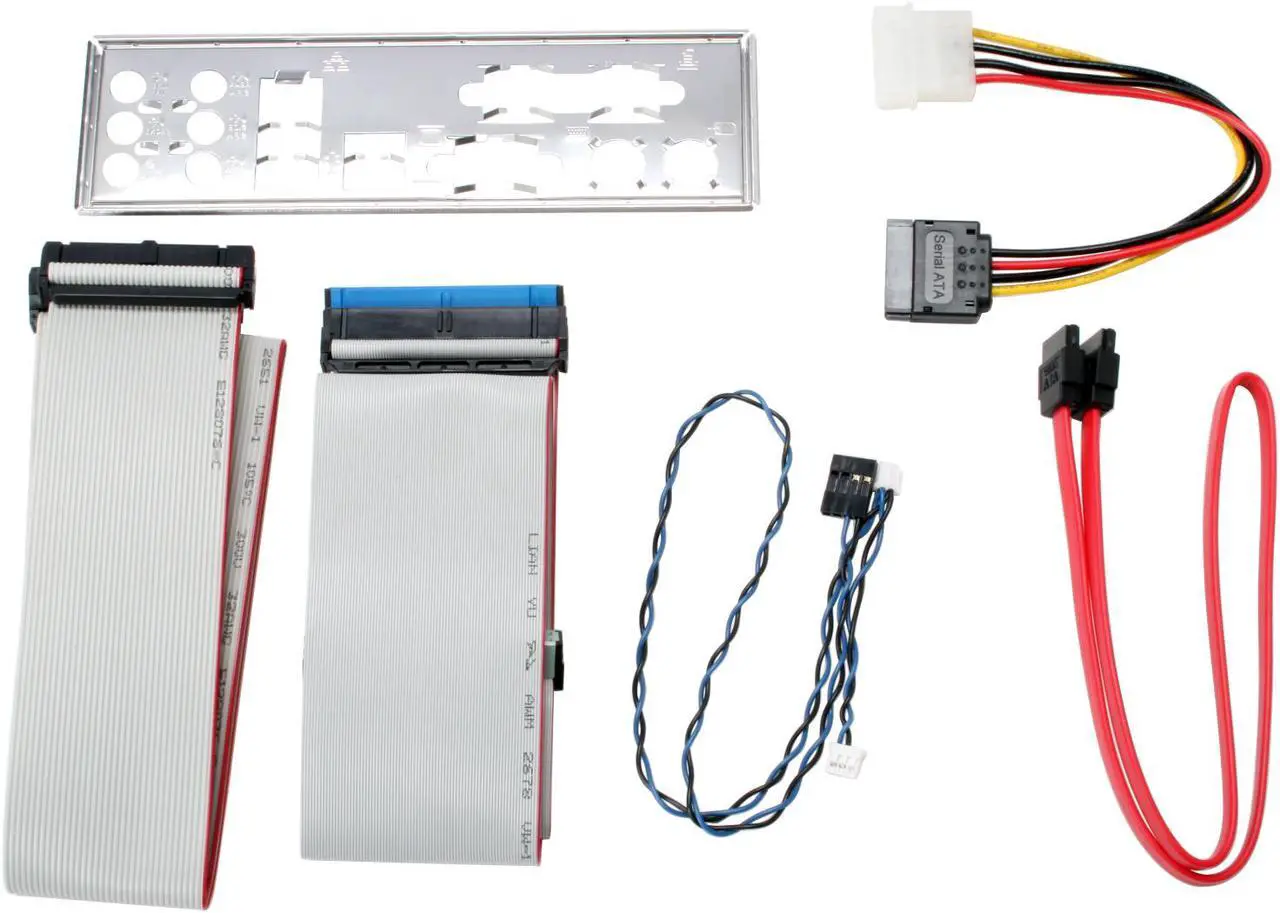

| Package Contents | ALIVENF6G-VSTA Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | June 06, 2007 |
|---|
