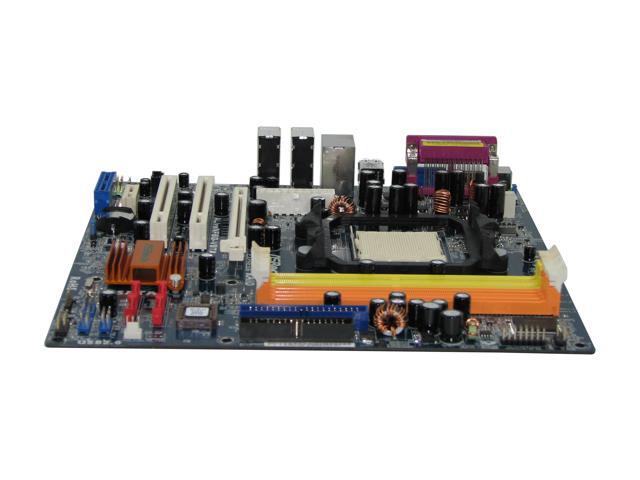

ASRock ALIVENF6G-VSTA AM2 NVIDIA GeForce 6100 or 6150SE / nForce 430 (Depend on the version) Micro ATX AMD Motherboard

OUT OF STOCK.
  • NVIDIA GeForce 6100 or 6150SE / nForce 430 (Depend on the version)
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR2 800
Specs
Reviews

Learn more about the ASRock ALIVENF6G-VSTA

Model
Brand ASRock
Model ALIVENF6G-VSTA
Supported CPU
CPU Socket Type AM2
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset NVIDIA GeForce 6100 or 6150SE / nForce 430 (Depend on the version)
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Other Slots 1 x HDMR slot
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 4 x SATA 3Gb/s
SATA RAID 0/1/0+1/5/JBOD
Onboard Video
Onboard Video Chipset Integrated NVIDIA GeForce6-class graphics
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8201CL PHY
Max LAN Speed 10/100Mbps
Rear Panel Ports
PS/2 2
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 20 Pin
Features
Features Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows XP and Windows Vista. For Windows XP 64-bit and Windows Vista 64-bit with 64-bit CPU, there is no such limitation
Packaging
Package Contents ALIVENF6G-VSTA
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Cable
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
Date First Available June 06, 2007
