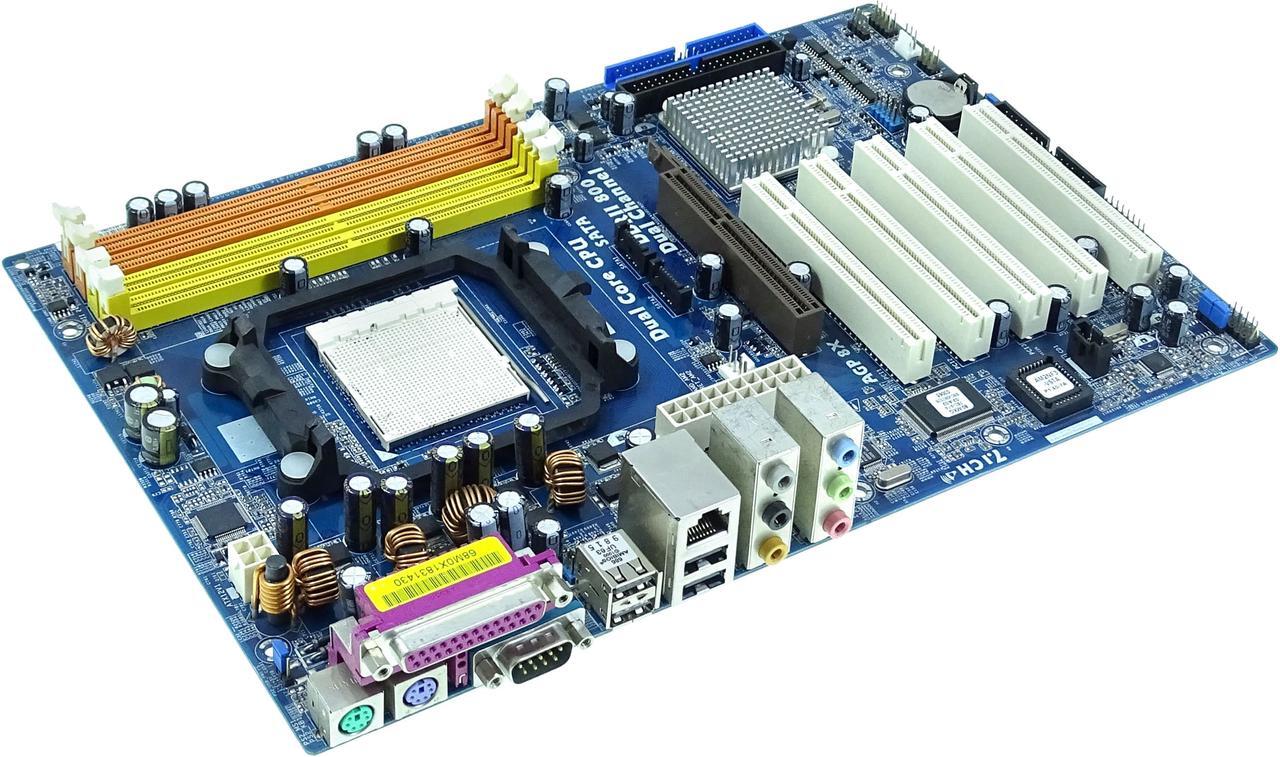

Main image of ASRock AM2NF3-VSTA Socket AM3/AM2+/AM2 nForce 3 AGP ATX Motherboard

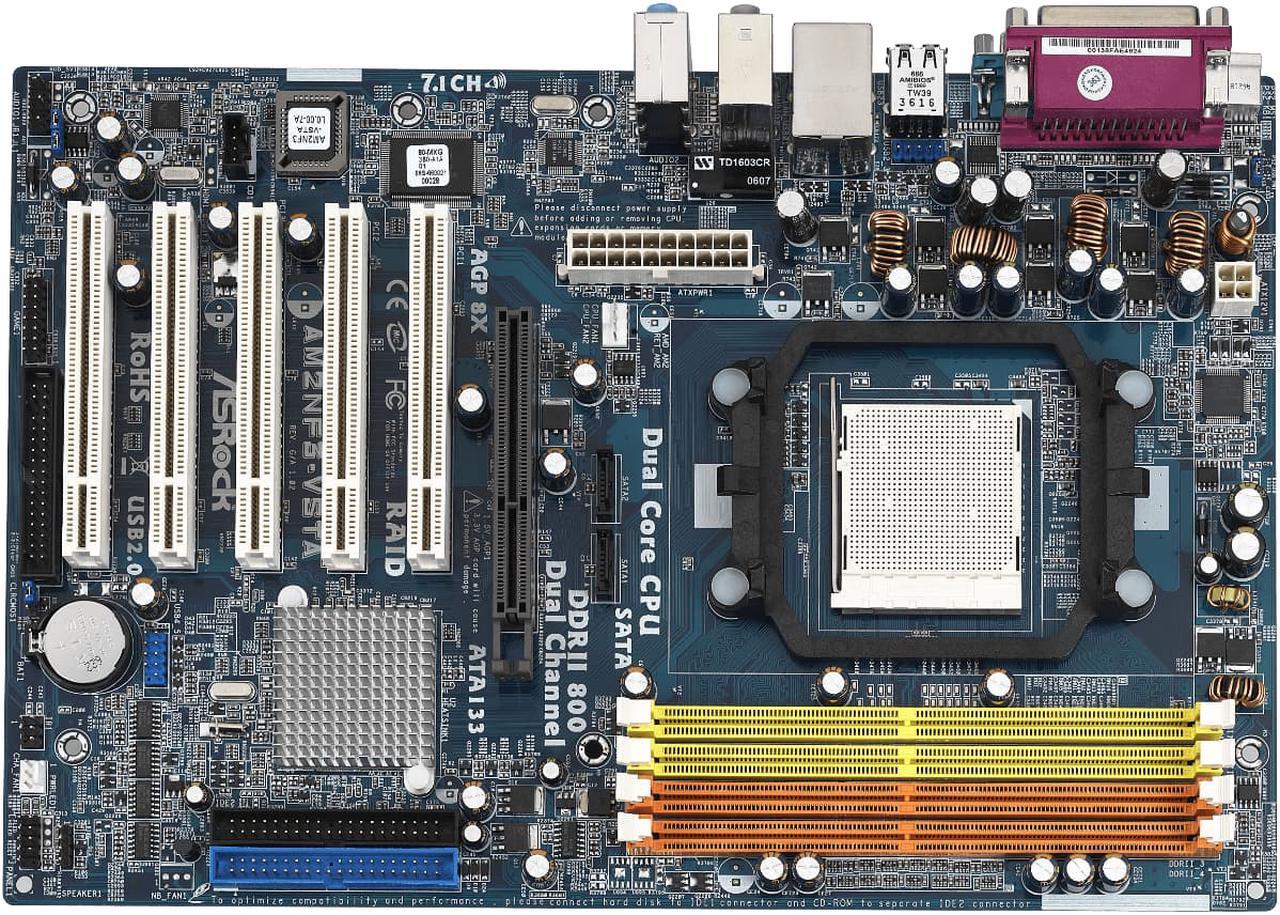

Alt view image 2 of 3 - ASRock AM2NF3-VSTA Socket AM3/AM2+/AM2 nForce 3 AGP ATX Motherboard

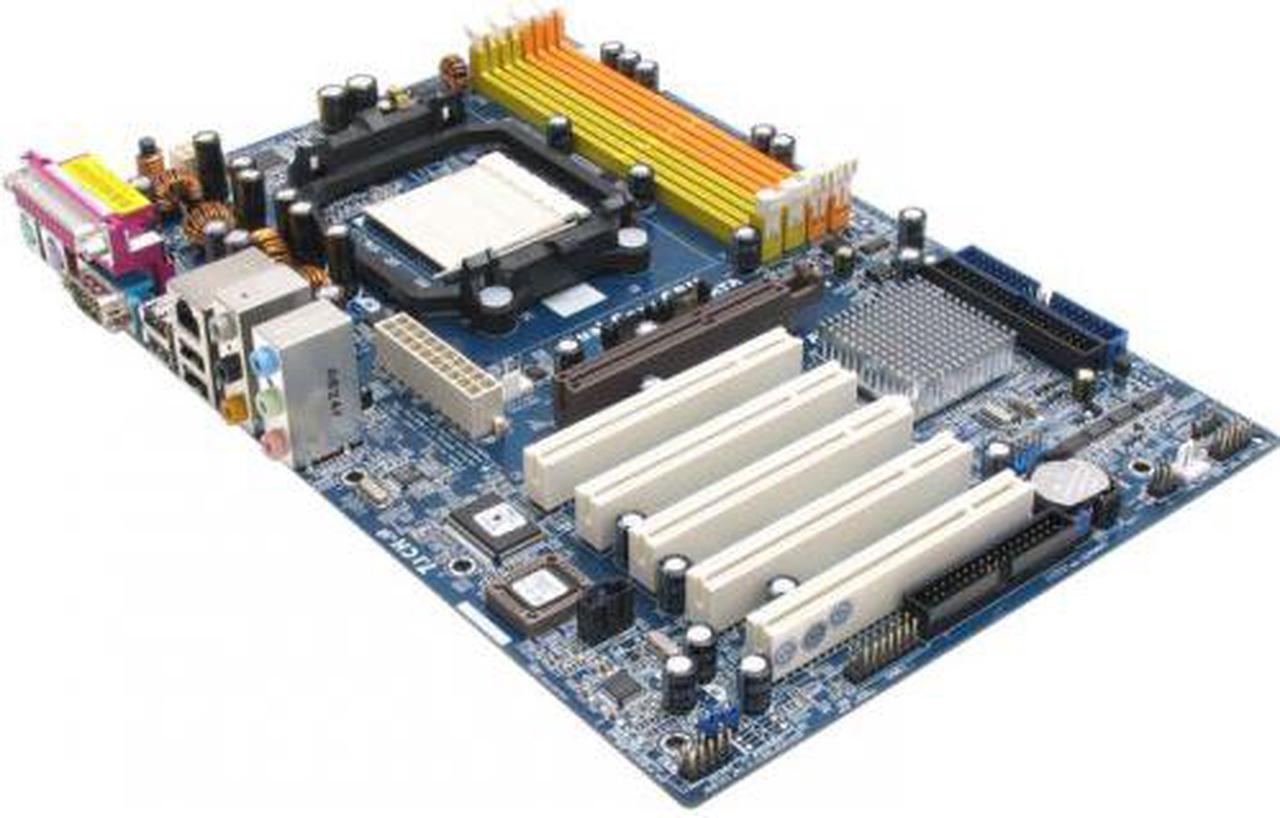

Alt view image 3 of 3 - ASRock AM2NF3-VSTA Socket AM3/AM2+/AM2 nForce 3 AGP ATX Motherboard

Shop All ASRock Products | Visit ProTek Store

ASRock AM2NF3-VSTA Socket AM3/AM2+/AM2 nForce 3 AGP ATX Motherboard

Used - Very Good

Comes with motherboard and IO shield only, no additional accessories.

AGP Slot
DDR2 1066 Support up to 16GB
Support for Quad Core AMD Phenom II X4 processors up to Phenom II X4 970 BE

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Support for Socket AM2+ /
AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor NVIDIA® nForce3 250 Chipset Hyper-Transport Technology, AMD Cool 'n' Quiet Technology Supports Dual Channel DDR2 1066/800/667/533 (4 x DIMM slots) non-ECC, un-buffered memory, Max. capacity up to 16GB
ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5 %
Untied Overclocking: During Overclocking, FSB enjoys better margin due to fixed AGP/ PCI Buses Hybrid Booster - ASRock Safe Overclocking Technology 1 x AGP 8X slot 2 x SATA 1.5 Gb/s, support RAID (RAID 0, 1, JBOD) and Hot Plug functions 7.1 CH Windows® Vista™ Premium Level Superior Audio (C-Media CM6501 Audio Codec with UAA architecture) Worldwide the only nForce3 MB with Windows® Vista™ Premium Logo ASRock 8CH
I/O: 4 x Ready-to-Use USB 2.0 Ports, 7.1 channel audio jacks

Model
Brand	ASRock
Model	AM2NF3-VSTA

Supported CPU
CPU Socket Type	AM3+/AM3/AM2+
CPU Type	Phenom II / Phenom / Athlon II / Athlon64 /Sempron

Chipsets
Chipset	NVIDIA nForce3 250

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR2 800
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Expansion Slots
AGP Slots	1 x AGP 4X / 8X
PCI Slots	5 x PCI Slots

Storage Devices
PATA	2 x ATA133 4 Dev. Max
SATA 1.5Gb/s	2 x SATA 1.5 Gb/s
SATA RAID	0/1/JBOD

Onboard Audio
Audio Chipset	CM6501
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 8201CL PHY
Max LAN Speed	100Mbps

Rear Panel Ports
Back I/O Ports	4 x USB 2.0/1.1
PS/2	2
COM	1
LPT	1
RJ45	1 x RJ45
USB 1.1/2.0	4 x USB 2.0
Game/MIDI Ports	1
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	2 x USB 2.0
Other Connectors	IR header, Game header, CD in header

Physical Spec
Form Factor	ATX
Power Pin	20 Pin

Packaging
Package Contents	Motherboard, IO Shield, SATA Cable, Thermal Paste
