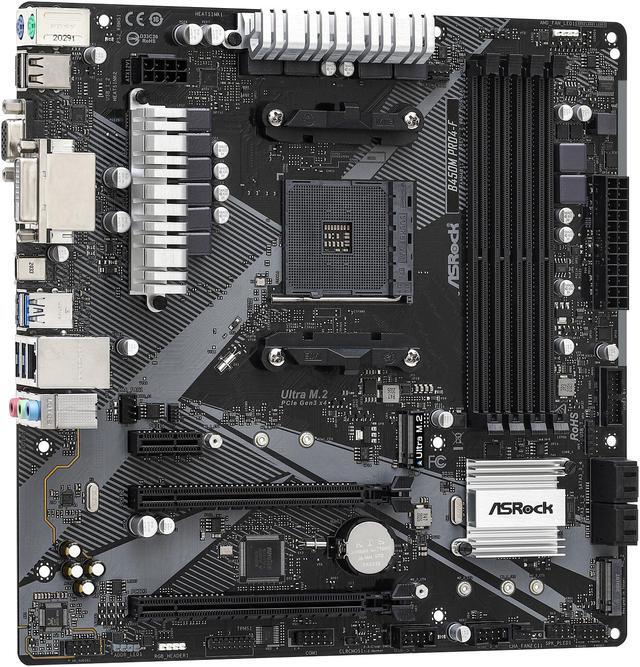

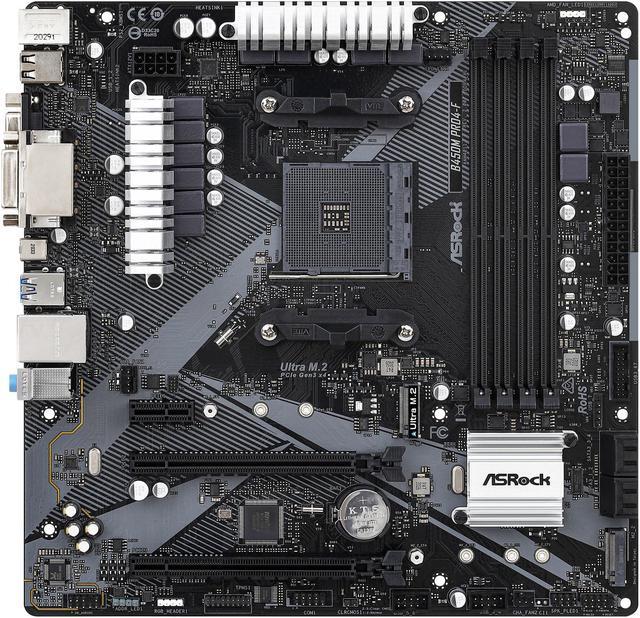

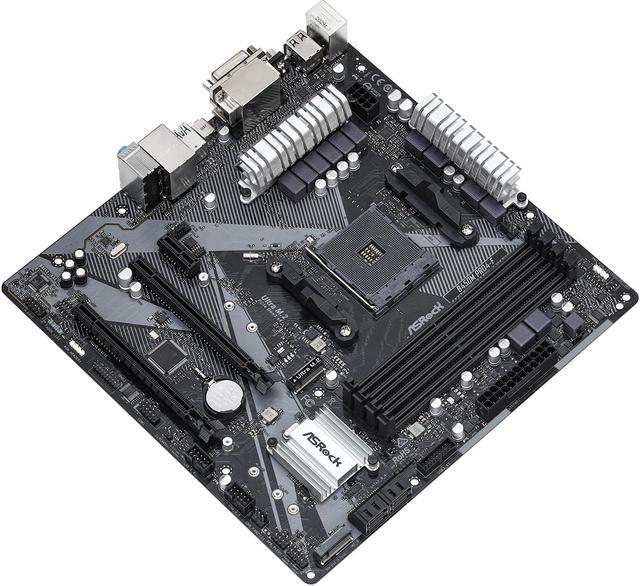

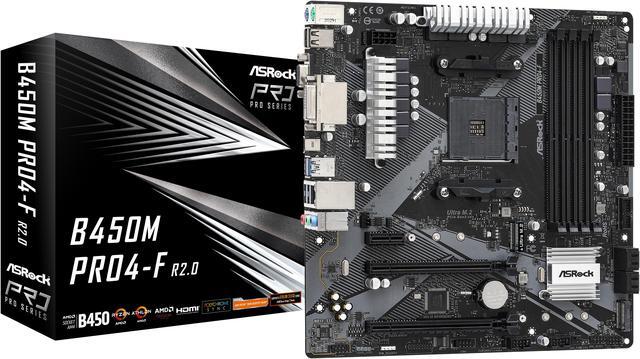

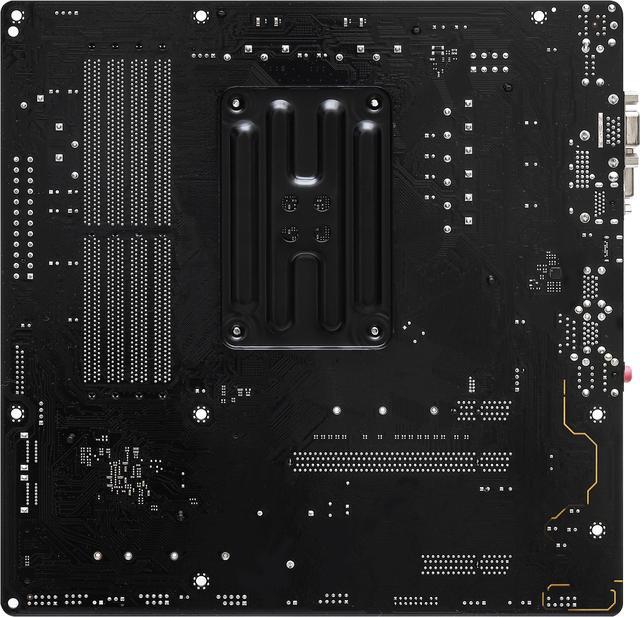

ASRock B450M Pro4-F R2.0 Socket AM4 AMD B450 DDR4 Micro ATX Motherboard 7 USB 3.2 Gen1 (2 Front, 4 Rear, 1 Rear Type-C)

OPEN BOX

Support Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Supports DDR4 3200+ (OC)*
1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)*, 1 M.2 (SATA3)
7 USB 3.2 Gen1 (2 Front, 4 Rear, 1 Rear Type-C)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock B450M Pro4-F R2.0

Supported CPU
CPU Socket Type	AM4
CPU Type	Ryzen Series

Chipsets
Chipset	AMD B450

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200+ (OC)*
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) memory modules - 15µ Gold Contact in DIMM Slots
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express 2.0 x16	1 x PCI Express 2.0 x16

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 + 1 x Ultra M.2

Onboard Video
Onboard Video Chipset	None

Onboard Audio
Audio Chipset	Realtek ALC892/897 Audio Codec
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111GR
Max LAN Speed	1Gbps

Rear Panel Ports

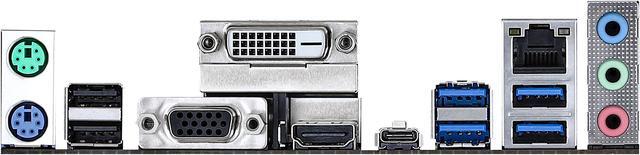

Back I/O Ports	1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x USB 3.2 Gen 1 Type-C / 2 x USB 2.0/1.1
Video Ports	1x HDMI, 1x D-Sub, 1xDVI-D
HDMI	1 x HDMI
USB 1.1/2.0	2 x USB 2.0
USB Type-C	1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)

Internal I/O Connectors
Onboard USB	- 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

Physical Spec
Form Factor	Micro ATX
LED Lighting	None RGB
Dimensions (W x L)	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Power Pin	24 Pin

Software Feature
Windows 11	Ready

Additional Information
Date First Available	May 06, 2023
