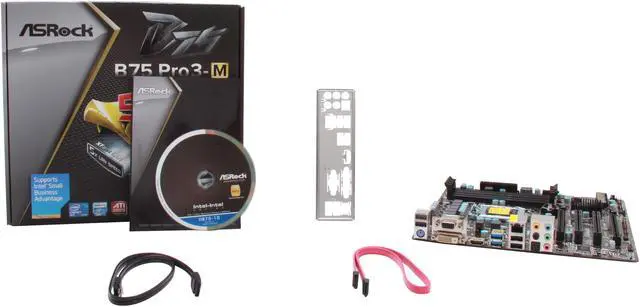

Images from RETAIL item, box contents may vary.

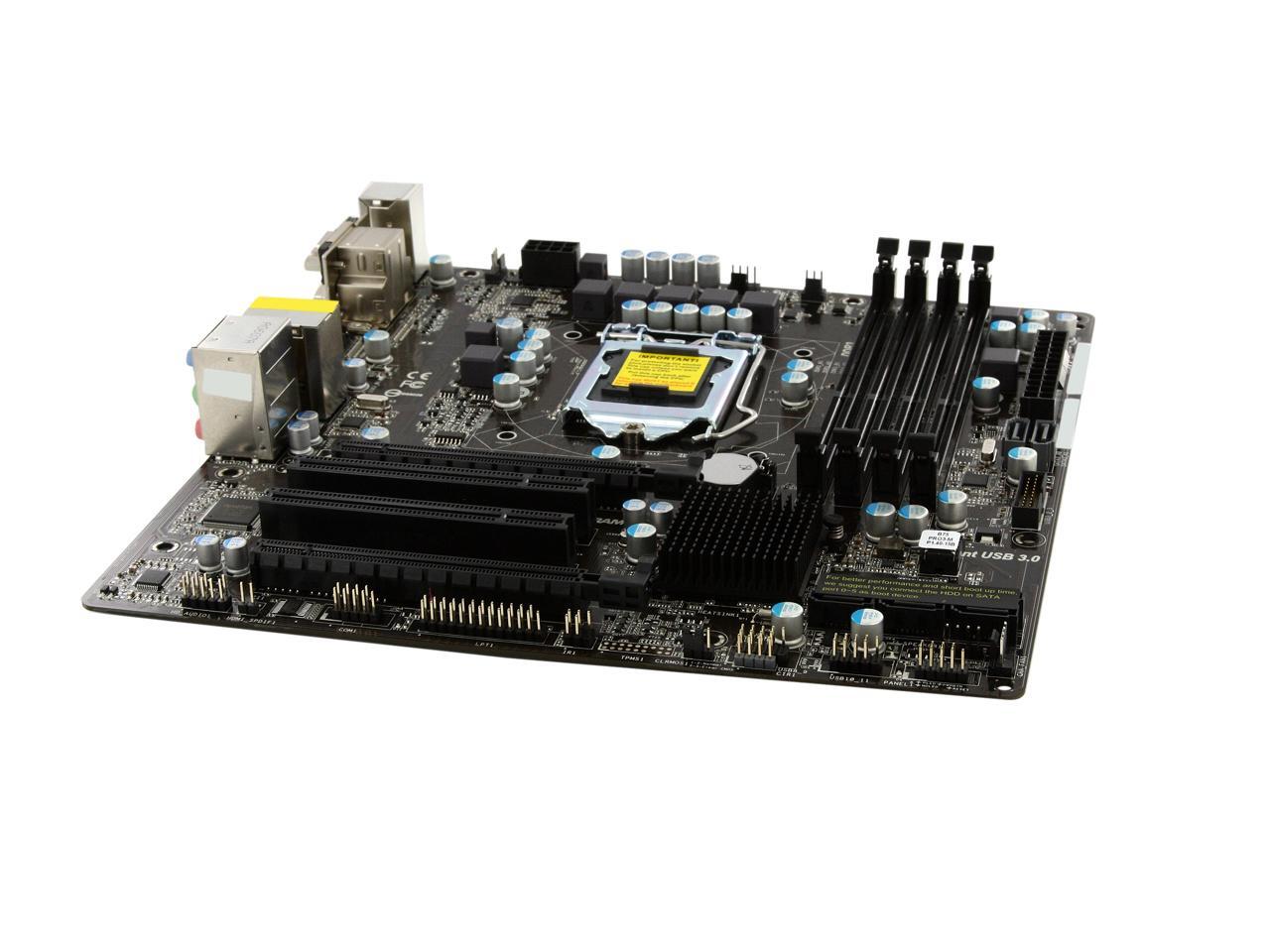

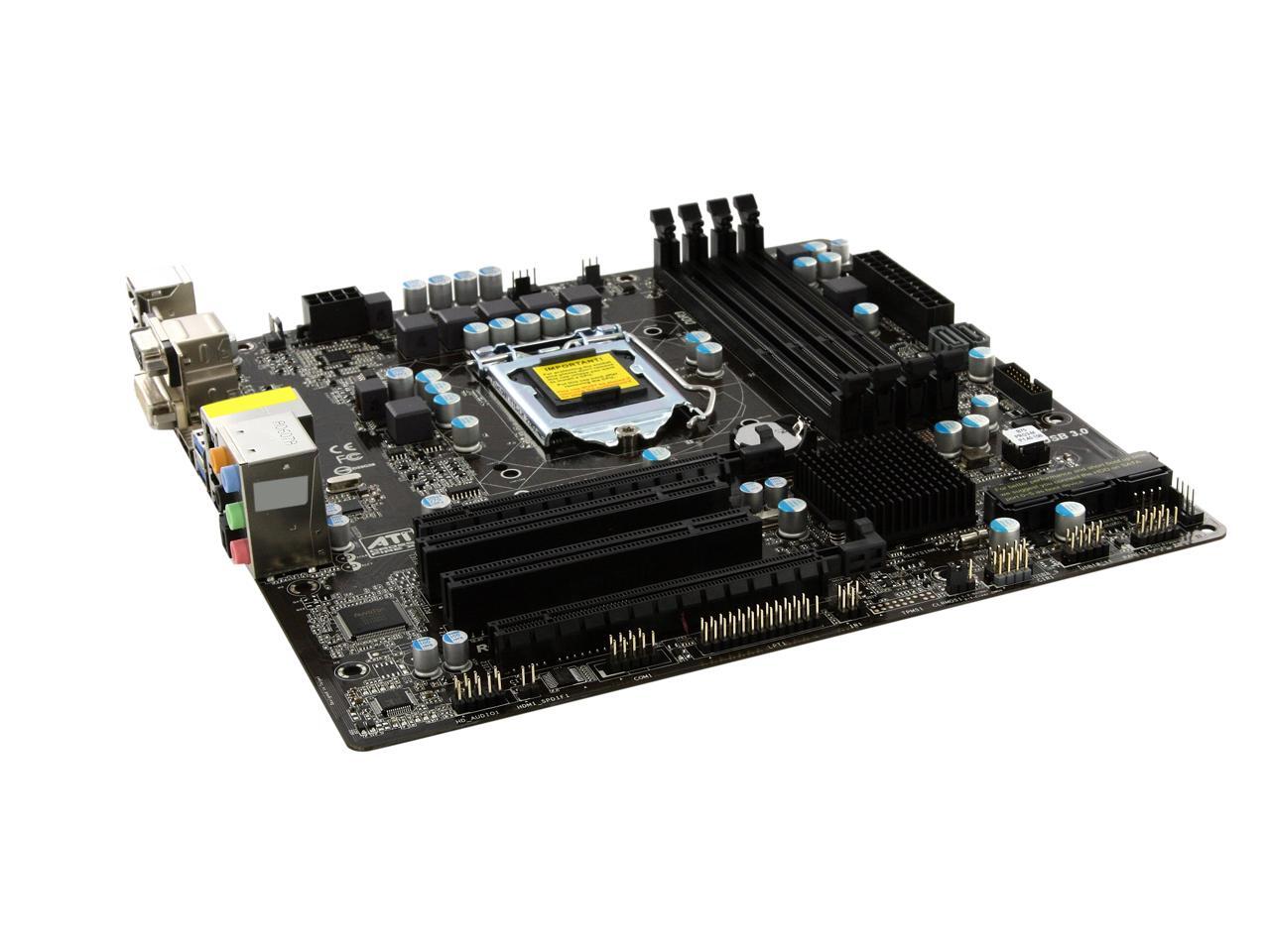

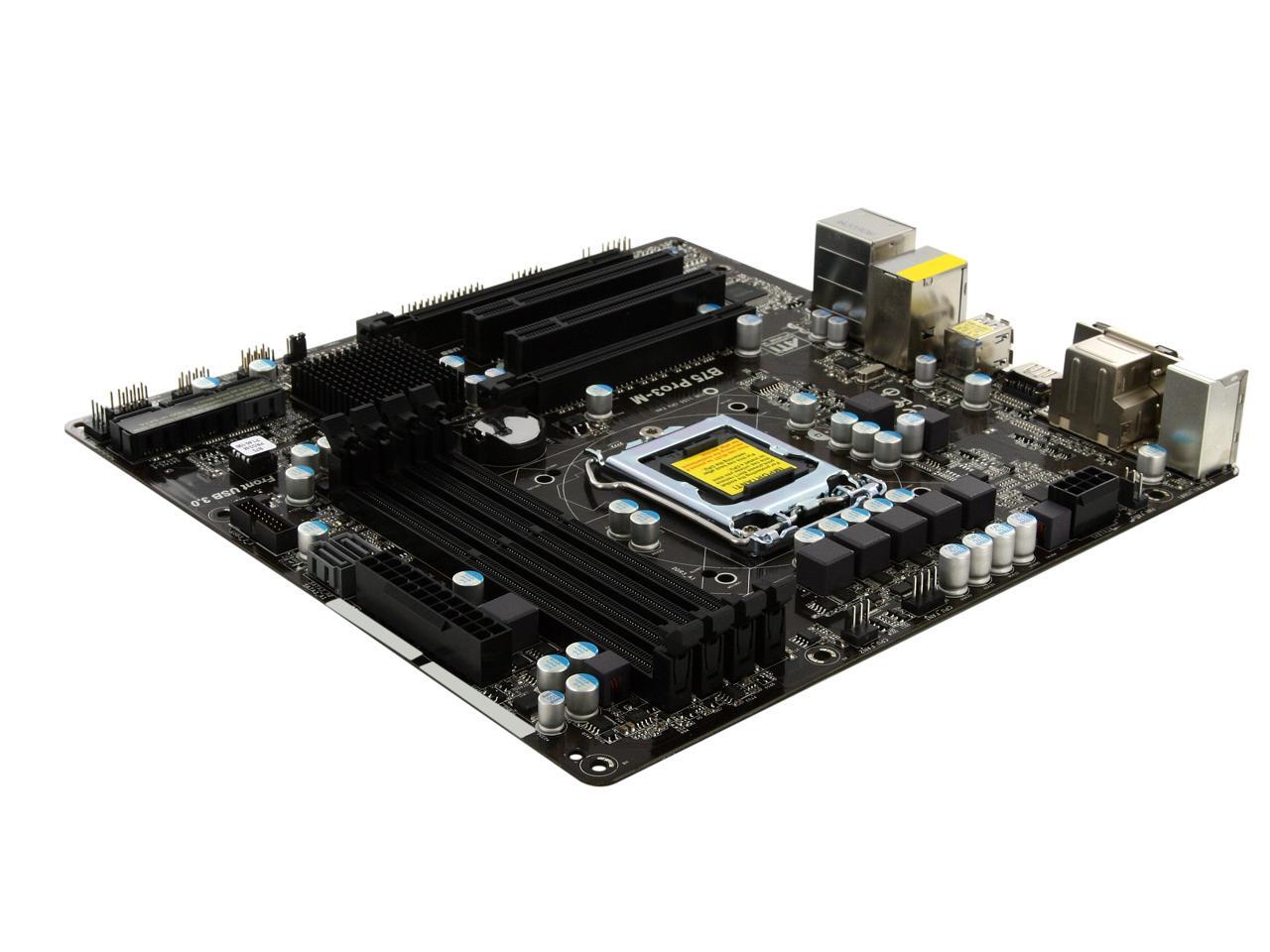

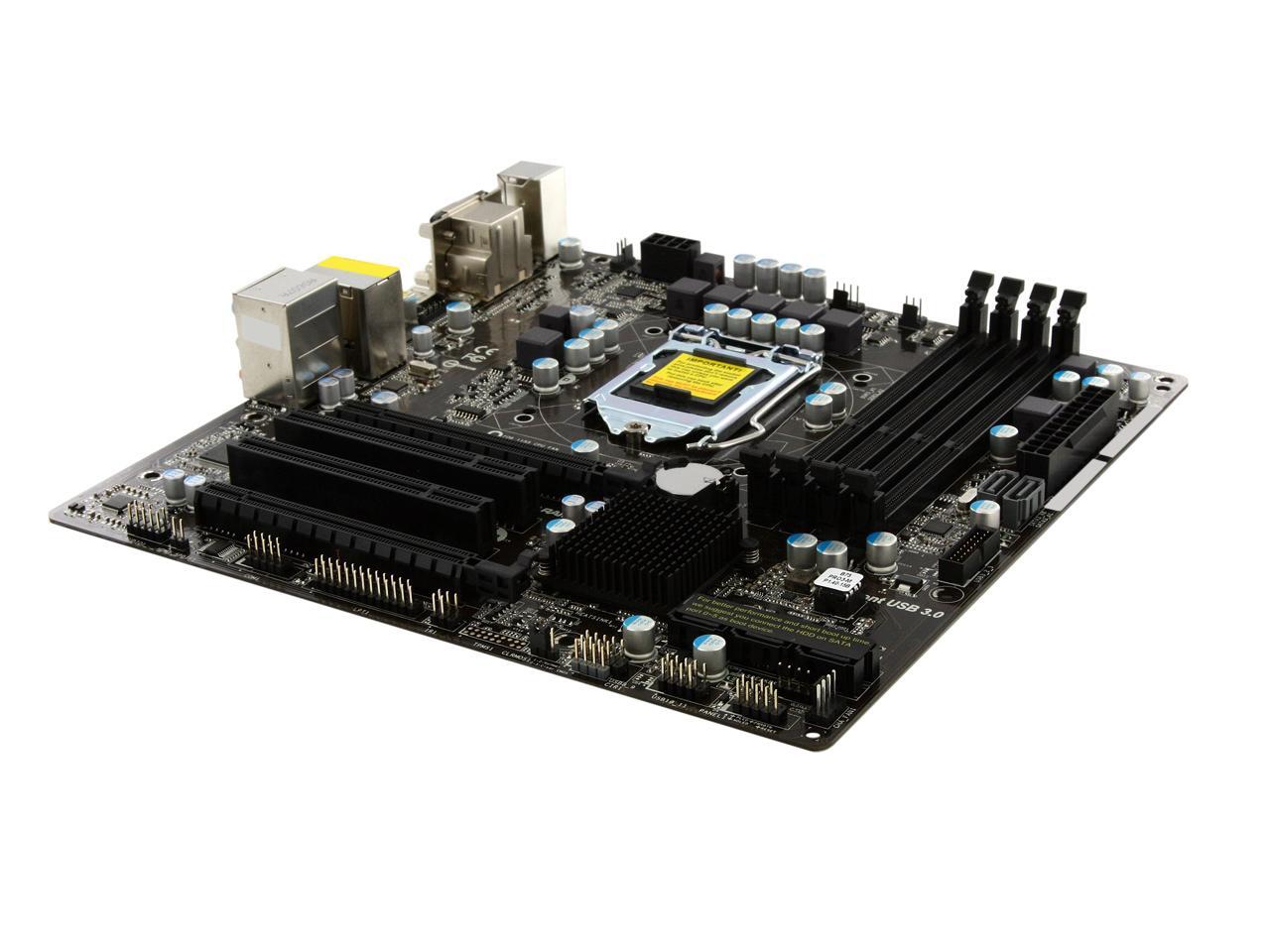

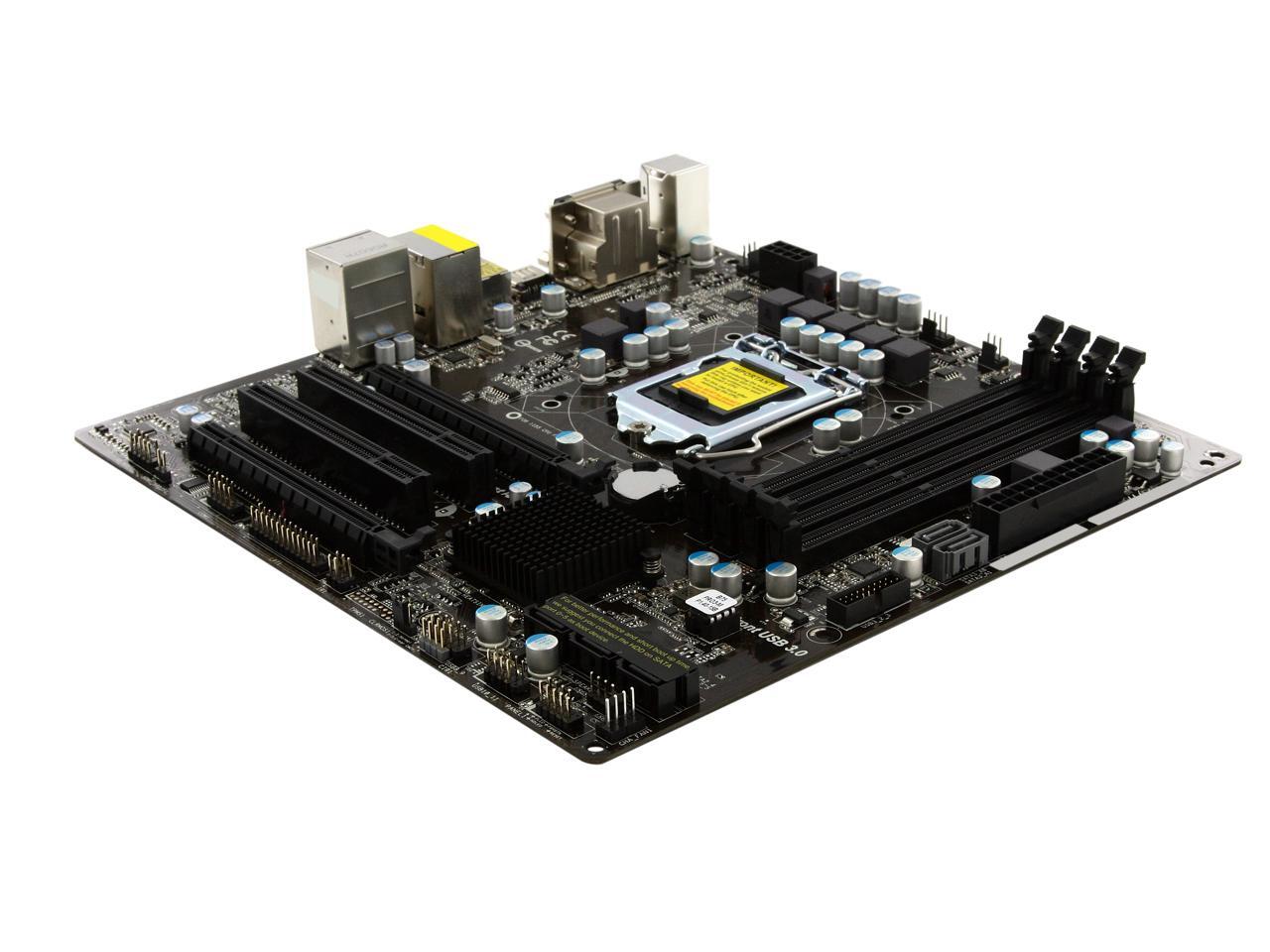

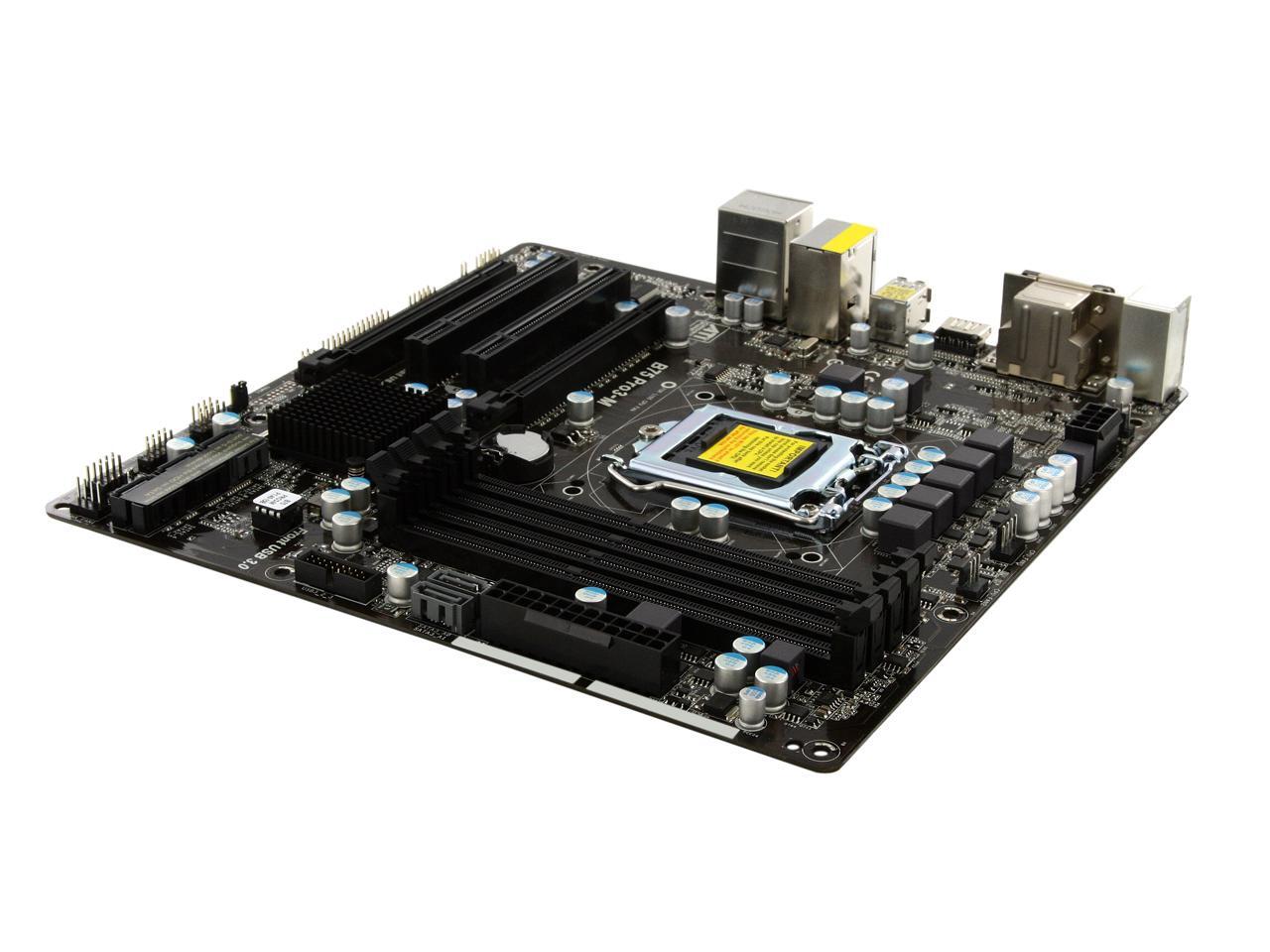

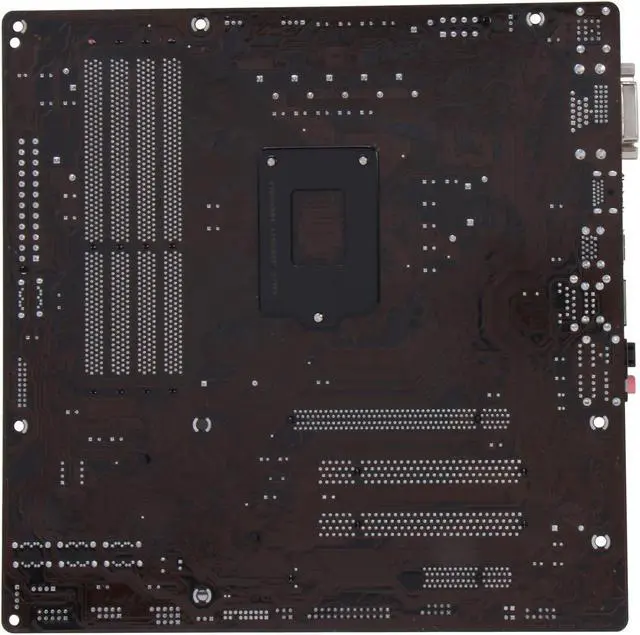

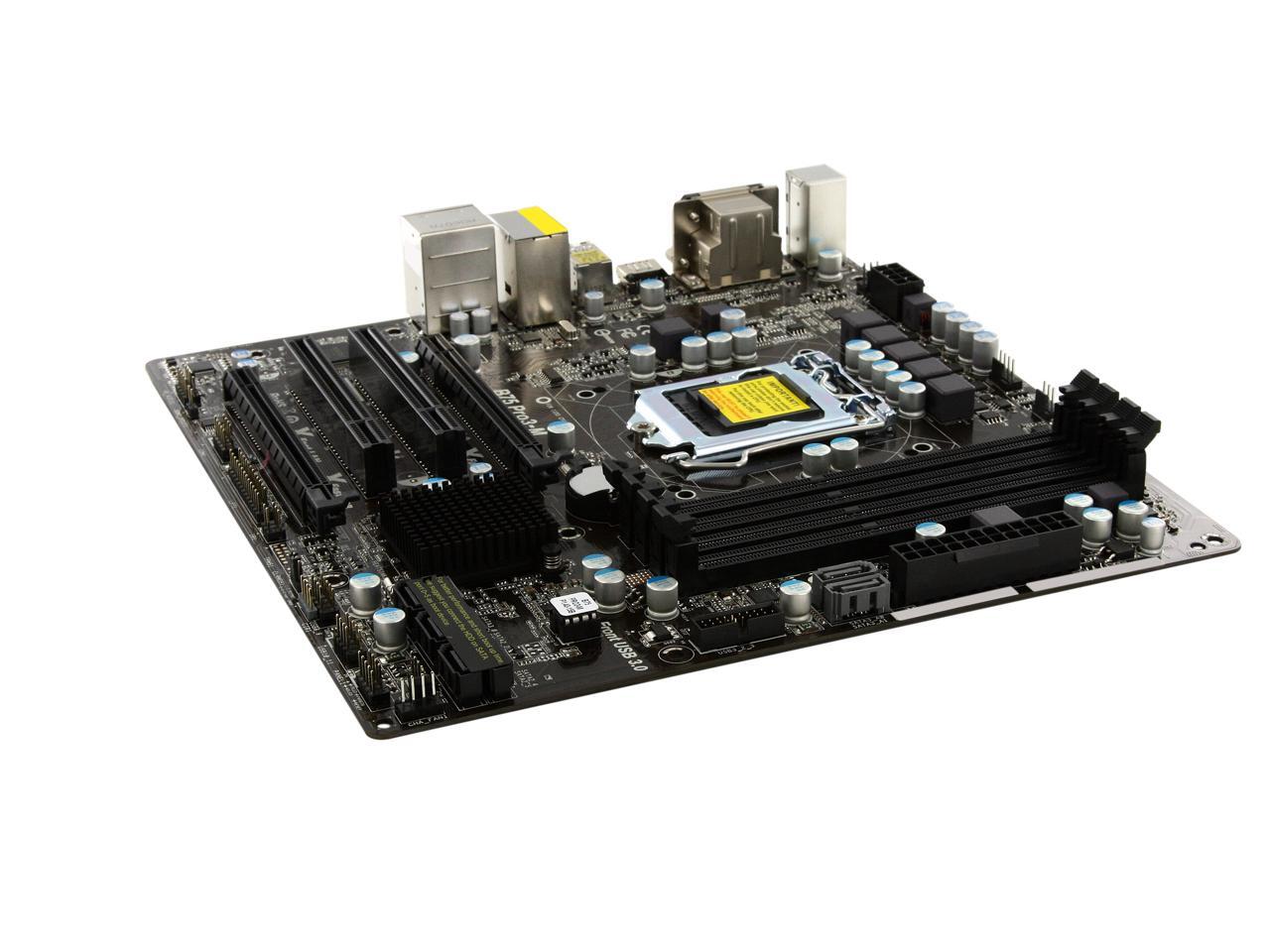

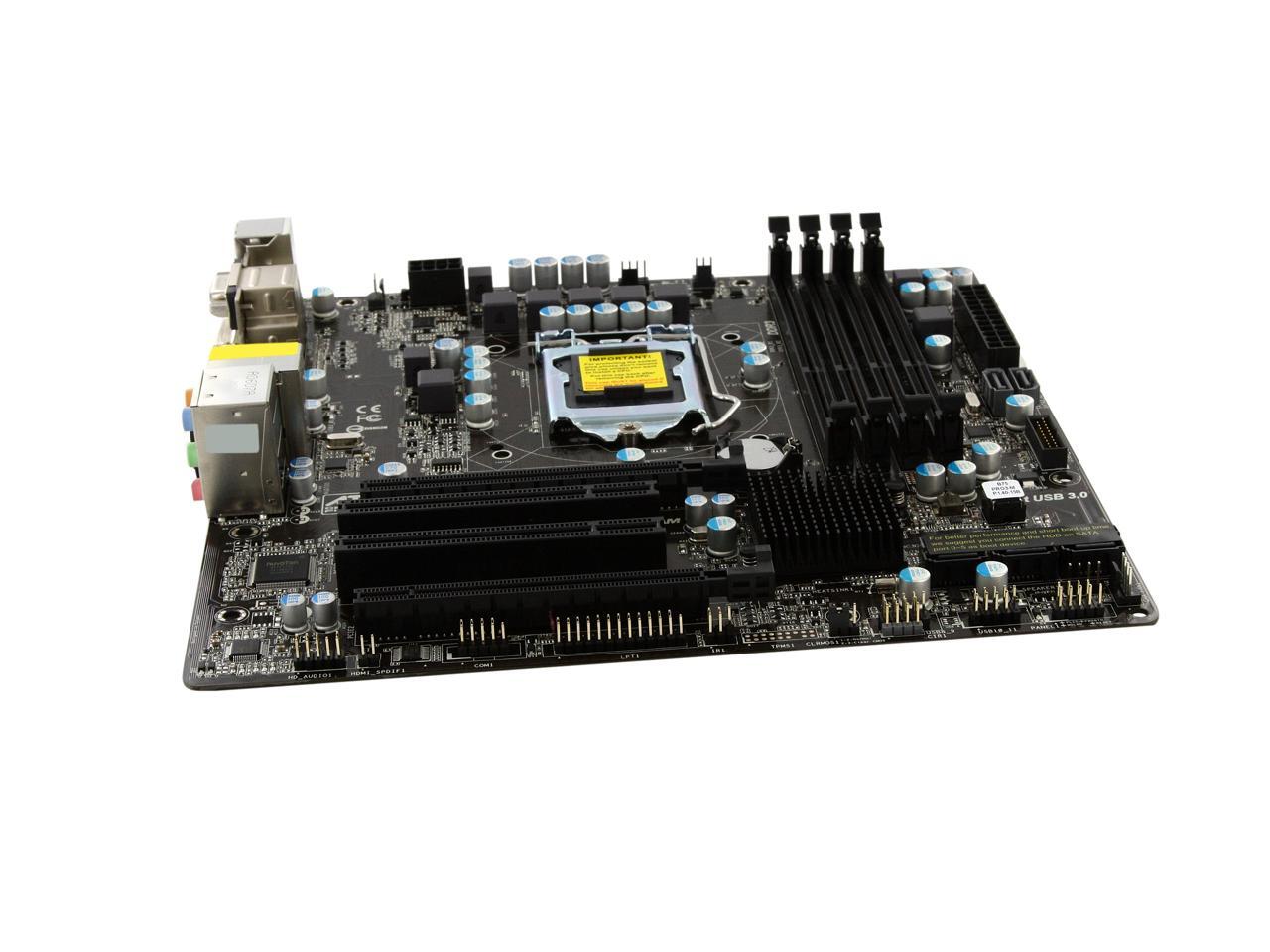

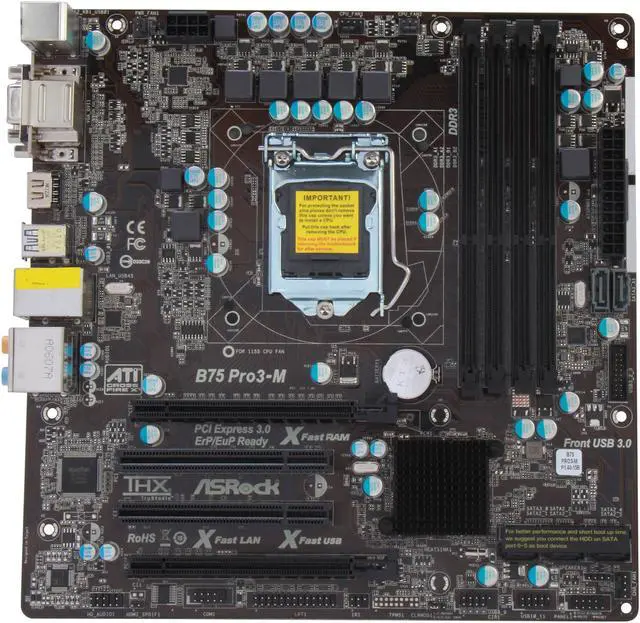

ASRock B75 PRO3-M LGA 1155 Intel B75 HDMI USB 3.0 Micro ATX Intel Motherboard
OPEN BOX Product Type
- Intel B75
- Core i7 / i5 / i3 (LGA1155)
- DDR3 2200(OC)/1600
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock B75 PRO3-M
| Brand | ASRock |
|---|---|
| Model | B75 PRO3-M |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 (LGA1155) |
| Supported CPU Technologies | Supports Intel Turbo Boost 2.0 Technology Supports Hyper-Threading Technology |
| Chipset | Intel B75 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 2200(OC)/1600/1333/1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express 2.0 x16 | 1 (x4) |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 3 x SATA 6Gb/s |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |

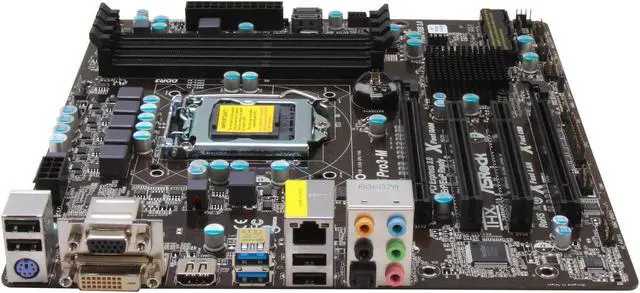

| Back I/O Ports | 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x IR header 1 x CIR header 1 x Print port header 1 x COM port header 1 x HDMI_SPDIF header 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) 1 x Chassis Fan connectors (1 x 4-pin) 1 x Power Fan connector (3-pin) 24 pin ATX power connector 8 pin 12V power connector Front panel audio connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | 100% All Solid Capacitor Design Supports Dual Channel DDR3 2200(OC) 1 x PCIe 3.0 x16 Slot, Supports AMD Quad CrossFireX, CrossFireX PCIE Gigabit LAN Supports Intel HD Graphics with Built-in Visuals Multi VGA Output options : D-Sub, DVI-D, HDMI Combo Cooler Option (C.C.O.) 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio Supports ASRock XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, On/Off Play, Dehumidifier, UEFI System Browser Supports Intel Smart Connect, Intel Rapid Start, Intel Small Business Advantage Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite |
|---|
| First Listed on Newegg | April 25, 2013 |
|---|
