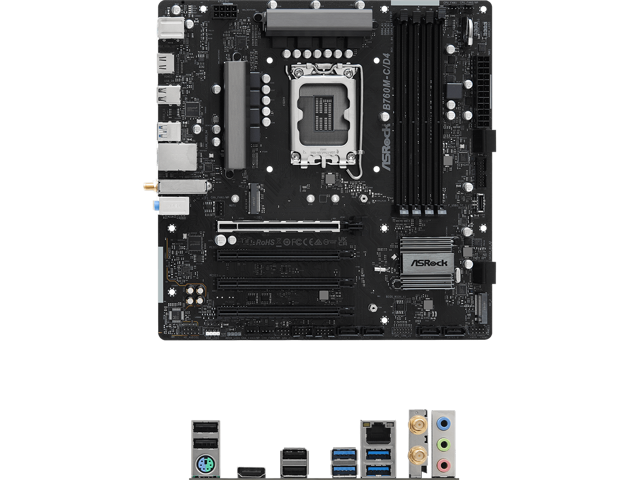

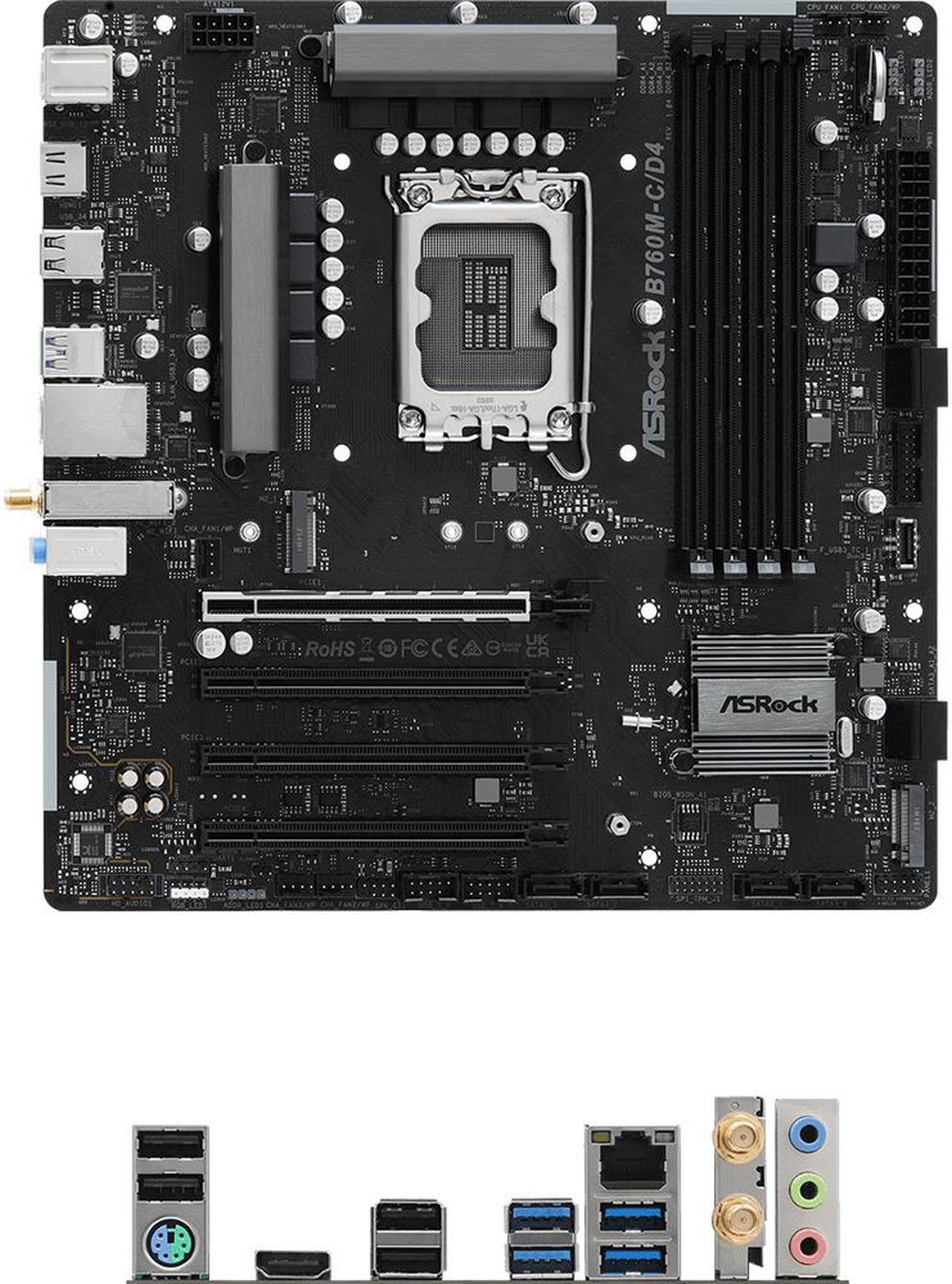

ASRock B760M-C/D4 (BULK) LGA 1700 Intel B760 Micro ATX Motherboard

Be the first to review this product...
  • Intel B760
  • Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)
  • DDR4 3200 / DDR4 4000 / DDR4 4266 / DDR4 4400 / DDR4 5333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
+
+
Specs
Reviews

Learn more about the ASRock B760M-C/D4 (BULK)

Model
Brand ASRock
Model B760M-C/D4 (BULK)
Supported CPU
CPU Socket Type LGA 1700
CPU Type Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)
Chipsets
Chipset Intel B760
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR4 3200 / DDR4 4000 / DDR4 4266 / DDR4 4400 / DDR4 5333
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Memory Feature Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
Supports ECC UDIMM memory modules (operate in non-ECC mode)

1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.
2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
Expansion Slots
PCI Express 4.0 x16 CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 3.0 x16 Chipset:
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x1 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x1 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*

* Supports NVMe SSD as boot disks
Other Slots 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

* Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 1Gbps
Wireless LAN Wi-Fi 802.11 ac
Bluetooth Yes
Rear Panel Ports
Back I/O Ports 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x Antenna Bracket / 3 x Audio Jacks / 4 x USB 2.0/1.1 / 4 x USB 3.2 Gen 1
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors 1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
Software Feature
BIOS Feature 128Mb AMI UEFI Legal BIOS with GUI support
Software Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
Packaging
Package Contents I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5 GHz Antennas
2 x Screws for M.2 Sockets
Additional Information
Date First Available November 13, 2024
