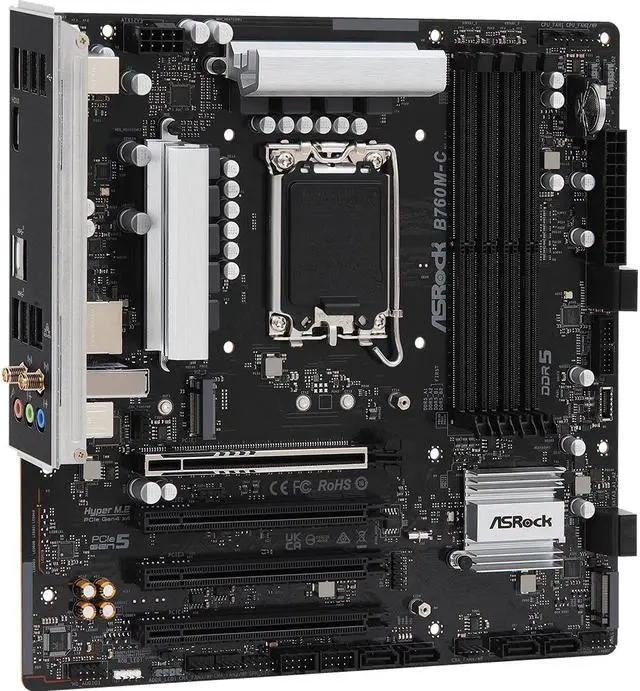

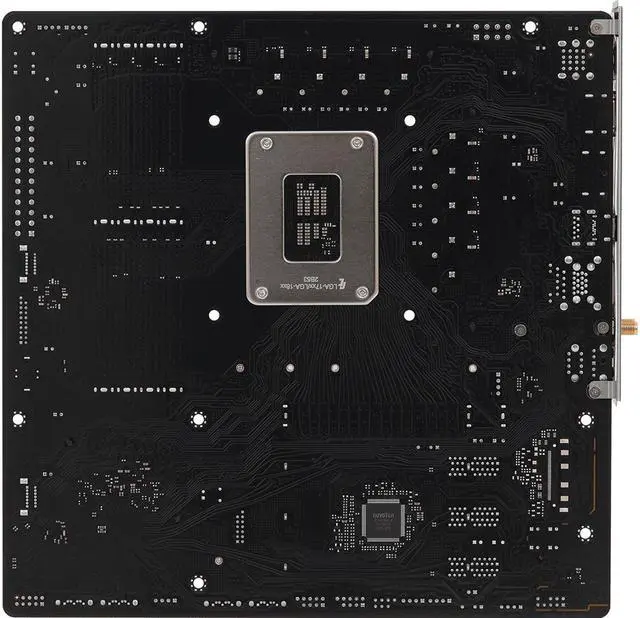

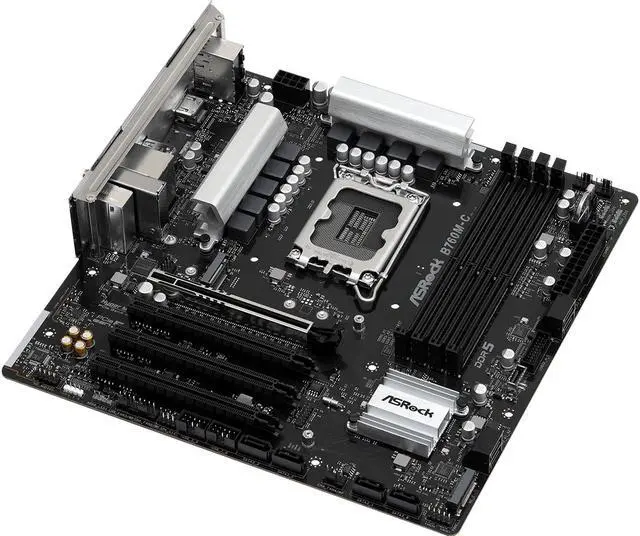

ASRock B760M-C LGA 1700 Intel B760 Micro ATX Motherboard

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock B760M-C

Model
Brand	ASRock
Model	B760M-C

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
Maximum Memory Supported	192GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 3.0 x16	3 x PCI Express 3.0 x16

Storage Devices
M.2	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) *Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 ac
Bluetooth	Bluetooth + High speed class II

Rear Panel Ports

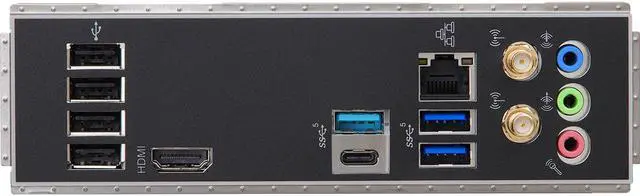

Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors	1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2/WP supports the fan power up to 2A (24W). *** CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

Features
Features	Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield Ultrafast Connectivity - 802.11ac Wi-Fi Module EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker

Packaging
Package Contents	2 x SATA Data Cables 2 x ASRock WiFi 2.4/5 GHz Antennas 2 x Screws for M.2 Sockets

Additional Information
First Listed on Newegg	September 26, 2023
