ASRock Beebox N3000/B Mini / Booksize Barebone System

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel N3000 Processor (Up to 2.08 GHz)
  • 2 x 204Pin SO-DIMM DDR3L 1600/1333
  • Fanless, 3 Displays and 4K playback

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

general information

Inspired by one of the most common insects - Bees, the ultra-compact ASRock Beebox N3000/B Barebone System combines a cutting-edge Intel N3000 Series SoC powered motherboard, other high-end components, and rich media features, delivering standard desktop PC comparable performance. The Beebox is small, fast, hard-working just like a bee, all but the distracting buzzing noise. Ideal for a broad range of computing applications at home or in the office.

One Size Fits All

Compact Footprint. Quiet Design.

The ASRock Beebox N3000/B sets a new standard for desktop miniaturization. With a super-mini, sleek form-factor, it seamlessly fits into any tight space. With its special design, it produces absolutely zero noise.

general information

The Power to Please

The speedy Intel N3000 processor delivers 2.08 GHz of number-crunching power to handle demanding applications with speed and performance. It’s powerful enough for an office desktop, industrial PC digital signage, home theater system etc. You decide.

general information

general information

Three Graphics Outputs & 4K Playback

Triple Monitor

Light up three monitors simultaneously via two HDMI ports and one DisplayPort. The DisplayPort only supports DP to D-Sub dongles. DP to HDMI dongles and DP to DVI dongles are not supported. To power up three monitors, please connect your monitors to two HDMI and one DP ports or two HDMI and one D-Sub ports via a DP to D-Sub dongle.

general information

4K Support

The ASRock Beebox N3000/B supports dual channel memory for supporting 4K video playback. *Dual channel memory is required for 4K video playback. Please install a pair of identical memory DIMMs.

general information

H.265 Decoding

The ASRock Beebox N3000/B supports HEVC (H.265) decoding to provide substantially improved video quality.

general information

Swift Data Transfer and Device Charging – Type-C USB

USB Type-C port for Fast Charging

The ASRock Beebox N3000/B is the world's first NUC with a USB Type-C port. The USB Type-C port doubles the charging speed, so the connected devices can be fully charged in a short time.

general information

The Fastest Wireless Internet – 802.11ac Wi-Fi

Beebox comes with an exclusive 802.11ac Wi-Fi (2.4G/5G Wi-Fi) module and also works as a wireless access point. With Intel Ready Mode Technology (RMT), Beebox may remain silent, display off, but still actively receive incoming emails, updates, social media alerts, and continue to serve as a wireless access point while minimizing power consumption.

general information

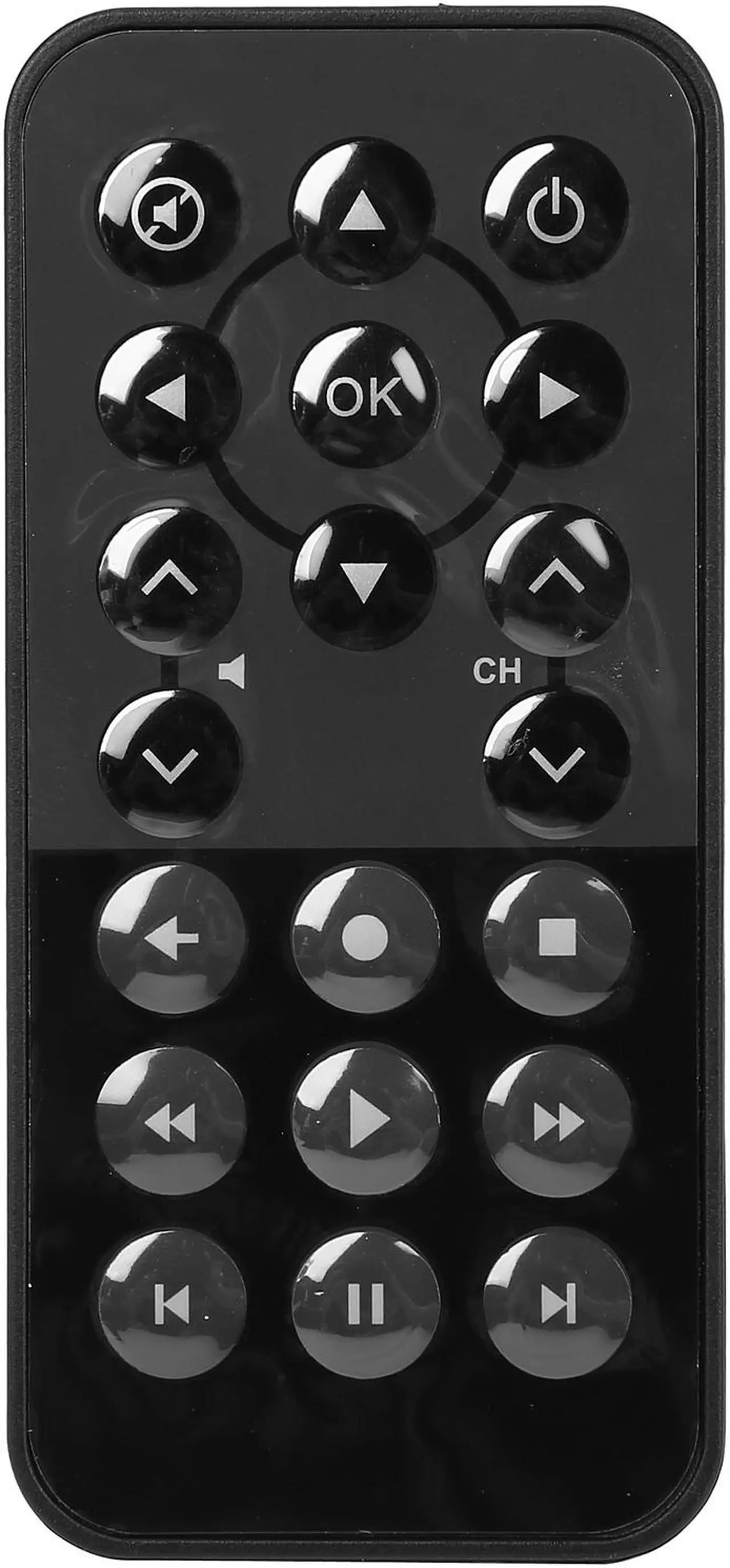

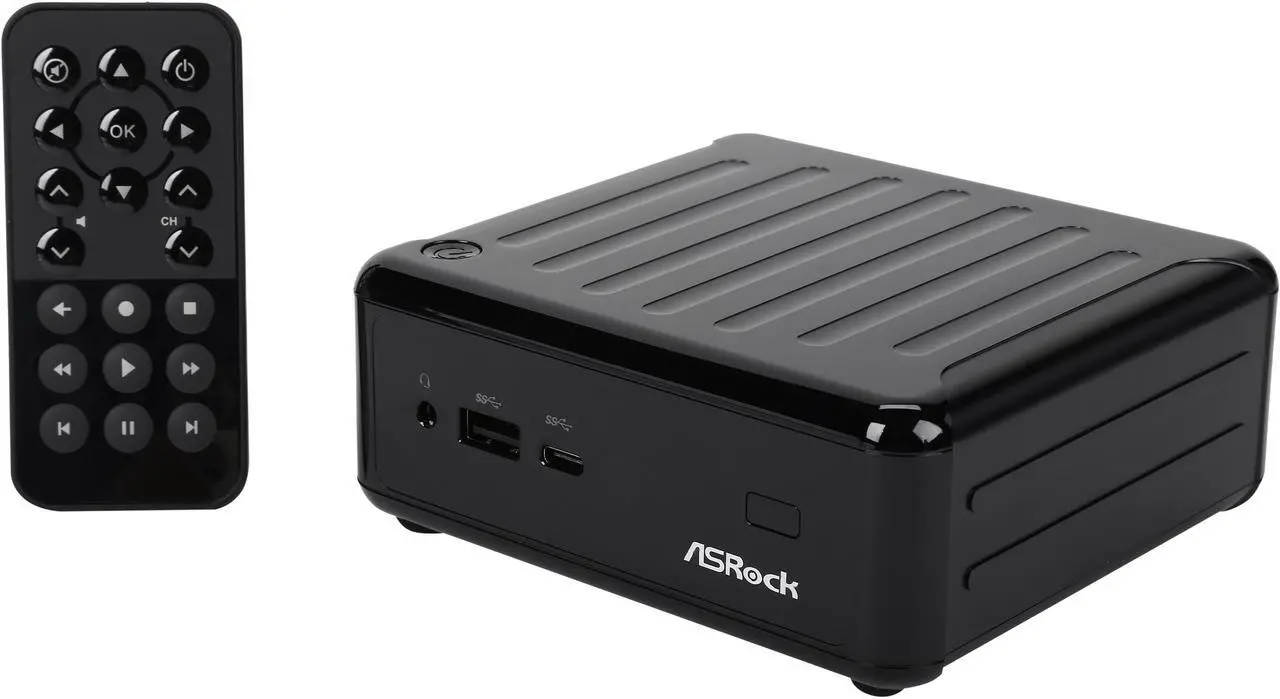

Remote Controller

A free remote controller for Beebox is included, letting you remotely control it without having to leaving your comfortable sofa or bed.

general information

Power Gear

Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.

general information


Learn more about the ASRock Beebox N3000/B

General

|
Brand
ASRock
Model
Beebox N3000/B

CPU Supported

|
CPU Type
Intel N3000 Processor (Up to 2.08 GHz)

Memory Supported

|
Memory installed
No Memory
Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3L 1600
Max Memory Supported
16GB

Storage

|
Hard Drive Installed
No Hard Drive

Audio

|
Onboard Audio
Realtek ALC283

Communications

|
Max LAN Speed
10/100/1000Mbps
Wireless LAN
802.11ac
Bluetooth
BT4.0

Extension Bays

|
2.5" Internal Bays
Supports 1 x mSATA SSD & 1 x 2.5" SATA HDD

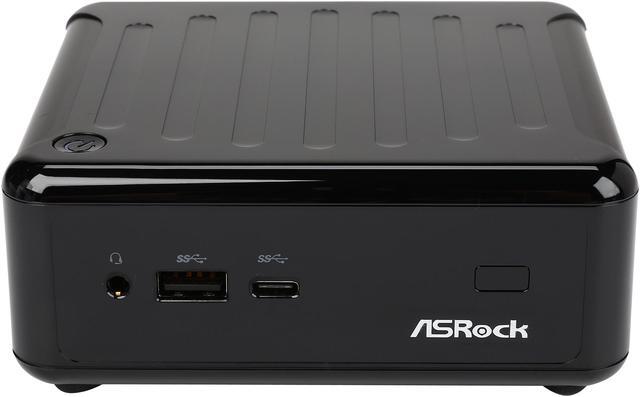

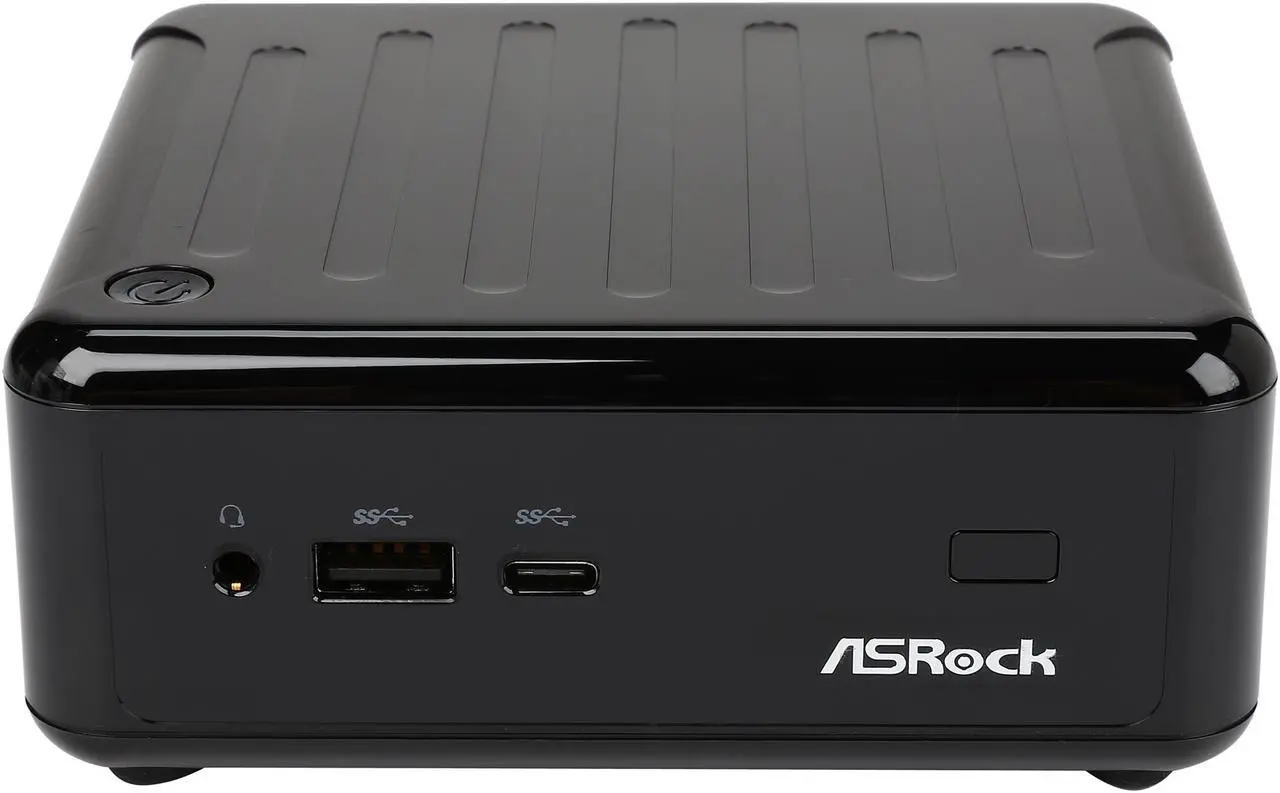

Front Panel Ports

|
Front USB
1 x USB 3.0
1 x USB 3.0 (Type C)
Other Front Ports
1 x IR
1 x Audio-out with MIC-ln

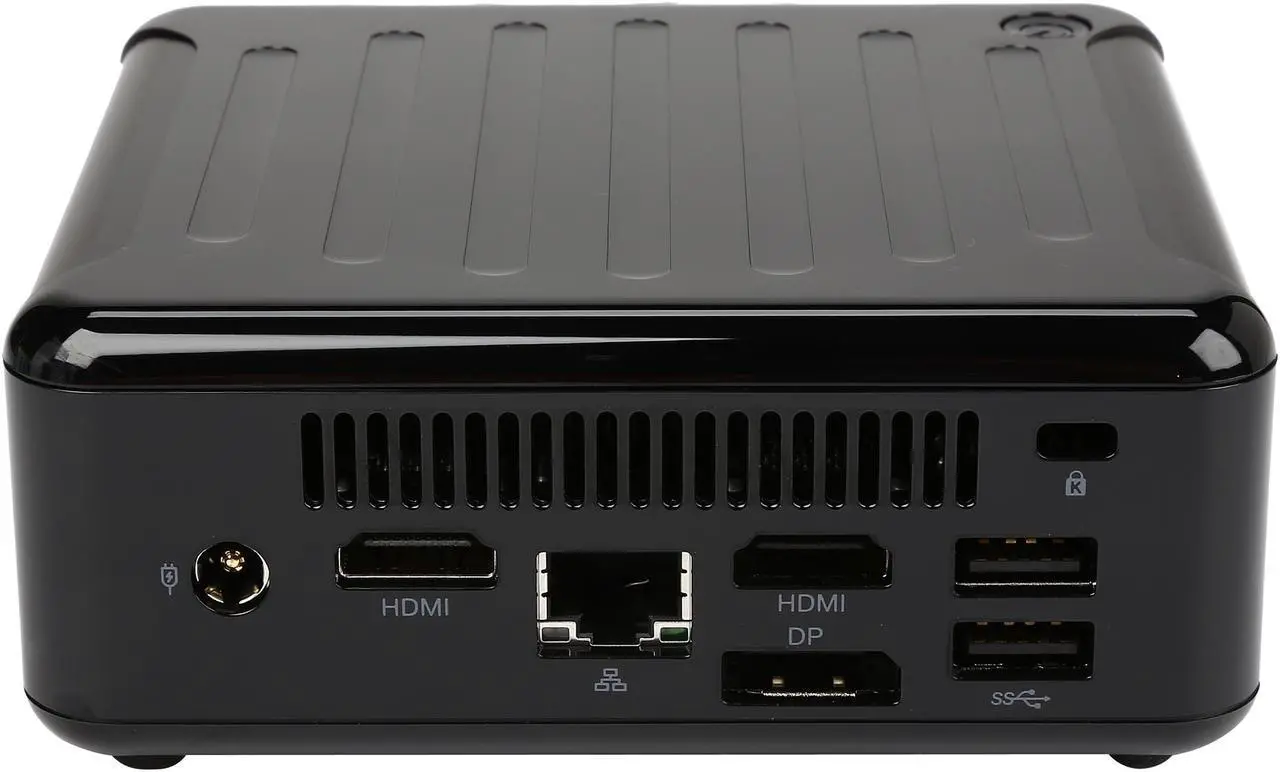

Back Panel Ports

|
HDMI
2
DisplayPort
1 x DisplayPort
Rear USB
2 x USB 3.0
Other Rear Ports
1 x LAN
1 x Kensington lock

Power Supply

|
Power Supply
36W/12V Adapter

Physical SPEC

|
Dimensions
1.81" x 4.33" x 4.67"

Features

|
Remote Control
Yes
Features
Powered by the Intel N3000 Series Processor Family

Dual Channel DDR3L SO-DIMM (Max. 16GB)

Hyper speed WiFi 802.11ac, also works as a wireless access point

Supports two storage devices for added flexibility (1 x 2.5" SATA3 HDD + 1 x mSATA)

Supports Triple Monitor (2 x HDMI, 1 x DisplayPort)

Smooth and ultra high resolution 4K/2K playback

The world's first NUC paired with an USB Type-C port

A free bundled remote controller for controlling your PC wirelessly

Offers rich features in a tiny 0.6L package

Additional Information

|
Date First Available
July 22, 2015
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: more than 1 year
Verified Owner
4/ 5
Good little PC 1/12/2017 4:04:03 PM

Pros: Low power...kill-o-watt meter reads 7-10 watts.
Completely Silent.
Easily Runs linux (I have ubuntu installed)
Is fully capable to handle HD movie streaming, Music, web surfing, emailing...etc.

Cons: PC runs at 100% cpu usage for anything it does.
GMAIL is too heavy of a web application for it to run smoothly. (so far all other sites work fine.)
CAN'T USE SATA 2.5in drive!
PC overheats in summer in a horizontal position.

Overall Review: I decided to give this a try because it is fan less and low powered. This way I can leave the PC have it download/play music without me ever hearing a fan run. I thought that I would get a 2.5in SATA drive since it is cheaper than mSATA, but DO NOT DO THIS!! The case needs 1/8 in more space to fit the cable and the drive. I tried to gently force it into position, since it won't easily fit. I believe this may have damaged the cable, which has a special power connector on it. ("non standard cable") In the end I HAD to purchase a mSATA SSD, which has been working perfectly.

I am disappointed that gmail is so sluggish. Using Chrome web browser, I can see the keys lag a bit when typing. This doesn't happen for the desktop applications. My solution is to use thunderbird for email and install Jitsi for a messenger application.

Overall I would say the computer has met my expectations and I plan to use it as my primary computer. Games/programming etc will be left for my more powerful box.

update 1-12-2017:

I lowered my rating by one star because the pc had a tendency to overheat and shut down with indoor temps of 80F+ I saw a review someplace that mentioned having the pc in a vertical position dissipated heat better, so I gave it a try. For the past 5 months, it has been running a PostgreSQL database for my sensors in a docker container. I can't say for sure how it will run this coming summer when it gets hot again.

0 out of 1 people found this review helpful. Did you?
Anonymous
3/ 5
Remote control / Wifi 5G / Bluetooth not working under Ubuntu 11/4/2016 10:45:29 AM

Pros: hardware specs strong

Cons: Lacking necessary linux driver. At least right after installing ubuntu, the Remote control / Wifi 5G / Bluetooth didn't work. Video quality is low too may also due to lacking drivers.
But attached CD and AsRock web support had only Windows drivers.

Anyone can help with linux drivers?

0 out of 1 people found this review helpful. Did you?
Manufacturer Response:
Dear Valued ASRock Customer,

We sincerely apologize for any inconvenience this may have caused you.
Unfortunately, unit does not provide Linux based OS drivers, it depends on chipset vendors.
Please check if the using Linux OS has built-in driver for the mainboard or 3rd party website.
However, we do the test with Ubuntu Kylin (16.04) for experiment purpose, and it worked wifi, Remote, LAN function.
So it depends on OS whether built-in those drivers.

If you have any technical support inquiry, please contact us at http://www.ASRock.com/Support/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://www.ASRock.com/Support/tsd.asp
Anonymous
3/ 5
sata cable not working - even without mounting ssd into the lid 11/1/2016 10:01:04 PM

Pros: full function

Cons: cable issue

Overall Review: The sata cable connector had wrong angle so cannot mount to lid socket.

However, even I directly plug to the ssd socket, the bios still cannot detect the ssd. So it's obvious a faulty cable, on top of the wrong angle.

Also, can anyone confirm if it supports a single SSD installation, without using the msata disk?

Thanks!

0 out of 1 people found this review helpful. Did you?
Manufacturer Response:
Dear Valued ASRock Customer,

Sorry any inconvenience this may have caused you.
We will be more than happy to send the SATA cable if its defective.
Please contact us at http://www.ASRock.com/Support/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://www.ASRock.com/Support/tsd.asp
Ownership: 1 month to 1 year
Verified Owner
2/ 5
TOTAL PITA! 3/5/2016 3:39:13 AM

Pros: Small, 3 displays

Cons: Would not recognize more that 1- 2 gb sodimm at a time, would not recognize 1 -4 GB sodimm at all, either slot. (DDR3 1600, 2x2 and 1x4) screw holder to hold down msata snapped off first time I tried to install the msata card, piece of junk, card held in place by a toothpick now. Also, power button is too small for the hole and sticks if not removed completely. You can use the remote or push the inside button down with an object of your finding....

Overall Review: Windows 7 (Have to create special usb3 install media) Windows 8, Windows 10 and Linux Mint all run slower than snot on this thing. No performance at all. Regret I ever even saw this thing after the money and effort spent on it.

1 out of 2 people found this review helpful. Did you?
Manufacturer Response:
Dear Christopher,

We sincerely apologize for any inconvenience this may have caused you.
The unit supports up to 16GB (2 x 5GB) total.
Please visit link below for supported reference memory.
For the mSATA, please check the screws is tighten up (but not too tight to avoid damage the screw socket) the drive to avoid lose from slot.
http://www.asrock.com/nettop/avl/Beebox%20Series.pdf

If you have any technical support inquiry, please contact us at http://www.ASRock.com/Support/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://www.ASRock.com/Support/tsd.asp
Anonymous
Ownership: 1 month to 1 year
Verified Owner
3/ 5
Nice fanless design 1/23/2016 2:03:36 PM

Pros: Low power
Fanless
Plays 1080p videos flawlessly
Great for a home theater box if paired with an mSata drive

Cons: Don't even consider installing a 2.5" SSD. The manufacturer advises against it, it will block airflow and make it run hotter, and if you are not careful you can pinch the cable (when closing the lid) and short out the motherboard.
Runs hotter in horizontal position. Must keep it vertical for best cooling, but the box itself doesn't have any feet or pads to make that easier.

Overall Review: Wireless seems to work but I have no idea how reliable it is. I just don't bother with wireless when I have a wired connection that works well.
If you are wondering about Linux, Mint 17.3 works well. Be sure to do a fresh install of 17.3 though. If you start with 17.1 and upgrade to 17.3 you won't get some of the LTS enhancements to the video driver that are essential for good performance.
Make sure the cpu is in performance mode and not powersave mode.
mplayer has some hiccups but mpv works great, even without the recommended Intel video driver.
Haven't tried the IR yet.

Taking a couple of eggs off for ASRock's terrible support. I bought this with a $30 mail-in rebate, but the rebate form was not accessible at ASRock's web site. My emails to customer support were ignored. Luckily Newegg stepped in and covered the rebate cost. This is why I shop at Newegg, and also why I am less likely to buy any more ASRock products.
Funny how when another reviewer complained about the same thing, ASRock answered asking him to contact them by email. From my experience I woudn't put much hope on going that way.

Did you find this review helpful?
Manufacturer Response:
Dear Valued ASRock Customer

Thank you for your purchase and review. We always do our best to support customers. Unfortunately, it does not meet your needs.
However, we do reply both email and phone promptly except on week-end and holidays.
If you have any technical issues or warranty questions please contact us at 909-590-8308 or http://www.ASRock.com/Support/tsd.asp
We will assist you shortly.

Thank you

ASRock SUPPORT
Tech Support Email: http://www.ASRock.com/Support/tsd.asp
Ownership: 1 month to 1 year
Verified Owner
3/ 5
One of the best fanless booksize PCs around! 1/4/2016 11:06:38 PM

Pros: When paired with a 8GB Gskill dual channel kit (F3-1600C11D-8GRSL) this makes for a little PC that can actually run some MOBAs on low settings (LOL, even HotS around 30fps). It even can semi play Guild Wars 2 on lowest settings at about 20fps in open areas. Certainly not gaming grade, but gives you an idea of the performance of the N3000. This makes for an excellent Steam box to stream games to from your gaming PC elsewhere on the network.
-Very low power consumption.
-Fanless design and when coupled with an SSD makes for a completely silent PC.
-Included remote control.
-Decent WiFi reception. (minor hiccups at 33ft through two rooms from an Asus RT-AC87U)
-Nearly always runs at its turbo frequency of just over 2Ghz
-Very snappy sleep mode and resume function.

Cons: -It can run pretty hot in a horizontal position. The manual recommends vertical installation, and so do I.
-Even with an SSD, installation of Windows 10 is pretty slow, as are large updates like the 1511 update.
-Credit card size remote control doesn't use AA or even AAA batteries (to be expected though for its small size)

Overall Review: I had to deduct two stars because ASRock would not respond to email support or fix their rebate website and ended up making me lose out on my rebate of $30. I would hate to have to deal with them for any tech support related issue.

Did you find this review helpful?
Manufacturer Response:
Dear Michael,

Sorry for any inconvenience this may have caused you.
For the rebate issue, please contact us at user@asrockamerica.com.
We will assist you shortly.

Thank you

ASRock SUPPORT
Tech Support Email: http://www.ASRock.com/Support/tsd.asp
Ownership: 1 month to 1 year
Verified Owner
4/ 5
Updated review 12/16/2015 12:45:51 PM

Pros: Small, user configurable, quiet

Cons: Will only accept 1.35v memory modules

Overall Review: The ram I initially ordered was not 1.35 volt and would run for a little while then blue screen. Once I figured that out and replaced the ram everything has worked fine.

Did you find this review helpful?
Ownership: 1 day to 1 week
Verified Owner
3/ 5
12/13/2015 9:18:16 PM

Pros: Neat little computer in a small package. Perfect little web surfer (after addressed issues). Have a few roms that work flawlessly. Great computer to dip your toe into building computers or for the savy that want to try something different. Great driver support for Windows if you use it.

Cons: Network Card is slow at best and plain awful even on the one that worked. Managed to get it to surf decently with the lightest browser I could find. This was from less than 10 feet through a non concrete wall where my smartphone was having no issues leap frogging surfing sessions. If you web search this is a common issue, with a handful of dedicated souls looking to solve the issue without having to RMA or spend addition funds on just replacing the wifi card. My issue was compounded by the fact that I would connect to an Ethernet cable and the manager would go berserk prompting me that my "wireless connection" connected disconnected as I was surfing through a hardline. Surfing was fine though a cable, just annoying to see prompts and get no internet through just wifi.

As luck would have it I was parting out my old laptop from 5 years ago and slapped that card into the computer. Network Manager still shows a weak connection, but at was able to stream movies and load script heavy websites like the packaged card was standing still....of which in this case it was.

Bit disappointed that such a great product can be cut down by something trivial. If money is a factor there is help. I spent a day trying everything before replacing the card your mileage may vary.

Another thing to note, this processor is pretty easy to bog down if you are a multiple tab surfer with moderate to heavy scripts loading. Not a deal breaker. Performance picks up when you set sport mode, but she's no spring chicken.

Overall Review: I ordered two of these for Christmas gifts. Both are to replace aging computers from almost a decade ago. Installed 8GB of ram and laptop HDD's I had lying around the house while waiting for mSATA SSD's to come in. Loaded a few desktop resource heavy linux desktops and crushed the processor. switched to the lightweight version of some more popular distros and it works fine. One has to compute small with these computers as they are true to form. Look forward to the experience when the SSD's come in.

Did you find this review helpful?
Manufacturer Response:
Dear Philip,

We sincerely apologize for any inconvenience this may have caused you.
For the wireless speed issue, please set Wireless LAN on 5.0G band and Bluetooth devices on 2.4G band (if applied) to try.
Check the wireless signal which also could affect the speed.

If you have any technical support inquiry, please contact us at http://www.ASRock.com/Support/tsd.asp

Thank you

ASRock Support
Tech Support Email: http://www.ASRock.com/Support/tsd.asp
ICON Loading...
Selected Items
Are you an E-Blast Insider?

Subscribe Newegg e-Blast
PayPal
Shop without retyping payment details. Secure shopping made faster.
Check out with PayPal.

Condition Guidelines

The following guidelines apply to all product categories unless otherwise indicated within specific categories.

  • New : This means the product will ship as received by the manufacturer, sealed, with all advertised components, and with the manufacturer warranty.
  • Refurbished : This means the product was tested and repaired as required to meet the standards of the refurbisher, which may or may not be the original manufacturer. Any exceptions to the condition of the item outside the manufacturer’s information should be provided in the listing, up to and including warranty details.
  • Open Box : Newegg only guarantees your receipt of the Open Box product with the purchase of this item. Any accessories MAY OR MAY NOT be included. Newegg will NOT send you any missing accessories, even if it is required to use all of the item’s functions.Open Box items usually do not come with manufacturer or vendor warranty or technical support. However, warranty support may be available if an item was never registered by a previous owner. Please contact the manufacturer to check.
  • Used - Like New : This means that the product has been opened, possibly used but is in perfect condition with no signs of cosmetic or functional defect. Product may includes warranty, and accessories found with the original product. Product may or may not be in the original packaging. Returned items with minor packaging defects fall under this category.
  • Used - Very Good : This means that the product has been opened, may show slight signs of use and cosmetic blemish, and may be missing minor accessories, but remain in excellent condition. Product does not come with warranty unless stated otherwise in product description.
  • Used - Good : This means that the product has been used, may show clear signs of use and may be missing minor accessories, but remain in good condition. Product does not come with warranty unless stated otherwise in product description.
  • Used - Acceptable : This means that the product shows clear signs of use, cosmetic defect, and may be missing minor accessories and manual, but remain in working condition. Product does not come with warranty unless stated otherwise in product description. Functionality issues beyond signs of use should be disclosed in product description.
Price Available at Checkout
Why can’t we show you details of this product?

Some manufacturers place restrictions on how details of their products may be communicated.

If the Adobe Reader does not appear when you click on a link for a PDF file, you can download Adobe Reader from the Adobe web site.

Your Personal Data

Newegg’s website and online services use cookies and similar technology for a number of reasons: Some technologies allow the site to function. These functional cookies are required to use the site and complete purchases. Another set of technologies improve the browsing experience and personalize it. Here are all the details about Newegg’s Cookie and Privacy Policies. Please select and accept your settings before you continue. Thank you.

Your Personal Data

Newegg’s website and online services use cookies and similar technology for a number of reasons: Some technologies allow the site to function. These functional cookies are required to use the site and complete purchases. Another set of technologies improve the browsing experience and personalize it. Here are all the details about Newegg’s Cookie and Privacy Policies. Please select and accept your settings before you continue. Thank you.

Your Personal Data

To use this third-party content we need your approval to share your data with them. Here are all the details about Newegg’s Cookie and Privacy Policies. Please accept if you wish to continue with third-party features. Thank you.
