Does this board include the mini SAS HD connectors/cables?

It wasn't obvious to me from the prior answer (until I saw the cables), but the connectors on the drive end have both the data and power signals in a unified connector. There's a pass-through socket for drive power, probably so you can disconnect/reconnect drives with a single connector. The connectors on the motherboard are SFF-8643, in case you need to buy cables.

Returns

& Orders

FantasTech Sale: Oct 6-12

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 4 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

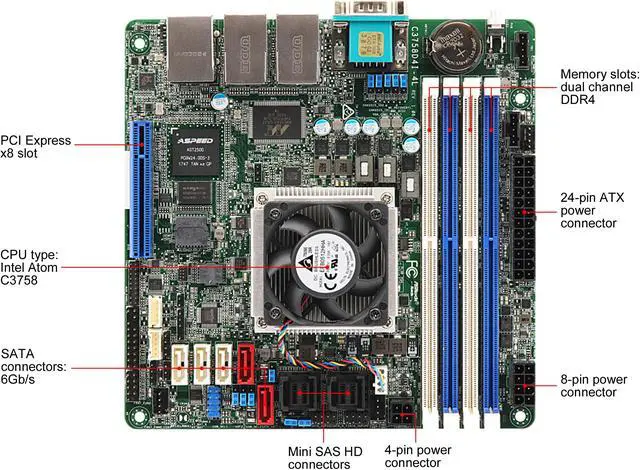

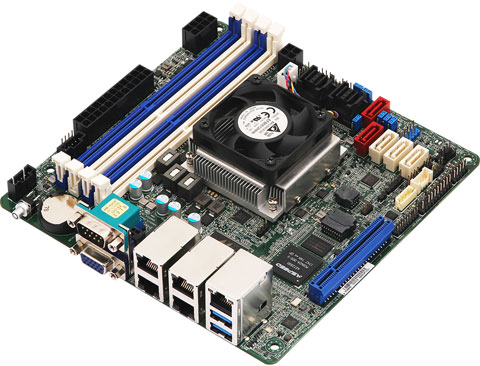

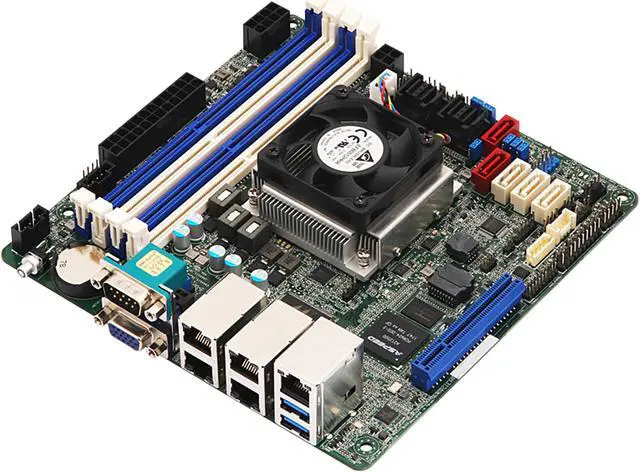

Main image of ASRock Rack C3758D4I-4L Mini ITX Server Motherboard 8 core SOC

Alt view image 2 of 7 - ASRock Rack C3758D4I-4L Mini ITX Server Motherboard 8 core SOC

Alt view image 3 of 7 - ASRock Rack C3758D4I-4L Mini ITX Server Motherboard 8 core SOC

Alt view image 4 of 7 - ASRock Rack C3758D4I-4L Mini ITX Server Motherboard 8 core SOC

Alt view image 5 of 7 - ASRock Rack C3758D4I-4L Mini ITX Server Motherboard 8 core SOC

Alt view image 6 of 7 - ASRock Rack C3758D4I-4L Mini ITX Server Motherboard 8 core SOC

Alt view image 7 of 7 - ASRock Rack C3758D4I-4L Mini ITX Server Motherboard 8 core SOC

Customer images

Shop All ASRock Rack Products

ASRock Rack C3758D4I-4L Mini ITX Server Motherboard 8 core SOC

(7)(1) Write a Review

Mini ITX 6.7" x 6.7"
Support Intel Atom Processor C3758: 8core, 25W, SoC
Support 4 x DIMM Slots, DDR4 1866/2133/2400 Dual-channel Max. 128 GB UDIMM, Non-ECC, ECC DIMM, RDIMM
Support 13 x SATA3 6.0 Gb/s: 5 x SATA3 ports (SATA_0, SATA_1, SATA_2, SATA_3 and SATA_12) and 8 x SATA ports from 2 mini SAS HD connectors (SATA_4_7 and SATA_8_11)
Support 1 x PCIe 3.0 x4 slot (MAX x8 by BIOS setup)
Support 4 x GLAN + 1 xDedicated IPMI LAN port
SOHO/Enterprise NAS

Overview

Specs

Reviews (7)

Any questions? Our AI beta will help you find out quickly.

Try me now

ASRock Rack C3758D4I-4L

A mini ITX server motherboard that's ideal for a variety of applications including NAS, software router, and more. It's powered by a fan-cooled Intel C3758 8-core processor, has quad DIMMs, a PCIe x4 slot, four Gigabit Ethernet ports and an IPMI management port. This server board is manufactured with premium components and rigorous testing, guaranteeing the stability and reliability you can count on from a trusted name.

Intel Atom Processor C3758: 8core, 25W
DDR4 1866/2133/2400 Dual-channel Max. 128 GB UDIMM, Non-ECC, ECC DIMM, RDIMM
12 SATA3 6.0Gbps + 1 SATA DOM by Intel Atom C3758
1 x PCI-E x4 slot

Model
Brand	AsRock Rack
Model	C3758D4I-4L

Supported CPU
CPU Socket Type	SOC
CPU Type	Supports Intel Atom C3758 Series Processor

Memory
Number of DDR4 Slots	4 x 288-pin
DDR4 Standard	Non-ECC UDIMM: 1600/1866/2133/2400MHz ECC UDIMM: 1600/1866/2133/2400MHz LR/RDIMM: 1600/1866/2133/2400MHz
Maximum Memory Supported	Support up to 256GB DDR4 RDIMM (32 GB w/8Gb DRAM) Support up to 64GB DDR4 UDIMM (16 GB w/8Gb DRAM)
Channel Supported	Dual Channel
ECC Supported	Yes

Expansion Slots
PCI Express x8	1 x PCIe MEx8/ EE x8 (MAX x8 by BIOS setup)

Storage Devices
SATA	13 x SATA3 6.0 Gb/s: 5 x SATA3 ports (SATA_0, SATA_1, SATA_2, SATA_3 and SATA_12) and 8 x SATA ports from 2 mini SAS HD connectors (SATA_4_7 and SATA_8_11)

Onboard Video
Onboard Video Chipset	Aspeed AST2500 64MB DDR4

Onboard LAN
LAN Chipset	Marvell 88E1543(4L)
LAN Speed	10/100/1000Mbps
Second LAN Speed	10Gbps

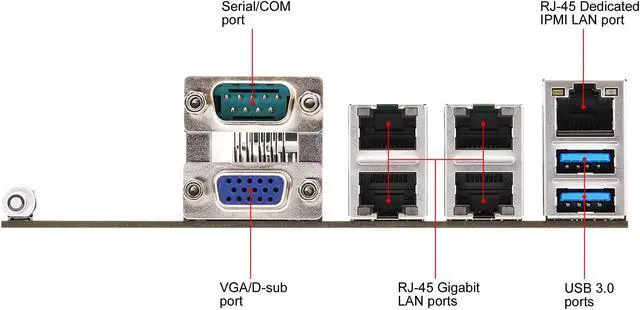

Rear Panel Ports
Video Ports	D-Sub
RJ45	4 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port LAN Ports with LED (ACT / LINK LED and SPEED LED)
USB 3.0	2 x USB 3.0

Onboard Ports
Other Connectors	Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, front LAN LED, and event log LED) TPM Header: 1 IPMB Header: 1 Fan Header: 4 pins x4 (1CPU/2Front/1Rear) ATX Power: 1 (24-pin) DC IN: 1 (8-pin) 12v USB 2.0 Header: 1 (support 1 USB port or 2 USB ports on header. The port number controlled by USB_ SEL1 and USB_SEL2 jumper) Front Panel: 1 SATA Power Connector: 1 (4-pin)

Dimensions
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"

Additional Information
First Listed on Newegg	October 16, 2018
