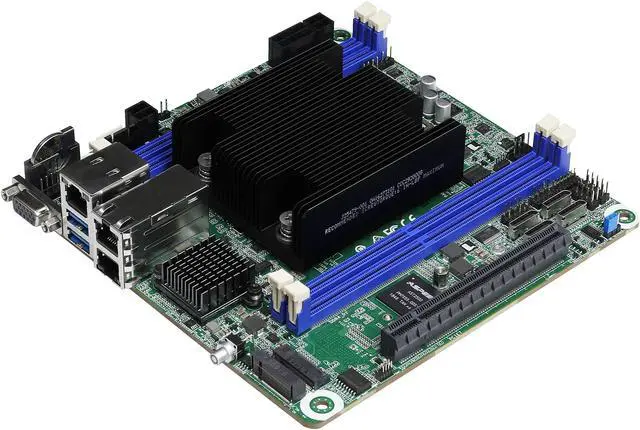

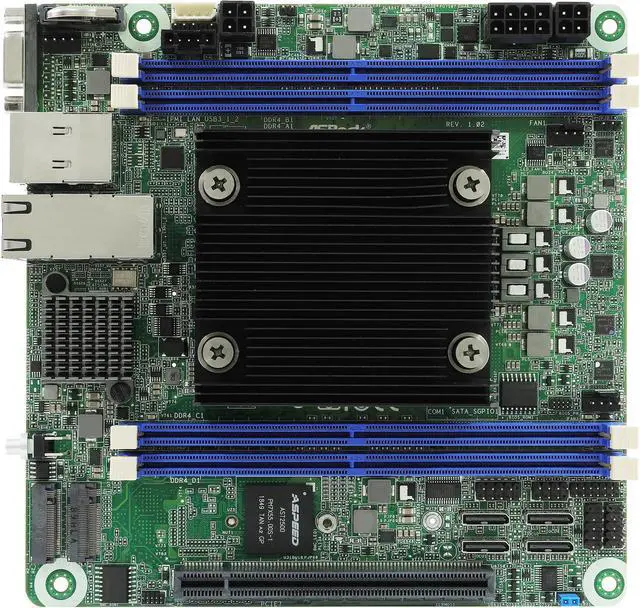

AsRock Rack D2143D4I2-2T Mini-ITX Server Motherboard Intel Xeon D-2100 Series 8 core SOC

Be the first to review this product...

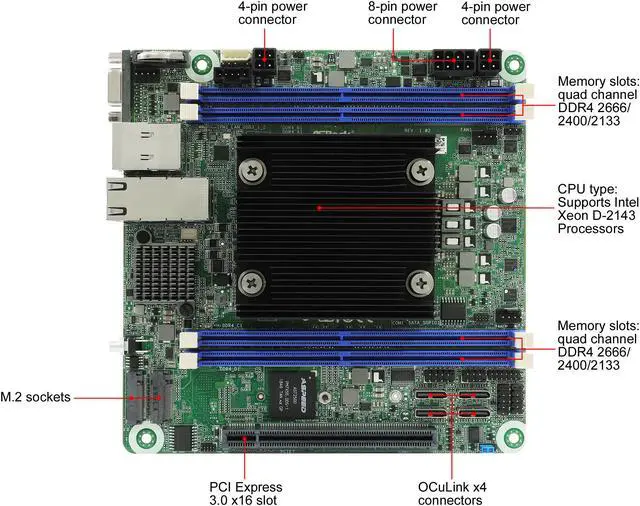

  • Mini-ITX 6.7" x 6.7"
  • Support Intel Xeon D-2143 Processors
  • Support 4 x DIMM slot, up to 256GB DDR4 ECC RDIMM/LR DIMM
  • Support 1 x PCIe 3.0 x16 + 2 x Oculink
  • Support 8 x SATAIII 6.0 Gb/s from 2 x OCulink, 2 x SATAIII 6.0 Gb/s from M.2 M-key
  • Support 1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 2242 form factor & 1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 22110/2280 form factor
  • Support 2 x 10GLAN by Intel X557-AT2 + 1 x Dedicated IPMI LAN
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock Rack D2143D4I2-2T

Model
Brand ASRock
Model D2143D4I2-2T
Supported CPU
CPU Type Supports Intel Xeon D-2143 Processors
Memory
Number of DDR4 Slots 4 x 288-pin
DDR4 Standard DDR4 2666
Maximum Memory Supported Support up to 256GB DDR4 ECC RDIMM/LR DIMM
ECC Supported Yes
Registered Yes
Expansion Slots
PCI Express 3.0 x16 SLOT7: Gen3 x16 link
Storage Devices
M.2 1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 2242 form factor
1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 22110/2280 form factor
Onboard Video
Onboard Video Chipset Aspeed AST2500
Onboard LAN
LAN Chipset Realtek RTL8211E for dedicated management LAN
LAN Speed 10/100/1000Mbps
Max LAN Speed 1Gbps

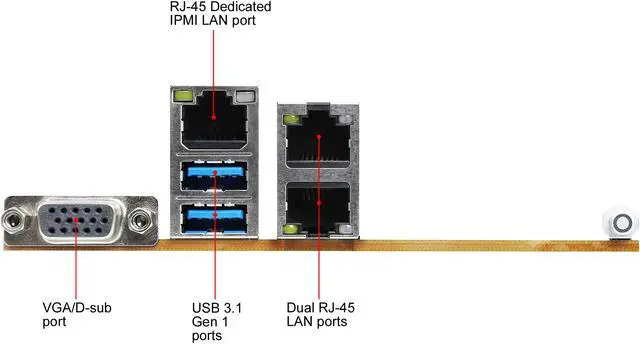

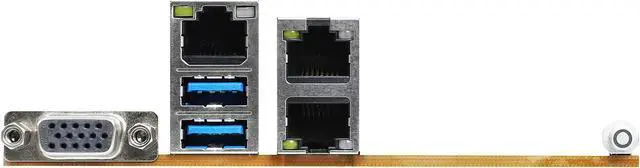

Rear Panel Ports
Video Ports D-Sub
RJ45 2 x 10GLAN RJ45 (by Intel X557-AT2 )
1 x RJ45 Dedicated IPMI LAN port
LAN Ports with LED (ACT/LINK LED and SPEED LED)
USB 3.1 2 x USB 3.1 Gen1
Onboard Ports
Other Connectors COM Header: 1
OCuLink: 4 x OCulinks support PCIe3.0 x4; 2 of OCulinks support 4 SATAIII 6Gb/s each
Auxiliary Panel Header: 1 (include chassis intrusion, 2 front LAN LED, System LED)
TPM Header: 1x (14pin)
IPMB Header: 1
Fan Header: 1x CPU Fan, 2x system Fan (1 front, 1 rear) (build in CPU active fansink)
ATX Power: 1x (4-pin) + 1x (8-pin) support 12V DC-IN (DC-IN mode power budget is up to 432W)
SATA Power Connector: 1 (for DC-IN mode)
*Caution: Misconnection may permanently damage the motherboard.
Dimensions
Form Factor Mini ITX

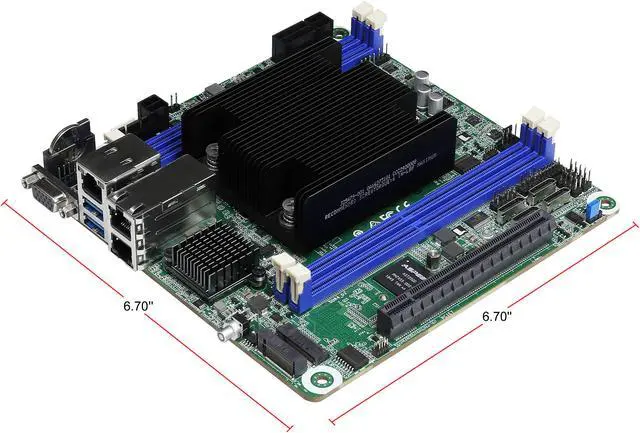

Dimensions (W x L) 6.70'' x 6.70'' (17.02 cm x 17.02 cm)
Additional Information
First Listed on Newegg February 06, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
