    Asrock DeskMeet X600 Series Barebone AMD AM5 Socket

    (9)(1) Write a Review
    #1 Best Seller
    Best Seller
    in Mini-PC Barebone
    • Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors, up to 65W
    • Supports MAX Height ? 54mm CPU Cooler
    • Supports 4 x DDR5 DIMMs, up to 7200+ MHz (OC), 256GB
    • 1 x PCIe 4.0 x16
    • Graphics Output Options:2 x DisplayPort, HDMI
    • 2.5G LAN
    • 2 x SATA3
    • 1 x Blazing M.2 (PCIe Gen5 x4)
    • 1 x Hyper M.2 (PCIe Gen4 x4)
    • 1 x USB 3.2 Gen1 Type-C Port
    • 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
    • 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
    • 1 x M.2 Key-E for Wi-Fi
    • 500W power supply (80+ Bronze)
    • 8 Liter compact size
    Sponsored

    You’re seeing this ad based on the product’s relevance to your search query. If you are a seller and want to participate in this program click here to learn more.

    MINISFORUM BD795i SE Motherboard AMD Ryzen 9 7945HX(16C/32T) Gaming Mini PC Without RAM/SSD/OS, 2X DDR5 SODIMM Slots, 2X PCIe4.0 SSD, M.2 2230 Key E Slot, HDMI+DP+USB-C Triple Video Outputs Computer
    MINISFORUM BD795i SE Motherboard AMD Ryzen 9 7945HX(16C/32T) Gaming Mini PC Without RAM/SSD/OS, 2X DDR5 SODIMM Slots, 2X PCIe4.0 SSD, M.2 2230 Key E Slot, HDMI+DP+USB-C Triple Video Outputs Computer
    (1)
    •
    • $419.00 –
    +
    +
    Specs
    Reviews (9)

    Learn more about the ASRock DESKMEET X600W

    Best Seller Ranking #1 in Mini-PC Barebone
    Model
    Brand ASRock
    Series DeskMeet X600 Series
    Model DESKMEET X600W
    General
    Form Factor 8 Liter compact size
    CPU Supported
    CPU Socket Supports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors, up to 65W
    Supports AMD AM4/AM5 CPU Cooler (Max. Height <= 54mm)
    Chipset
    North Bridge AMD X600
    Memory Supported
    Memory installed No Memory
    Memory slot 4 x 288Pin DIMM
    Memory Type Supported 4 x DDR5 DIMM slots (Max. 256GB)
    Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*

    *Please refer to Memory Support List on ASRock's website for more information.
    Max Memory Supported 256GB
    Dual Channel Memory Supported Yes
    Expansion Slots
    PCI Express 4.0 x16 1 x PCIe 4.0 x 16
    Other 1 x M.2 (key E 2230) slot for Wi-Fi + BT Module
    Storage
    Hard Drive Installed No Hard Drive
    Serial ATA 2 x SATA3 6.0Gb/s ports
    M.2 1 x Blazing M.2 Socket (M2_1), supports type 2280 PCIe Gen5x4 (128 Gb/s) modes*
    1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

    *Supports NVMe SSD as boot disks
    Graphics
    Discrete Graphic Card Supports a discrete Graphics card up to 20CM
    Audio
    Onboard Audio Realtek ALC897 Audio Codec
    Communications
    LAN 2.5 Gigabit LAN (Dragon RTL8125BG)
    Max LAN Speed 10/100/1000/2500Mbps

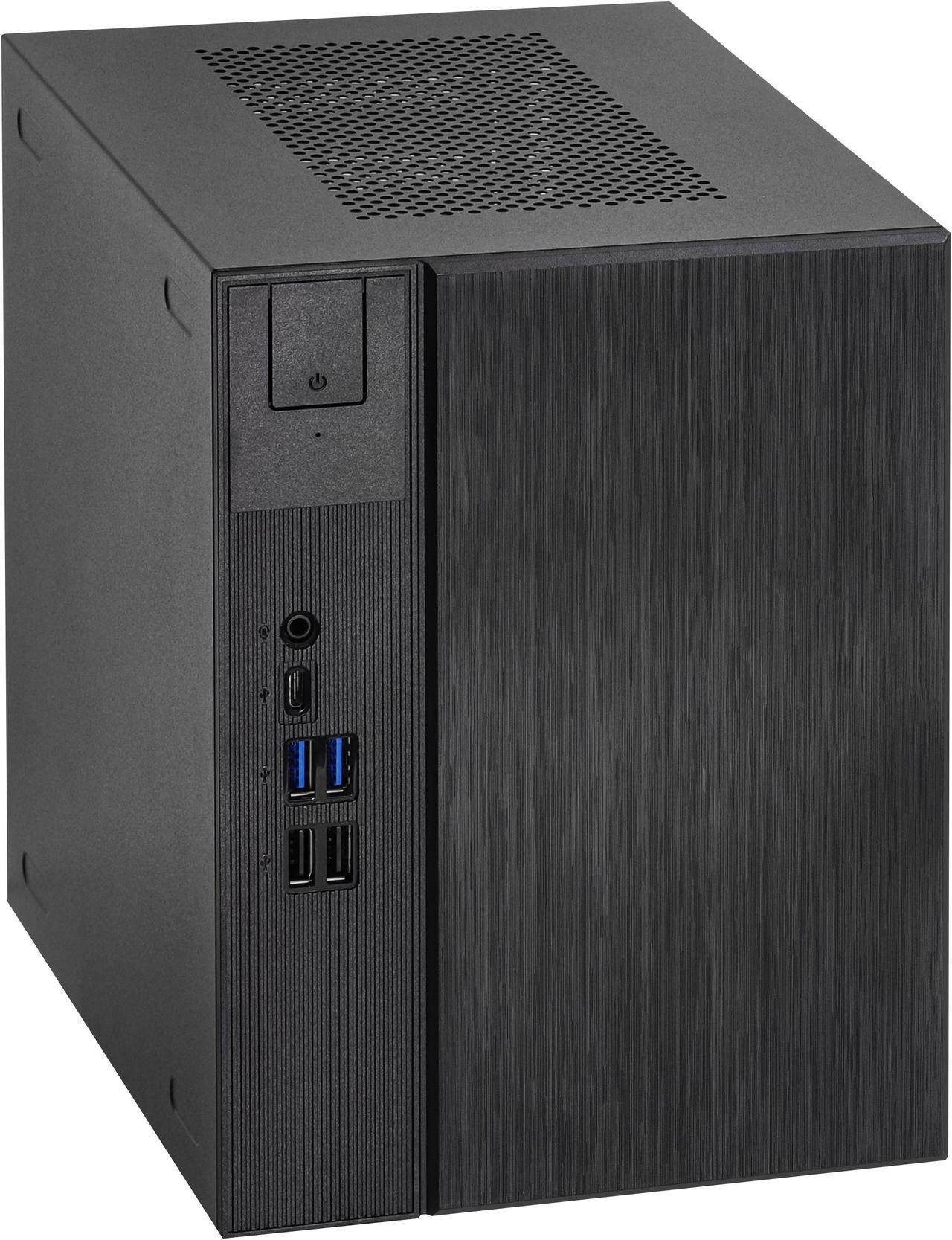

    Front Panel Ports
    Front USB 1 x USB 3.2 Gen1 Type-C
    2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0 Type-A
    Front Audio Ports 1 x Headphone/Headset Jack

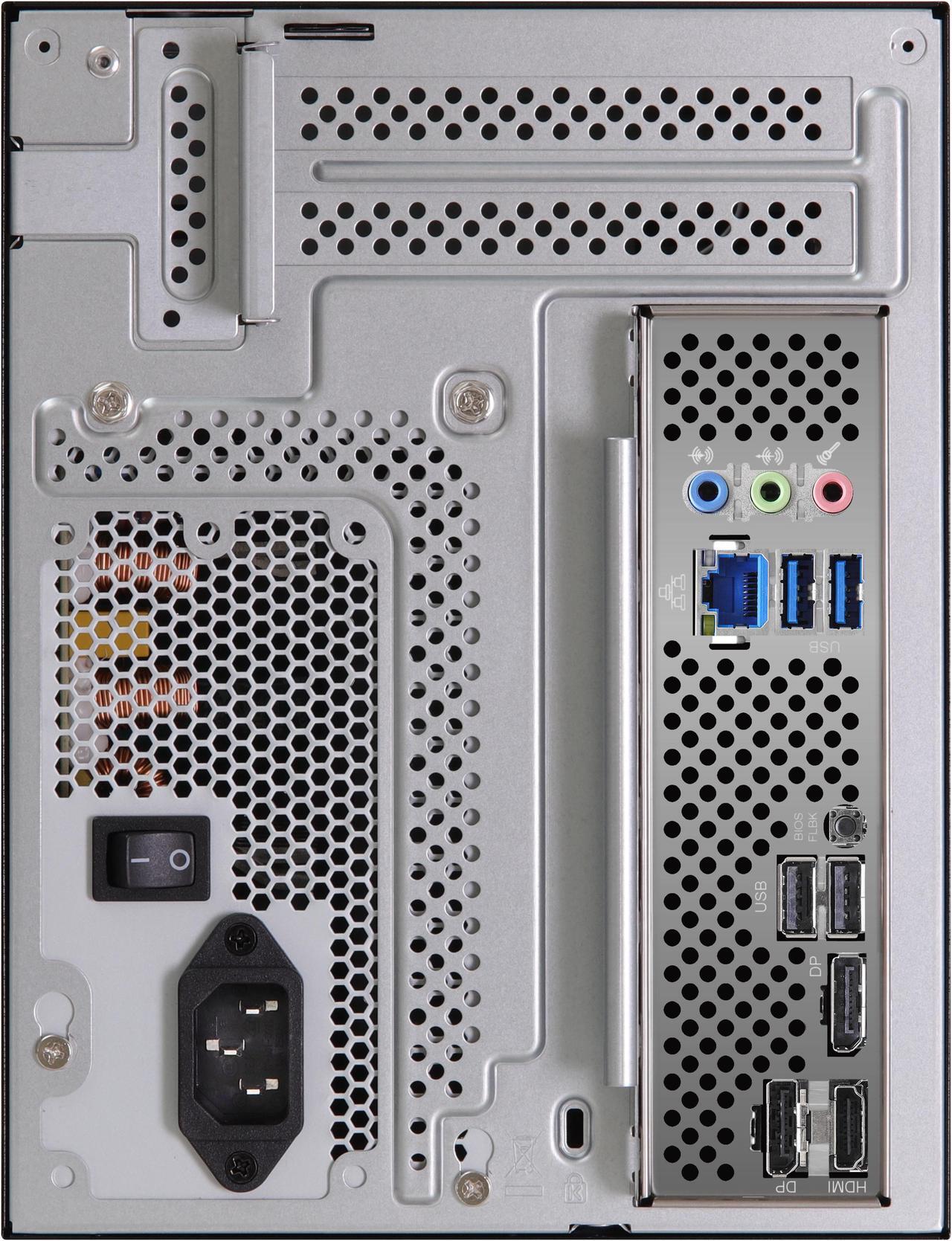

    Back Panel Ports
    HDMI 1 x HDMI
    DisplayPort 2 x DisplayPort 1.4
    Rear USB 2 x USB 2.0 Type-A
    2 x USB 3.2 Gen1 Type-A
    RJ45 1 x RJ-45 LAN Port
    Rear Audio Ports HD Audio Jacks: Line in / Front Speaker / Microphone
    Other Rear Ports BIOS Flashback Switch
    Internal Connectors 1 x Chassis Intrusion Header
    1 x CPU Fan Connector (4-pin)
    1 x Chassis/Water Pump Fan Connector (4-pin)
    1 x 24 pin ATX Power Connector
    1 x 8 pin 12V Power Connector
    1 x Front Panel Header
    1 x USB 2.0 Header (Support 2 USB 2.0 ports) (Supports ESD Protection)
    Power Supply
    Power Supply 500W power supply (80+ Bronze, peak 550W)
    Physical SPEC
    Dimensions 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
    168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)

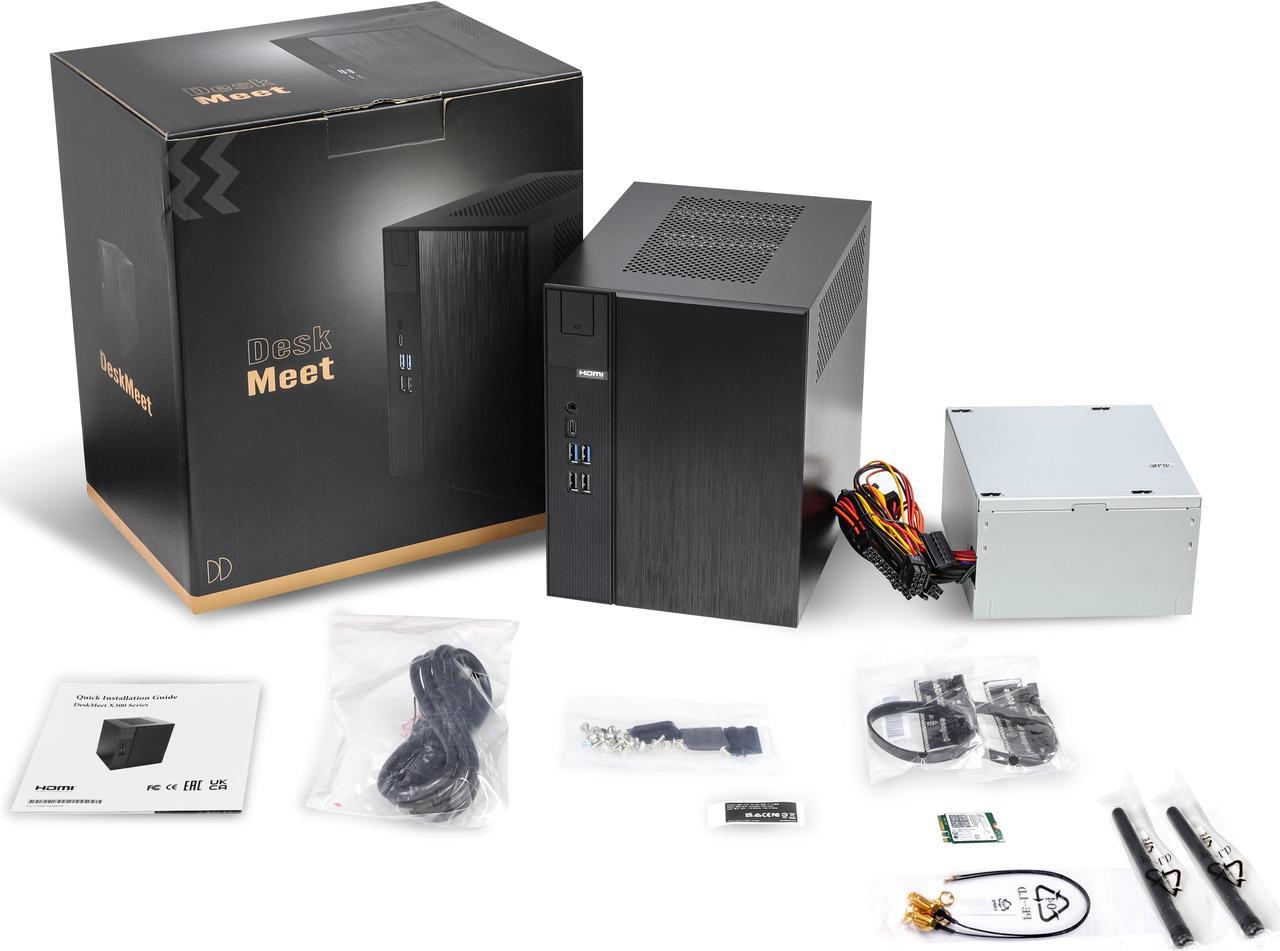

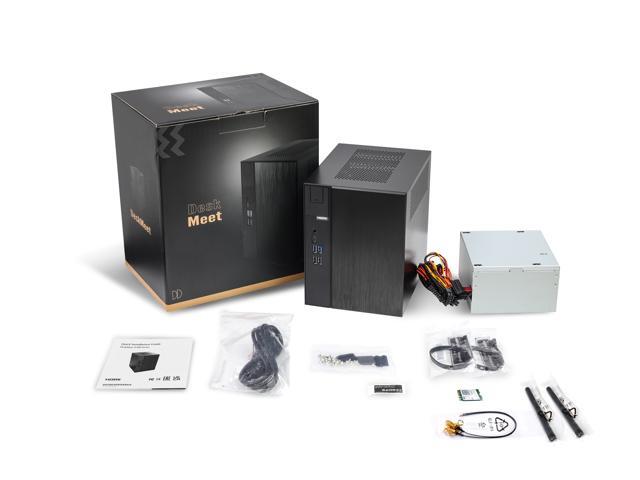

    Packaging
    Packaging Quick Installation Guide
    2 x SATA Data Cables
    1 x Screws Package
    Additional Information
    Date First Available May 06, 2024
